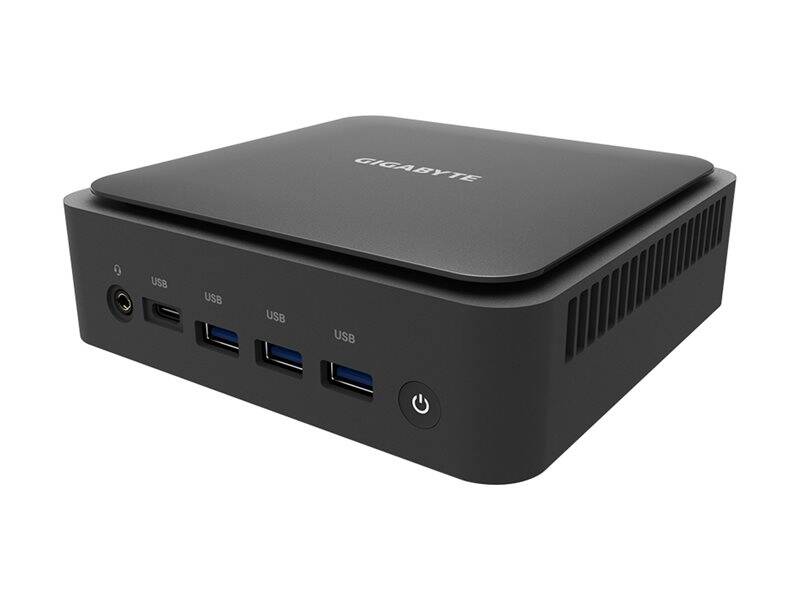

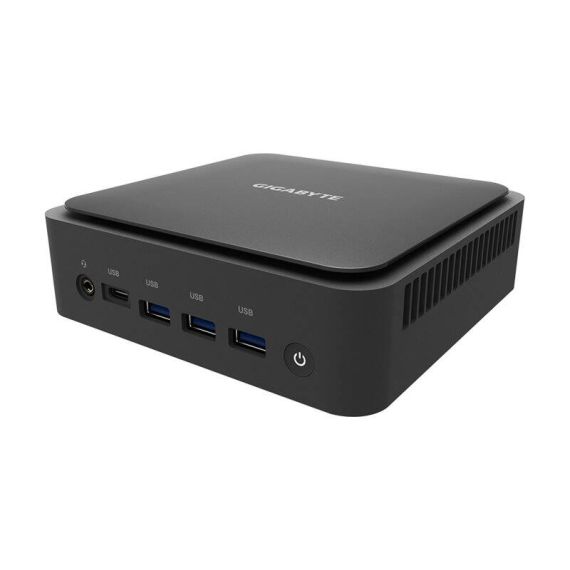

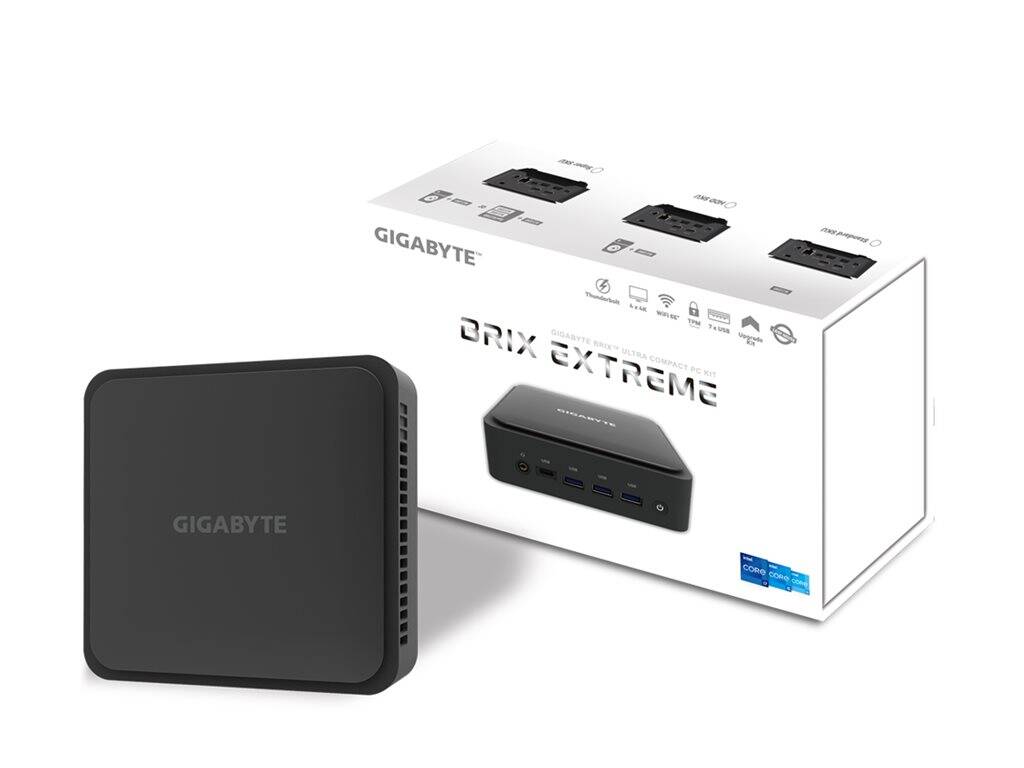

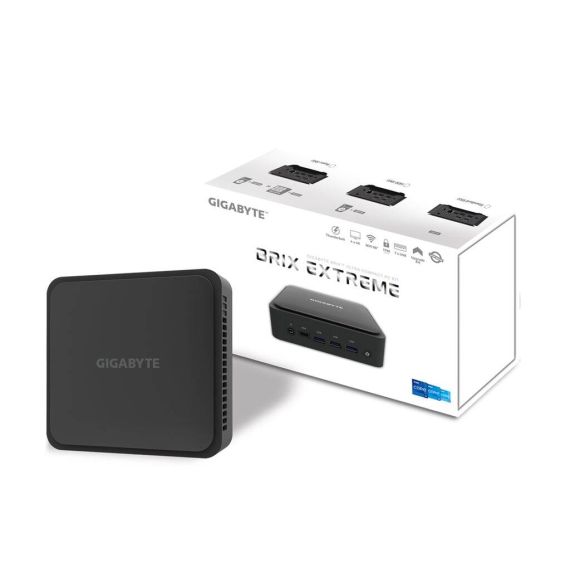

Gigabyte BRIX Extreme GB-BEi3H-1220 (rev / 1.0) - Barebone - mini PC 1 x Core i3 1220P / up to 4.4 GHz - RAM 0 GB - UHD Graphics - IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.2, Gigabit Ethernet, 2.5 Gigabit Ethernet | GB-BEI3H-1220
Gigabyte BRIX Extreme GB-BEi3H-1220 (rev / 1.0) - Barebone - mini PC 1 x Core i3 1220P / up to 4.4 GHz - RAM 0 GB - UHD Graphics - IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.2, Gigabit Ethernet, 2.5 Gigabit Ethernet | GB-BEI3H-1220
€355.82 inc. VAT
GB-BEI3H-1220
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Specification
| Type | PC barebone |
| Product Form Factor | Mini PC |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Processor / Chipset | |
| CPU | Intel Core i3 (12th Gen) 1220P |
| Clock Speed | 1.5 GHz |
| Max Turbo Speed | 4.4 GHz (P-core) / 3.3 GHz (E-core) |
| Number of Cores | 10-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Processor Main Features | Intel Smart Cache |
| Cache Memory | |
| Installed Size | 12 MB |
| Cache Per Processor | 12 MB |
| RAM | |
| Installed Size | 0 GB (installed) / 64 GB (max) |
| Technology | DDR4 SDRAM |
| Effective Memory Speed | 3200 MHz |
| Rated Memory Speed | 3200 MHz |
| Form Factor | SO-DIMM 260-pin |
| Slots | 2 (Total) / 2 (empty) |
| Hard Drive | |
| Type | No HDD |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | Intel UHD Graphics |
| Video Interfaces | HDMI, DisplayPort, USB-C |
| Max Monitors Supported | 4 |
| Audio Output | |
| Sound Output Mode | Stereo |
| Compliant Standards | High Definition Audio |
| Networking | |
| Ethernet Controller | Intel I225-V |
| Wireless LAN Supported | Yes |
| Data Link Protocol | IEEE 802.11g, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n, IEEE 802.11ax (Wi-Fi 6E), IEEE 802.11b, Bluetooth 5.2, Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet |
| Expansion / Connectivity | |
| Bays | 1 (total) / 1 (free) x internal 2.5" |
| Slots | 1 (total) / 1 (free) x M.2 Card - 2280 (PCIe 4.0 x4 mode) <br /> 1 (total) / 0 (free) x M.2 Card - 2230 (for wireless module) |

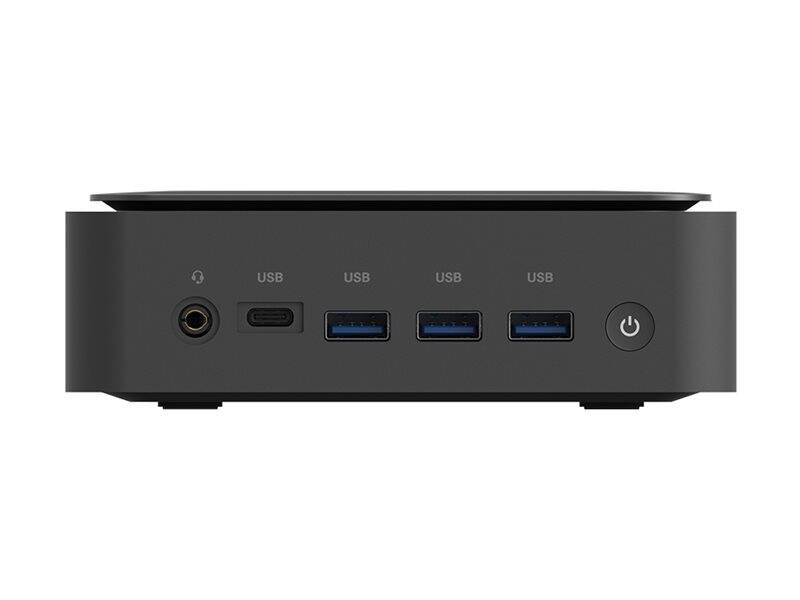

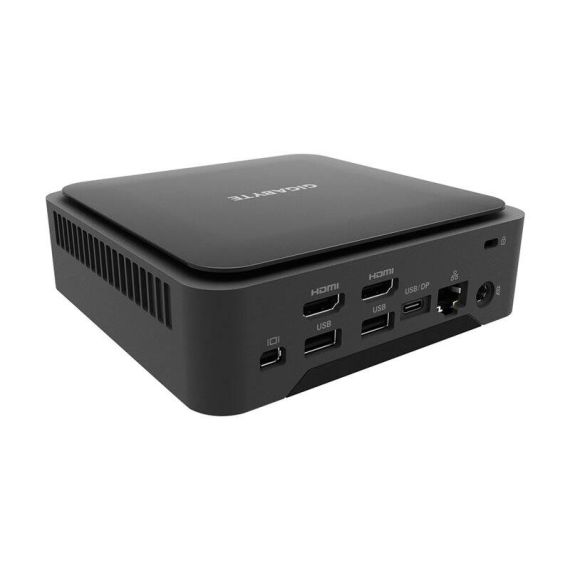

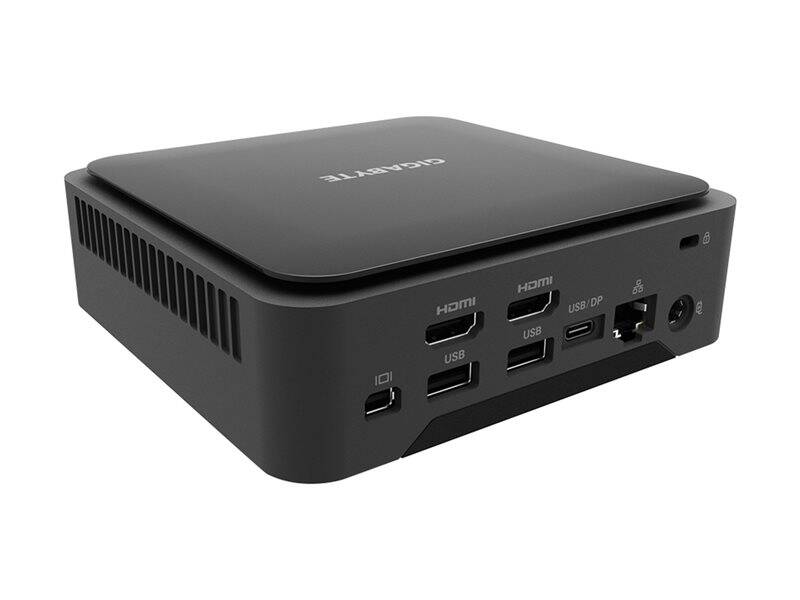

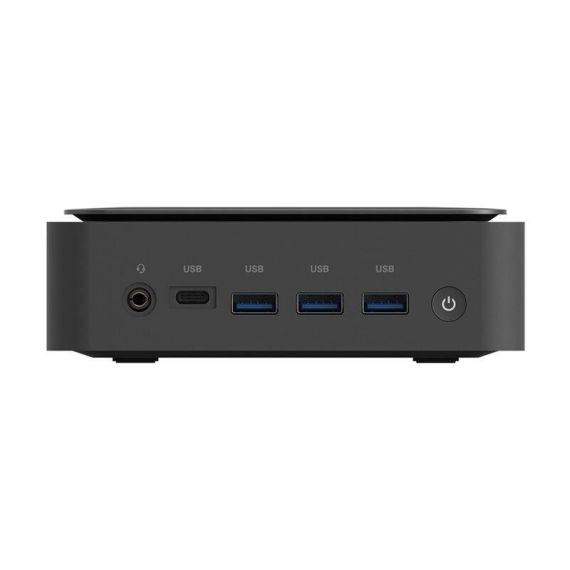

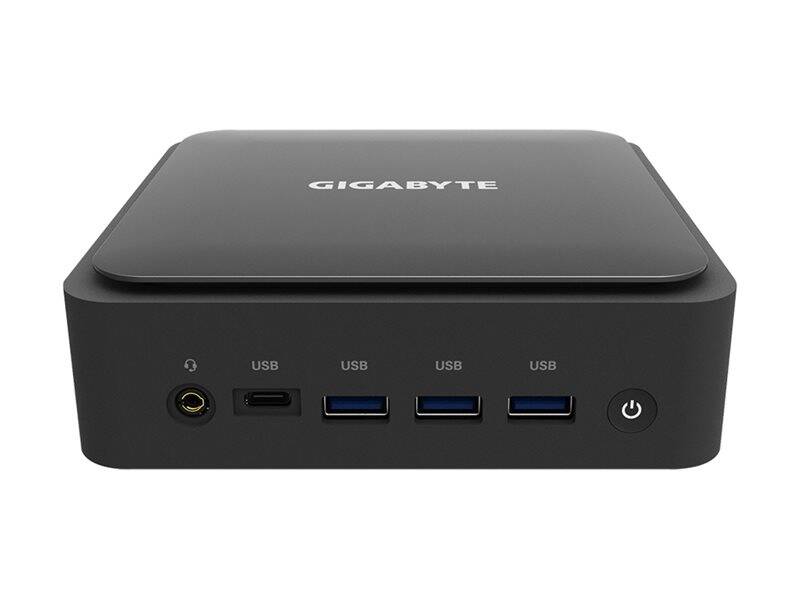

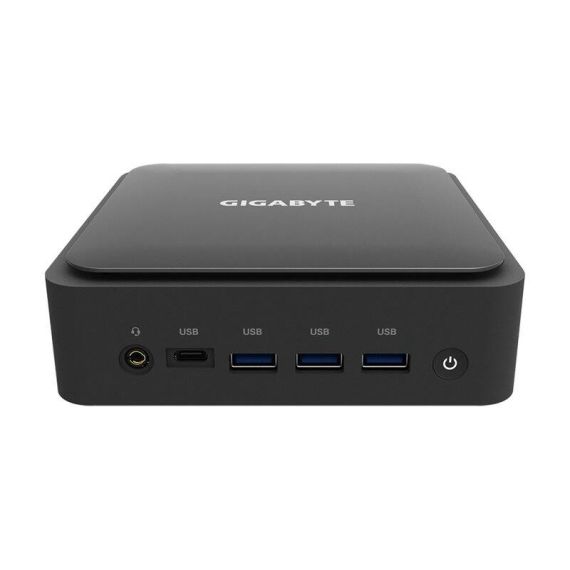

| Interfaces | 1 x USB-C 3.2 Gen 2 (1 front) <br /> 3 x USB 3.2 Gen 2 (3 in front) <br /> 1 x headphones/microphone - mini-jack (1 front) <br /> 2 x HDMI (2 rear) <br /> 1 x Mini DisplayPort (1 rear) <br /> 1 x Thunderbolt 4/USB4/DisplayPort (1 rear) <br /> 2 x USB 2.0 (2 rear) <br /> 1 x LAN (2.5Gigabit Ethernet) (1 rear) |
| Miscellaneous | |
| Included Accessories | VESA bracket |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington security slot |
| Power | |
| Device Type | Power adapter |
| Voltage Required | AC 100-240 V |
| Power Provided | 135 Watt |
| Operating System / Software | |
| OS Provided | No operating system |
| OS Certified | Windows 11, Windows 10 |
| Dimensions & Weight | |
| Width | 13.42 cm |
| Depth | 13.91 cm |
| Height | 5.2 cm |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 35 °C |
Features - GigaByte - GB-BEI3H-1220
CPU Type
- Intel Core i3
More Details
Product Code
07:21233216
EAN Code
4719331601768
Manufacturer
GigaByte
