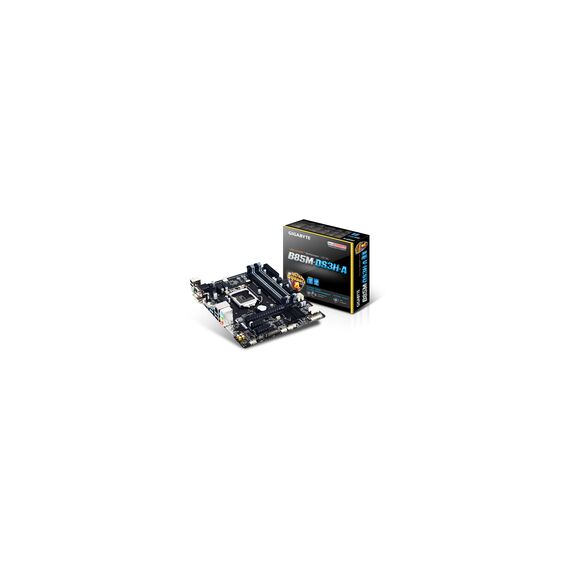

GigaByte GA-B85M-DS3H-A S1150 B85 MATX (GA-B85M-DS3H-A)

GigaByte GA-B85M-DS3H-A GigaByte GA-B85M-DS3H-A S1150 B85 MATX (GA-B85M-DS3H-A)

GIGABYTE 8 Series Motherboards

GIGABYTE 8 Series motherboards support the latest 4th Generation Intel® Core™ processors, bringing together a unique blend of features and technologies that offer the absolute ultimate platform for your next PC build. From high current capable digital power delivery, performance-enhancing caching technologies, exclusive high-end audio features, advanced networking and device charging, gold plated hardware connectors and of course, killer good looks, GIGABYTE 8 series motherboards are in a class of their own.

Next Gen Intel® 8 Series Platform
The latest Intel 8 Series platform offers significant improvements in performance and power consumption with the latest 4th generation Intel® Core™ processors and Intel® B85 chipsets. As well as a boost in overall productivity, the latest HD4600 Intel® processor graphics provide native 4K resolution playback over standard HDMI connectivity, with significantly higher frame rates in the latest DX11 3D game titles.

GIGABYTE Ultra Durable™ 4 Plus

GIGABYTE Ultra Durable™ 4 Plus debuts on GIGABYTE 8 Series motherboards, with a range of features and component choices that provide record-breaking performance, cool and efficient operation and extended motherboard lifespan.

Ultra Performance

GIGABYTE uses All Solid Caps Capacitors and Low RDSon MOSFETs which are rated to work at higher temperatures to provide a longer lifespan.

Ultra Safe

GIGABYTE UEFI DualBIOS™
GIGABYTE motherboards feature GIGABYTE DualBIOS™, an exclusive technology from GIGABYTE that protects arguably one of your PC's most crucial components, the BIOS. GIGABYTE DualBIOS™ means that your motherboard has both a 'Main BIOS' and a 'Backup BIOS', making users protected from BIOS failure due to virus attack, hardware malfunction, improper OC settings or power failure during the update process.

High Quality Audio Capacitors

GIGABYTE Ultra Durable™ motherboards use high quality Nippon Chemicon ARE series audio capacitors. These professional audio capacitors deliver the highest quality sound resolution and sound expansion to create the most realistic sound effects for user experience.

Dedicated Audio Hardware Zone

- Separation on the PCB layer protects the board's sensitive analog audio components.
- Separate analog and digital ground to protect against Electromagnetic Interference EMI.

High ESD Protection for USB and LAN USB 3.0 only

GIGABYTE 8 Series motherboards raise the bar in terms of protecting your system, providing advanced electrostatic discharge ESD protection for both your Ethernet LAN and USB ports, both common sources of ESD-related failures. Each LAN and USB port is paired with a dedicated protection filter that can withstand high electrostatic discharges, protecting your system from common electrical surges and even direct lighting strikes.

HDMI™-The Next Generation Multimedia Interface

HDMI™ is a High-Definition Multimedia Interface which provides up to 5Gb/s video transmitting bandwidth and 8-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video and audio, HDMI™ ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces and their digital-to-analog conversion. In addition, HDMI™ is compatible with HDCP High-bandwidth Digital Content Protection, allowing the playback of Blu-ray/HD DVD and other protected media content.

DVI Support

DVI Digital Visual Interface is a video interface standard designed for carrying uncompressed digital video data and to maximize the visual quality of digital display devices, such as LCD monitors, digital projectors, and so on. In addition, the DVI interface is compatible with HDCP High-bandwidth Digital Content Protection.

On/Off Charge Technology

GIGABYTE On/Off Charge technology allows you to charge your iPhone, iPad and iPod Touch regardless of whether your PC is on, in standby mode or even off. A derivative of GIGABYTE's highly acclaimed 3x USB Power feature, On/Off Charge enables devices to draw more current from GIGABYTE motherboard USB ports than standard USB ports allow, so that charging from your PC can be as fast as with a charger...

LAN Optimizer - Intelligent optimization network management tool

GIGABYTE LAN Optimizer is designed to allow the user to manage different types of network traffic so that data streams such as HD media, web browsing or online gaming can be prioritized, taking precedence over large data downloads that tend to strangle overall network bandwidth.

GIGABYTE App Center

GIGABYTE App Center gives you easy access to wealth of GIGABYTE apps that help you get the most from your GIGABYTE motherboard. Using a simple, unified user interface, GIGABYTE App Center allows you to launch all GIGABYTE apps installed on your system.

GIGABYTE EasyTune

GIGABYTE EasyTune provides a simple and easy-to-use interface that allows users to fine-tune their system settings.

GIGABYTE Smart Fan 2
As well as offering more system fans than ever before, GIGABYTE 8 Series motherboards feature updated and improved CPU and system fan speed controls, with individual airflow and speed settings available via a dedicated digital controller. GIGABYTE Smart Fan 2 allows you to configure CPU fans and system fans.

GIGABYTE @BIOS

The new and updated GIGABYTE @BIOS app allows you to update your system's BIOS from within Windows using a simple and slick graphical user interface by automatically downloading the latest version from the GIGABYTE servers.

GIGABYTE EZ Setup

GIGABYTE EZ Setup combines several key utilities designed to simplify install and configuration procedures for several exclusive GIGABYTE apps including Disk Mode Switch, Smart Connect, EZ Rapid Start and EZ Smart response.

Feature list

Supported memory types:	DDR3-SDRAM
Memory slots type:	DIMM
Memory channels:	Dual
Non-ECC:	Y
Supported memory clock speeds:	1333, 1600 MHz
Maximum internal memory:	32 GB
Processor family:	Intel
Compatible processor series:	Celeron, Core i3, Core i5, Core i7
Processor socket:	Socket H3 LGA 1150
Maximum number of SMP processors:	1
USB 2.0 connectors:	2
USB 3.0 connectors:	1
Supported hard disk drive interfaces:	Serial ATA II, Serial ATA III
CPU fan connector:	Y
ATX Power connector 24-pin:	Y
Number of chassis fan connectors:	1
Front panel audio connector:	Y
Number of SATA II connectors:	2
Number of SATA III connectors:	4
EPS power connector 8-pin:	Y
Parallel connector:	Y
Serial port headers:	1
Serial port via internal header:	Y
Parallel port via internal header:	Y
USB 2.0 ports quantity:	4
USB 3.0 ports quantity:	2
Ethernet LAN RJ-45 ports:	1
PS/2 ports quantity:	1
Headphone outputs:	1
Microphone in:	Y
VGA D-Sub ports quantity:	1
DVI-D ports quantity:	1
HDMI ports quantity:	1
HDMI version:	1.4a
Ethernet LAN:	Y
Wi-Fi:	N
Ethernet interface type:	Gigabit
Bluetooth:	N
Component for:	PC
Motherboard chipset family:	Intel
Motherboard chipset:	Intel B85
Motherboard form factor:	Micro ATX
Audio output channels:	7.1
Audio system:	Realtek ALC887
PC health monitoring:	CPU, FAN, Temperature
Windows operating systems supported:	Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Maximum resolution:	4096 x 2160 pixels
Discrete graphics support:	Y
PCI Express x1 Gen 2.x slots:	2
PCI Express x16 Gen 3.x slots:	1
BIOS type:	EFI AMI
BIOS memory size:	4 MB
ACPI version:	5.0
Clear CMOS jumper:	Y
Width:	226 mm
Depth:	193 mm
Bundled software:	Norton Internet Security OEM versionIntel Rapid Start TechnologyIntel Smart Connect Technology
