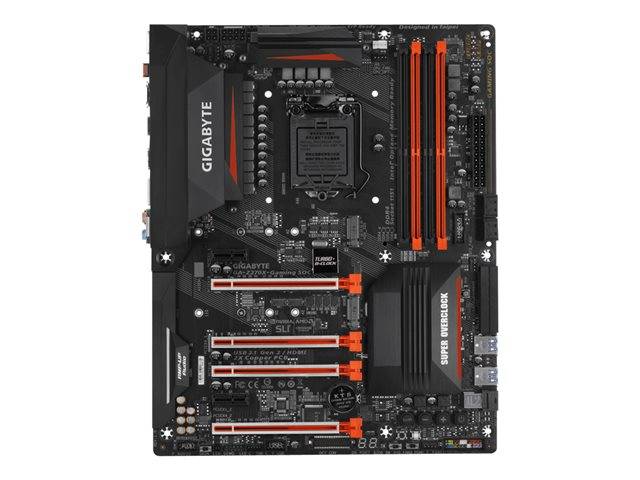

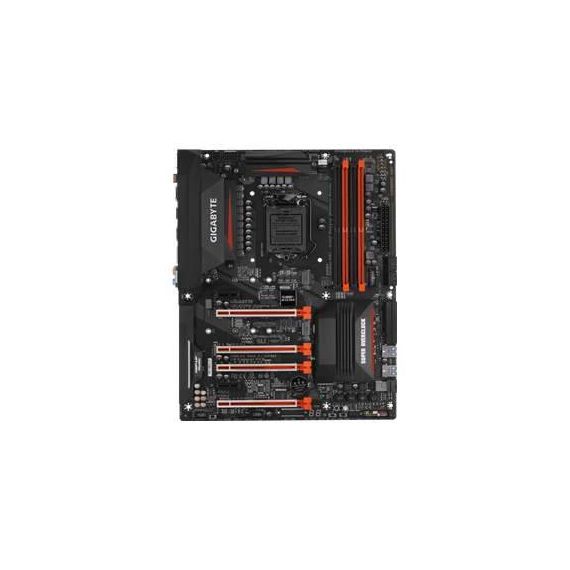

Gigabyte GA-Z270X-Gaming SOC / 1.0 / motherboard / ATX / LGA1151 Socket / Z270 / USB 3.1 Gen1, USB-C Gen2, USB 3.1 Gen2 / Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | GA-Z270X-GAMING SOC
Gigabyte GA-Z270X-Gaming SOC / 1.0 / motherboard / ATX / LGA1151 Socket / Z270 / USB 3.1 Gen1, USB-C Gen2, USB 3.1 Gen2 / Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | GA-Z270X-GAMING SOC
|
Description Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion, the user has complete control over the LEDs which surround the motherboard. With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.GIGABYTE Gaming motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide realistic sound effects for gamers. OC Connect positions two USB connectors on the near side of the motherboard facing the overclocker. This makes it easier to save data, flash the BIOS or install software in open bench testing platforms whether for extreme overclocking or simply pretesting the PC before final component installation inside a case scenarios where accessing the rear panel I/O can be an inconvenience.Turbo B-Clock Tuning IC in the GIGABYTE 200 series motherboards enables overclockers to have the ability to change their BCLK frequency to a desired value of their choice. Onboard LEDs controlled by the system BIOS indicate if a malfunction is occurring, allowing users to quickly diagnose which major component (CPU/DDR/VGA/HDD) is malfunctioning so they may take action promptly. Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an anti-sulfur design GIGABYTE gives Ultra Durable motherboards a whole new meaning. Special Features
Product features
|
Product Specification
| Product Type | Motherboard - ATX |
| Chipset Type | Intel Z270 Express |
| Processor Socket | LGA1151 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | Pentium, Celeron, Core i5, Core i3, Core i7 (supports 6th and 7th Generation Intel Core i3 / i5 / i7 / Pentium / Celeron) |
| Max Size | 64 GB |
| Technology | DDR4 |
| Bus Clock | 2400 MHz, 2133 MHz, 2800 MHz (O.C.), 2666 MHz (O.C.), 3000 MHz (O.C.), 3200 MHz (O.C.), 3300 MHz (O.C.), 3400 MHz (O.C.), 3333 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3800 MHz (O.C.), 3666 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.) |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Max Allocated RAM Size | 1 GB |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC1220 |
| Compliant Standards | High Definition Audio |
| Network Interfaces | Gigabit Ethernet |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 3.0 x16 (x16 mode (x8 mode if PCI Express 3.0 x8 slot is occupied)) ¦ 1 x PCIe 3.0 x16 (x8 mode (x4 mode if PCI Express 3.0 x4 slot is occupied)) ¦ 2 x PCIe 3.0 x16 (x4 mode) ¦ 2 x PCIe 3.0 x1 |
| Storage Interfaces | SATA-600 -connectors: 6 x 7pin SATA, 2 x SATA Express port - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ ASMedia ASM1061: SATA-600 -connectors: 2 x 7pin Serial ATA ¦ SATA-600 / PCIe 3.0 -connectors: 2 x M.2 ¦ PCIe 3.0 -connectors: 1 x U.2 |
| Interfaces | 1 x DisplayPort ¦ 1 x HDMI ¦ 1 x USB-C Gen2 ¦ 1 x USB 3.1 Gen2 ¦ 1 x audio line-out - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x LAN (Gigabit Ethernet) ¦ 4 x USB 3.1 Gen1 ¦ 2 x USB 2.0 ¦ 1 x PS/2 keyboard / mouse ¦ 1 x TOSLINK |
| Internal Interfaces | 2 x USB 2.0 - header ¦ 2 x USB 3.1 Gen1 - header ¦ 2 x USB 3.1 Gen1 - Type A ¦ 1 x audio - header ¦ 1 x SPDIF out - header |
| Power Connectors | 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector |
| BIOS Type | AMI |
| BIOS Features | WfM 2.0 support, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support, Dual BIOS |
| Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU overheating protection |
| Hardware Features | Diagnostic LEDs, Q-Flash, AutoGreen, Intel Extreme Memory Profile (XMP) support, NVIDIA Quad SLI Technology Support, NVIDIA 2-way SLI Technology Support, On/Off Charge, Ultra Durable, AMD CrossFireX technology support, AMD Quad CrossFireX technology support, AMD 3-way CrossFireX technology support, Easy RAID Installer, GIGABYTE AMP-UP Audio, 2x Copper PCB, Black Solid Capacitors, GIGABYTE OC Connect, upgradable OP-AMP, Turbo B-Clock, Game Boost, TI Burr Brown NE5532 operational amplifier, Ultra Durable PCIe Metal Shielding, GIGABYTE Double Locking Bracket, Anti-Sulfur Design, G-Connector, GIGABYTE USB DAC-UP 2, Intel Optane Memory Ready, GIGABYTE Smart Fan 5, RGB FUSION, Ultra Durable PCIe Armor |
| Included Accessories | I/O back plate, dust covers, G-Connector |
| Cables Included | 4 x Serial ATA cable ¦ 1 x SLI bridge |
| Software Included | Drivers & Utilities, Norton Internet Security, @BIOS, EasyTune, Cloud Station, Xpress Install, GIGABYTE USB Blocker, GIGABYTE App Center, cFosSpeed, Smart TimeLock, GIGABYTE Fast Boot, GIGABYTE V-Tuner, GIGABYTE Smart Keyboard, GIGABYTE Smart Backup, GIGABYTE HW OC APP, GIGABYTE Smart Fan 5, GIGABYTE 3D OSD |
| Compliant Standards | Plug and Play |
| Width | 30.5 cm |
| Depth | 24.4 cm |
