Gigabyte GeForce RTX 2060 D6 12G / Graphics card / GF RTX 2060 / 12 GB GDDR6 / PCIe 3.0 x16 / HDMI, 3 x DisplayPort | GV-N2060D6-12GD
Product Features

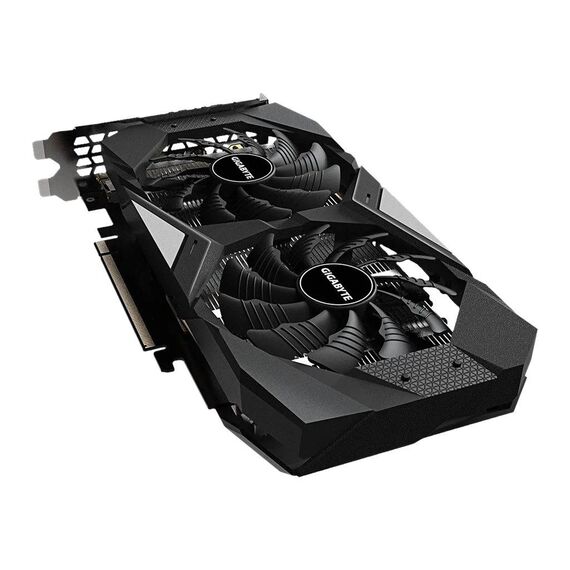

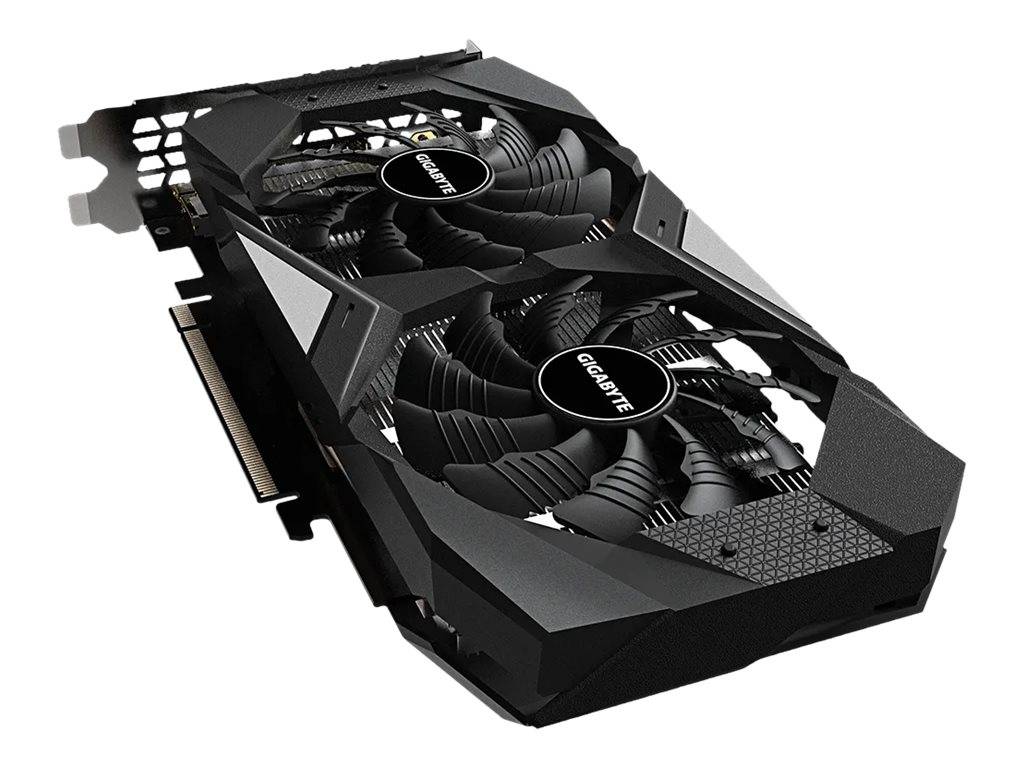

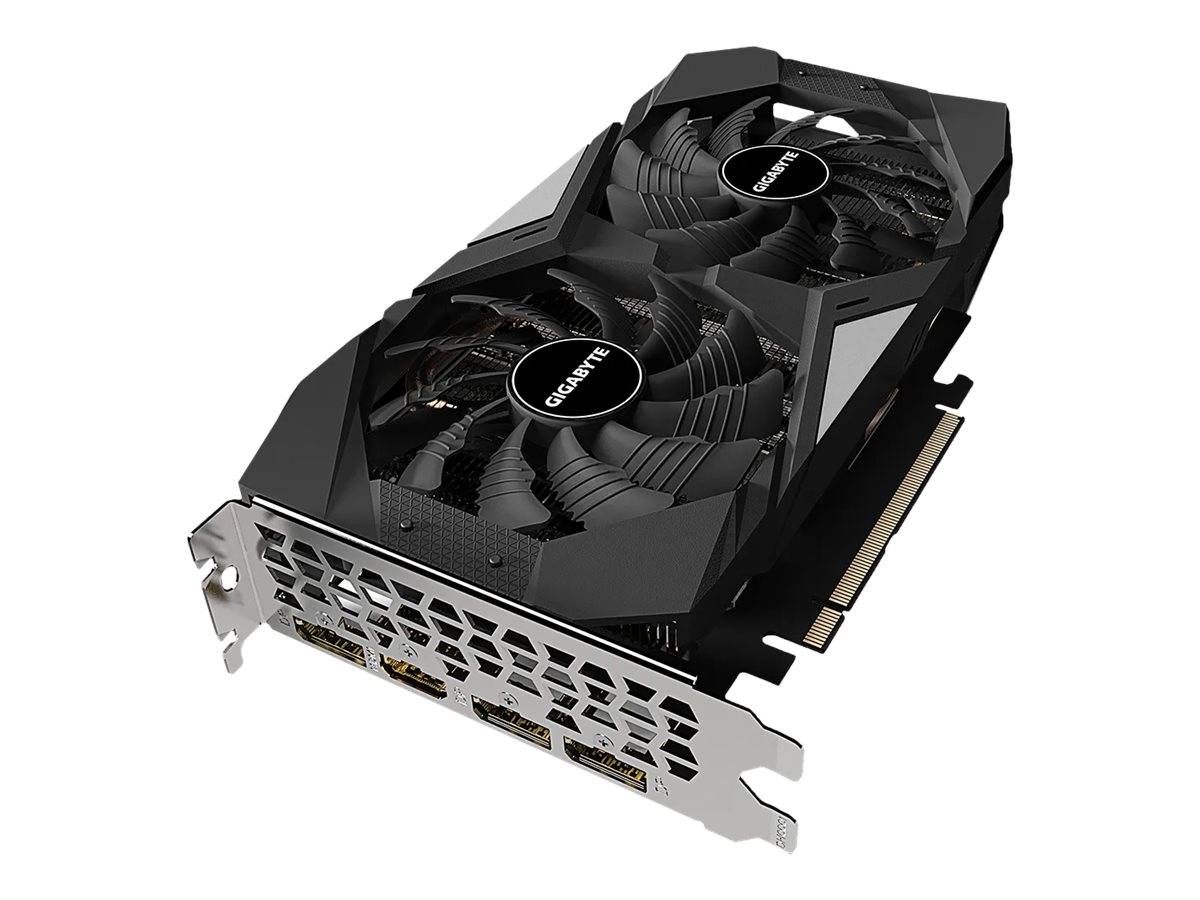

- WINDFORCE 2X cooling system
WINDFORCE 2X cooling system features two 90mm unique blade fans, alternate spinning, one composite copper heat pipe direct touches the GPU and 3D active fans, together delivering an effective heat dissipation capacity for higher performance at lower temperatures. - Alternate Spinning
The GIGABYTE "Alternate Spinning" is the only solution that can solve the turbulent airflow of adjacent fans. Since the adjacent fans rotate in the same direction, the airflow direction is opposite between the fans, which will cause turbulent airflow and reduce heat dissipation efficiency. GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure. - Unique blade fan
The airflow is split by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow. - 3D Active Fan
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle. - Composite heat-pipe
The composite heat-pipe combines thermal conductivity and phase transition to efficiently manage the heat transfer between two solid interfaces which increases cooling capacity. - Protection back plate
The back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
Special Features
- Powered by GeForce RTX 2060
- Integrated with 12GB GDDR6 192-bit memory interface
- WINDFORCE 2X cooling system with alternate spinning fans
- 90mm unique blade fans
- Protection back plate
Product Specification
Device Type | Graphics card |
Bus Type | PCI Express 3.0 x16 |
Graphics Engine | NVIDIA GeForce RTX 2060 |
Core Clock | 1650 MHz |
CUDA Cores | 2176 |
VR Ready | Yes |
Max Resolution | 7680 x 4320 |

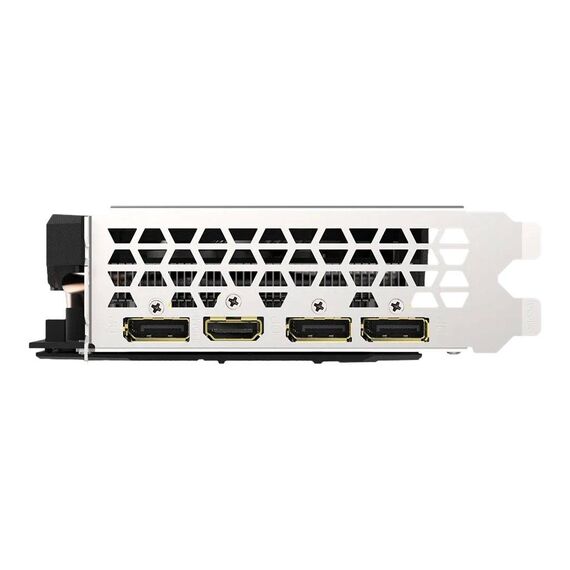

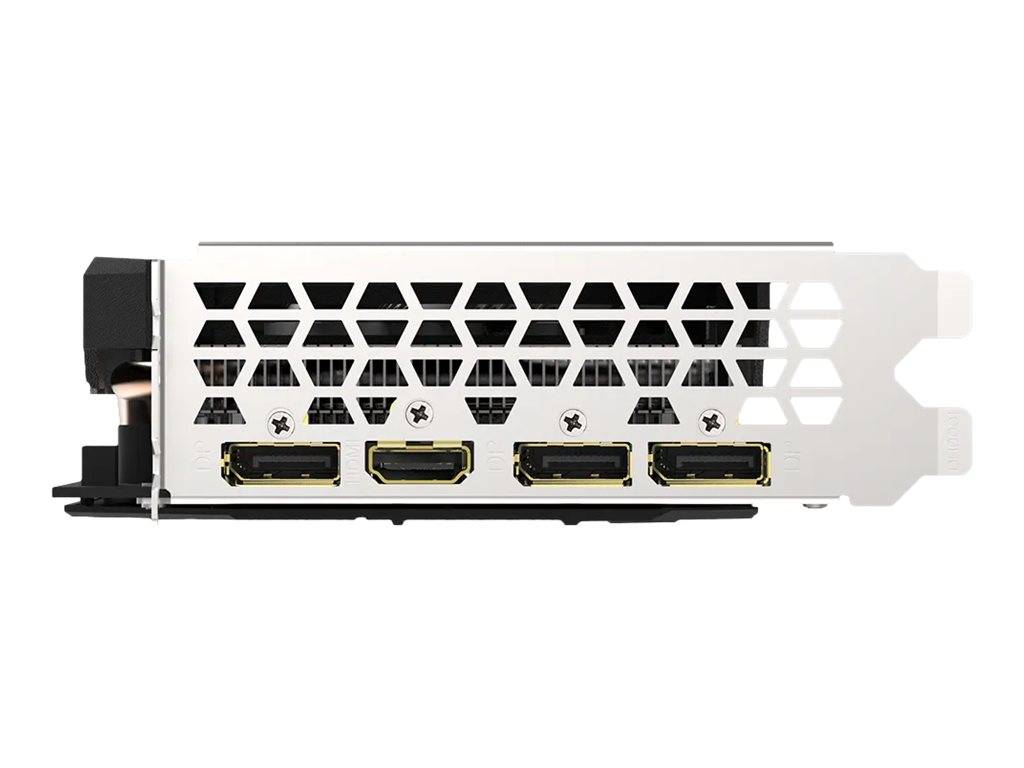

Interfaces | 3 x DisplayPort ¦ HDMI |
API Supported | DirectX 12, OpenGL 4.6 |
Features | Ultra Durable VGA, GIGABYTE WindForce 2x, NVIDIA G-Sync ready, NVIDIA GameWorks, Heat Pipe Direct Touch technology, 90mm Unique blade fan design, Real-Time Ray Tracing, NVIDIA Turing GPU architecture, Gigabyte Alternate Spinning, 3D Active Fan |
Memory | Memory |
Size | 12 GB |
Technology | GDDR6 SDRAM |
Effective Clock Speed | 14000 MHz |
Bus Width | 192-bit |
Bandwidth | 336 GBps |
System Requirements | System Requirements |
Required Power Supply | 550 W |
Additional Requirements | 8 pin PCI Express power connector |
Miscellaneous | Miscellaneous |
Software Included | AORUS Engine |
Compliant Standards | DisplayPort 1.4 |
Width | 4.1 cm |
Depth | 22.4 cm |
Height | 12.1 cm |
