Gigabyte GeForce RTX 2060 SUPER GAMING OC 8G / Graphics card / GF RTX 2060 Super / 8 GB GDDR6 / PCIe 3.0 x16 / HDMI, 3 x DisplayPort, USB-C | GV-N206SGAMING OC-8GC
Gigabyte GeForce RTX 2060 SUPER GAMING OC 8G / Graphics card / GF RTX 2060 Super / 8 GB GDDR6 / PCIe 3.0 x16 / HDMI, 3 x DisplayPort, USB-C | GV-N206SGAMING OC-8GC
Description
The WINDFORCE 3X cooling system features unique blade fans, alternate spinning fan, 4 composite copper heat pipes, heat-pipe direct touch and 3D active fan functionality, together delivering an effective heat dissipation capacity for higher performance at lower temperatures. With 16.7M customizable color options and numerous lighting effects, you can choose lighting effects or synchronize with other AORUS devices.The graphics card uses the 6+2 power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life. The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
Gigabyte GeForce RTX 2060 SUPER GAMING OC 8G / Graphics card | GV-N206SGAMING OC-8GC
Special Features
- WINDFORCE 3X cooling system
- RGB Fusion 2.0
- Extreme durability and overclocking
- Protection metal back plate
Product features
- WINDFORCE 3X cooling system
The WINDFORCE 3X cooling system features unique blade fans, alternate spinning fan, 4 composite copper heat pipes, heat-pipe direct touch and 3D active fan functionality, together delivering an effective heat dissipation capacity for higher performance at lower temperatures. - RGB Fusion 2.0
With 16.7M customizable color options and numerous lighting effects, you can choose lighting effects or synchronize with other AORUS devices. - Extreme durability and overclocking
The graphics card uses the 6+2 power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life. - Protection metal back plate
The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
Product Specification
| Device Type | Graphics card |
| Bus Type | PCI Express 3.0 x16 |
| Graphics Engine | NVIDIA GeForce RTX 2060 Super |
| Boost Clock | 1815 MHz |
| CUDA Cores | 2176 |
| Max Resolution | 7680 x 4320 at 60 Hz |
| Max Monitors Supported | 4 |

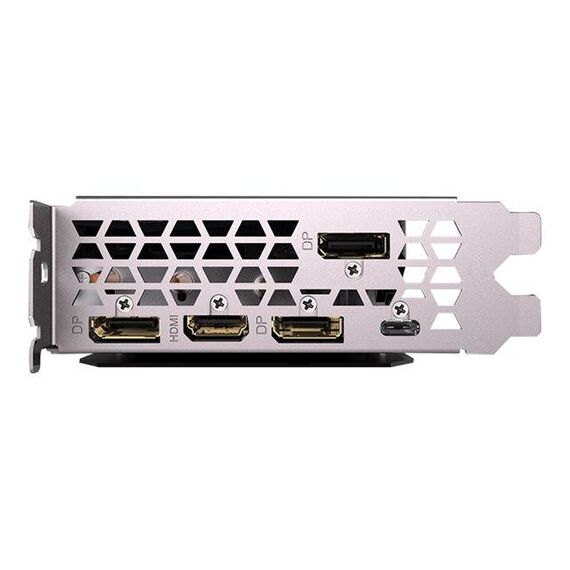

| Interfaces | 3 x DisplayPort ¦ USB-C ¦ HDMI |
| API Supported | DirectX 12, OpenGL 4.5 |
| Features | Ultra Durable VGA, GIGABYTE WindForce 3x, 6+2 Phase Power Design, NVIDIA G-Sync ready, Heat Pipe Direct Touch technology, 80mm Unique blade fan design, NVIDIA G-Sync HDR ready, 45T RTX-OPS performance, RGB Fusion 2.0, Gigabyte Alternate Spinning |
| Size | 8 GB |
| Technology | GDDR6 SDRAM |
| Effective Clock Speed | 14000 MHz |
| Bus Width | 256-bit |
| Bandwidth | 448 GBps |
| Required Power Supply | 550 W |
| Additional Requirements | 6-pin + 8-pin PCI Express power connectors |
| Software Included | Drivers & Utilities |
| Compliant Standards | DisplayPort 1.4 |
| Width | 4.024 cm |
| Depth | 28.035 cm |
| Height | 11.645 cm |
