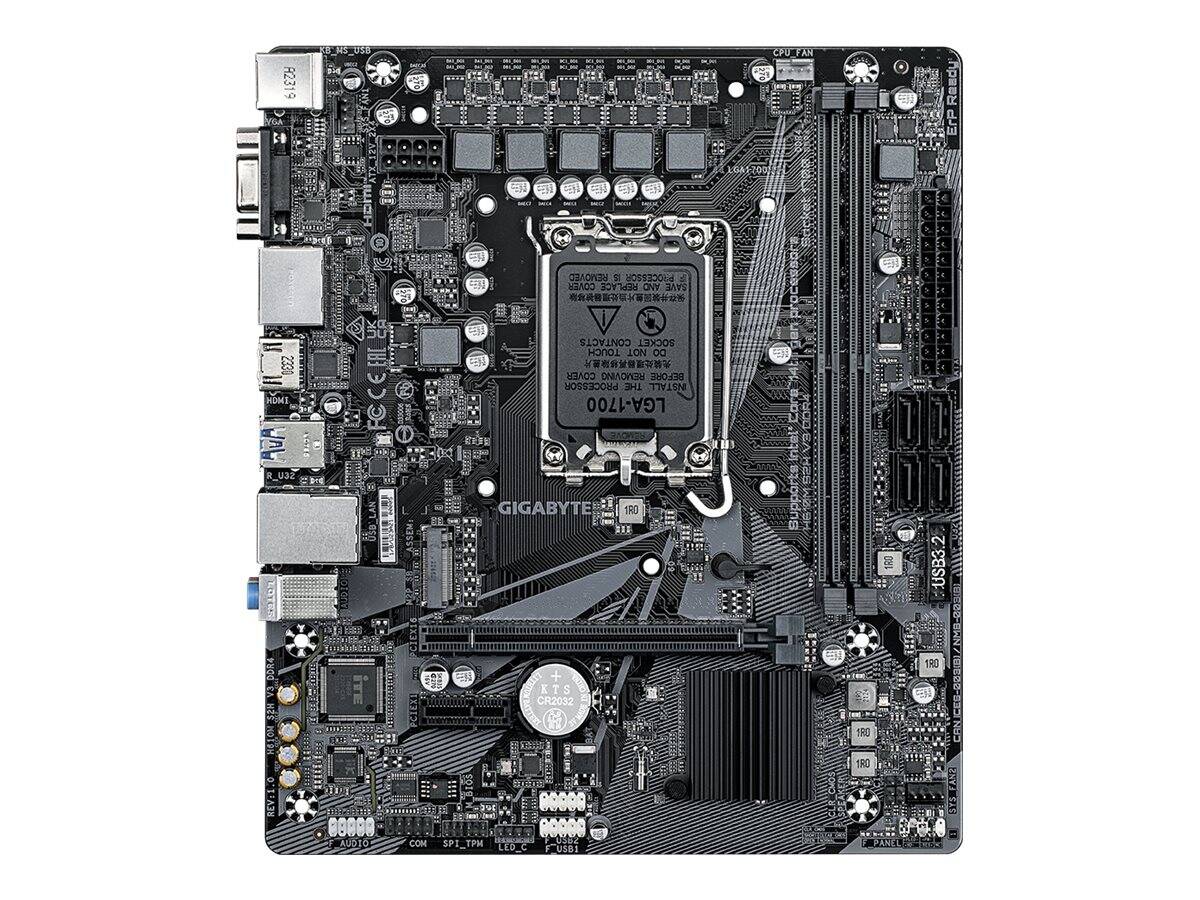

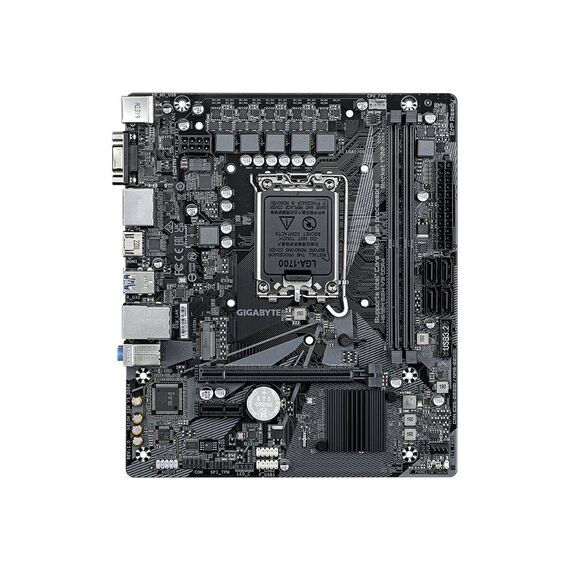

Gigabyte H610M S2H V3 DDR4 / 1.0 / motherboard / micro ATX / LGA1700 Socket / H610 Chipset / USB 3.2 Gen 1 / Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | H610M S2H V3 DDR4
Please sign in so that we can notify you about a reply
Product Specification
| Product Type | Motherboard - micro ATX |
| Chipset Type | Intel H610 |
| Processor Socket | LGA1700 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports 12th/13th and 14th Generation Intel Core / Pentium Gold / Celeron) |
| Supported RAM | Supported RAM |
| Max Size | 64 GB |
| Technology | DDR4 |
| Bus Clock | 2400 MHz, 2133 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3200 MHz |
| Supported RAM Integrity Check | Non-ECC, ECC (operate in non-ECC mode) |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), supported ECC modules operate in non-ECC mode |
| Audio | Audio |
| Type | HD Audio (8-channel) |
| Compliant Standards | High Definition Audio |
| LAN | LAN |
| Network Interfaces | Gigabit Ethernet |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x PCIe 3.0 x1 ¦ 1 x M.2 socket (2260/2280 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA ¦ PCIe 3.0 -connectors: 1 x M.2 |
| Interfaces | 2 x DisplayPort ¦ 1 x HDMI ¦ 1 x VGA ¦ 4 x USB 2.0 ¦ 2 x USB 3.2 Gen 1 ¦ 1 x audio line-out - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x PS/2 keyboard / mouse |
| Internal Interfaces | 4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x SPI - header ¦ 1 x serial - header ¦ 1 x speaker - header ¦ 1 x audio - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Features | Features |
| BIOS Type | AMI |
| BIOS Features | WfM 2.0 support, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support |
| Hardware Monitoring | System voltage, water cooling flow rate, fan fail warning, fan control, fan speed detection, temperature detection |
| Hardware Features | Q-Flash, 4+1+1 Phase Power Design, Dr.MOS MOSFET, Audio Noise Guard, Anti-Sulfur Design, Solid Pin Power Connectors, GIGABYTE Smart Fan 6, 50A Power Stage |
| Miscellaneous | Miscellaneous |
| Software Included | Norton Internet Security (OEM Version) |
| Width | 23 cm |
| Depth | 19.3 cm |
Features - GigaByte - H610M S2H V3 DDR4
CPU Socket
- Socket 1700
More Details
Product Code
03:228607
EAN Code
4719331859732
Manufacturer
GigaByte
