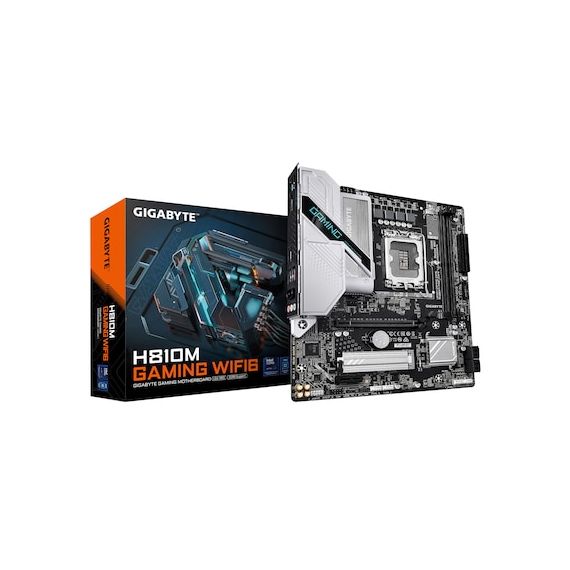

Gigabyte H810M GAMING WIFI6 / Motherboard / micro ATX / LGA1851 Socket / H810 Chipset / USB-C 3.2 Gen 1, USB 3.2 Gen 1 / Wi-Fi 6, Bluetooth, 2.5 Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | H810M Gaming WIFI6
Gigabyte H810M GAMING WIFI6 / Motherboard / micro ATX / LGA1851 Socket / H810 Chipset / USB-C 3.2 Gen 1, USB 3.2 Gen 1 / Wi-Fi 6, Bluetooth, 2.5 Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | H810M Gaming WIFI6
€171.86 inc. VAT
H810M Gaming WIFI6
Sales 8%
Promotion details
Sales at Singular store
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
- Efficient Cooling Design
The motherboard is equipped with a M.2 Thermal Guard which helps to maintain optimal temperatures for M.2 drives, enhancing performance and longevity. - Comprehensive Connectivity Options
With a range of ports, including multiple USB types, HDMI, and DisplayPort, users can easily connect various devices to enhance their computing experience. - Support for High-Speed RAM
This motherboard supports DDR5 RAM with speeds of up to 3200 MHz, allowing for fast and efficient data processing and multitasking capabilities. - Robust Networking Capabilities
Featuring 2.5 Gigabit Ethernet and Bluetooth 5.3, the motherboard ensures quick Internet access and easy connections to wireless peripherals. - User-Friendly Design
The DIY-friendly design includes solid pin power connectors and a well-structured layout, making assembly and upgrades straightforward.
Special Features
- Supports Intel Core Ultra processors for robust performance
- Features dual-channel memory architecture for efficient processing
- Offers multiple connectivity options including USB 3.2 and HDMI
- Equipped with 2.5 Gigabit Ethernet for high-speed networking
- Includes M.2 Thermal Guard to maintain component performance
Product Specification
| Product Type | Motherboard - micro ATX |
| Chipset Type | Intel H810 |
| Processor Socket | LGA1851 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports Intel Core Ultra processors (Series 2)) |
| Supported RAM | Supported RAM |
| Max Size | 128 GB |
| Technology | DDR5 |
| Bus Clock | 3200 MHz, 2800 MHz |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Audio | Audio |
| Type | HD Audio (8-channel) |
| Compliant Standards | High Definition Audio |
| LAN | LAN |
| Network Interfaces | 802.11a/b/g/n/ac/ax, Bluetooth 5.3, 2.5 Gigabit Ethernet |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU 2 x DIMM 288-pin 1 x PCIe 4.0 x16 PCIe 3.0 x1 1 x M.2 socket (2280 M.2 slot) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
| Interfaces | 1 x USB 3.2 Gen 1 5 x USB 2.0 1 x HDMI 1 x DisplayPort 1 x LAN (2.5Gigabit Ethernet) 1 x audio line-in - mini-jack 1 x audio line-out - mini-jack 1 x microphone - mini-jack 1 x PS/2 keyboard / mouse |
| Internal Interfaces | 1 x USB-C 3.2 Gen 1 - header 2 x USB 3.2 Gen 1 - header 2 x USB 2.0 - header 1 x serial - header 1 x audio - header 1 x SPDIF out - header 1 x SPI - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Features | Features |
| BIOS Type | AMI |
| Hardware Features | Q-Flash, DIY Friendly Design, Ultra Durable, 4+2+1 Phase Power Design, VRM heatsink design, M.2 Thermal Guard, Solid Pin Power Connectors |
| Miscellaneous | Miscellaneous |
| Software Included | GIGABYTE Control Center |
| Width | 24.4 cm |
| Depth | 21.5 cm |
Features - GigaByte - H810M Gaming WIFI6
CPU Socket
- Socket 1851
More Details
Product Code
04:521331
EAN Code
4719331869090
Manufacturer
GigaByte
No posts found
