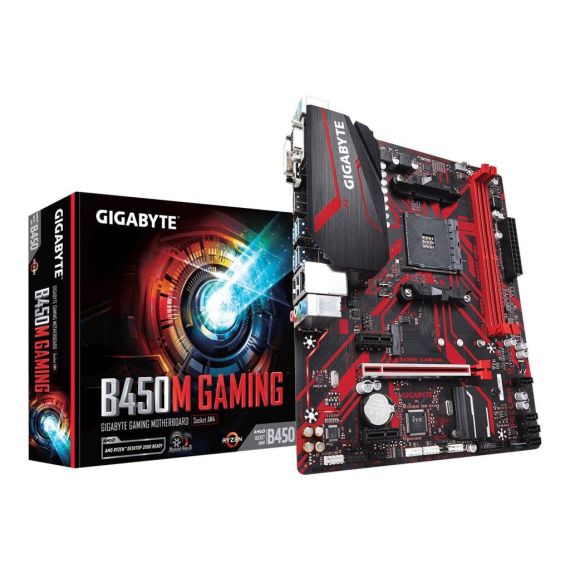

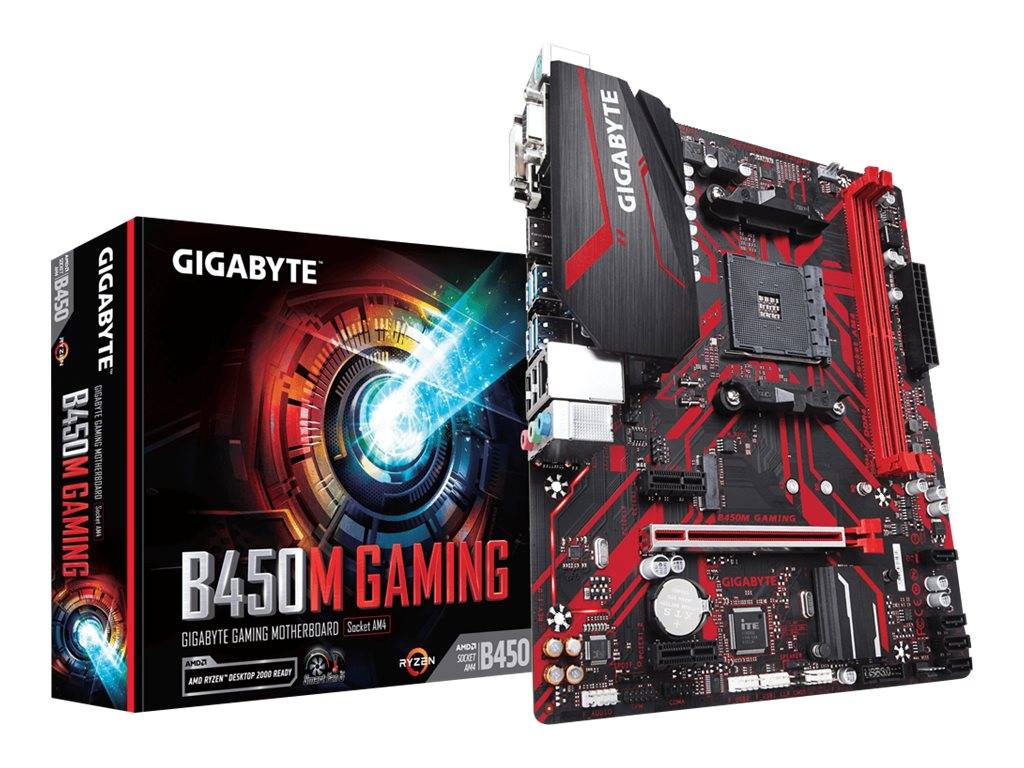

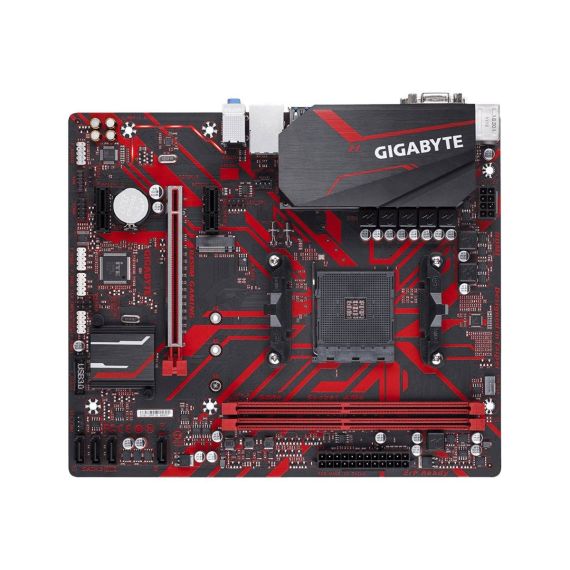

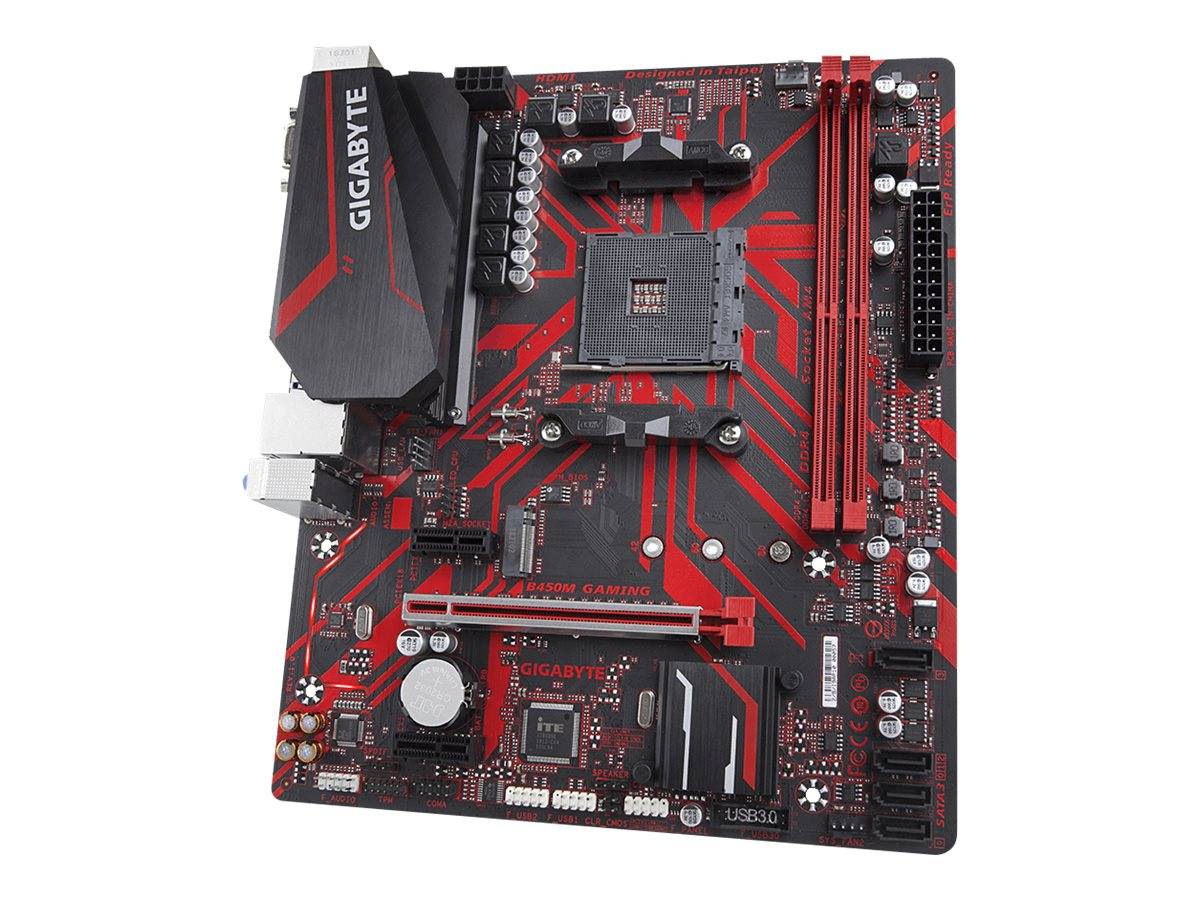

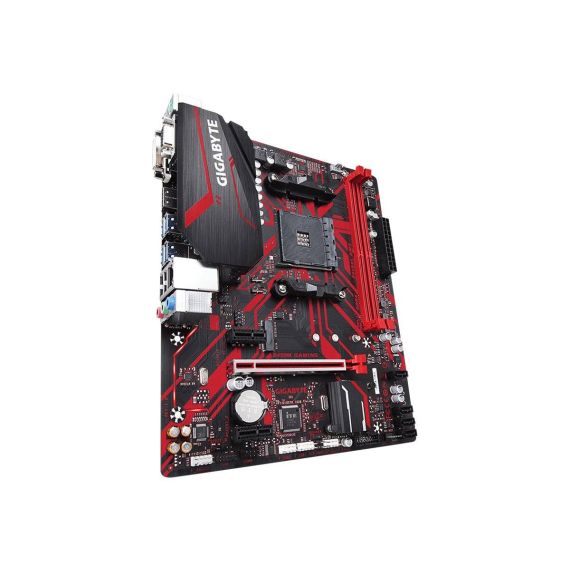

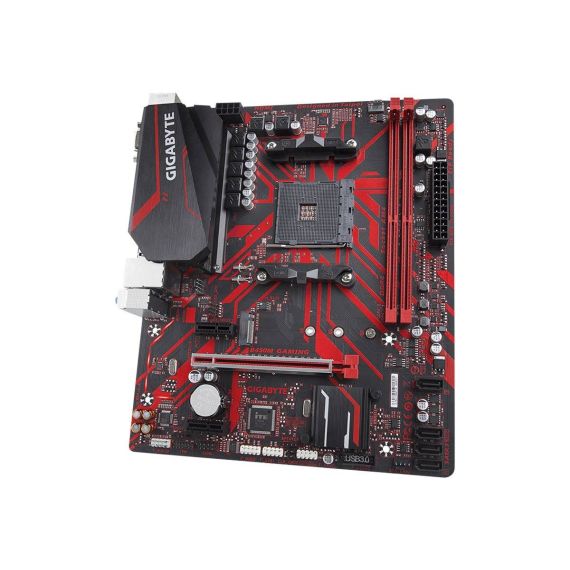

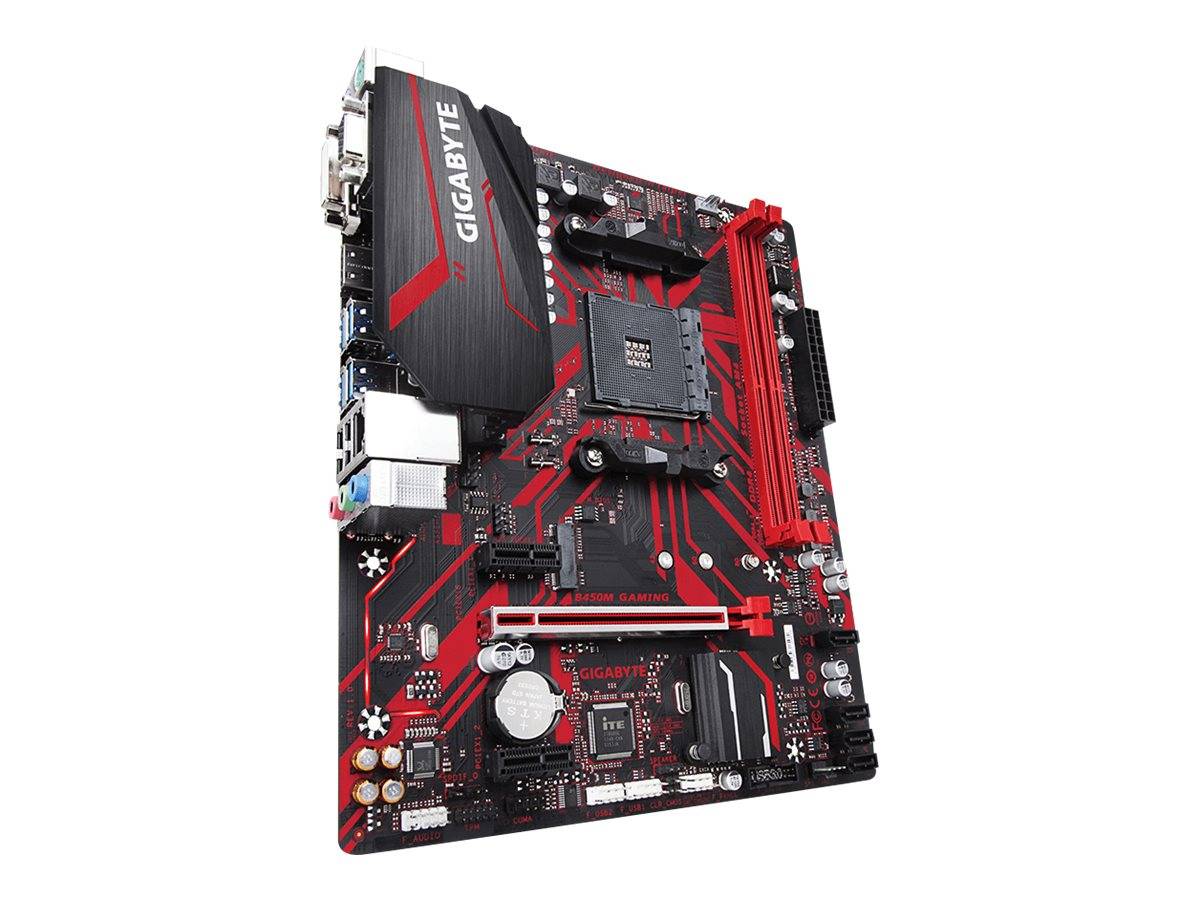

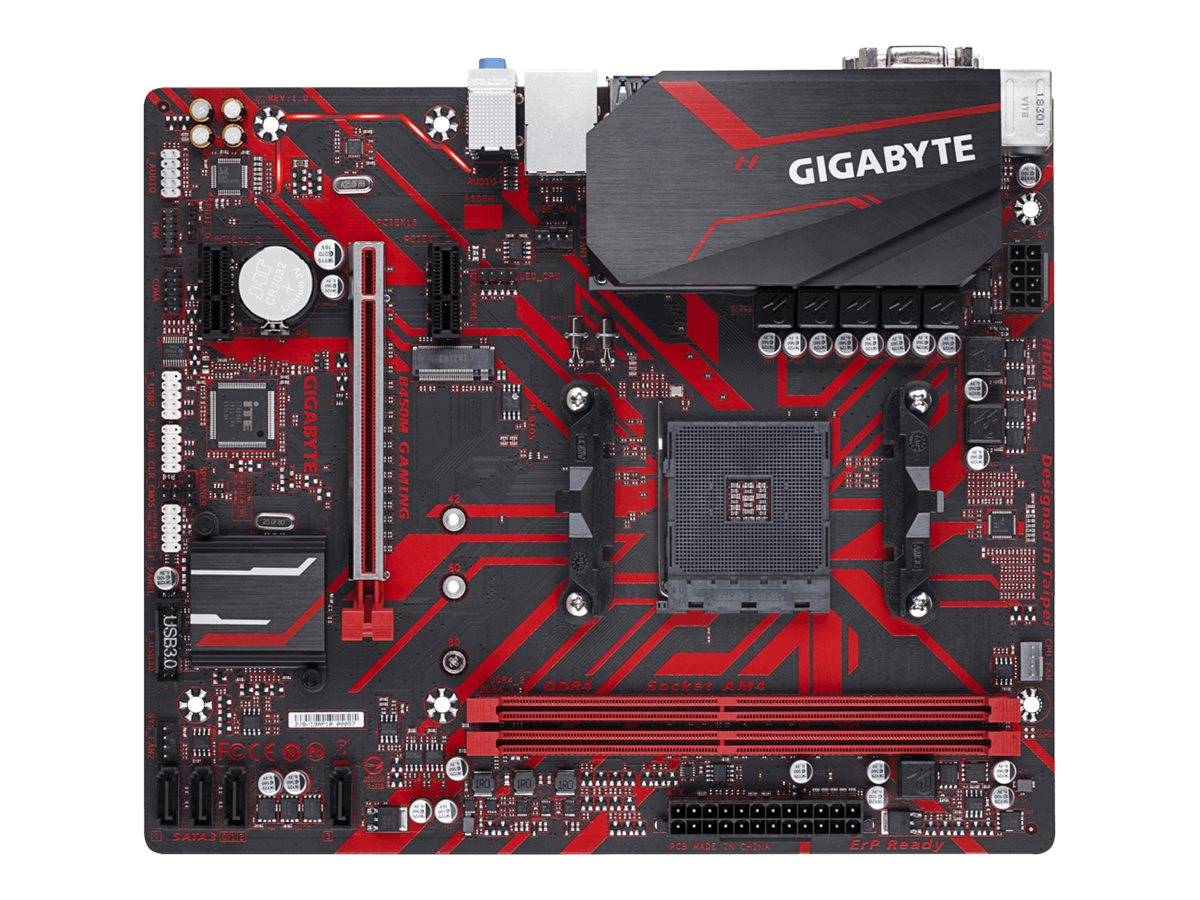

Gigabyte B450M GAMING / 1.0 / motherboard / micro ATX / Socket AM4 / AMD B450 Chipset / USB 3.1 Gen 1 / Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | B450M GAMING
B450M GAMING
Sales 8%
Promotion details
Sales at Singular store
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
- Fast onboard storage with NVMe PCIe Gen3 x4 M.2
GIGABYTE's M.2 solution offers considerably faster storage performance and support for both PCIe and SATA interfaces for M.2 SSD devices. - Smart Fan 5
With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly. - Intelligent fan control design
Achieve fan silence. With Fan Stop, map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on the readings from which sensor, and at what temperature - all of it can be customized to your liking. - High-end audio capacitors
GIGABYTE motherboards use high-end audio capacitors. These high-quality capacitors help deliver high-resolution and high-fidelity audio to provide the most realistic sound effects for gamers. - Ultra Durable PCIe armor
The innovative one-piece stainless steel shielding design from GIGABYTE reinforces the PCIe connectors to provide the extra strength required to support heavy graphics cards.
Special Features
- Fast onboard storage with NVMe PCIe Gen3 x4 M.2
- Smart Fan 5
- Intelligent fan control design
- High-end audio capacitors
- Ultra Durable PCIe armor
Product Specification
| Product Type | Motherboard - micro ATX |
| Chipset Type | AMD B450 |
| Processor Socket | Socket AM4 |
| Max Processors Qty | 1 |
| Compatible Processors | Ryzen (supports 1st and 2nd Generation Ryzen / Ryzen with Radeon Vega Graphics) |
| Supported RAM | Supported RAM |
| Max Size | 32 GB |
| Technology | DDR4 |
| Bus Clock | 2400 MHz, 2133 MHz, 2667 MHz, 2933 MHz |
| Supported RAM Integrity Check | Non-ECC, ECC (operate in non-ECC mode) |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), supported ECC modules operate in non-ECC mode |
| Graphics | Graphics |
| Max Allocated RAM Size | 2 GB |
| Audio | Audio |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC887 |
| Compliant Standards | High Definition Audio |
| LAN | LAN |
| Network Controller | Realtek RTL8118 |
| Network Interfaces | Gigabit Ethernet |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 3.0 x16 ¦ 2 x PCIe 2.0 x1 |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe -connectors: 1 x M.2 |

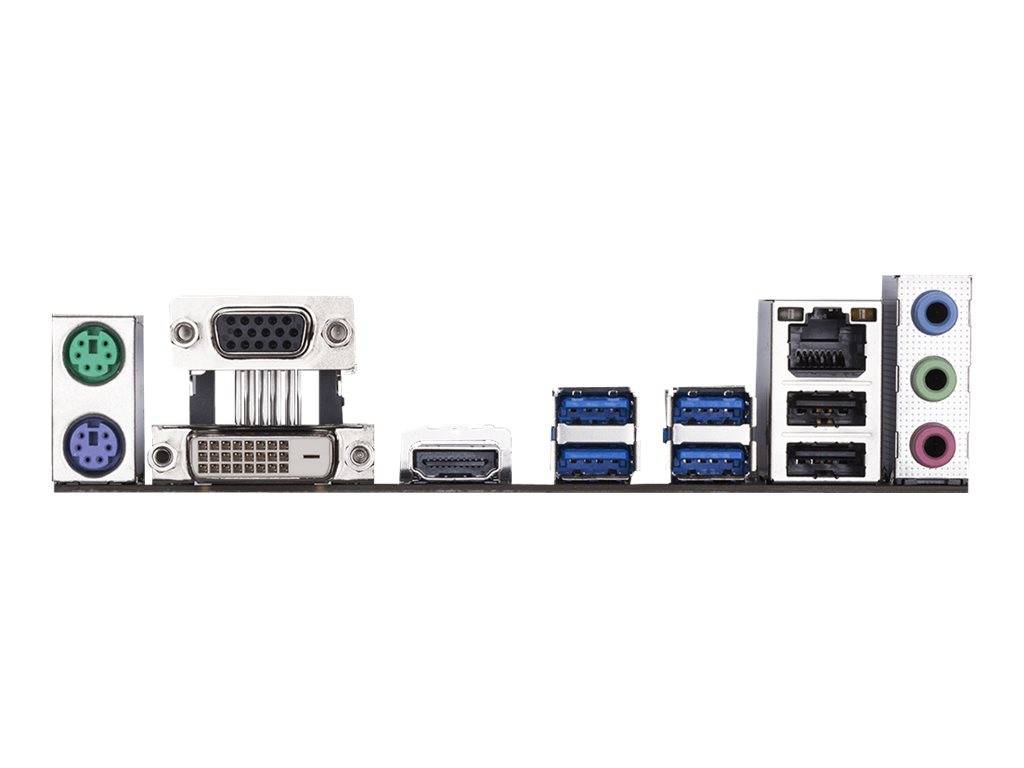

| Interfaces | 1 x LAN (Gigabit Ethernet) ¦ 1 x PS/2 keyboard ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x DVI-D ¦ 1 x HDMI ¦ 4 x USB 3.1 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x VGA ¦ 1 x PS/2 mouse |
| Internal Interfaces | 4 x USB 2.0 - header ¦ 2 x USB 3.1 Gen 1 - header ¦ 1 x audio - header ¦ 1 x SPDIF out - header ¦ 1 x serial - header ¦ 1 x speaker - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Features | Features |
| BIOS Type | AMI |
| BIOS Features | WfM 2.0 support, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support |
| Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU overheating protection, CPU core voltage |
| Hardware Features | Q-Flash, AutoGreen, All-Solid Capacitor motherboard Design, On/Off Charge, Audio Noise Guard with Path Lighting, GIGABYTE Double Locking Bracket, Anti-Sulfur Design, GIGABYTE Smart Fan 5, RGB FUSION, Ultra Durable PCIe Armor, RGBW LED strips support, Glass Fabric PCB, AMD StoreMI technology, 4+3 Hybrid Digital PWM, Solid Pin Power Connectors |
| Miscellaneous | Miscellaneous |
| Software Included | Norton Internet Security, @BIOS, EasyTune, Cloud Station, Xpress Install, GIGABYTE USB Blocker, GIGABYTE App Center, Smart TimeLock, GIGABYTE Fast Boot, GIGABYTE V-Tuner, GIGABYTE Smart Keyboard, GIGABYTE Smart Backup, GIGABYTE Smart Fan 5, GIGABYTE 3D OSD, GIGABYTE Smart HUD, GIGABYTE Smart Survey, Realtek Gaming LAN Bandwidth Control |
| Width | 24.4 cm |
| Depth | 20.5 cm |
Features - GigaByte - B450M GAMING
More Details
Product Code
03:123545
EAN Code
4719331804497
Manufacturer
GigaByte
