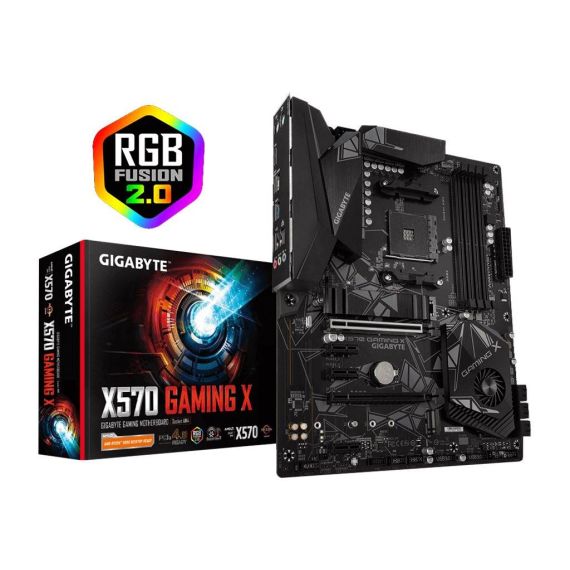

Gigabyte X570 GAMING X / 1.0 / motherboard / ATX / Socket AM4 / AMD X570 Chipset / USB 3.2 Gen 1 / Gigabit LAN / onboard graphics (CPU required) / HD Audio (6-channel) | X570 GAMING X
X570 GAMING X
Sales 8%
Promotion details
Sales at Singular store
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
- Full PCIe 4.0 design
GIGABYTE X570 motherboards push the envelope once again by featuring Full PCIe 4.0 design, including PCIe 4.0 slots, PCIe 4.0 M.2 connectors and delivering highly optimized performance and flexibility demanded for power users and extreme gaming enthusiasts. - Next generation connectivity
A high-end product needs to be future-proof so your system stays up-to-date with the latest technology. GIGABYTE motherboards provide all next generation network, storage to keep you up to speed. - Smart Fan 5
With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly. - Multi-zone light show design
RGB Fusion 2.0 offers users the option to control onboard RGB and external RGB/Addressable LED light strips for their PC. With external Addressable LED strips, where each LED is digitally addressable, users can experience even more patterns, styles, and illuminations. - High-end audio capacitors
GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers. - Audio noise guard
GIGABYTE motherboards feature an audio noise guard that essentially separates the board's sensitive analog audio components from potential noise pollution at the PCB level.
Special Features
- Full PCIe 4.0 design
- Next generation connectivity
- Smart Fan 5
- Multi-zone light show design
- High-end audio capacitors
- Audio noise guard
Product Specification
| Product Type | Motherboard - ATX |
| Chipset Type | AMD X570 |
| Processor Socket | Socket AM4 |
| Max Processors Qty | 1 |
| Compatible Processors | Ryzen (supports 2nd and 3rd Generation Ryzen / 1st and 2nd Generation Ryzen with Radeon Vega Graphics) |
| Supported RAM | Supported RAM |
| Max Size | 128 GB |
| Technology | DDR4 |
| Bus Clock | 2400 MHz, 2133 MHz, 2667 MHz, 2933 MHz, 3300 MHz (O.C.), 3400 MHz (O.C.), 3333 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3800 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 3200 MHz |
| Supported RAM Integrity Check | Non-ECC, ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Graphics | Graphics |
| Max Allocated RAM Size | 16 GB |
| Audio | Audio |
| Type | HD Audio (6-channel) |
| Audio Codec | Realtek ALC887 |
| Compliant Standards | High Definition Audio |
| LAN | LAN |
| Network Interfaces | Gigabit Ethernet |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 (PCIe 4.0 x16 mode (with 3rd Generation Ryzen CPU); PCIe 3.0 x16 mode (with 2nd Generation Ryzen CPU); PCIe 3.0 x8 mode (with Ryzen CPU with Radeon Vega Graphics / 2nd Generation Ryzen CPU with Radeon Graphics)) ¦ 1 x PCIe 4.0 x16 (x4 mode) ¦ 3 x PCIe 4.0 x1 |
| Storage Interfaces | SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 4.0 -connectors: 2 x M.2 |

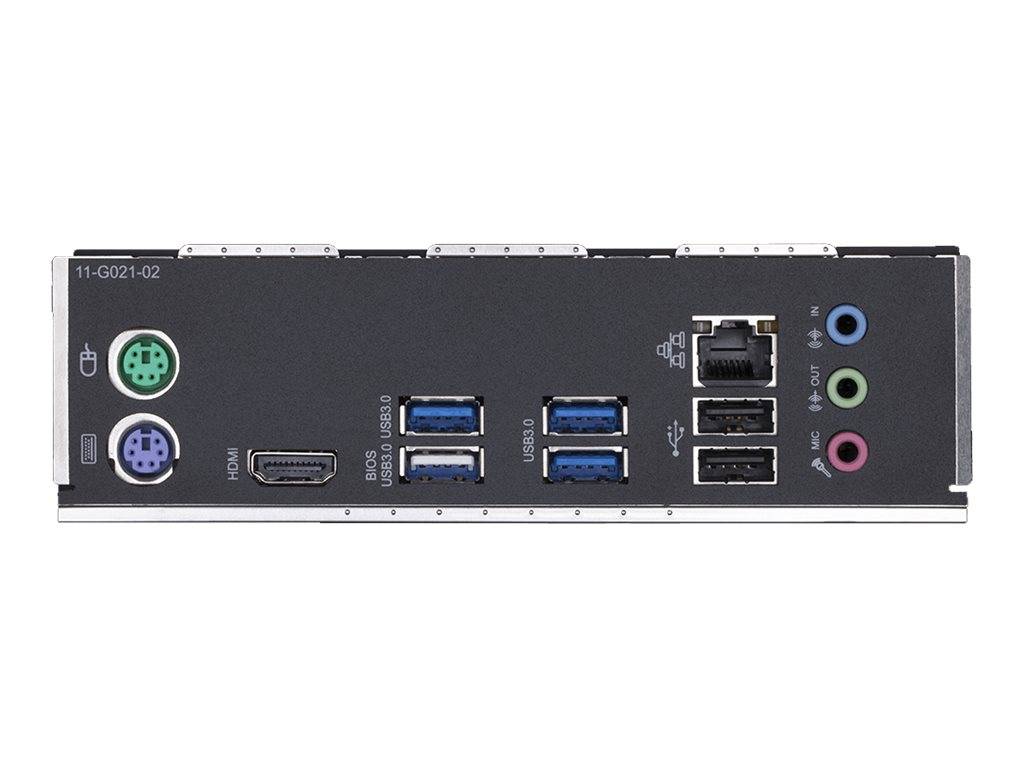

| Interfaces | 1 x LAN (Gigabit Ethernet) ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x HDMI ¦ 4 x USB 3.2 Gen 1 ¦ 1 x PS/2 keyboard ¦ 1 x PS/2 mouse ¦ 2 x USB 2.0 |
| Internal Interfaces | 4 x USB 2.0 - header ¦ 4 x USB 3.2 Gen 1 - header ¦ 1 x audio - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Features | Features |
| BIOS Type | AMI |
| BIOS Features | WfM 2.0 support, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support |
| Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU overheating protection, CPU core voltage, water cooling flow rate |
| Hardware Features | AutoGreen, On/Off Charge, AMD CrossFireX technology support, AMD Quad CrossFireX technology support, Q-Flash Plus, Audio Noise Guard, GIGABYTE Double Locking Bracket, GIGABYTE Smart Fan 5, Ultra Durable PCIe Armor, M.2 Thermal Guard, pre-mounted I/O shield, 10+2 Phase IR Digital PWM Design, AMD StoreMI technology, Solid Pin Power Connectors, RGB FUSION 2.0, Advanced Thermal Design with Enlarge Heatsink |
| Miscellaneous | Miscellaneous |
| Software Included | Norton Internet Security, @BIOS, EasyTune, Cloud Station, Xpress Install, GIGABYTE USB Blocker, GIGABYTE App Center, Smart TimeLock, GIGABYTE Fast Boot, GIGABYTE V-Tuner, GIGABYTE Smart Keyboard, GIGABYTE Smart Backup, GIGABYTE Smart Fan 5, GIGABYTE 3D OSD, GIGABYTE Smart HUD, GIGABYTE Smart Survey, Realtek Gaming LAN Bandwidth Control |
| Width | 30.5 cm |
| Depth | 24.4 cm |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 3 years |
