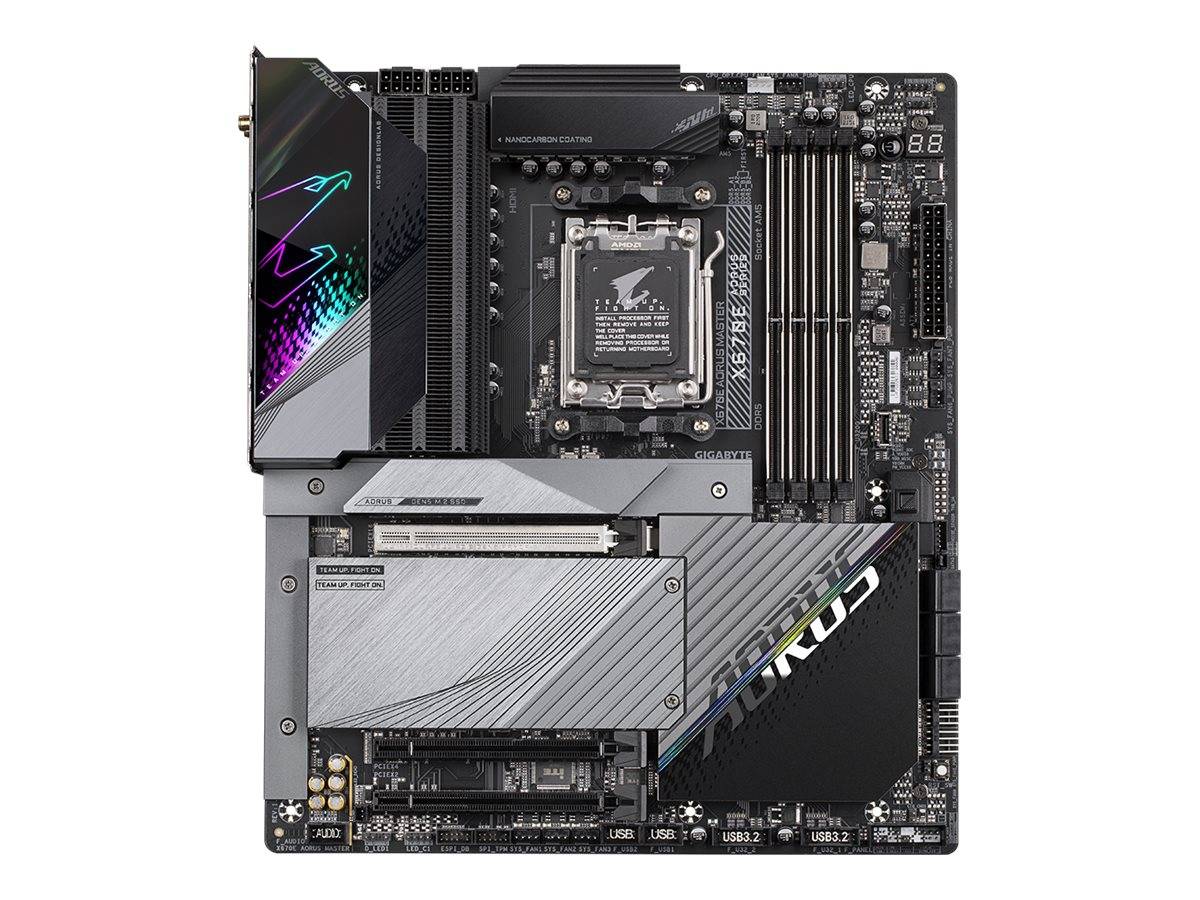

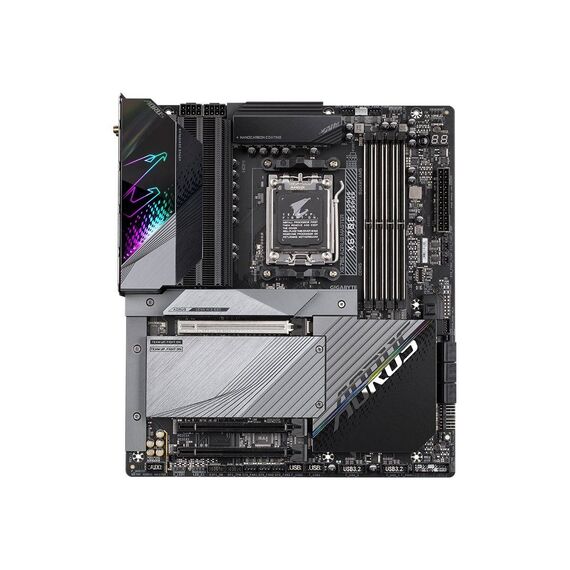

Gigabyte X670E AORUS MASTER / 1.0 / motherboard / extended ATX / Socket AM5 / AMD X670 Chipset / USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C Gen 2x2, USB-C 3.2 Gen2 / 2.5 Gigabit LAN, Wi-Fi 6, Bluetooth / onboard graphics (CPU required) / Hi | X670E AORUS MASTER
Please sign in so that we can notify you about a reply
Product Specification
| Product Type | Motherboard - extended ATX |
| Chipset Type | AMD X670 |
| Processor Socket | Socket AM5 |
| Max Processors Qty | 1 |
| Compatible Processors | Ryzen (supports Ryzen 7000 Series) |
| Supported RAM | Supported RAM |
| Max Size | 128 GB |
| Technology | DDR5 |
| Bus Clock | 5600 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 6666 MHz (O.C.), 6600 MHz (O.C.), 4400 MHz, 5200 MHz |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), AMD EXPO technology |
| Audio | Audio |
| Type | High Definition Audio (7.1-channel) |
| Audio Codec | Realtek ALC1220-VB |
| Compliant Standards | High Definition Audio, DTS:X Ultra |
| LAN | LAN |
| Network Controller | Intel AX210 |
| Network Interfaces | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.3 |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 1 x PCIe 4.0 x16 (x4 mode) ¦ 1 x PCIe 3.0 x16 (x2 mode) ¦ 1 x M.2 socket (2280/25110 M.2 Key M slot) ¦ 3 x M.2 socket (2280/22110 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 5.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 |
| Interfaces | 1 x DisplayPort ¦ 1 x HDMI ¦ 4 x USB 3.2 Gen 2 ¦ 1 x USB-C 3.2 Gen 2 ¦ 2 x USB 2.0 ¦ 1 x USB-C 3.2 Gen2x2 ¦ 4 x USB 3.2 Gen 1 ¦ 2 x aerial ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x SPDIF out ¦ 1 x LAN (2.5Gigabit Ethernet) |
| Internal Interfaces | 4 x USB 2.0 - header ¦ 1 x USB-C 3.2 Gen 2x2 - header ¦ 4 x USB 3.2 Gen 1 - header ¦ 1 x audio - header ¦ 1 x SPI - header |
| Power Connectors | 24-pin main power connector, 2 x 8-pin ATX12V connectors |
| Features | Features |
| BIOS Type | AMI |
| BIOS Features | WfM 2.0 support, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support, PnP 1.0a support |
| Hardware Monitoring | Water cooling flow rate, fan fail warning, fan control, noise detection |
| Hardware Features | Q-Flash, 8 Layer PCB, Q-Flash Plus, Ultra Durable Memory Armor, Ultra Durable PCIe Armor, Water Pump Header, Solid Pin Power Connectors, GIGABYTE Smart Fan 6, MultiKey, GIGABYTE Active OC Tuner, M.2 Thermal Guard III, 105A Smart Power Stage, 16+2+2 Phase Power Design, Fins-Array III with NanoCarbon Coating |
| Miscellaneous | Miscellaneous |
| Included Accessories | External antenna, cable ties, RGB (RGBW) LED strip extension cable, 2 thermistor cables, G-Connector, m.2 screw / standoff sets, noise detection cable |
| Cables Included | 4 x Serial ATA cable |
| Software Included | Norton Internet Security, GIGABYTE Smart Backup |
| Compliant Standards | FCC Part 15 B, RoHS, WEEE, DisplayPort 1.4, HDCP 2.3 |
| Width | 30.5 cm |
| Depth | 26.9 cm |
Features - GigaByte - X670E AORUS MASTER
More Details
Product Code
03:198505
EAN Code
4719331844363
Manufacturer
GigaByte
