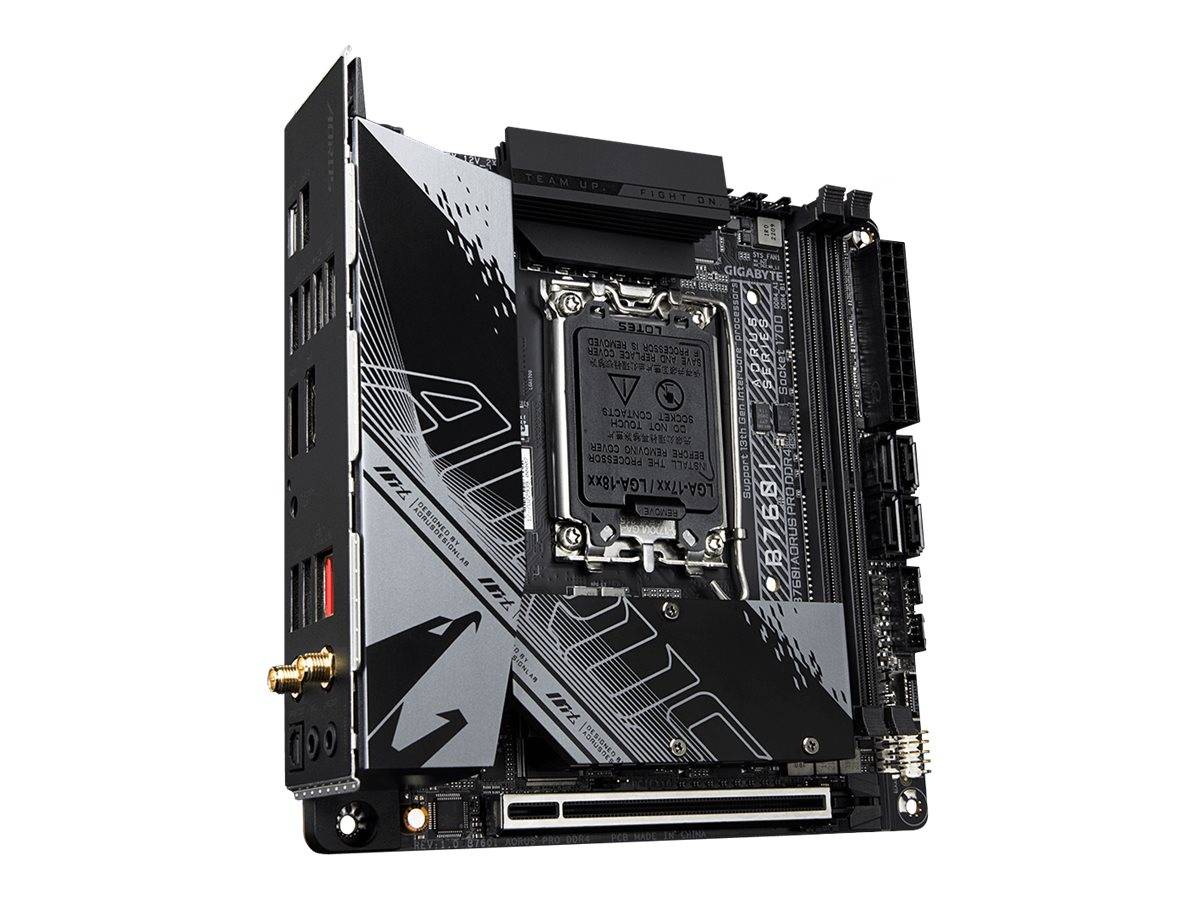

AORUS B760I PRO DDR4 / 1.0 / motherboard / mini ITX / LGA1700 Socket / B760 Chipset / 2.5 Gigabit LAN, Wi-Fi 6, Bluetooth / onboard graphics (CPU required) / HD Audio (8 channel) | B760I AORUS PRO DDR4
B760I AORUS PRO DDR4
Sales 8%
Promotion details
Sales at Singular store
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
- Unparalleled performance
With the fast-moving technology changes, GIGABYTE always follows trends and provides customers with advanced features and technologies. GIGABYTE motherboards are equipped with upgraded power solution, storage standards and outstanding connectivity to enable optimized performance for gaming. - Outstanding thermal design
GIGABYTE motherboards' unparalleled performance is guaranteed by innovative and optimized thermal design to ensure the best CPU, chipset, SSD stability and low temperatures under full load application and gaming performance. - Advanced connectivity
GIGABYTE Motherboards enable the ultimate connection experience with blazing data-transfer speeds through the next-generation network, storage, and Wi-Fi connectivity. - More personalization
GIGABYTE motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality. - Ultra-durable design
GIGABYTE ultra-durable design provides product durability and high-quality manufacturing process. GIGABYTE motherboards use powerful components and reinforce every slot to make each of them solid and durable.
Special Features
- Support for powerful processors
- Unparalleled performance: direct 8+1+1 phases digital VRM solution
- Dual-channel DDR4: 2DIMMs with XMP memory module support
- Advanced thermal design: extended MOSFET heatsink and multi-layered PCH M.2 heatsink, aluminum baseplate
- Fast networks
- Extended connectivity
- Multi-zone addressable LED light show design, support addressable LED and RGB LED strips
- Smart Fan 6: features multiple temperature sensors, hybrid fan headers with fan stop
- Advanced thermal design
- Multi-layered PCH/M.2 heatsink
- Integrated I/O shield
- Premium choke and capacitor
Product Specification
| Product Type | Motherboard - mini ITX |
| Chipset Type | Intel B760 |
| Processor Socket | LGA1700 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron) |
| Supported RAM | Supported RAM |
| Max Size | 64 GB |
| Technology | DDR4 |
| Bus Clock | 2400 MHz, 2133 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3300 MHz (O.C.), 3400 MHz (O.C.), 3333 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3800 MHz (O.C.), 3666 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4500 MHz (O.C.), 4400 MHz (O.C.), 4300 MHz (O.C.), 4266 MHz (O.C.), 4600 MHz (O.C.), 4700 MHz (O.C.), 4800 MHz (O.C.), 3200 MHz, 4933 MHz (O.C.), 5000 MHz (O.C.), 5333 MHz (O.C.), 5133 MHz (O.C.) |
| Supported RAM Integrity Check | Non-ECC, ECC (operate in non-ECC mode) |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), supported ECC modules operate in non-ECC mode |
| Audio | Audio |
| Type | HD Audio (8-channel) |
| Compliant Standards | High Definition Audio |
| LAN | LAN |
| Network Interfaces | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2 |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 2 x M.2 socket (2280 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 2 x M.2 |

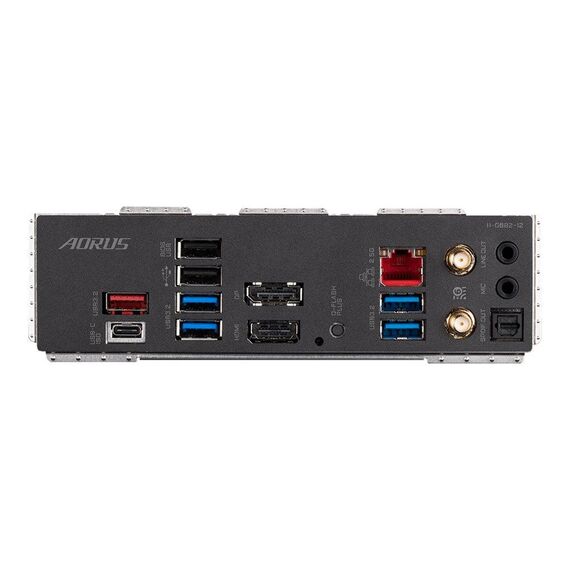

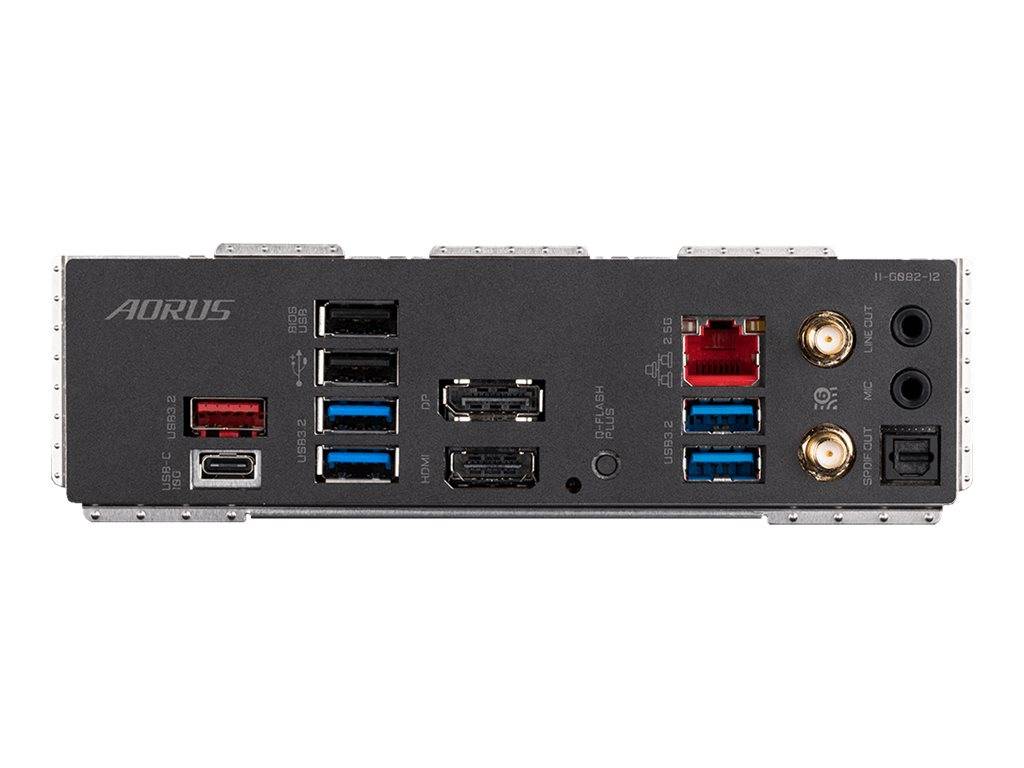

| Interfaces | 1 x HDMI ¦ 1 x DisplayPort ¦ 1 x USB-C 3.2 Gen 2 ¦ 1 x USB 3.2 Gen 2 ¦ 4 x USB 3.2 Gen 1 ¦ 1 x USB 2.0 ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x SPDIF out ¦ 2 x aerial |
| Internal Interfaces | 2 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x USB-C 3.2 Gen 1 - header ¦ 1 x audio - header ¦ 1 x speaker - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Features | Features |
| BIOS Type | AMI |
| BIOS Features | WfM 2.0 support, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support, PnP 1.0a support |
| Hardware Monitoring | Chassis temperature, system voltage, water cooling flow rate, fan fail warning, fan control |
| Hardware Features | Chassis intrusion detection, Q-Flash, Ultra Durable, 2x Copper PCB, Q-Flash Plus, M.2 heatsink, Water Pump Header, pre-mounted I/O shield, Solid Pin Power Connectors, Extended Heatsink Design, RGB FUSION 2.0, 90A Smart Power Stage, GIGABYTE Smart Fan 6, MultiKey, 8+1+1 Phase Power Design |
| Miscellaneous | Miscellaneous |
| Software Included | Norton Internet Security, GIGABYTE Control Center |
| Compliant Standards | WEEE, DisplayPort 1.2, HDCP 2.3, UKCA, FCC Part 15 Subpart B |
| Width | 17 cm |
| Depth | 17 cm |
| Package Details | Box |
Features - GigaByte - B760I AORUS PRO DDR4
CPU Socket
- Socket 1700
More Details
Product Code
03:202960
EAN Code
4719331851576
Manufacturer
GigaByte
