Gigabyte B760M DS3H AX DDR4 B760M DS3H AX DDR4

Description
Features

Product Features

GIGABYTE ultra-efficient M.2 thermal guard
With durability in mind, GIGABYTE provides a thermal solution for M.2 SSD devices. The M.2 thermal guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.
Connectivity
GIGABYTE motherboards enable the ultimate connection experience with blazing data-transfer speeds through the next generation network, storage and Wi-Fi connectivity.
Personalization
GIGABYTE motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality.

Special Features

Intel Socket LGA 1700
Unparalleled performance
Dual channel DDR4
Next generation storage
M.2 thermal guard
EZ-Latch
Fast networks
Extended connectivity
Smart Fan 6
Q-Flash Plus

Product Specification

Product Type	Motherboard - micro ATX
Chipset Type	Intel B760
Processor Socket	LGA1700 Socket
Max Processors Qty	1
Compatible Processors	(supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron)
Supported RAM	Supported RAM
Max Size	128 GB
Technology	DDR4
Bus Clock	2400 MHz, 2133 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3300 MHz (O.C.), 3400 MHz (O.C.), 3333 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3800 MHz (O.C.), 3666 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4500 MHz (O.C.), 4400 MHz (O.C.), 4300 MHz (O.C.), 4266 MHz (O.C.), 4600 MHz (O.C.), 4700 MHz (O.C.), 4800 MHz (O.C.), 3200 MHz, 4933 MHz (O.C.), 5000 MHz (O.C.), 5333 MHz (O.C.), 5133 MHz (O.C.)
Supported RAM Integrity Check	Non-ECC, ECC (operate in non-ECC mode)
Features	Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), supported ECC modules operate in non-ECC mode
Audio	Audio
Type	HD Audio (8-channel)
Compliant Standards	High Definition Audio
LAN	LAN
Network Interfaces	Bluetooth, 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E)
Expansion / Connectivity	Expansion / Connectivity
Expansion Slots	1 x CPU Â¦ 4 x DIMM 288-pin Â¦ 1 x PCIe 4.0 x16 Â¦ 2 x PCIe 3.0 x1 Â¦ 2 x M.2 socket (2280 M.2 Key M slot)
Storage Interfaces	SATA-600 -connectors: 4 x 7pin Serial ATA Â¦ PCIe 4.0 -connectors: 2 x M.2

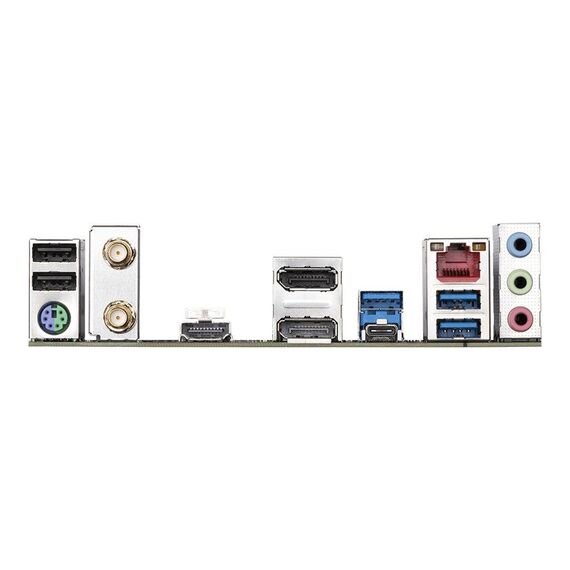

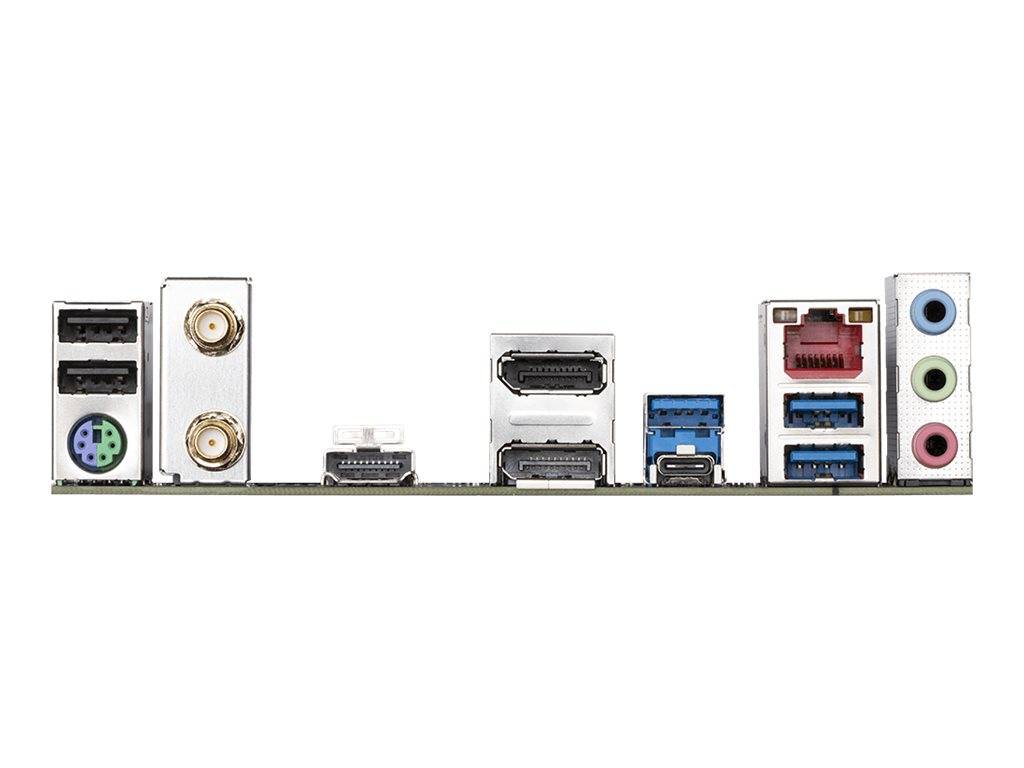

Interfaces	2 x DisplayPort Â¦ 1 x HDMI Â¦ 1 x USB-C 3.2 Gen 2 Â¦ 3 x USB 3.2 Gen 1 Â¦ 2 x USB 2.0 Â¦ 1 x audio line-out - mini-jack Â¦ 1 x microphone - mini-jack Â¦ 1 x audio line-in - mini-jack Â¦ 1 x LAN (2.5Gigabit Ethernet) Â¦ PS/2 keyboard / mouse Â¦ 2 x aerial
Internal Interfaces	4 x USB 2.0 - header Â¦ 2 x USB 3.2 Gen 1 - header Â¦ 1 x audio - header Â¦ 1 x SPI - header Â¦ 1 x SPDIF out - header
Power Connectors	24-pin main power connector, 8-pin ATX12V connector
Features	Features
BIOS Type	AMI
BIOS Features	WfM 2.0 support, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support, PnP 1.0a support
Hardware Monitoring	Chassis temperature, fan fail warning, fan control
Hardware Features	Q-Flash, Q-Flash Plus, Audio Noise Guard, RGB FUSION, M.2 Thermal Guard, Solid Pin Power Connectors, DIY Friendly Design, GIGABYTE Smart Fan 6, 6+2+1 Phase Power Design, MultiKey
Miscellaneous	Miscellaneous
Included Accessories	External antenna, IO shield
Cables Included	2 x Serial ATA cable
Software Included	Norton Internet Security
Compliant Standards	WEEE, UKCA, FCC Part 15 Subpart B
Width	24.4 cm
Depth	24.4 cm
Package Details	Box
