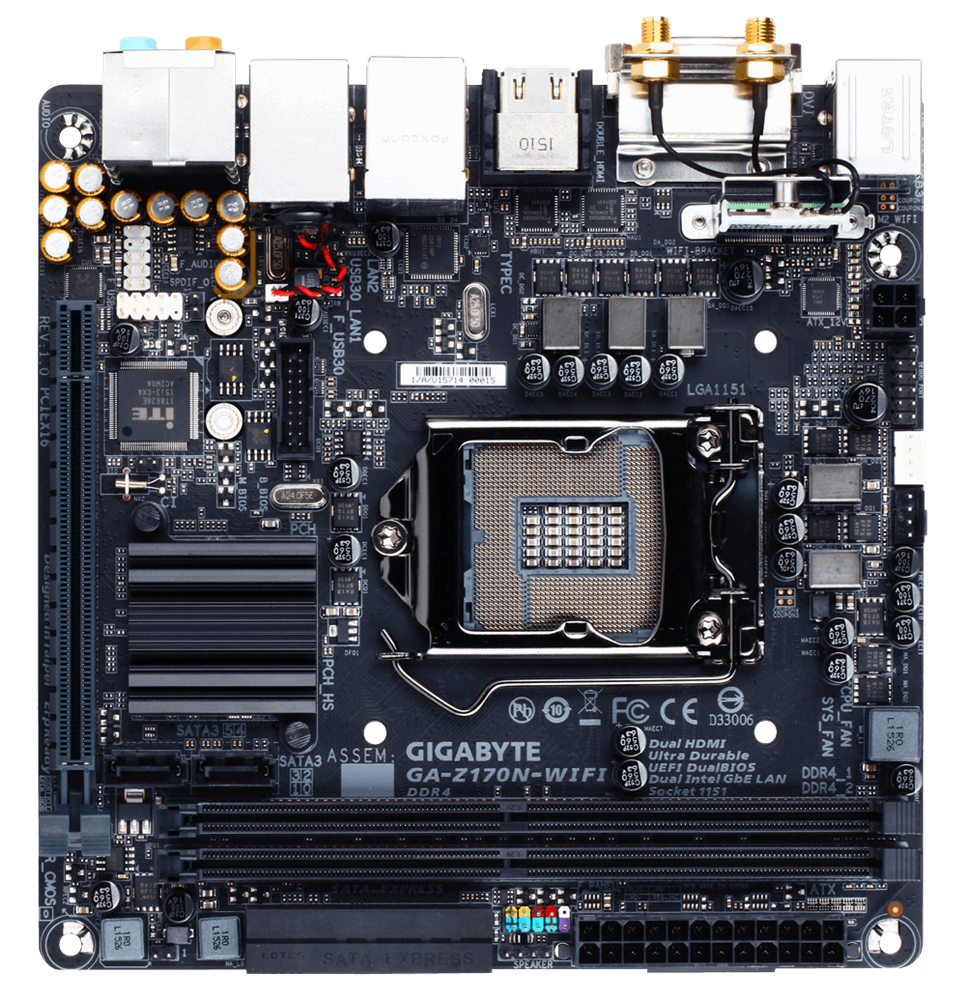

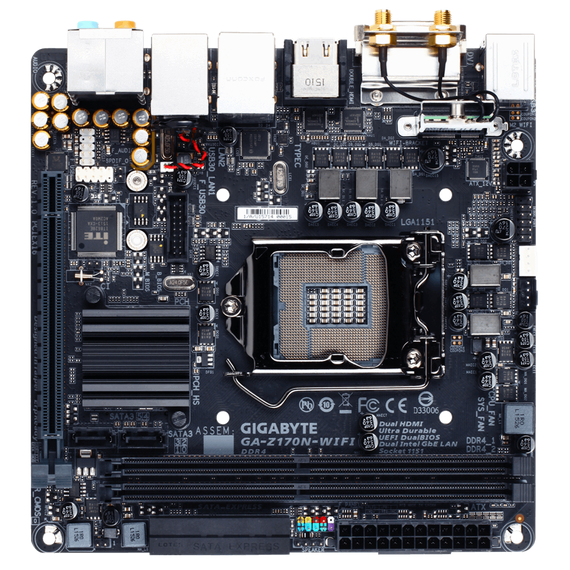

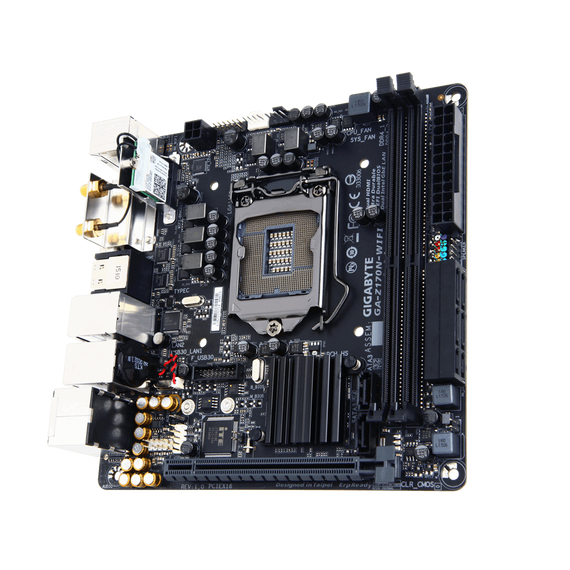

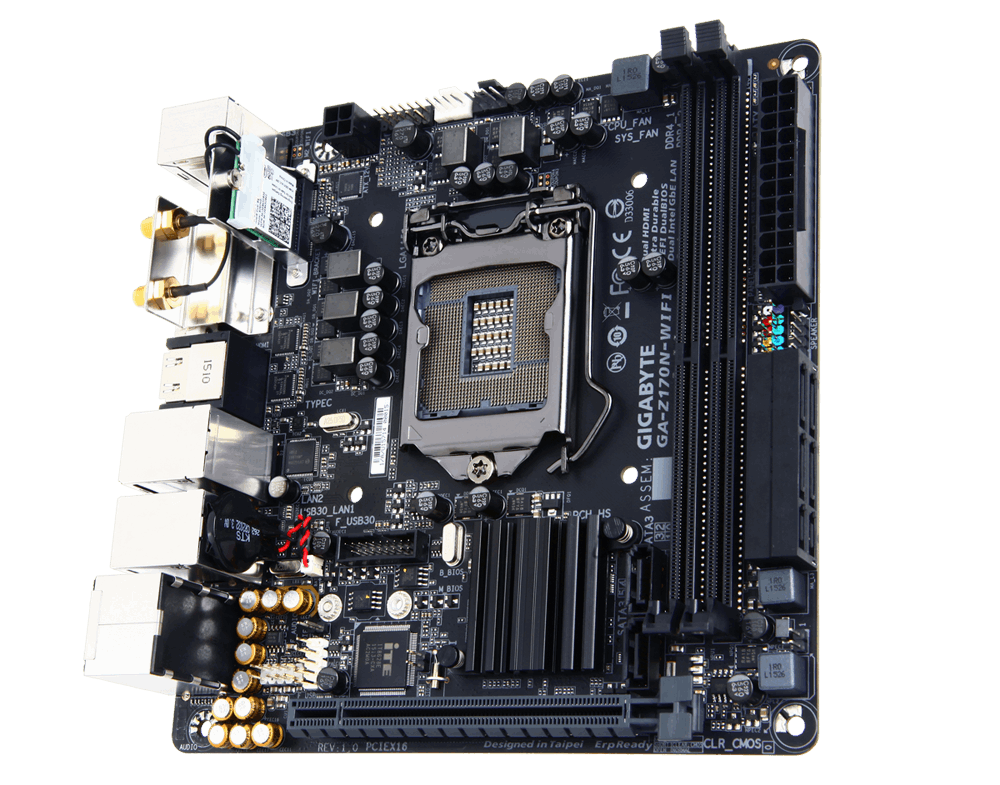

Gigabyte MB Intel 1151 GBT Z170N-WIFI (GA-Z170N-WIFI)

Brand: GigaByte

CODE (SKU):

GA-Z170N-WIFI

€174.69 €189.88

€207.88 inc. VAT

Out of stock

Add to wish list Ask a question

Product Code03:214112 EAN Code4719331830274 ManufacturerGigaByte

Sales 8%

Find similar

Delivery

Payment options

Description
Features

Supports 6^th Generation Intel^® Core™ Processor
Dual Channel DDR4, 2 DIMMs
Intel^® USB 3.0 with USB Type-C™ - the world's next Universal connector
11ac 867 Mbps dual band wireless connection + BLUETOOTH 4.2
PCIe Gen3 x4 M.2 Connector with up to 32Gb/s Data Transfer (PCIe NVMe & SATA SSD support)
2 SATA Express Connectors for up to 16Gb/s Data Transfer
115dB SNR HD Audio with Built-in Rear Audio Amplifier
High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
Dual Intel^® GbE LAN with cFosSpeed Internet Accelerator Software
APP Center Including EasyTune™ and Cloud Station™ Utilities
GIGABYTE UEFI DualBIOS™ Technology

Specifications

CPU	Support for Intel^® Core™ i7 processors/Intel^® Core™ i5 processors/ Intel^® Core™ i3 processors/Intel^® Pentium^® processors/ Intel^® Celeron^® processors in the LGA1151 package L3 cache varies with CPU (Please refer "CPU Support List" for more information.)
Chipset	Intel^® Z170 Express Chipset
Memory	2 x DDR4 DIMM sockets supporting up to 32 GB of system memory * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed. Dual channel memory architecture Support for DDR4 3200(O.C.) /3000(O.C.) /2800(O.C.) /2666(O.C.) /2400(O.C.) /2133 MHz memory modules Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.)
Onboard Graphics	Integrated Graphics Processor-Intel^® HD Graphics support 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 2 x HDMI ports, supporting a maximum resolution of 4096x2160@24 Hz * Support for HDMI 1.4 version. Support for up to 3 displays at the same time Maximum shared memory of 512 MB
Audio	Realtek^® ALC1150 codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
LAN	2 x Intel^® GbE LAN chips (10/100/1000 Mbit)
Wireless Communication module	Wi-Fi 802.11 a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band BLUETOOTH 4.2, 4.1, BLE, 4.0, 3.0, 2.1+EDR Support for 11ac wireless standard and up to 867 Mbps data rate * Actual data rate may vary depending on environment and equipment.
Expansion Slots	1 x PCI Express x16 slot, running at x16 (The PCIEX16 slot conforms to PCI Express 3.0 standard.) 1 x M.2 Socket 1 connector for the wireless communication module (M2_WIFI)
Storage Interface	Chipset: 1 x M.2 Socket 3 connector on the back of the motherboard (Socket 3, M key, type 2260/2280 SATA & PCIe x4/x2/x1 SSD support) 2 x SATA Express connectors 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 * Refer to "1-7 Internal Connectors," for the supported configurations with the M.2, SATA Express, and SATA connectors.
USB	Chipset: 2 x USB 2.0/1.1 ports available through the internal USB header 6 x USB 3.0/2.0 ports (4 ports on the back panel, 2 ports available through the internal USB header) 1 x USB Type-C™ port on the back panel, with USB 3.0 support
Internal I/O Connectors	1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 6 x SATA 6Gb/s connectors 2 x SATA Express connectors 1 x M.2 Socket 3 connector 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x USB 3.0/2.0 header 1 x USB 2.0/1.1 header 1 x S/PDIF Out header 1 x speaker header 1 x Clear CMOS jumper 1 x chassis intrusion header

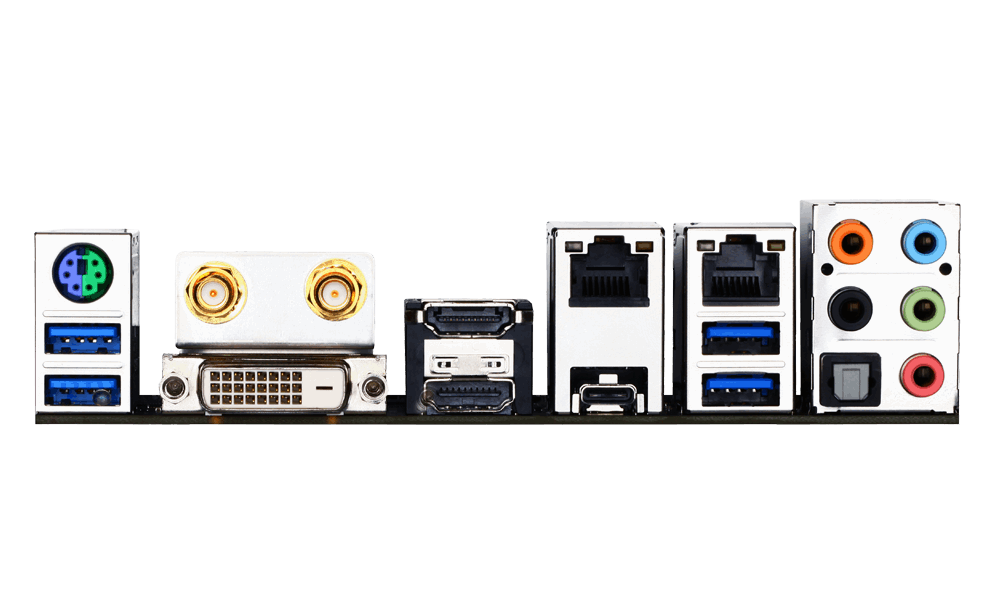

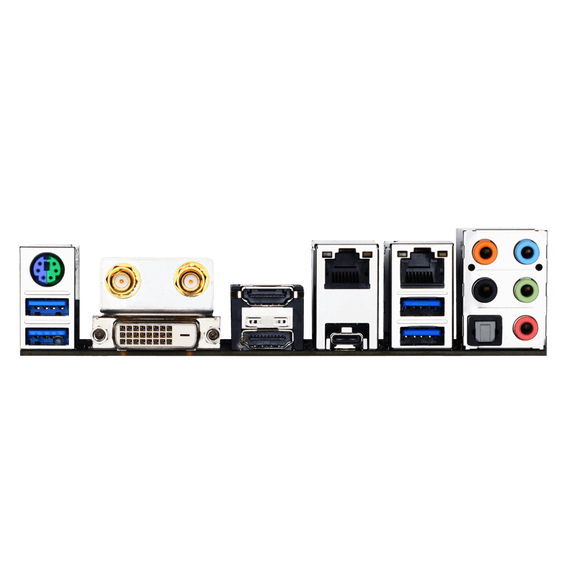

Back Panel Connectors	1 x PS/2 keyboard/mouse port 2 x HDMI ports 2 x SMA antenna connectors (2T2R) 1 x DVI-D port 4 x USB 3.0/2.0 ports 1 x USB Type-C™ port, with USB 3.0 support 2 x RJ-45 ports 1 x optical S/PDIF Out connector 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)
I/O Controller	iTE^® I/O Controller Chip
H/W Monitoring	System voltage detection CPU/System temperature detection CPU/System fan speed detection CPU/System overheating warning CPU/System fan fail warning CPU/System fan speed control * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS	2 x 64 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. 3D OSD @BIOS AutoGreen Cloud Station EasyTune Easy RAID Fast Boot Smart TimeLock Smart Keyboard Smart Backup System Information Viewer USB Blocker Support for Q-Flash Support for Smart Switch Support for Xpress Install
Bundle Software	Norton Internet Security (OEM version) Intel^® Smart Response Technology Intel^® Wireless Display cFosSpeed
Operating System	Support for Windows 10/8.1/7* * Please download “Windows^® USB Installation Tool” to install Windows^® 7.
Form Factor	Mini-ITX Form Factor; 17.0cm x 17.0cm
Box Contents	GA-Z170N-WIFI motherboard Motherboard driver disk Two SATA cables User's Manual Quick Installation Guide One antenna I/O Shield Wireless module driver disk
Remark	Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
