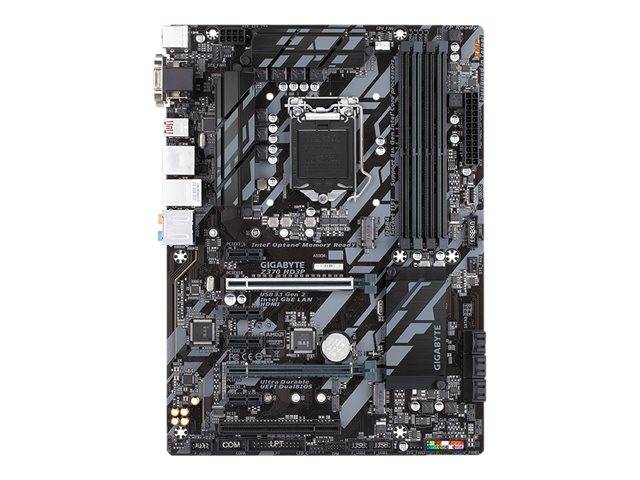

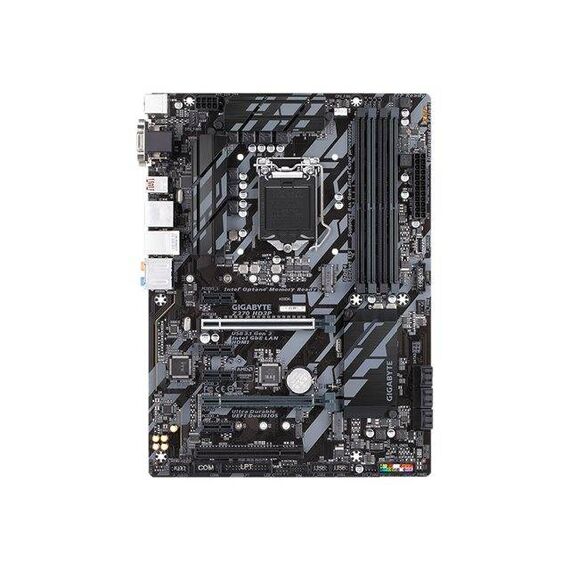

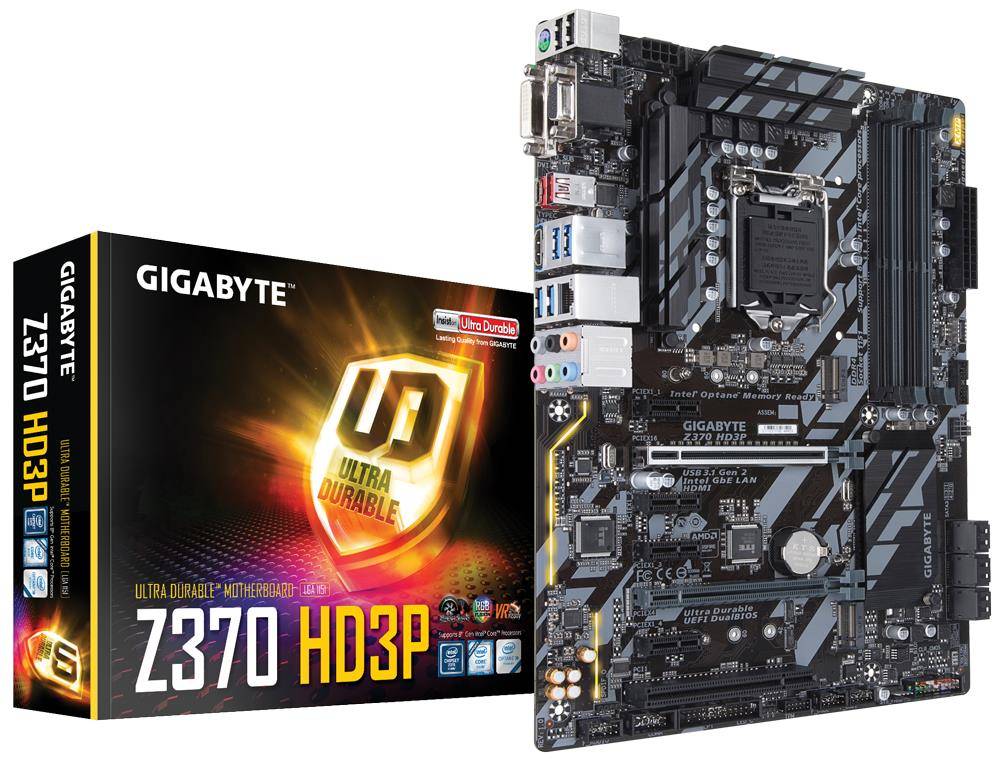

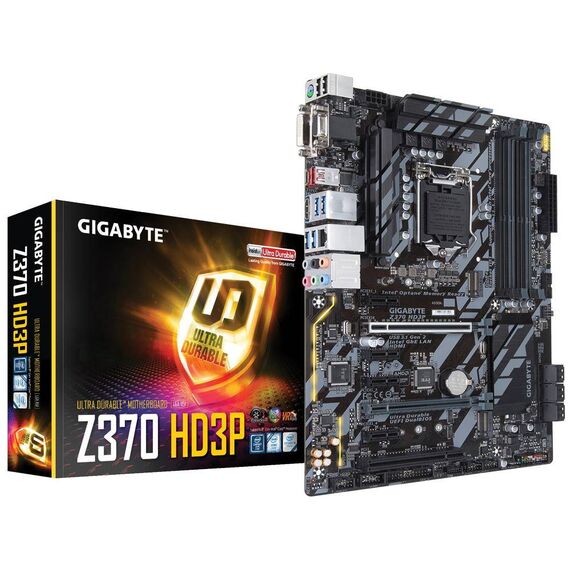

Gigabyte Z370 HD3P / 1.0 / motherboard / ATX / LGA1151 Socket / Z370 / USB 3.1 Gen 1, USB-C Gen2, USB 3.1 Gen 2, USB-C Gen1 / Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | Z370-HD3P
Gigabyte Z370 HD3P / 1.0 / motherboard / ATX / LGA1151 Socket / Z370 / USB 3.1 Gen 1, USB-C Gen2, USB 3.1 Gen 2, USB-C Gen1 / Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | Z370-HD3P
|
Description With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and voltage mode fans have been introduced to make the motherboard more liquid cooling friendly. It automatically detects impedance of your head-worn audio device, whether earbuds or high-end headphones to provide optimal audio dynamics - preventing issues such as low volume and distortion. Gigabyte motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide realistic sound effects for gamers. Gigabyte Z370 motherboards feature an audio noise guard that essentially separates the board's sensitive analog audio components from potential noise pollution at the PCB level. LED trace path lighting illuminates to show the separation of the PCB layers. Multi-graphics configuration offers better graphics performance for gaming enthusiasts who demand high frame rates without compromising on resolution. Special Features
Product features
|
Product Specification
| Product Type | Motherboard - ATX |
| Chipset Type | Intel Z370 |
| Processor Socket | LGA1151 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | Core i5, Core i3, Core i7 (supports 8th Generation Intel Core i3 / i5 / i7) |
| Max Size | 64 GB |
| Technology | DDR4 |
| Bus Clock | 2400 MHz, 2133 MHz, 2666 MHz, 2800 MHz (O.C.), 3000 MHz (O.C.), 3200 MHz (O.C.), 3300 MHz (O.C.), 3400 MHz (O.C.), 3333 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3800 MHz (O.C.), 3666 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.) |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), supported ECC modules operate in non-ECC mode |
| Max Allocated RAM Size | 1 GB |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC1220 |
| Compliant Standards | High Definition Audio |
| Network Interfaces | Gigabit Ethernet |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 3.0 x16 ¦ 1 x PCIe 3.0 x16 (x4 mode) ¦ 4 x PCIe 3.0 x1 ¦ 1 x PCI |
| Storage Interfaces | SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 ¦ PCIe 3.0 -connectors: 1 x M.2 |
| Interfaces | 1 x LAN (Gigabit Ethernet) ¦ 1 x HDMI ¦ 1 x PS/2 keyboard / mouse ¦ 1 x audio line-out (side surround) - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x USB 3.1 Gen 2 ¦ 4 x USB 3.1 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x USB-C Gen2 ¦ 1 x VGA ¦ 1 x DVI-D |
| Internal Interfaces | 4 x USB 2.0 - header ¦ 2 x USB 3.1 Gen 1 - header ¦ 1 x audio - header ¦ 1 x USB-C Gen 1 - header ¦ 1 x SPDIF out - header ¦ 1 x serial - header ¦ 1 x parallel - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| BIOS Type | AMI |
| BIOS Features | WfM 2.0 support, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support, Dual BIOS |
| Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU overheating protection, water cooling flow rate |
| Hardware Features | Q-Flash, AutoGreen, On/Off Charge, Ultra Durable, AMD CrossFireX technology support, AMD Quad CrossFireX technology support, Easy RAID Installer, Game Boost, GIGABYTE Double Locking Bracket, Anti-Sulfur Design, Intel Optane Memory Ready, GIGABYTE Smart Fan 5, RGB FUSION, Ultra Durable PCIe Armor |
| Software Included | Norton Internet Security, @BIOS, EasyTune, Cloud Station, Xpress Install, GIGABYTE USB Blocker, GIGABYTE App Center, cFosSpeed, Smart TimeLock, GIGABYTE Fast Boot, GIGABYTE V-Tuner, GIGABYTE Smart Keyboard, GIGABYTE Smart Backup, GIGABYTE Smart Fan 5, GIGABYTE 3D OSD |
| Compliant Standards | Plug and Play |
| Width | 30.5 cm |
| Depth | 22.5 cm |
