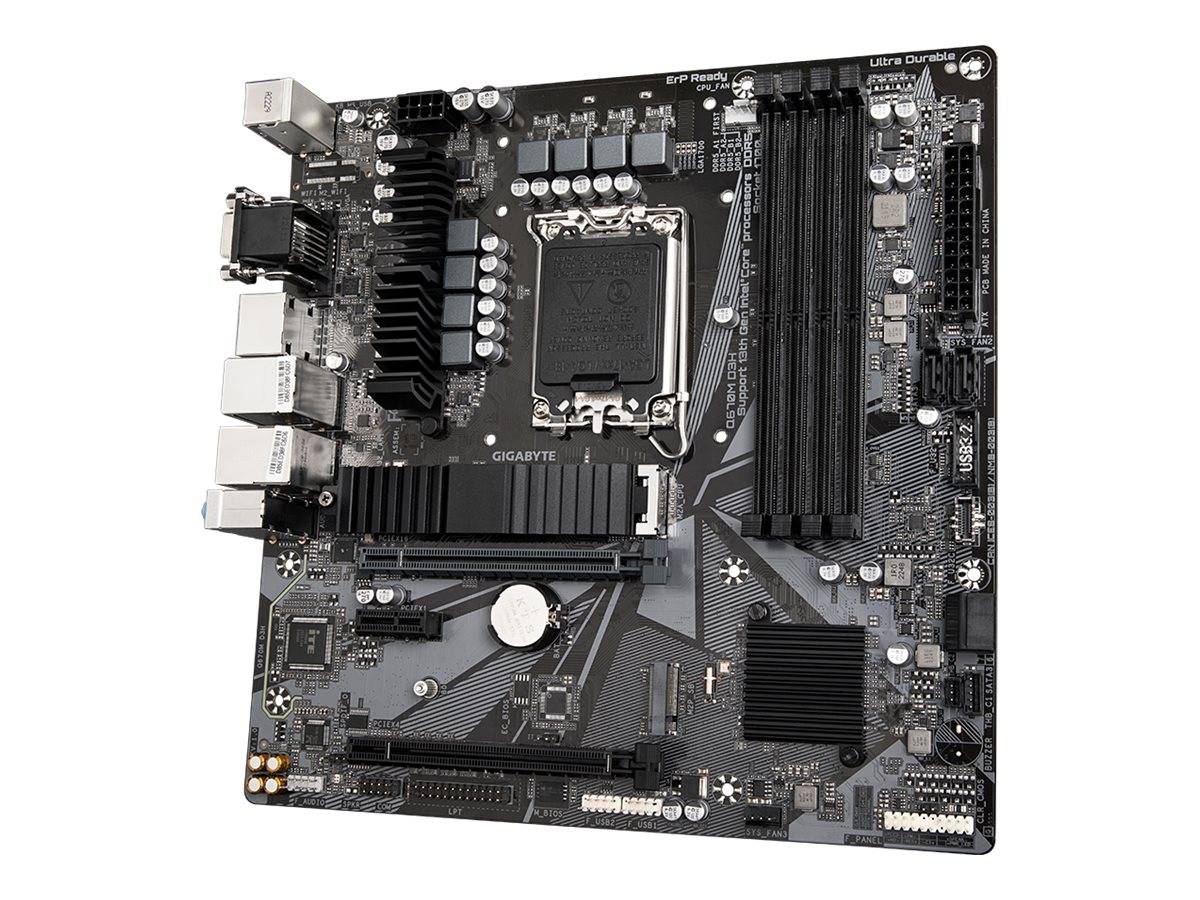

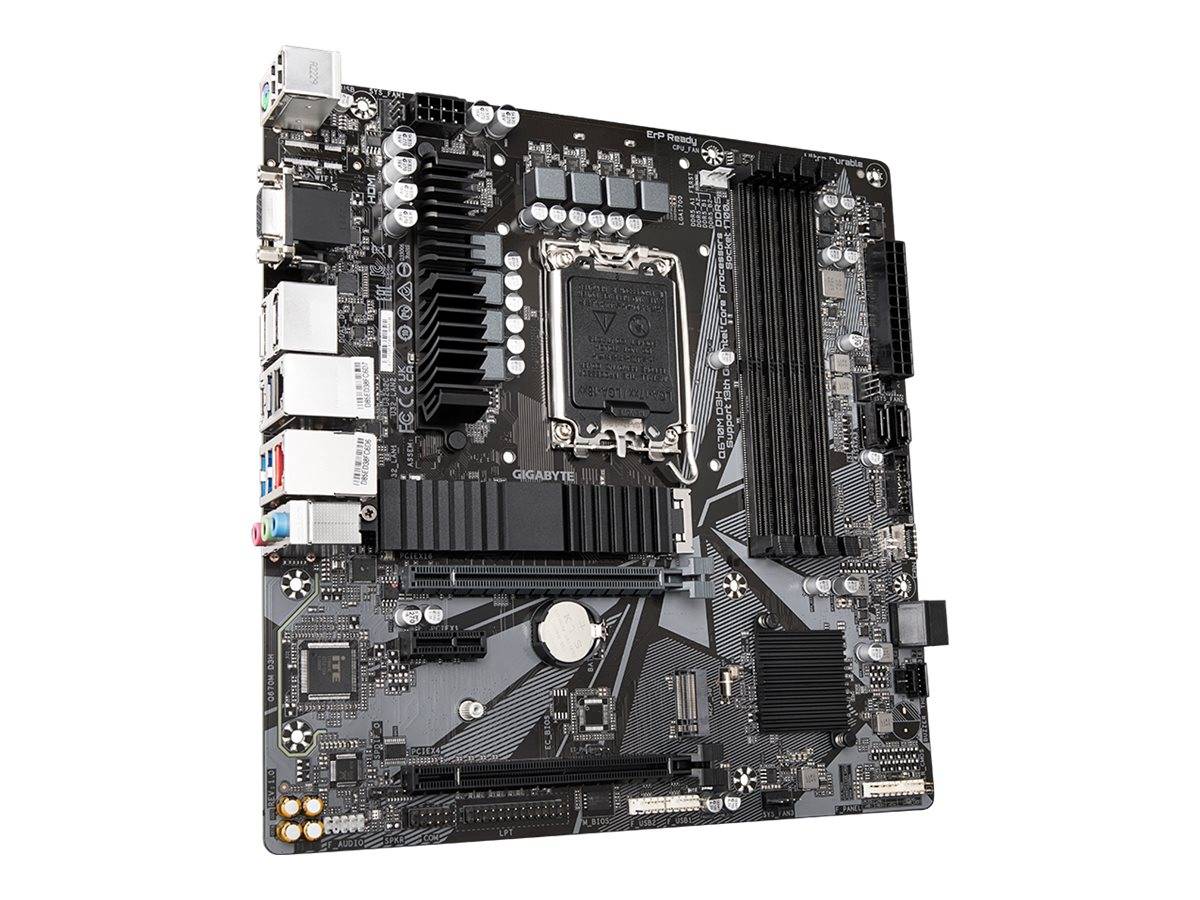

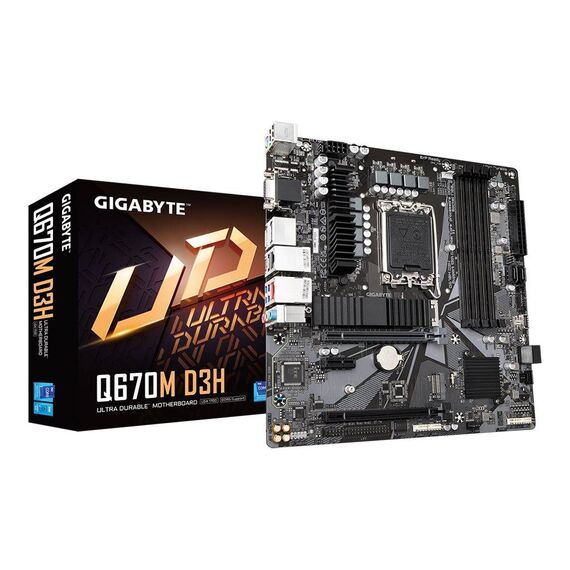

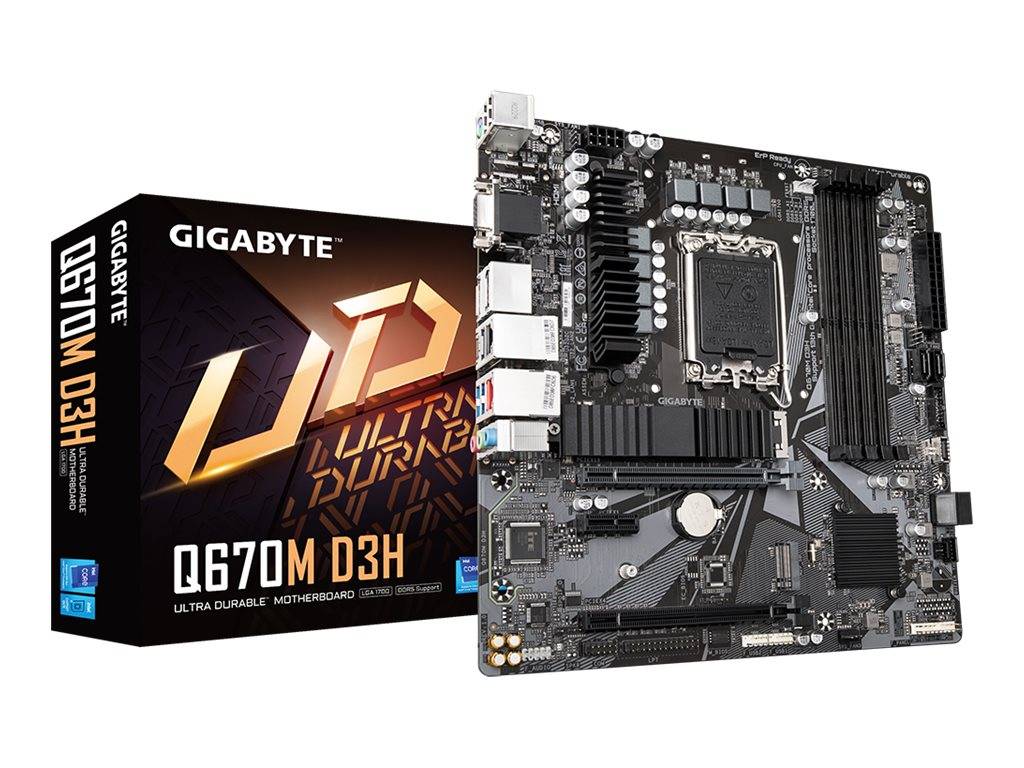

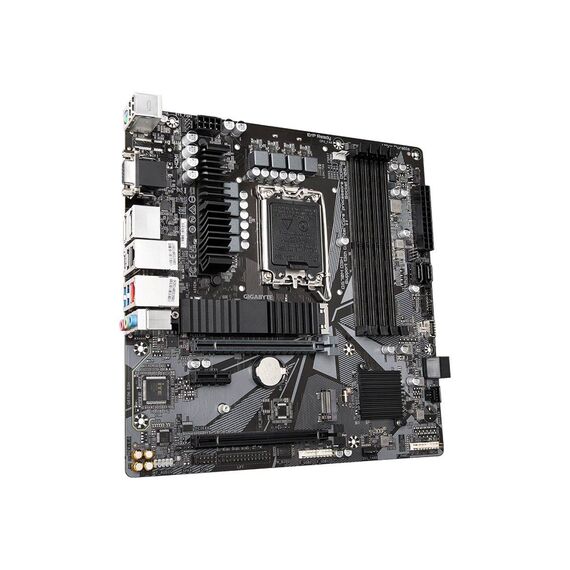

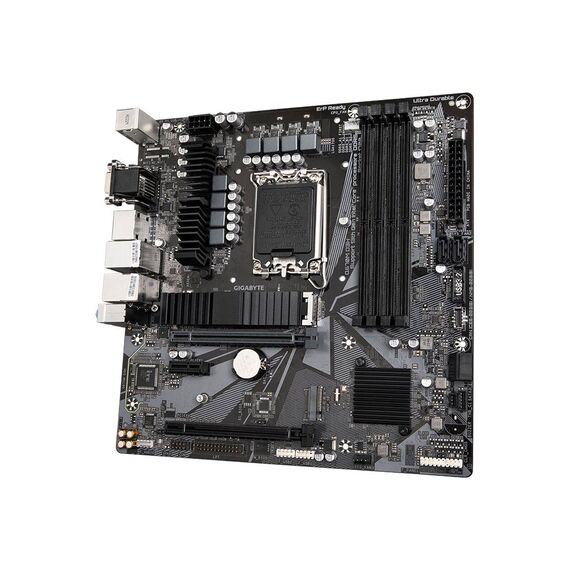

Gigabyte Q670M D3H / Motherboard / micro ATX / LGA1700 Socket / Q670 Chipset / USB 3.2 Gen 1, USB-C 3.2 Gen2, USB-C 3.2 Gen 1 / 2.5 Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | Q670M D3H
Please sign in so that we can notify you about a reply
Product Specification
| Product Type | Motherboard - micro ATX |
| Chipset Type | Intel Q670 |
| Processor Socket | LGA1700 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports 12th Generation Intel Core / Pentium Gold / Celeron) |
| Supported RAM | Supported RAM |
| Max Size | 128 GB |
| Technology | DDR5 |
| Bus Clock | 5200 MHz (O.C.), 5400 MHz (O.C.), 5600 MHz (O.C.), 4000 MHz, 4800 MHz |
| Supported RAM Integrity Check | Non-ECC, ECC (operate in non-ECC mode) |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Audio | Audio |
| Type | HD Audio (8-channel) |
| Compliant Standards | High Definition Audio |
| LAN | LAN |
| Network Interfaces | 2.5 Gigabit Ethernet |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x PCIe 4.0 x16 (x4 mode) ¦ 1 x PCIe 3.0 x1 ¦ 1 x M.2 socket (2280 M.2 Key M slot) ¦ 1 x M.2 socket (2280/22110 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 5 ¦ PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 |

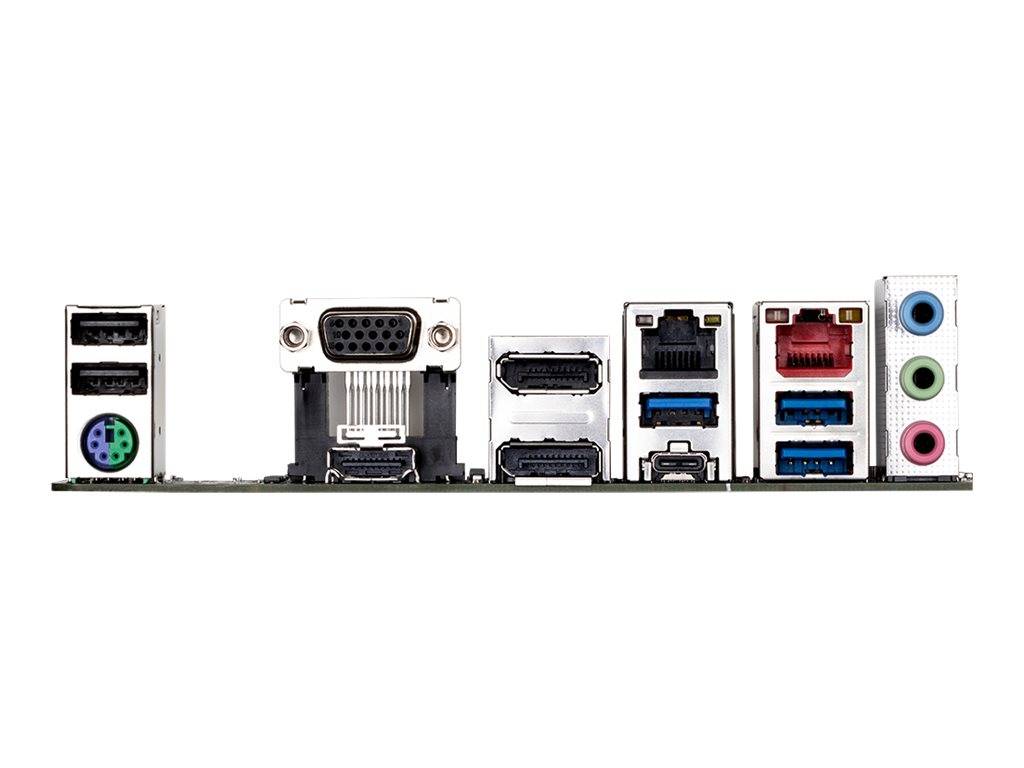

| Interfaces | 1 x HDMI ¦ 2 x DisplayPort ¦ 1 x VGA ¦ 1 x USB-C 3.2 Gen 2 ¦ 3 x USB 3.2 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x PS/2 keyboard / mouse ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x LAN (Gigabit Ethernet) |
| Internal Interfaces | 4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x USB-C Gen 1 - header ¦ 1 x audio - header ¦ 1 x serial - header ¦ 1 x SPDIF out - header ¦ 1 x Thunderbolt - header ¦ 1 x parallel - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Features | Features |
| BIOS Type | AMI |
| BIOS Features | WfM 2.0 support, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support, PnP 1.0a support |
| Hardware Monitoring | System voltage, water cooling flow rate, fan fail warning, fan control |
| Hardware Features | 6 Layer PCB, Audio Noise Guard, M.2 Thermal Guard, Solid Pin Power Connectors, 6+1+1 Phase Power Design, GIGABYTE Smart Fan 6 |
| Miscellaneous | Miscellaneous |
| Software Included | Norton Internet Security |
| Compliant Standards | WEEE, EU RoHS, FCC Part 15 Subpart B |
| Width | 24.4 cm |
| Depth | 24.4 cm |
Features - GigaByte - Q670M D3H
CPU Socket
- Socket 1700
More Details
Product Code
03:220155
EAN Code
4719331854614
Manufacturer
GigaByte
