Gigabyte Radeon RX 560 OC 4G / Graphics card / Radeon RX 560 / 4 GB GDDR5 / PCIe 3.0 x16 / DVI, HDMI, DisplayPort | GV-RX560OC-4GD
Gigabyte Radeon RX 560 OC 4G / Graphics card / Radeon RX 560 / 4 GB GDDR5 / PCIe 3.0 x16 / DVI, HDMI, DisplayPort | GV-RX560OC-4GD

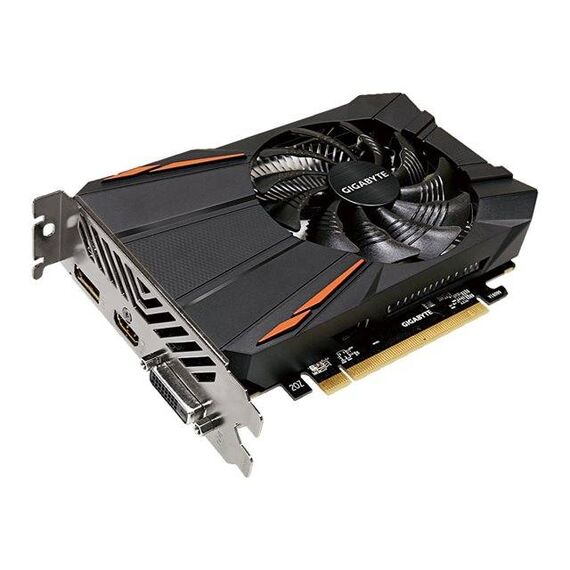

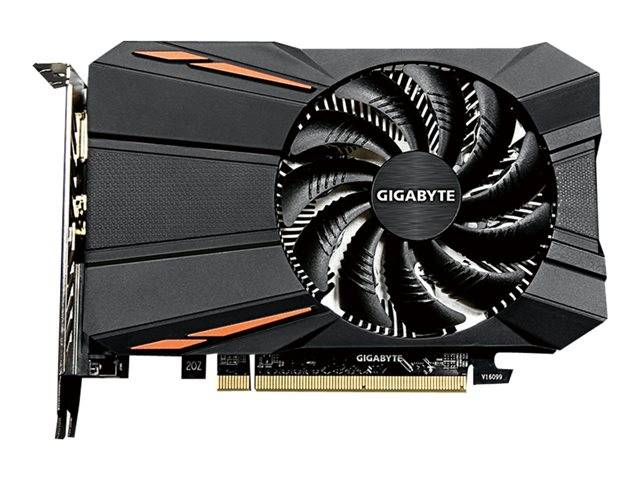

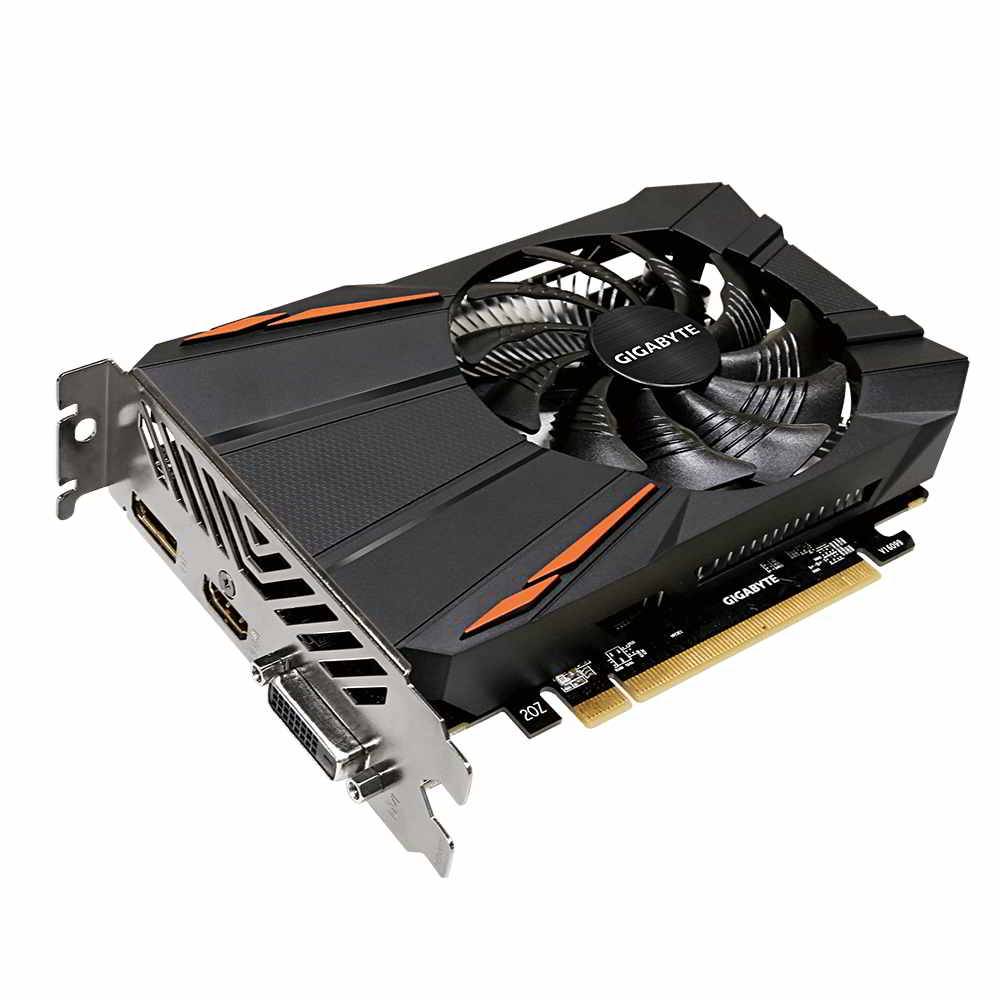

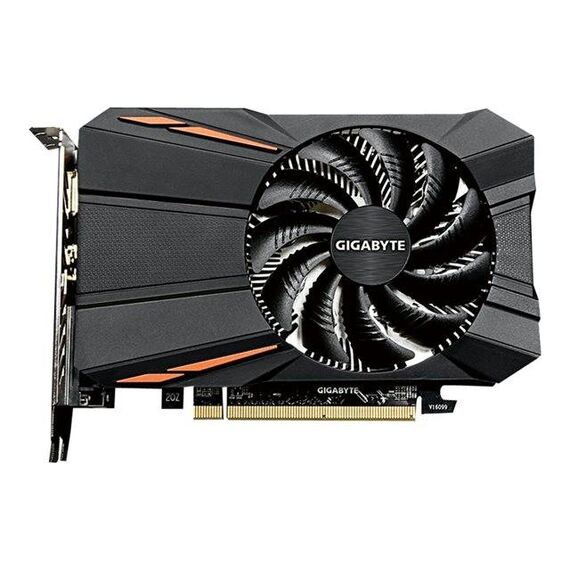

Description The custom-designed cooler introduced a 90 mm unique-blade fan along with the aluminum base, delivering an effective heat dissipation capacity for higher performance at lower temperatures. The airflow is spilt by the triangle fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the air flow. Special Features
Product features
|
Product Specification
Device Type | Graphics card |
Bus Type | PCI Express 3.0 x16 |
Graphics Engine | AMD Radeon RX 560 |
Core Clock | 1199 MHz |
Process Technology | 14 nm |
Max Resolution | 7680 x 4320 at 60 Hz |
Max Resolution Details | DisplayPort: 7680 x 4320 at 60 Hz/ HDMI: 4096 x 2160 at 60 Hz |
Max Monitors Supported | 3 |

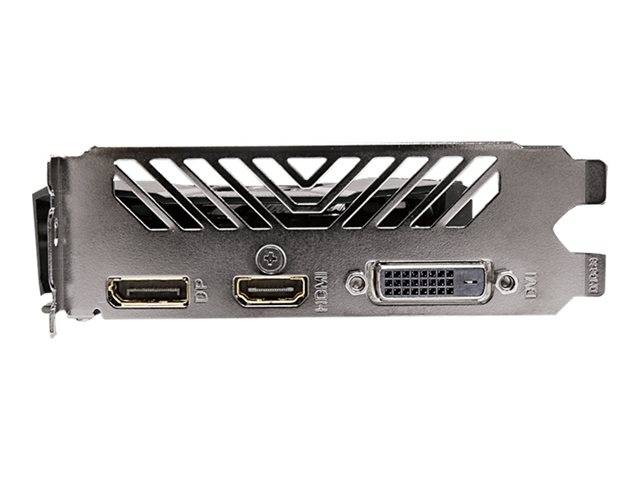

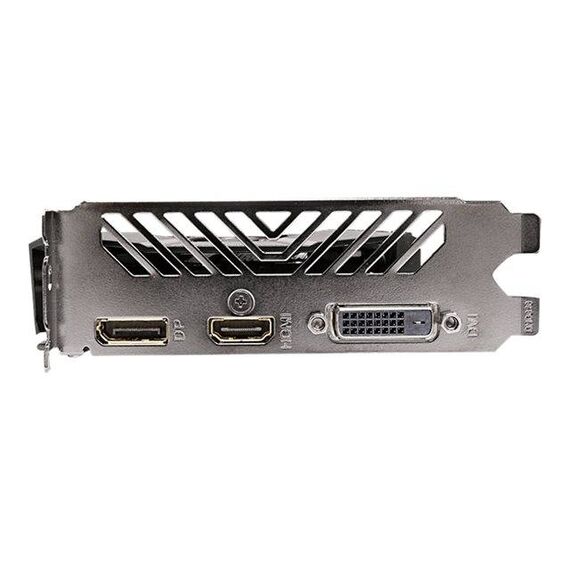

Interfaces | DVI-D (dual link) ¦ HDMI ¦ DisplayPort |
API Supported | DirectX 12, OpenGL 4.5 |
Features | Ultra Durable 2, AMD Eyefinity Technology, GIGABYTE Super Overclock, FreeSync Technology, AMD XConnect Technology, 90mm Unique blade fan design, AORUS Graphics Engine |
Size | 4 GB |
Technology | GDDR5 SDRAM |
Effective Clock Speed | 7000 MHz |
Bus Width | 128-bit |
Required Power Supply | 400 W |
Compliant Standards | DisplayPort 1.4 |
Width | 2.92 cm |
Depth | 17 cm |
Height | 11.46 cm |
