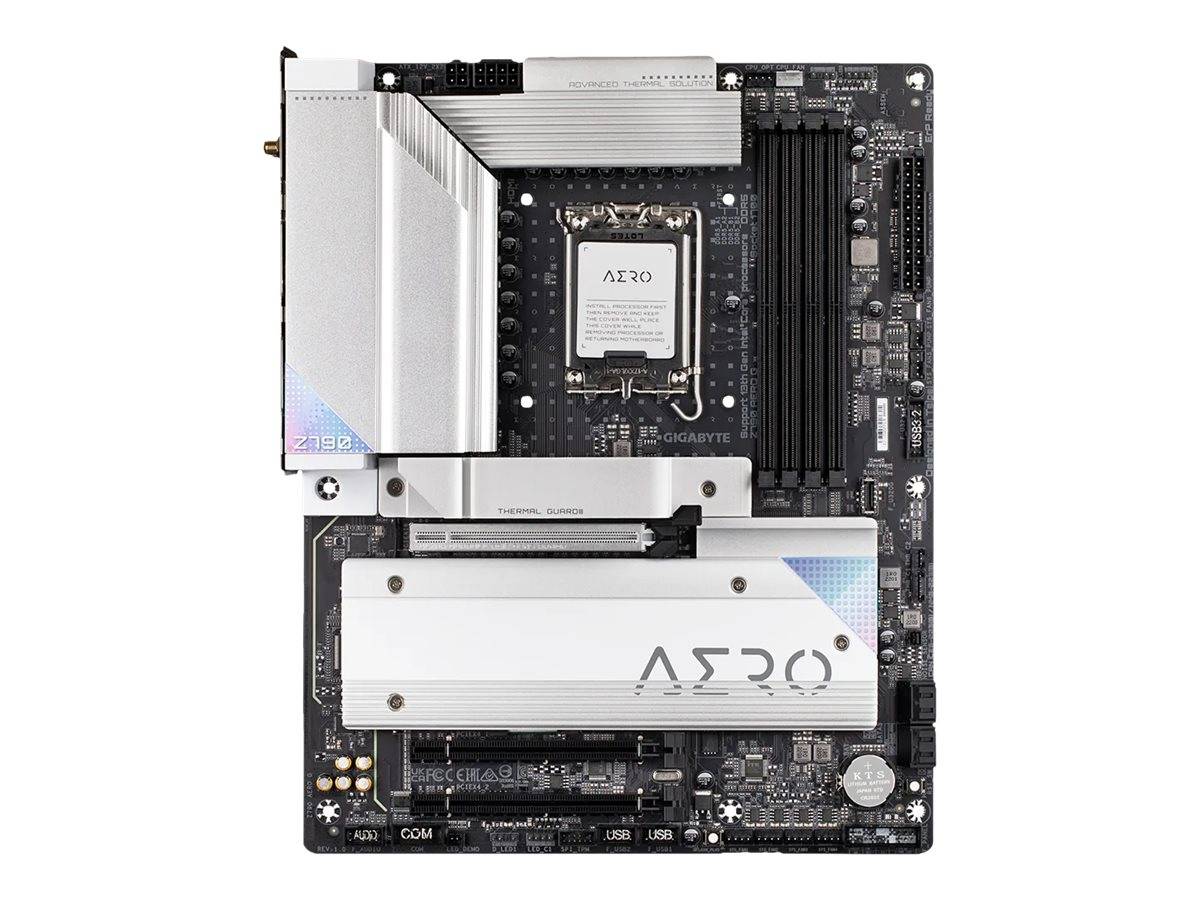

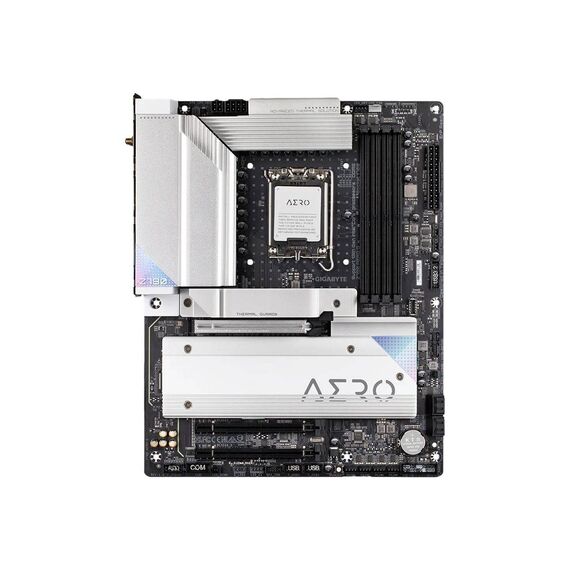

Gigabyte Z790 AERO G / Motherboard / ATX / LGA1700 Socket / Z790 Chipset / 2.5 Gigabit LAN, Wi-Fi 6, Bluetooth / onboard graphics (CPU required) / High Definition Audio (7.1-channel) | Z790 AERO G
Please sign in so that we can notify you about a reply
Product Features
- Simplify your connections
Connected to GIGABYTE VisionLINK port, you can transfer data, video and power charging via a single USB Type-C cable. - Connectivity powerful
AERO series motherboards let you experience the ultimate connectivity and easy access to all your connections. - Faster instant reaction speed
Whether you're editing hundreds of audio samples, working with 4K video, or even multitasking, DDR5 will satisfy your insatiable need for speed. - Fast speed, more space
Equipped with a full-speed PCIe 5.0 M.2 slot. A total of five onboard M.2 slots are available for data-intensive tasks and creative work without additional configuration. - Creates exclusive storage performance
All PCIe x4 M.2 slots provide NVMe SSD RAID support for optimal enhancement, with one PCIe 5.0 M.2 slot offering up to Type 25110 support. - Aesthetic cooling design
GIGABYTE's advanced cooling solution also provides the perfect aesthetic heatsink design to keep your PC at an optimal temperature, preventing you from unexpected system crashes during the creative process.
Special Features
- Supports 13th and 12th Gen Intel Core series processors
- VisionLINK - one USB-C port for video, data transfer and charging
- Dual channel DDR5 - 4 SMD DIMMs with XMP memory module support
- Next generation storage - 1 PCIe 5.0 x4 and 4 PCIe 4.0 x4 M.2 connectors
- Advanced thermal design and M.2 Thermal Guard III - to ensure VRM power stability and 25110 PCIe 5.0 M.2 SSD performance
- EZ-Latch Plus - M.2 connectors with quick release and screwless design
- Fast Networks - Intel 2.5GbE LAN and Wi-Fi 6E 802.11ax
- Extended connectivity - DP IN, HDMI, front USB-C 20Gb/s support
- Smart Fan 6 - features multiple temperature sensors, hybrid fan headers with fan stop and noise detection
- Q-Flash Plus - update BIOS without installing the CPU, memory and graphics card
Product Specification
| Product Type | Motherboard - ATX |
| Chipset Type | Intel Z790 |
| Processor Socket | LGA1700 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron) |
| Supported RAM | Supported RAM |
| Max Size | 128 GB |
| Technology | DDR5 |
| Bus Clock | 5200 MHz (O.C.), 5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 4000 MHz, 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 7000 MHz (O.C.), 6800 MHz (O.C.), 7200 MHz (O.C.), 7400 MHz (O.C.), 7600 MHz (O.C.) |
| Supported RAM Integrity Check | Non-ECC, ECC (operate in non-ECC mode) |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), supported ECC modules operate in non-ECC mode |
| Audio | Audio |
| Type | High Definition Audio (7.1-channel) |
| Audio Codec | Realtek ALC1220-VB |
| Compliant Standards | High Definition Audio |
| LAN | LAN |
| Network Interfaces | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.3 |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 2 x PCIe 3.0 x16 |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 4 x M.2 ¦ PCIe 5.0 -connectors: 1 x M.2 |
| Interfaces | 1 x USB-C 3.2 Gen 2 ¦ 1 x HDMI ¦ 1 x USB-C Gen2x2 ¦ 2 x USB 3.2 Gen 2 ¦ 4 x USB 3.2 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x DisplayPort input ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x TOSLINK |
| Internal Interfaces | 2 x USB 3.2 Gen 1 - header ¦ 1 x USB-C Gen 2x2 - header ¦ 4 x USB 2.0 - header ¦ 1 x audio - header ¦ 2 x Thunderbolt - header ¦ 1 x serial - header |
| Power Connectors | 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector |
| Features | Features |
| BIOS Type | AMI |
| BIOS Features | WfM 2.0 support, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support |
| Hardware Monitoring | System voltage, water cooling flow rate, fan fail warning, noise detection |
| Hardware Features | Q-Flash, Q-Flash Plus, GIGABYTE Smart Fan 6 |
| Miscellaneous | Miscellaneous |
| Software Included | Norton Internet Security |
| Compliant Standards | DisplayPort 1.4, HDCP 2.3 |
| Width | 30.5 cm |
| Depth | 24.4 cm |
Features - GigaByte - Z790 AERO G
CPU Socket
- Socket 1700
More Details
Product Code
03:200509
EAN Code
4719331849610
Manufacturer
GigaByte
