Gigabyte Z890 EAGLE WIFI7 / Motherboard / ATX / LGA1851 Socket / Z890 Chipset / USB4, USB 3.2 Gen 2, USB 3.2 Gen 1, USB-C 3.2 Gen2 / Bluetooth, Wi-Fi 7, 2.5 Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | Z890 EAGLE WIFI7
Gigabyte Z890 EAGLE WIFI7 / Motherboard / ATX / LGA1851 Socket / Z890 Chipset / USB4, USB 3.2 Gen 2, USB 3.2 Gen 1, USB-C 3.2 Gen2 / Bluetooth, Wi-Fi 7, 2.5 Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | Z890 EAGLE WIFI7
€294.54 inc. VAT
Z890 EAGLE WIFI7
Sales 8%
Promotion details
Sales at Singular store
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
- Robust connectivity options
The GIGABYTE Z890 EAGLE WIFI7 features multiple USB ports, including USB 3.2 Gen 2 and USB-C 3.2 Gen 2, alongside a range of audio and network interfaces ensuring ample connection choices for all peripherals. - High-performance cooling technology
Equipped with M.2 Thermal Guard and VRM heatsink design, this motherboard effectively manages heat output to maintain system stability and enhance performance, even under demanding conditions. - Enhanced memory architecture
This motherboard supports dual-channel memory architecture with extensive RAM speed options, facilitating high-speed data access and improved multitasking capabilities. - Versatile expansion capabilities
With four DIMM slots and multiple M.2 and PCIe 4.0/5.0 expansion slots, users can customize and upgrade their systems to match evolving demands. - Advanced networking features
Featuring 2.5 Gigabit Ethernet and support for Wi-Fi 7 and Bluetooth 5.4, this motherboard ensures fast and reliable connectivity for all online activities and device connections.
Special Features
- Supports Intel Core Ultra processors and DDR5 memory
- Advanced connectivity options including USB 4 and Thunderbolt 4
- Enhanced cooling solutions with M.2 Thermal Guard technology
- AI features for optimized performance and overclocking
- Comprehensive hardware monitoring and customization capabilities
Product Specification
| Product Type | Motherboard - ATX |
| Chipset Type | Intel Z890 |
| Processor Socket | LGA1851 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports Intel Core Ultra processors (Series 2)) |
| Supported RAM | Supported RAM |
| Max Size | 256 GB |
| Technology | DDR5 |
| Bus Clock | 4600 MHz (O.C.), 4533 MHz (O.C.), 4467 MHz (O.C.), 4400 MHz (O.C.), 4300 MHz (O.C.), 4200 MHz (O.C.), 4133 MHz (O.C.), 4100 Mhz (O.C), 4000 MHz (O.C.), 3975 MHz (O.C.), 3950 MHz (O.C.), 3900 MHz (O.C.), 3800 MHz (O.C.), 3700 MHz (O.C.), 3600 MHz (O.C.), 3500 MHz (O.C.), 3400 MHz (O.C.), 3300 MHz (O.C.), 3200 MHz, 3100 MHz, 3000 MHz, 2900 MHz, 2800 MHz |
| Supported RAM Integrity Check | Non-ECC, ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Audio | Audio |
| Type | HD Audio (8-channel) |
| Compliant Standards | High Definition Audio |
| LAN | LAN |
| Network Interfaces | Bluetooth 5.4, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), 2.5 Gigabit Ethernet |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU 4 x DIMM 288-pin 1 x PCIe 5.0 x16 2 x PCIe 4.0 x16 (x4 mode) 1 x M.2 socket (2280/2580/22110/25110 M.2 Key M slot) 3 x M.2 socket (2280/22110 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 SATA-600 / PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 |

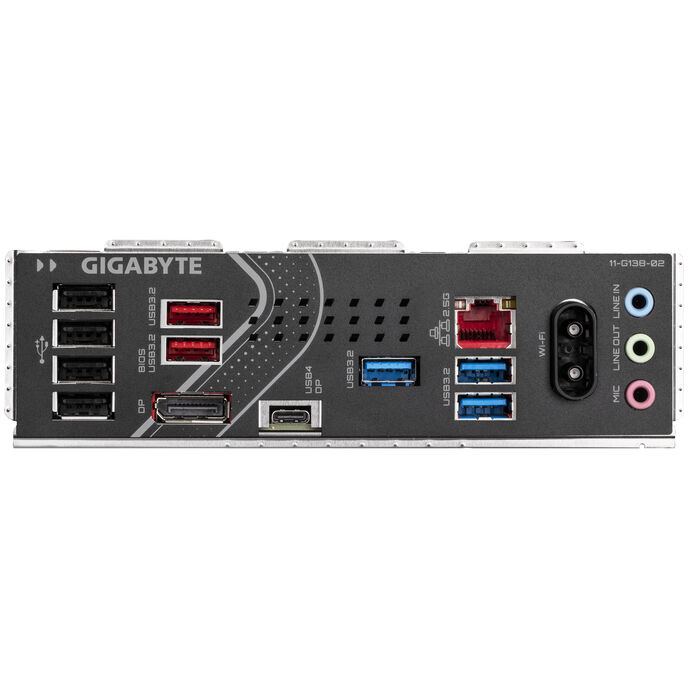

| Interfaces | 1 x Thunderbolt 4/DisplayPort/USB4 2 x USB 3.2 Gen 2 3 x USB 3.2 Gen 1 4 x USB 2.0 1 x DisplayPort 2 x aerial 1 x LAN (2.5Gigabit Ethernet) 1 x microphone - mini-jack 1 x audio line-out - mini-jack 1 x audio line-in |
| Internal Interfaces | 1 x USB-C 3.2 Gen 2 - header 4 x USB 3.2 Gen 1 - header 4 x USB 2.0 - header 1 x audio - header 1 x SPI - header |
| Power Connectors | 24-pin main power connector, 2 x 8-pin ATX12V connectors |
| Features | Features |
| BIOS Type | AMI |
| BIOS Features | UEFI BIOS, PnP 1.0a support, DMI 2.7 support, WfM 2.0 support, SMBIOS 2.7 support, ACPI 5.0 support |
| Hardware Monitoring | Fan control, fan fail warning, fan speed detection, system voltage, temperature detection |
| Hardware Features | CUDIMM support, Q-Flash, Q-Flash Plus, power button, Q-Flash Plus button, reset button, 14+1+2 Phase Power Design, AI Perfdrive, WIFI EZ-Plug, 2x Copper PCB, DIY Friendly Design, M.2 EZ Latch click, M.2 EZ Latch plus, M.2 Thermal Guard, M.2 Thermal Guard Ext., PCIe EZ Latch Plus, RGB FUSION, VRM Thermal Armor Advanced, AI Overclocking, EZ Debug LED, AI SNATCH Engine, VRM heatsink design, GIGABYTE Smart Fan 6, Ultra Durable |
| Miscellaneous | Miscellaneous |
| Included Accessories | Wi-Fi aerial |
| Cables Included | 2 x SATA Express cable |
| Software Included | GIGABYTE Control Center, Norton Internet Security (OEM Version), HWiNFO |
| Width | 30.5 cm |
| Depth | 24.4 cm |
Features - GigaByte - Z890 EAGLE WIFI7
More Details
Product Code
04:504696
EAN Code
4719331864927
Manufacturer
GigaByte
