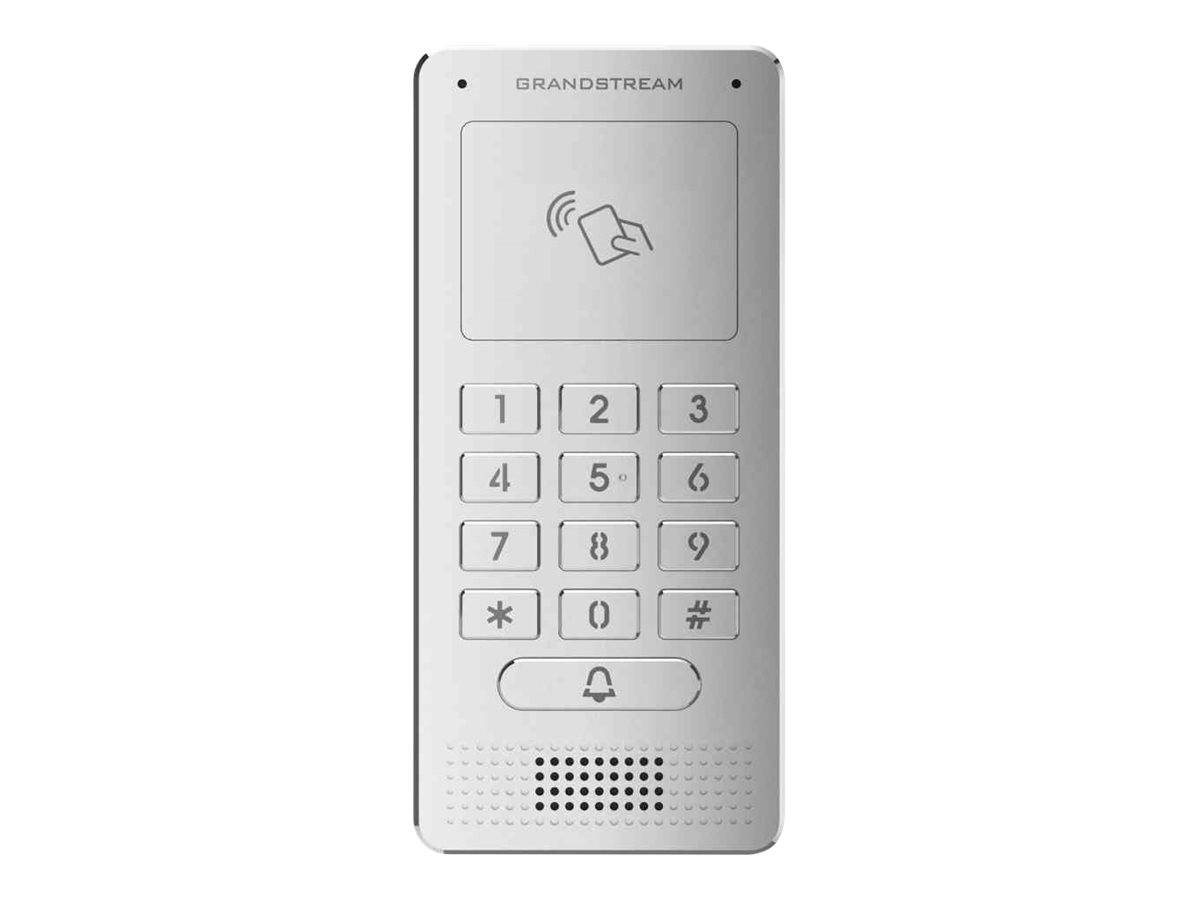

Grandstream GDS3705 / IP intercom station / wired / 10/100 Ethernet | GDS3705
GDS3705
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Special Features
- HD audio options with up to 1.5m of audio input and 3m of audio output
- Built-in RFID chip reader for keyless entry
- Supports SIP calls to IP phones to facilitate communication
- Built with a metal casing to make it weatherproof and vandal resistant
- Integrated PoE to power the device and provide a network connection
- Built-in dual microphone and HD loudspeaker with advanced AEC offers intercom functionality
Product Specification
| Product Type | IP intercom station |
| Integrated Components | Speaker, 2 microphones, speaker (2W), keypad, RFID reader |
| Power Source | Power adapter, PoE |
| Connectivity Technology | Wired - Ethernet, Fast Ethernet, RS-485, Wiegand 26-bit |
| Interfaces | LAN/power ¦ 2 x relay output ¦ Wiegand ¦ Serial (RS-485) ¦ 2 x alarm input |
| Features | Weatherproof, wall mountable, in-wall mountable, vandalproof, 125 kHz card technology, SIP compliant, surface mountable, PoE, DHCP support, power over Ethernet (PoE), RARP support, ARP support, firmware upgradable, Quality of Service (QoS), SSH support, VoIP support |
| Control Unit | Control Unit |
| Built-in Devices | Speaker, keypad, RFID reader, 2 microphones |
| Buttons Qty | 13 |
| Miscellaneous | Miscellaneous |
| Included Accessories | Mounting bracket, remote control key fob, cover frame, drilling template, 3 rubber gaskets, 12 screws, 6 anchors, 4 anti-tamper screws, anti-tamper hex key, wiegand cable, RFID card |
| Product Material | Metal |
| Encryption Algorithm | MD5, TLS, 256-bit AES |
| Nominal Voltage | DC 12 V / PoE Class 3 |
| Compliant Standards | EN 61000-3-2, ICES-003, EN 61000-3-3, IC, EN 60950-1, AS/NZS 4268, EN 300.330, RSS-310, IP66, AS/NZS 60950, EN 62311, RCM, EN 60529, EN 301 489-1, EN 55032 Class B, IEC 62262 IK09, EN 301 489-3, IEEE 802.3af, IEEE 802.1Q, FCC Part 15 C Class B, IEEE 802.1p, EN50130, AS/NZS CISPR 32 |
| Dimensions & Weight | Dimensions & Weight |
| Width | 8 cm |
| Depth | 3.6 cm |
| Height | 17.3 cm |
| Weight | 635 g |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -30 °C |
| Max Operating Temperature | 60 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
Features - Grandstream - GDS3705
More Details
Product Code
07:215259
EAN Code
6947273702511
Manufacturer
Grandstream
