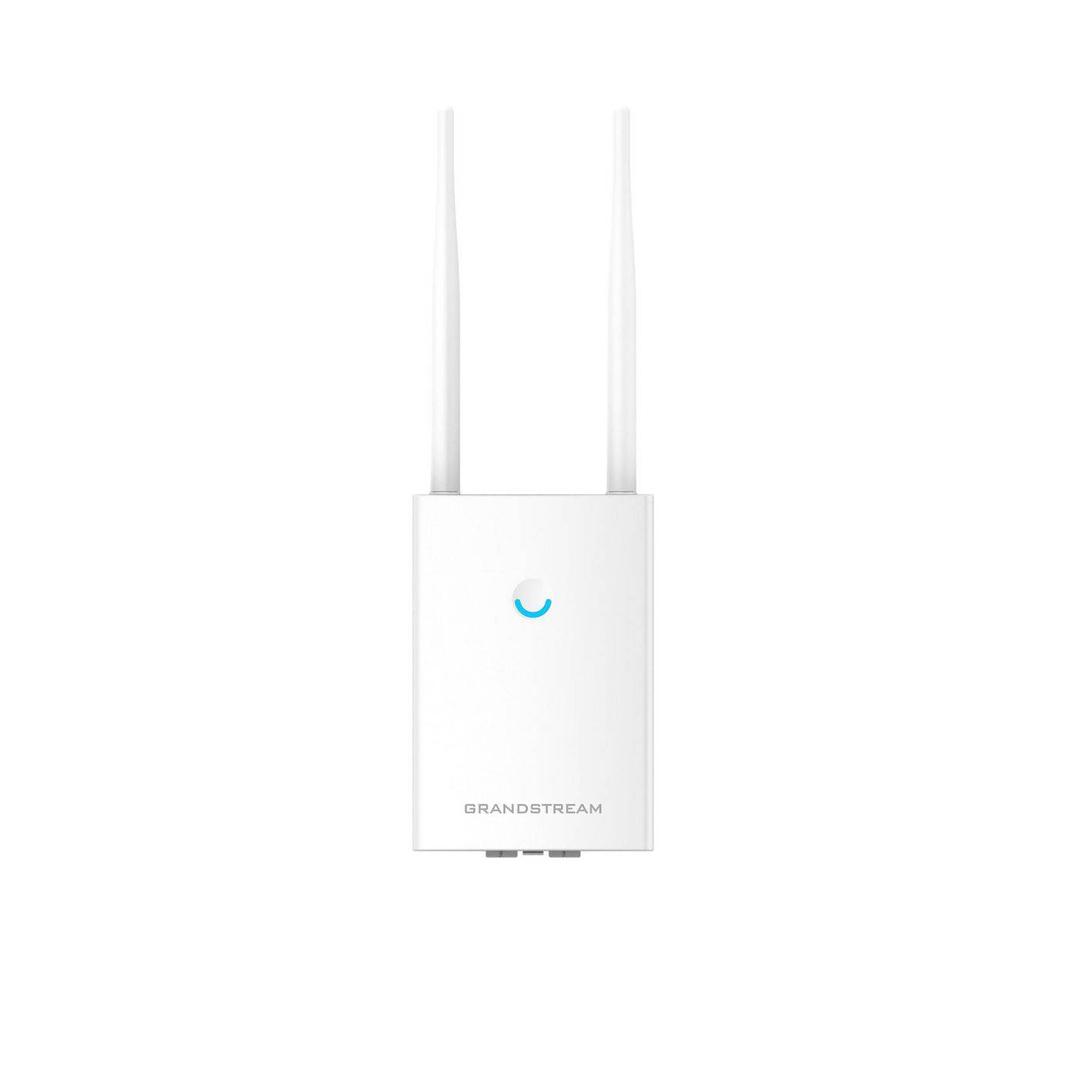

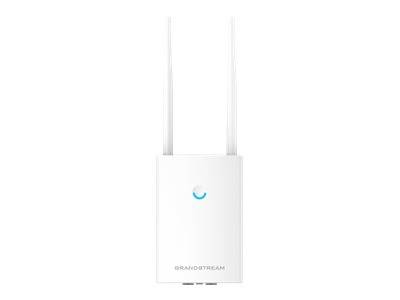

Grandstream GWN7605LR / Radio access point / Wi-Fi 5 / 2.4 GHz, 5 GHz / cloud-managed / wall mountable | GWN7605LR
Please sign in so that we can notify you about a reply
Special Features
- 1.27Gbps aggregate wireless throughput and two Gigabit wireline ports
- Dual-band 2x2:2 MU-MIMO with beam-forming technology
- Self power adaptation upon auto detection of PoE or PoE+
- Supports 100+ concurrent Wi-Fi client devices
- Up to 250-meter coverage range
- Advanced QoS to ensure real-time performance of low-latency applications
- Anti-hacking secure boot and critical data/control lockdown
- Flexibilty of two detachable/changeable antennas for different application scenarios
- Embedded controller manages up to 50 local GWN APs
Product Specification
| Device Type | Radio access point |
| Ruggedized Design | Outdoor |
| Width | 11.5 cm |
| Depth | 35.83 cm |
| Height | 4.53 cm |
| Weight | 500 g |
| Networking | Networking |
| Form Factor | Wall mountable |
| Connectivity Technology | Wireless |
| Data Transfer Rate | 1.27 Gbps |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2 |
| Cloud-Managed | Yes |
| Frequency Band | 2.4 GHz, 5 GHz |
| Max Range Open Space | 250 m |
| Performance | Maximum data rate (2.4 GHz): 300 Mbps ¦ Maximum data rate (5 GHz): 867 Mbps |
| Capacity | Maximum number of configured SSIDs: 8 ¦ Number of concurrent clients: 100+ |
| Features | Auto-sensing per device, VLAN support, IPv6 support, wall mountable, Wi-Fi Multimedia (WMM) support, Multiple SSID support, IPv4 support, Type of Service (ToS), beamforming technology, Advanced QoS, 2x2:2 MU-MIMO technology, data/control lockdown |
| Encryption Algorithm | WPA-PSK, WPA2-PSK, WPA-Enterprise, WPA2-Enterprise, WEP |
| Authentication Method | Radio Service Set ID (SSID) |
| Compliant Standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.1x, IEEE 802.11e, IEEE 802.11n, IEEE 802.3at, IEEE 802.3az, IEEE 802.11ac Wave 2 |
| Aerial | Aerial |
| Antenna | External |
| Antenna Qty | 2 |
| Gain Level | 3.5 dBi |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 2 x 1000Base-T (PoE+) - RJ-45 |
| Miscellaneous | Miscellaneous |
| Included Accessories | Wall mounting kit |
| Compliant Standards | IC, FCC, RCM, IEEE 802.3af, IEEE 802.3at |
| Power | Power |
| Power Over Ethernet (PoE) Supported | PoE+ |
| Power Consumption Operational | 10.16 Watt |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Width | 25.8 cm |
| Shipping Depth | 24.7 cm |
| Shipping Height | 8.6 cm |
| Shipping Weight | 655.3 g |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -30 °C |
| Max Operating Temperature | 70 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
Features - Grandstream - GWN7605LR
More Details
Product Code
04:420900
EAN Code
6947273703228
Manufacturer
Grandstream
