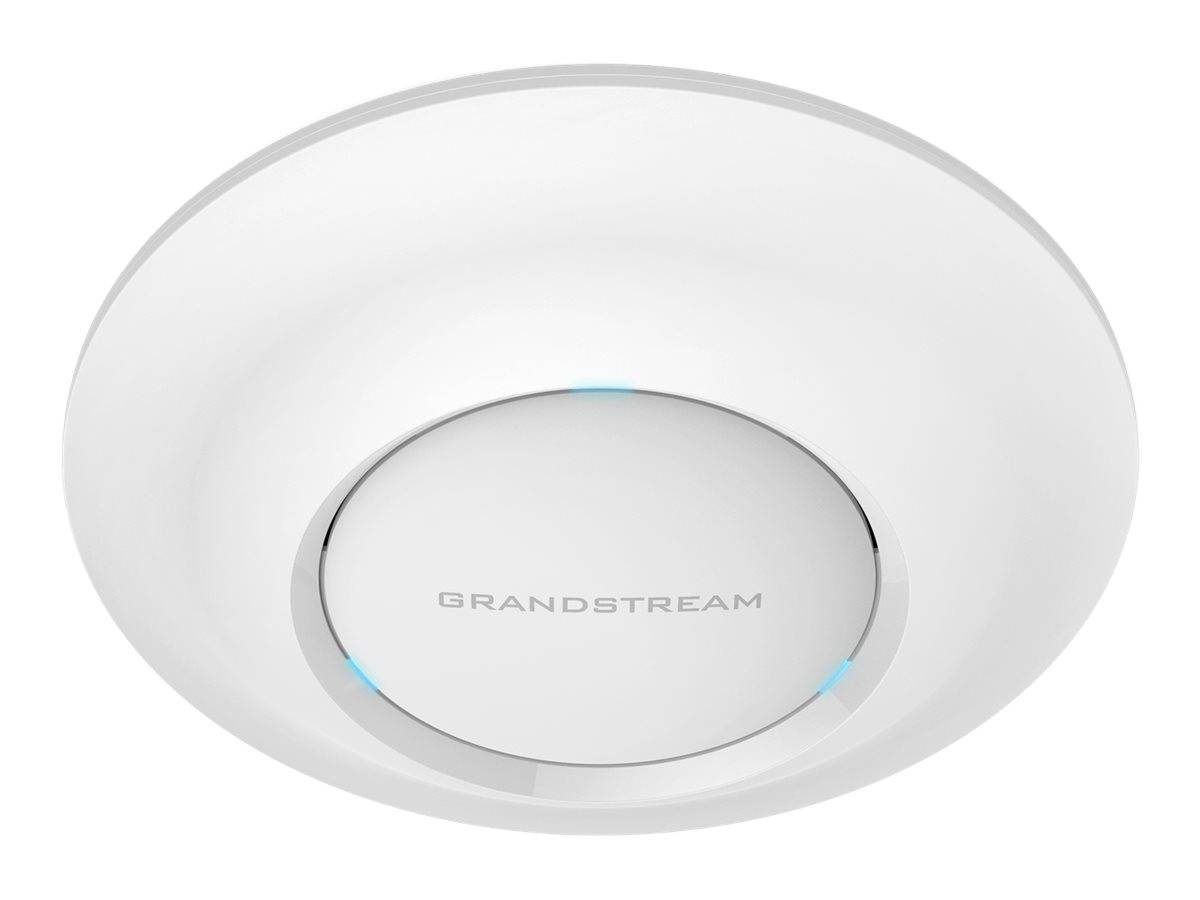

Grandstream GWN7630 / Radio access point / Wi-Fi 5 / 2.4 GHz, 5 GHz | GWN7630
Please sign in so that we can notify you about a reply
Special Features
- 2.33 Gbps wireless throughput and 2 Gigabit wireline ports
- Dual-band 4×4:4 MU-MIMO technology
- Self-power adaptation upon auto detection of PoE or PoE+
- Supports 200+ concurrent Wi-Fi client devices
- Up to 175-meter coverage range
- Advanced QoS to ensure real-time performance of low-latency applications
- Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/ random default password per device
- Embedded controller can manage up to 50 local GWN series APs; GWN.Cloud offers unlimited AP management
Product Specification
| Device Type | Radio access point |
| Ruggedized Design | Indoor |
| Width | 20.53 cm |
| Depth | 20.53 cm |
| Height | 4.59 cm |
| Weight | 590 g |
| Networking | Networking |
| Form Factor | External |
| Connectivity Technology | Wireless |
| Data Transfer Rate | 2.33 Gbps |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2 |
| Frequency Band | 2.4 GHz, 5 GHz |
| Max Range Open Space | 175 m |
| Capacity | Maximum number of configured SSIDs: 15 ¦ Number of concurrent clients: 200+ |
| Features | VLAN support, IPv6 support, wall mountable, Wi-Fi Multimedia (WMM) support, Multiple SSID support, reset button, IPv4 support, ceiling mountable, security lock slot (cable lock sold separately), Type of Service (ToS), Advanced QoS, 4x4:4 MU-MIMO technology |
| Encryption Algorithm | WPA-PSK, WPA2-PSK, WPA-Enterprise, WPA2-Enterprise, WEP |
| Compliant Standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.1x, IEEE 802.11e, IEEE 802.11n, IEEE 802.3at, IEEE 802.3az, IEEE 802.11ac Wave 2 |
| Aerial | Aerial |
| Antenna | Internal |
| Antenna Qty | 4 |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 2 x 1000Base-T (PoE+) - RJ-45 |
| Miscellaneous | Miscellaneous |
| Included Accessories | Wall mounting kit, ceiling mounting kit |
| Compliant Standards | IC, FCC, RCM |
| Power | Power |
| Power Over Ethernet (PoE) Supported | PoE+ |
| Power Consumption Operational | 16.5 Watt |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Width | 25.8 cm |
| Shipping Depth | 24.7 cm |
| Shipping Height | 8.6 cm |
| Shipping Weight | 930 g |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
Features - Grandstream - GWN7630
More Details
Product Code
04:305848
EAN Code
6947273702870
Manufacturer
Grandstream
