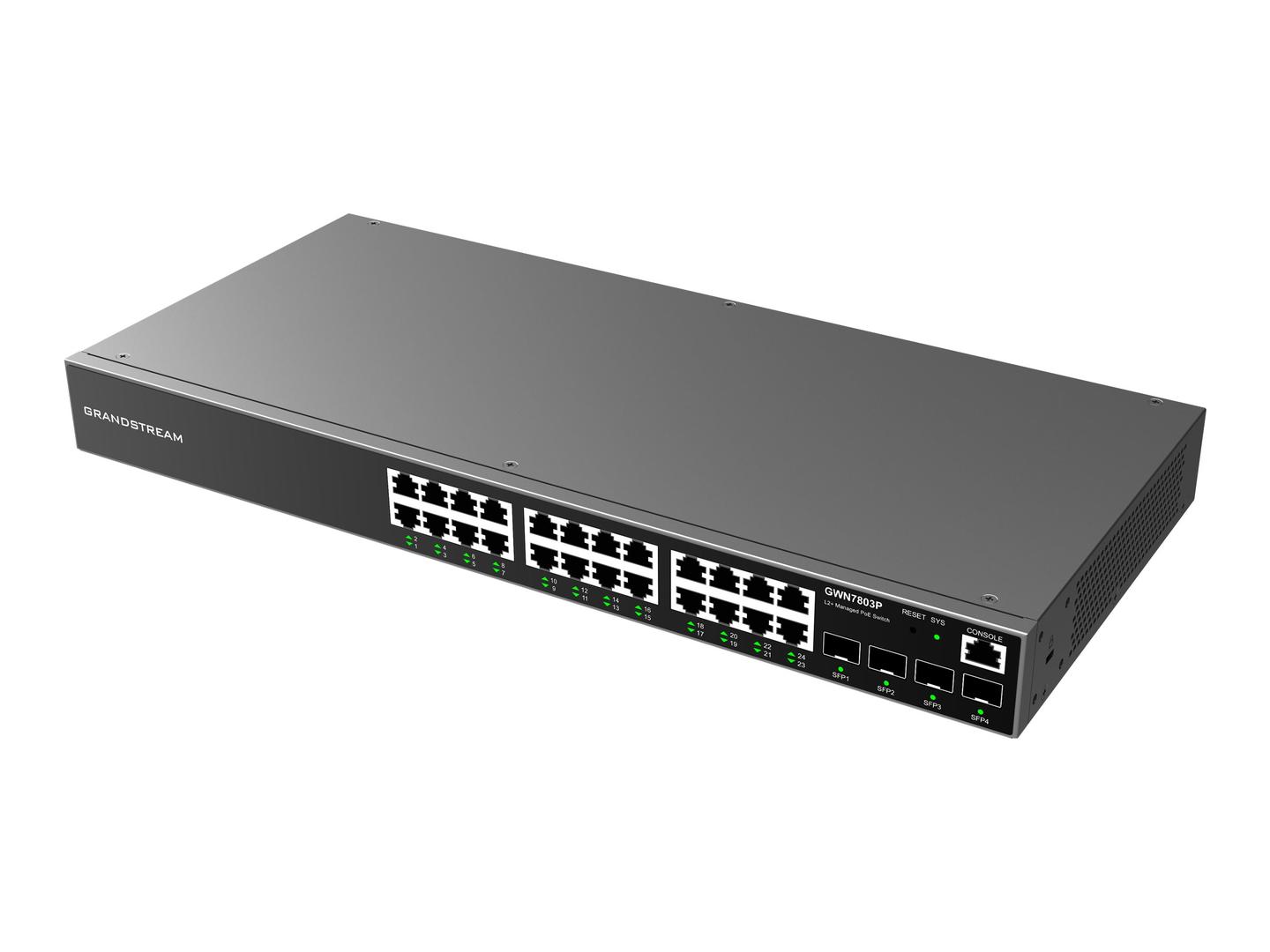

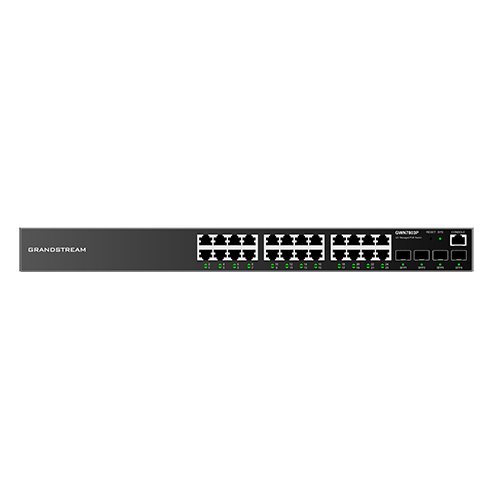

Grandstream GWN7803 - Switch - L2+ - Managed - 4 x Gigabit SFP + 24 x 1 Gigabit Ethernet | GWN7803

Product Features
- Robust environmental adaptability
Designed to operate efficiently across a wide range of humidity and temperature conditions, the GWN7803 ensures reliable performance from 0 °C to 45 °C and humidity levels from 10 - 90% (non-condensing). This adaptability makes it suitable for a variety of environments, ensuring uninterrupted connectivity. - Comprehensive networking capabilities
With advanced Layer 2+ switching and support for numerous IEEE standards including 802.1D, 802.1Q, and 802.3at among others, the GWN7803 offers robust, manageable networking solutions. Its capability to handle both IPv4 and IPv6 remote management protocols ensures future-proof operation in evolving network infrastructures. - Flexible connectivity options
Equipped with 24 Gigabit Ethernet ports and 4 Gigabit SFP ports, the GWN7803 provides ample connectivity for a wide range of devices. This flexibility supports the deployment of high-speed networks capable of supporting demanding applications and traffic volumes.
Special Fetures
- Supports a wide range of operating temperatures and humidity levels for versatile deployment
- Layer 2+ advanced switching with comprehensive IEEE standards support for robust networking
- 24 Gigabit Ethernet and 4 Gigabit SFP ports offer extensive connectivity options
- Manageable via IPv4 and IPv6 for flexible and future-proof network administration
- 30 W power supply ensures efficient operation and power delivery to connected devices
Product Specification
Device Type | Switch - 24 ports - L2+ - Managed |
Subtype | Gigabit Ethernet |
Ports | 4 x Gigabit SFP + 24 x 1 Gigabit Ethernet |
Remote Management Protocol | IPv4, IPv6 |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.1w, IEEE 802.1s, IEEE 802.3at |
Power | |
Power Provided | 30 Watt |
Miscellaneous | |
Compliant Standards | IC, FCC, RCM, UKCA |
Dimensions & Weight | |
Width | 44 cm |
Depth | 20 cm |
Height | 4.4 cm |
Weight | 2.7 kg |
Environmental Parameters | |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 45 °C |
Humidity Range Operating | 10 - 90% (non-condensing) |
Min Storage Temperature | -10 °C |
Max Storage Temperature | 60 °C |
Humidity Range Storage | 5 - 95% (non-condensing) |
Features - Grandstream - GWN7803
