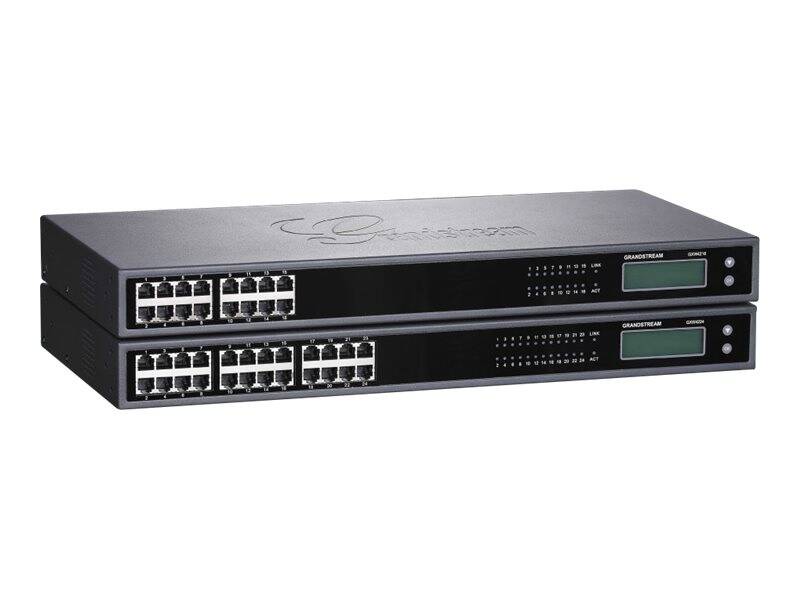

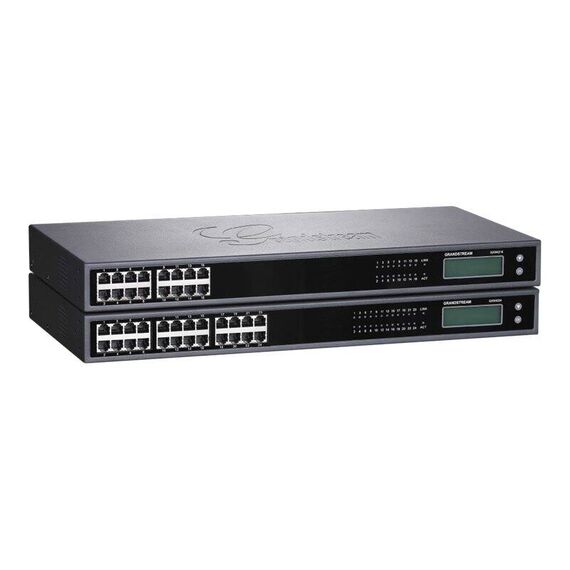

Grandstream GXW4224 - VoIP phone adapter - 24 ports - GigE voice/fax board - analogue ports: 24 - 1U - rack-mountable | GXW4224
Grandstream GXW4224 - VoIP phone adapter - 24 ports - GigE voice/fax board - analogue ports: 24 - 1U - rack-mountable | GXW4224
€563.41 inc. VAT
GXW4224
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Special Fetures
- Gigabit Ethernet and a backlit 128 x 32 graphic display with support for multiple languages
- 4 SIP server profiles per system and independent SIP account per port
- Supported voice/fax codecs include G.711, G.723.1, G.726A/B, iLBC, T.38 fax
- Advanced carrier grade 128 ms-tail-length G.168 line echo cancellation
- Over-voltage and over-current protection
- Supports VMWI, NEON LED and stutter tone for message waiting indication
- Automated provisioning using TR-069 or AES encrypted XML configuration file, TLS/SRTP/HTTPS for advanced security and privacy protection
Product Specification
| Device Type | VoIP phone adapter |
| Height (Rack Units) | 1U |
| Built-in Devices | Status LCD |
| Width | 18.5 cm |
| Depth | 44 cm |
| Height | 4.4 cm |
| Weight | 2.57 kg |
| Networking | |
| Form Factor | Rack-mountable |
| Ports Qty | 24 |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Network / Transport Protocol | TCP/IP, UDP/IP, NTP, ICMP/IP, PPPoE, ARP, DHCP |
| Remote Management Protocol | HTTP, HTTPS, TFTP, TR-069 |
| Status Indicators | Phone, LAN, link/activity |
| IP Telephony | |
| VoIP Protocols | SIP, RTCP, RTP |
| Voice Codecs | G.711, G.723, G.729a, G.726, iLBC, G.729b |
| Telephony Interfaces | 48 phone (FXS) |
| IP Telephony Features | Caller ID, call waiting, call transfer, message waiting, DTMF generation/detection |
| Communications | |
| Type | Voice/fax board |
| Protocols & Specifications | ITU V.21, ITU V.29, ITU V.17, ITU V.27ter, ITU T.38 |
| Voice Communication Support | VoIP |
| Analogue Ports Qty | 24 |
| Expansion / Connectivity | |
| Interfaces | 24 x modem - RJ-11 ¦ 1 x 1000Base-T - RJ-45 ¦ 1 x management - Telco |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
Features - Grandstream - GXW4224
More Details
Product Code
04:213819
EAN Code
6947273701156
Manufacturer
Grandstream
