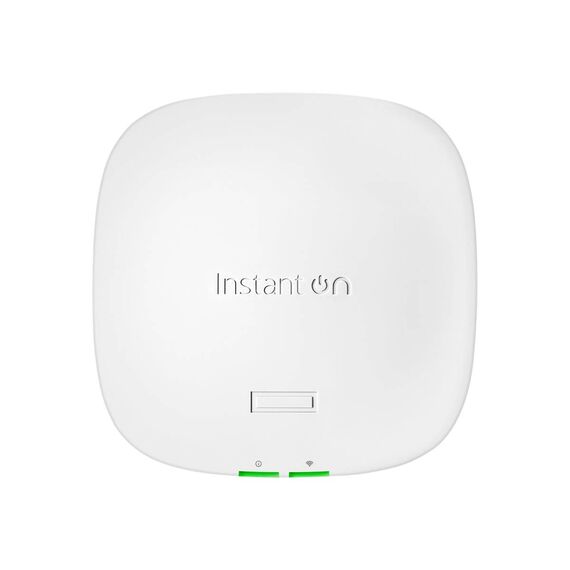

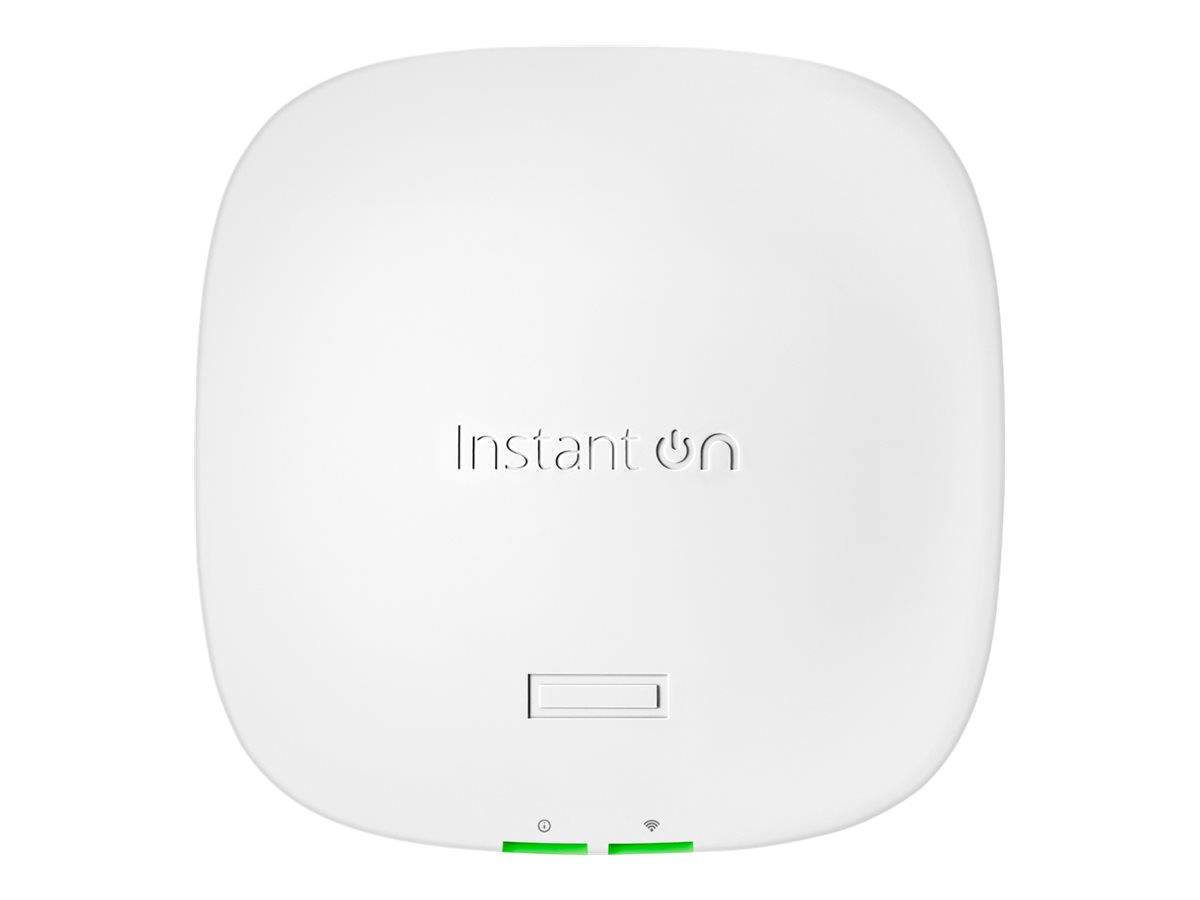

HPE Networking Instant On AP21 (RW) / Radio access point / Wi-Fi 6 / 2.4 GHz, 5 GHz / wall / ceiling mountable | S1T15A

Product Features
- Enhanced connectivity
Equipped with Wi-Fi 6 technology, the HPE Networking Instant On AP21 (RW) offers faster speeds, increased capacity, and reduced latency. This wireless access point ensures a seamless and efficient networking experience, accommodating the growing demand for wireless connectivity in business environments. - Robust design
Designed for indoor use, the AP21 (RW) boasts a ruggedized chassis that ensures durability and reliability. Its wall and ceiling-mountable form factor allows for flexible installation options, making it a suitable choice for various business settings. - Advanced features
Featuring 2x2 MIMO technology, Advanced Cellular Coexistence (ACC), and MU-MIMO technology, the AP21 (RW) enhances network efficiency and supports high-density user environments. Additional features like BSS Coloring and Target Wait Time (TWT) further optimize network performance, ensuring smooth and uninterrupted wireless connectivity.
Special Features
- Wi-Fi 6 technology for improved speed and capacity
- Dual-band support with 2.4 GHz and 5 GHz frequencies for versatile wireless connectivity
- Supports PoE for easy installation and reduced cabling complexity
- Omnidirectional internal antennas designed to enhance signal coverage
- Advanced security features including Trusted Platform Module (TPM) for network integrity
Product Specification
Device Type | Radio access point |
Ruggedized Design | Indoor |
Width | 14.5 cm |
Depth | 14.5 cm |
Height | 5.1 cm |
Weight | 255 g |
Networking | Networking |
Form Factor | Wall / ceiling mountable |
Connectivity Technology | Wireless |
Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6) |
Spread Spectrum Method | OFDMA |
Network / Transport Protocol | PPPoE |
Frequency Band | 2.4 GHz, 5 GHz |
Performance | Maximum data rate (5 GHz): 1.5 Gbps |
Capacity | Active users: 50 |
Status Indicators | Status, wireless |
Features | Static IP mode, Trusted Platform Module (TPM), reset button, Low Density Parity Check (LDPC), Advanced Cellular Coexistence (ACC), MU-MIMO technology, 2x2 MIMO technology, security slot (Kensington security lock compatible), Target Wait Time (TWT), PoE Class 4, Transmit Beamforming, PoE Class 3, BSS Coloring |
Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11n, IEEE 802.3at, IEEE 802.11ac, IEEE 802.3bt, IEEE 802.11ax, Wi-Fi CERTIFIED 6 |
Aerial | Aerial |
Antenna | Internal |
Antenna Qty | 2 |
Directivity | Omni-directional |
Expansion / Connectivity | Expansion / Connectivity |
Interfaces | 1 x 1000Base-T (uplink) - RJ-45 |
Miscellaneous | Miscellaneous |
Included Accessories | Ceiling/wall mount clip |
Power | Power |
Power Over Ethernet (PoE) Supported | PoE |
Power Device | External power adapter |
Voltage Required | 12 V |
Power Consumption Operational | 10.9 Watt |
Power Provided | 18 Watt |
Manufacturer Warranty | Manufacturer Warranty |
Service & Support | Limited warranty - 2 years |
