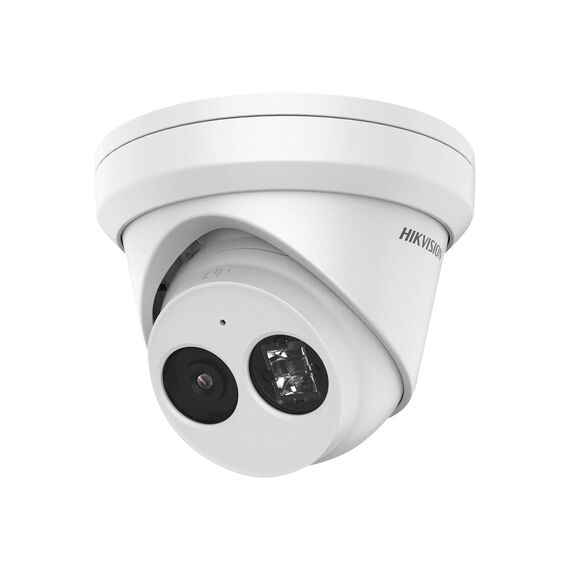

Hikvision EXIR Turret Camera DS-2CD2343G2-I / Network surveillance camera / dome / dust resistant / water resistant / colour (Day&Night) / 4 MP / 2688 x 1520 / M12 mount / fixed focal / LAN 10/100 / MJPEG, H.264, H.265, H.265+, H.26 | DS-2CD2343G2-I(4MM)
Please sign in so that we can notify you about a reply
Special Features
- High-quality imaging with 4MP resolution
- Clear imaging against strong backlight due to 120dB WDR technology
- Efficient H.265+ compression technology
- Water- and dust-resistant (IP67)
Product Specification
| Device Type | Network surveillance camera |
| Form Factor | Dome |
| Connectivity Technology | Wired |
| Width | 12.73 cm |
| Depth | 12.73 cm |
| Height | 9.59 cm |
| Weight | 600 g |
| Camera | Camera |
| Type | Colour - Day&Night - fixed - dust resistant / water resistant |
| Digital Video Format | MJPEG, H.264, H.265, H.265+, H.264+ |
| Max Digital Video Resolution | 2688 x 1520 |
| Motion Detection | Yes |
| Exposure Range | 1/3 sec - 1/100000 sec |
| Minimum Illumination | 0.005 lux - colour - F1.6 - AGC on ¦ 0 lux - IR |
| Infrared LEDs | Yes |
| Infrared Distance | 30 m |
| Digital Video Capture Resolution | 1280 x 720, 640 x 480, 1920 x 1080, 640 x 360, 2688 x 1520 |
| Frame Rate (max) | 30 frames per second |
| Features | Manual white balance, Backlight Compensation (BLC), sharpness control, digital image rotation, progressive scanning, saturation control, brightness control, contrast control, image mirror, Wide Dynamic Range (WDR), face detection, infrared cut filter, Privacy Mask Function, Highlight Compensation (HLC), NAS-Ready, tamper-detection, manual gain control, reset button, password protection, triple video stream, Region of Interest (ROI), Variable Bitrate (VBR), Constant Bitrate (CBR), intrusion detection, 3D Digital Noise Reduction Technology, ONVIF (Profile S) support, ONVIF (Profile G) support, Pixel Counter Support, Line Crossing Detection, EXIR LEDs, heartbeat, anti-flicker, Internet Server Application Programming Interface (ISAPI), DORI coverage, IP address filtering, HTTPs encryption, up to 6 channels simultaneous live view, Scalable Video Coding (SVC) |
| Image Sensor | Image Sensor |
| Type | 4 MP CMOS 1/3" |
| Lens Construction | Lens Construction |
| Type | M12 mount - fixed focal |
| Focal Length | 4 mm |
| Lens Iris | F/1.6 |
| Horizontal Field of View (degree) | 84 |
| Vertical Field of View (degree) | 45 |
| Diagonal Field of View (degree) | 100 |
| Panning | Panning |
| Range (degree) | 0 to 355 |
| Tilting | Tilting |
| Range (degree) | 0 to 75 |
| Interfaces | Interfaces |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ICMP, RTSP, RTP, HTTPS, UPnP, TLS, IPv6, Bonjour, PPPoE, SMB, IGMP, SSL, QOS, CIFS, NFS |
| Expansion / Connectivity | Expansion / Connectivity |
| Ports | LAN/power - RJ-45 |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| Miscellaneous | Miscellaneous |
| Compliant Standards | CB, IC, UL 60950-1, FCC CFR47 Part 15 B, REACH, IP67, KC, RCM, RoHS 2011/65/EU, BIS, EN 61000-3-3:2013, WEEE 2012/19/EU, EN 61000-3-2:2014, IEC 60950-1:2005 + A1:2009 + A2:2013, EN 55032:2015, IEEE 802.3af, IS13252-1 (2010)/A1:2013/A2:2015, AS/NZS CISPR 32:2015, EN 50130-4:2011+A1:2014, KN32:2015, KN35:2015, IEC 60529:2013, EN 60950-1:2005+Am1:2009+Am 2:2013, ICES-003 issue 6:2016 |
| Power | Power |
| Power Requirements | DC 12 V / PoE Class 3 |
| Power Device | 6 Watt |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Width | 15 cm |
| Shipping Depth | 15 cm |
| Shipping Height | 14.1 cm |
| Shipping Weight | 816 g |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -30 °C |
| Max Operating Temperature | 60 °C |
| Relative Humidity (operating) | 0 - 95% (non-condensing) |
Features - Hikvision - DS-2CD2343G2-I(4MM)
More Details
Product Code
04:375834
EAN Code
6941264073727
Manufacturer
Hikvision
