Honeywell 5145 Eclipse / Barcode scanner / handheld / 72 line / sec / decoded / RS-232 / RS232 Kit: black scanner, EU power supply, 2.1m RS232 9-PIN Ruby cable | MK5145-31C41-EU
|

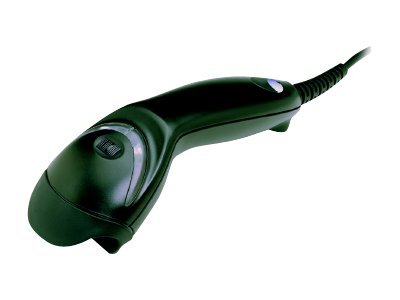

Description The 5145 Eclipse is a single-line, hand-held laser scanner. Honeywell's patented CodeGate technology allows the user to easily target the desired bar code and complete data transmission with a simple press of a button, making Eclipse a perfect selection for menu scanning, point-of-sale, document processing and inventory control. Special Features
Product features
|
Product Specification
| Type | Barcode scanner - handheld |
| Colour | Black |
| Localisation | Europe |
| Interface Type | RS-232 |
| Minimum Bar Width | 4 mil |
| Scan Element Type | Visible laser diode |
| Scan Mode | Single-pass |
| Scan Speed | 72 line / sec |
| Max Working Distance | 17.8 cm |
| Skew (Degrees) | 52 |
| Pitch (Degrees) | 68 |
| Print Contrast Signal (PCS) | 35% |
| Decode Capability | EAN/JAN, Code 93, Matrix 2 of 5, Code 39, NW-7, RSS Code, Telepen, Code 32, Codabar, Code 128, Code 11, Code 2 of 5, UPC, Interleaved 2 of 5, MSI-Plessey, China Post, Trioptic Code, EAN-UCC Composite, Code 93i |
| TTL Decoding | Decoded |
| Connectivity Technology | Wired |
| OK Notification | LED indicator |
| Features | Reduced Space Symbology (RSS), CodeGate, CodeSense |
| Interfaces | 1 x RS-232 - DB-9 |
| Cables Included | 1 x serial cable - 2.1 m |
| Compliant Standards | RoHS, WEEE, OPOS, cULus |
| Power Device | Power adapter - external |
| Voltage | AC 120/230 V ( 50/60 Hz ) |
| Software Included | MetroSet2 |
| Width | 6.3 cm |
| Depth | 5.1 cm |
| Height | 16.9 cm |
| Weight | 100 g |
| Service & Support | 3 years warranty |
| Service & Support Details | Limited warranty - 3 years |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Drop Specification | 1.5 m |
