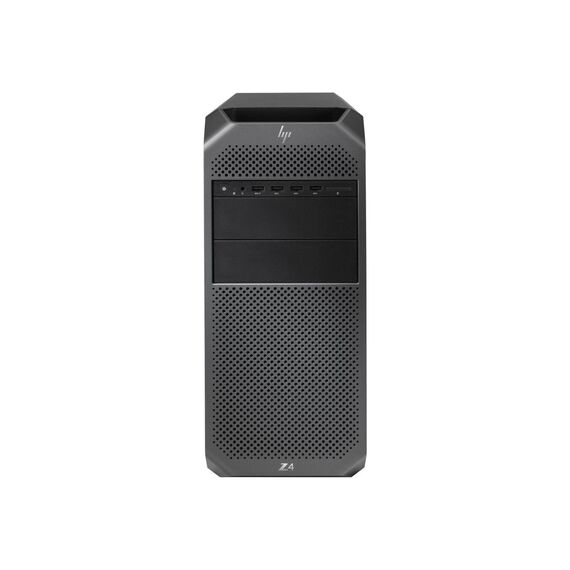

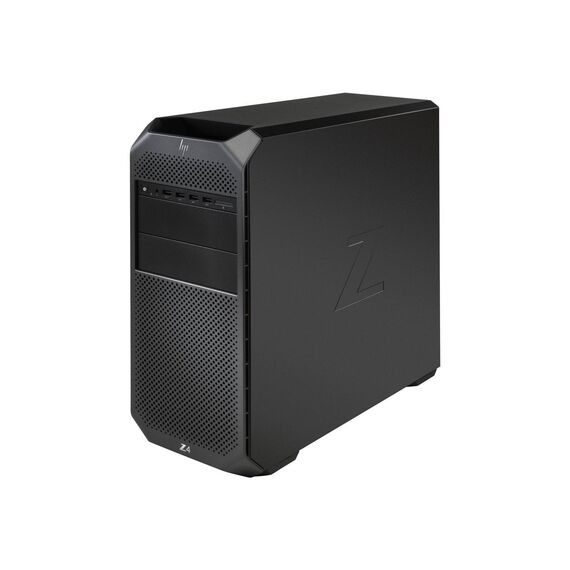

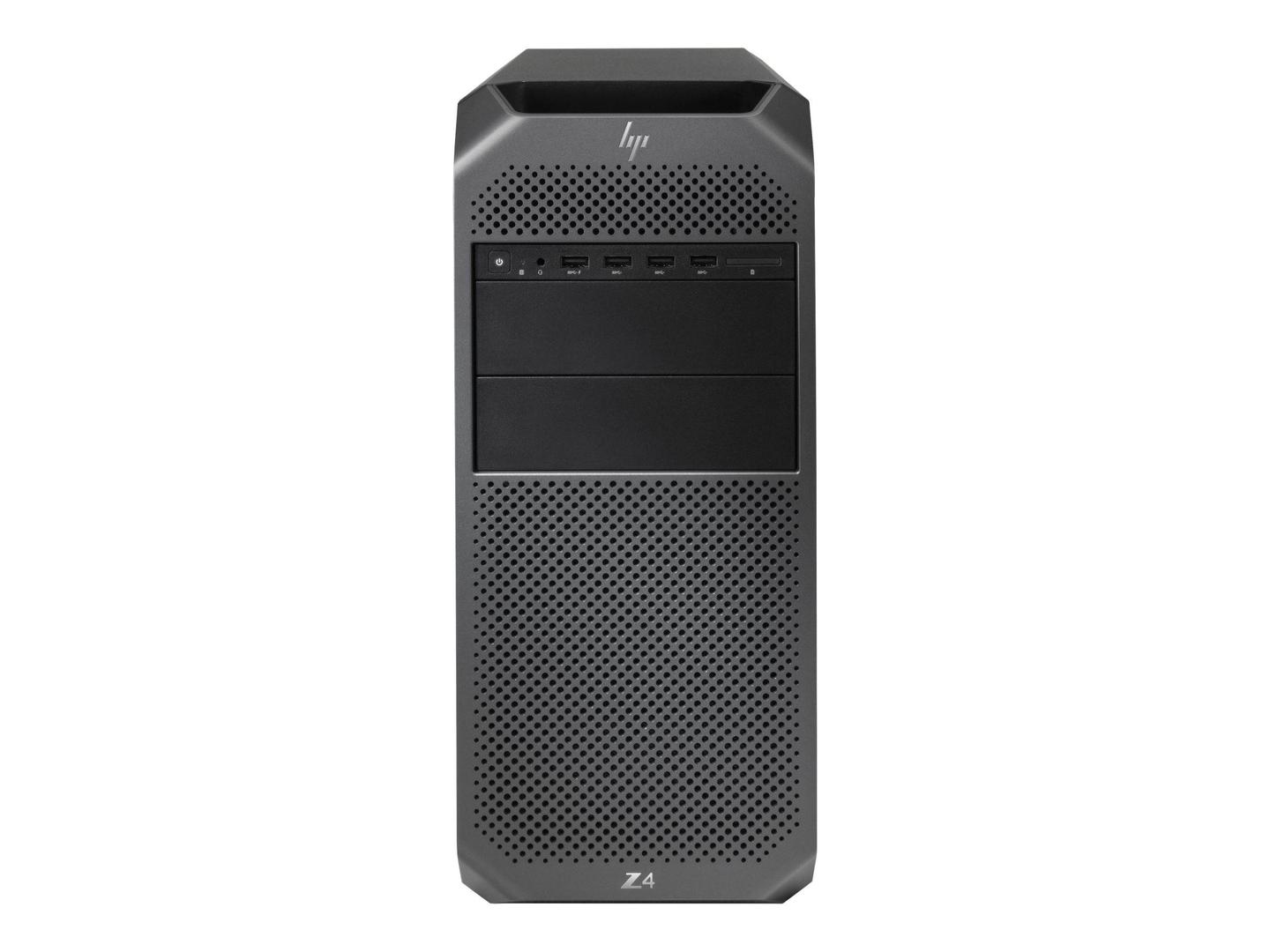

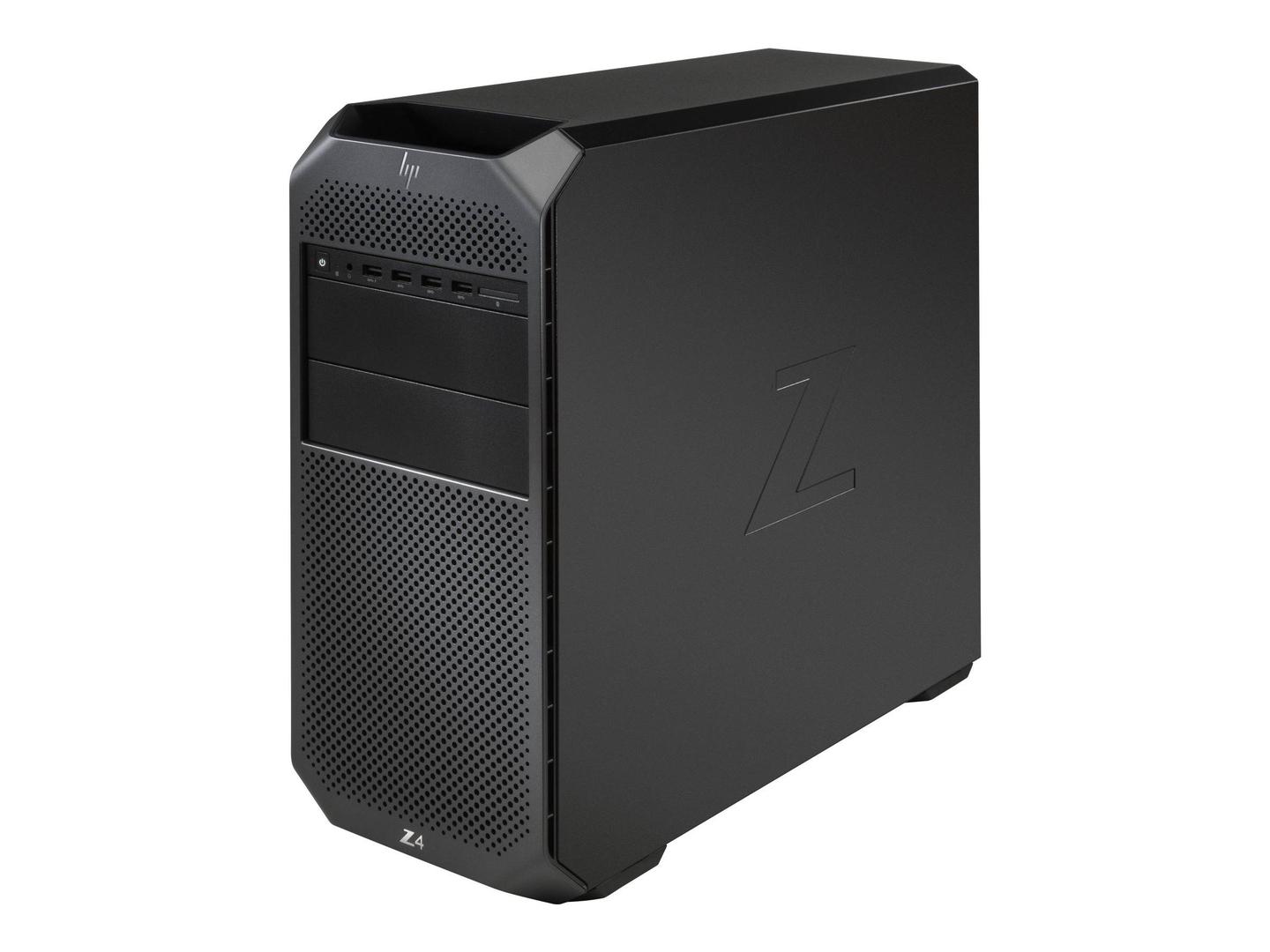

HP Workstation Z4 G4 / MT / 4U / 1 x Xeon W-2225 / 4.1 GHz / vPro / RAM 32 GB / SSD 512 GB / HP Z Turbo Drive, TLC / DVD-Writer / RTX A4500 / GigE / Win 11 Pro / keyboard: German / black | 523R2EA#ABD
523R2EA#ABD
CPU TypeIntel Xeon
Memory Size32GB
Capacity512GB
Product Code04:408626
EAN Code0196548664191
ManufacturerHewlett Packard
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
- Feature-rich functionality
The Z4 is ahead of its time with more standard features than any other single processor HP workstation. - All the power without the noise
Next-generation acoustic design delivers quiet performance. A high frequency processor with a multi-core count is fully capable of handling the demands of 3D CAD and rendering software, so you can visualize your idea anytime during the design process. - HP's secure workstations
Advanced security features come standard on every Z4. Rest assured your device, identity and data are safe with security software like HP Client Security Suite and HP Sure Start, the self-healing BIOS with intrusion detection.
Special Features
- Feature-rich functionality
- All the power without the noise
- HP's secure workstations
Product Specification
| Platform Technology | Intel vPro Platform |
| Type | Workstation |
| Product Form Factor | Mini tower - 4U |
| Built-in Devices | Speaker, HP Z4 Standard CPU Cooling Solution |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Colour | Black |
| Localisation | Language: German / region: Germany |
| Processor / Chipset | Processor / Chipset |
| CPU | Intel Xeon W-2225 |
| Clock Speed | 4.1 GHz |
| Max Turbo Speed | 4.6 GHz |
| Number of Cores | Quad-Core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| CPU Upgradability | Upgradable |
| Processor Main Features | Hyper-Threading Technology, Intel Turbo Boost Technology 2 |
| CPU Socket | LGA2066 Socket |
| Chipset Type | Intel C422 |
| Cache Memory | Cache Memory |
| Installed Size | 8.25 MB |
| Cache Per Processor | 8.25 MB |
| RAM | RAM |
| Installed Size | 32 GB / 512 GB (max) |
| Technology | DDR4 SDRAM - ECC |
| Effective Memory Speed | 2933 MHz |
| Rated Memory Speed | 2933 MHz |
| Form Factor | DIMM 288-pin |
| Slots | 8 (Total) / 6 (empty) |
| Features | Registered |
| Configuration Features | 2 x 16 GB |
| Hard Drive | Hard Drive |
| Type | SSD - M.2 2280 |
| Capacity | 1 x 512 GB |
| Interface Type | PCI Express 3.0 x4 |
| Features | HP Z Turbo Drive, triple-level cell (TLC) |
| Storage Controller | Storage Controller |
| Type | 1 x SATA |
| Controller Interface Type | SATA 6Gb/s |
| Channel Qty | 6 |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 10 |
| Optical Storage | Optical Storage |
| Type | DVD-Writer |
| Monitor | Monitor |
| Monitor Type | None. |
| Graphics Controller | Graphics Controller |
| Graphics Processor | NVIDIA RTX A4500 |
| Video Memory | 20 GB GDDR6 SDRAM |
| Video Interfaces | DisplayPort |
| Audio Output | Audio Output |
| Compliant Standards | High Definition Audio |
| Input Device | Input Device |
| Type | Mouse, keyboard |
| Keyboard | Keyboard |
| Keyboard Name | HP Business Slim Keyboard |
| Interface | USB |
| Localization & Layout | German |
| Mouse | Mouse |
| Mouse Name | HP 320M |
| Technology | Optical |
| Interface | USB |
| Networking | Networking |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Features | Wake on LAN (WoL), Intel Active Management Technology (AMT) 11, PXE 2.1 support |
| Expansion / Connectivity | Expansion / Connectivity |
| Bays | 2 (total) / 1 (free) x external 5.25" ¦ 2 (total) / 2 (free) x internal 3.5" |
| Slots | 2 (total) / 1 (free) x PCIe 3.0 x16 ¦ 2 (total) / 2 (free) x PCIe 3.0 x4 (open ended) ¦ 1 (total) / 1 (free) x PCIe 3.0 x8 (open ended) ¦ 2 (total) / 1 (free) x M.2 Card - 2280 (PCIe 3.0 x4 mode) |
| Interfaces | 2 x USB 3.1 Gen 1 (2 in front) (one of them is charging) ¦ 1 x headphones/microphone (1 in front) ¦ 1 x audio line-in ¦ 1 x audio line-out ¦ 1 x PS/2 keyboard ¦ 1 x PS/2 mouse ¦ 2 x LAN (Gigabit Ethernet) ¦ 6 x USB 3.1 Gen 1 ¦ 2 x USB-C 3.1 Gen 2 (2 in front) ¦ 4 x DisplayPort |
| Miscellaneous | Miscellaneous |
| Included Accessories | HP Z4 G4 Fan and Front Card Guide Kit |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately), padlock loop |
| Security Slot Type | Kensington security slot |
| Compliant Standards | RoHS, Common Criteria EAL4+, WEEE 2002/96/EC, low halogen |
| Power | Power |
| Device Type | Power supply |
| Voltage Required | AC 90-269 V (50/60 Hz) |
| Power Provided | 1000 Watt |
| 80 PLUS Certification | 80 PLUS |
| Efficiency | 90% |
| Power Factor Correction | Yes (active) |
| Operating System / Software | Operating System / Software |
| OS Provided | Windows 11 Pro for Workstations Tier 1 English / German |
| Software | HP Remote Graphics Software |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - parts and labour - 3 years - on-site |
| Dimensions & Weight | Dimensions & Weight |
| Width | 16.9 cm |
| Depth | 44.5 cm |
| Height | 38.6 cm |
| Weight | 11.3 kg |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Width | 31.4 cm |
| Shipping Depth | 56.3 cm |
| Shipping Height | 57.2 cm |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 5 °C |
| Max Operating Temperature | 35 °C |
| Humidity Range Operating | 10 - 85% (non-condensing) |
