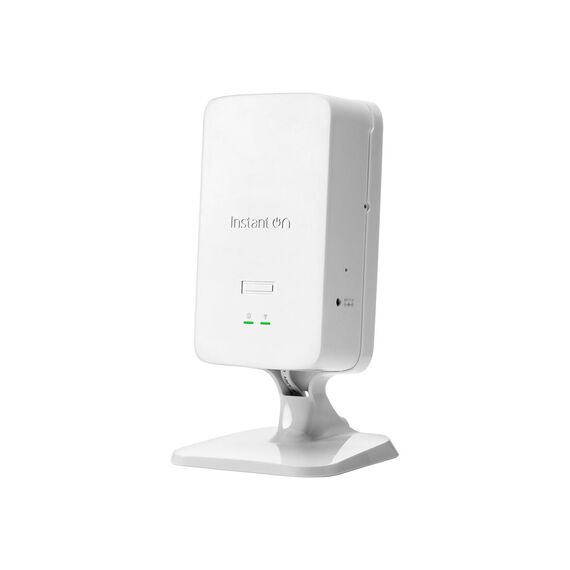

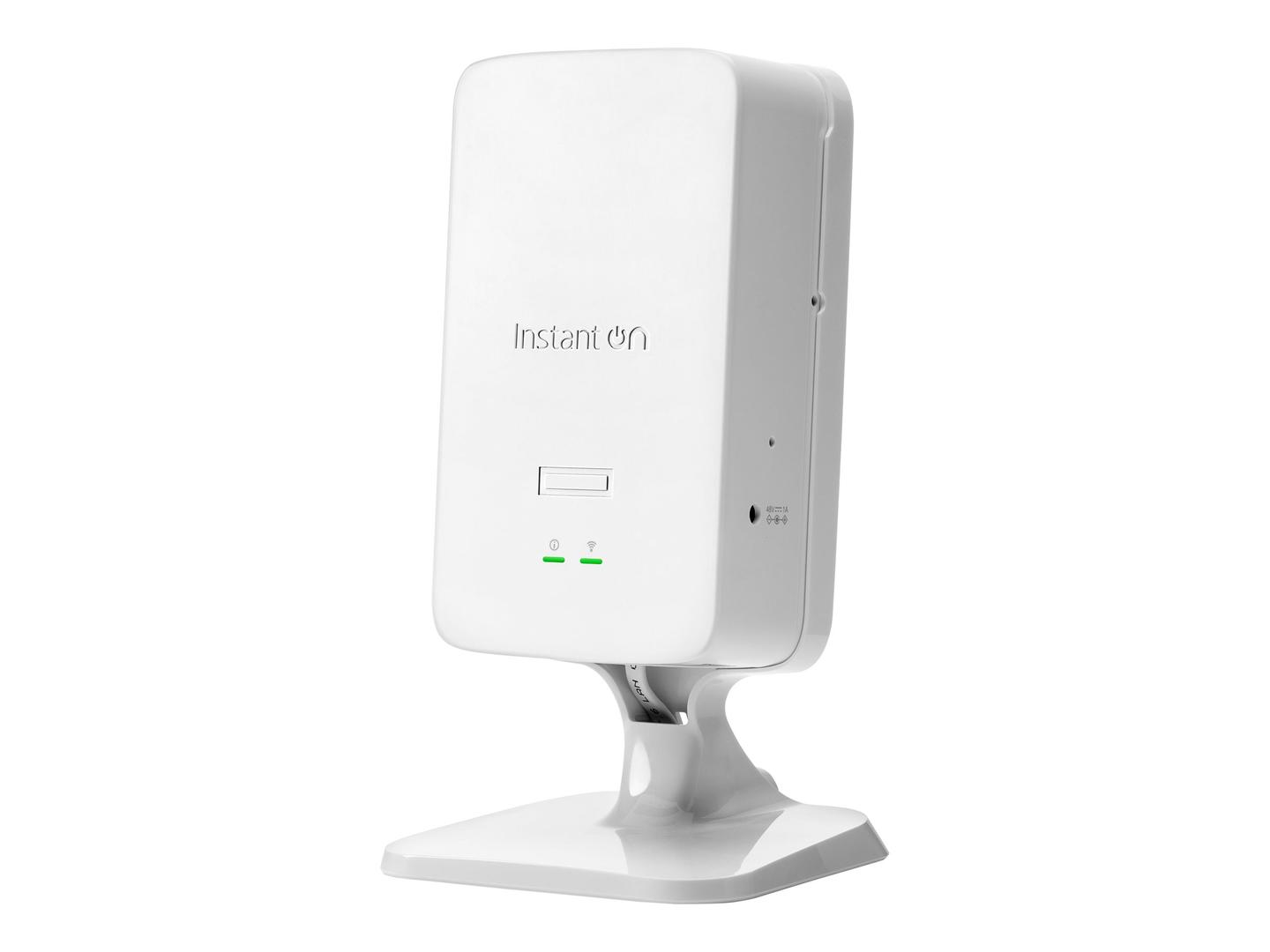

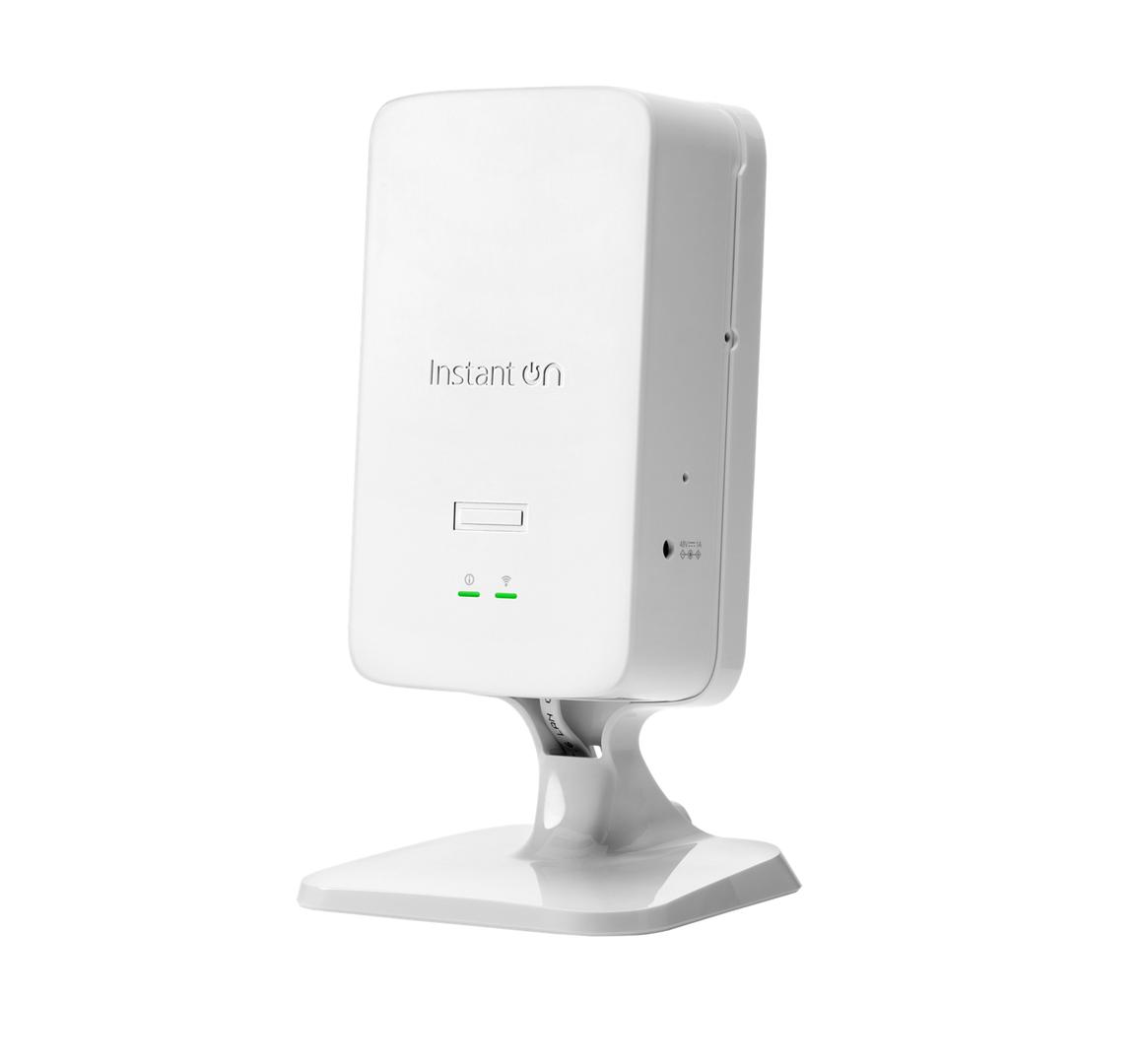

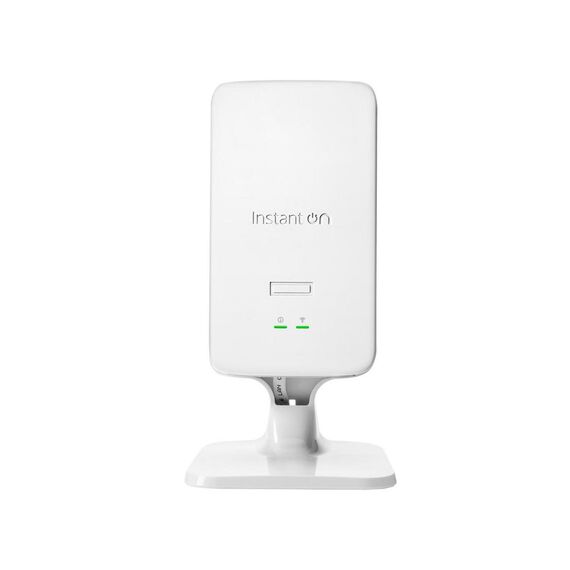

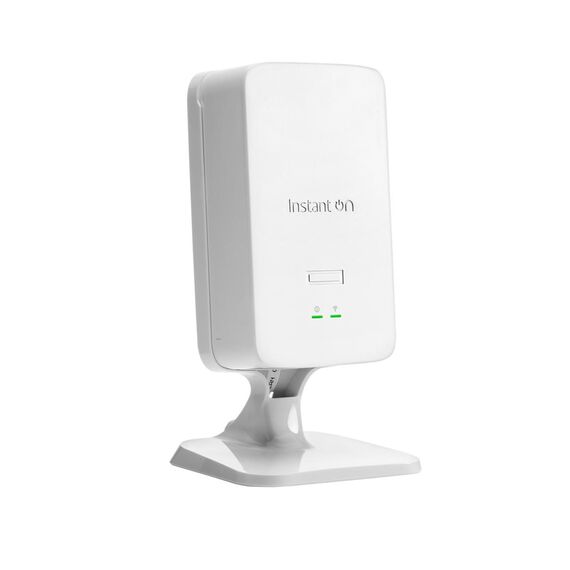

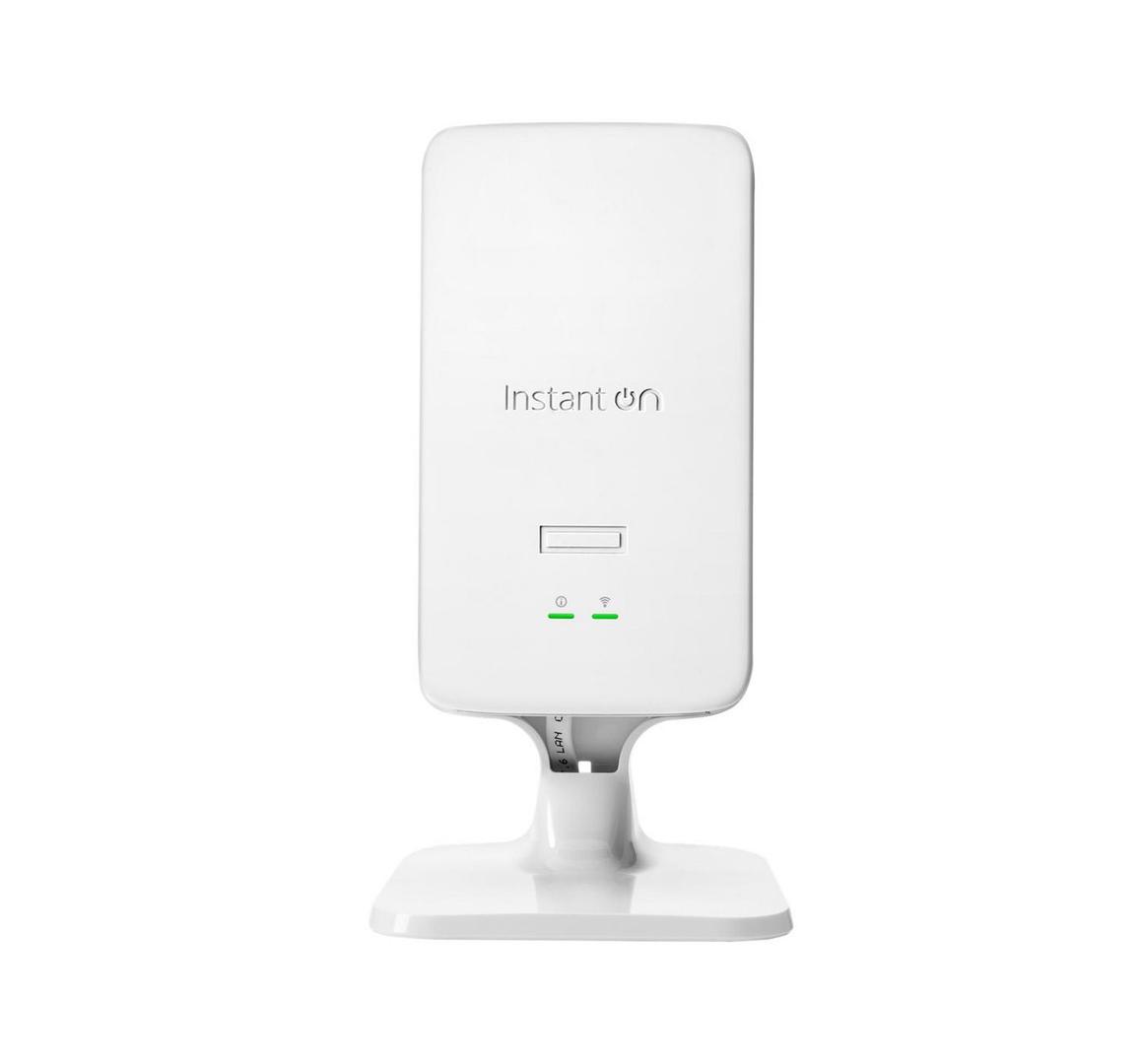

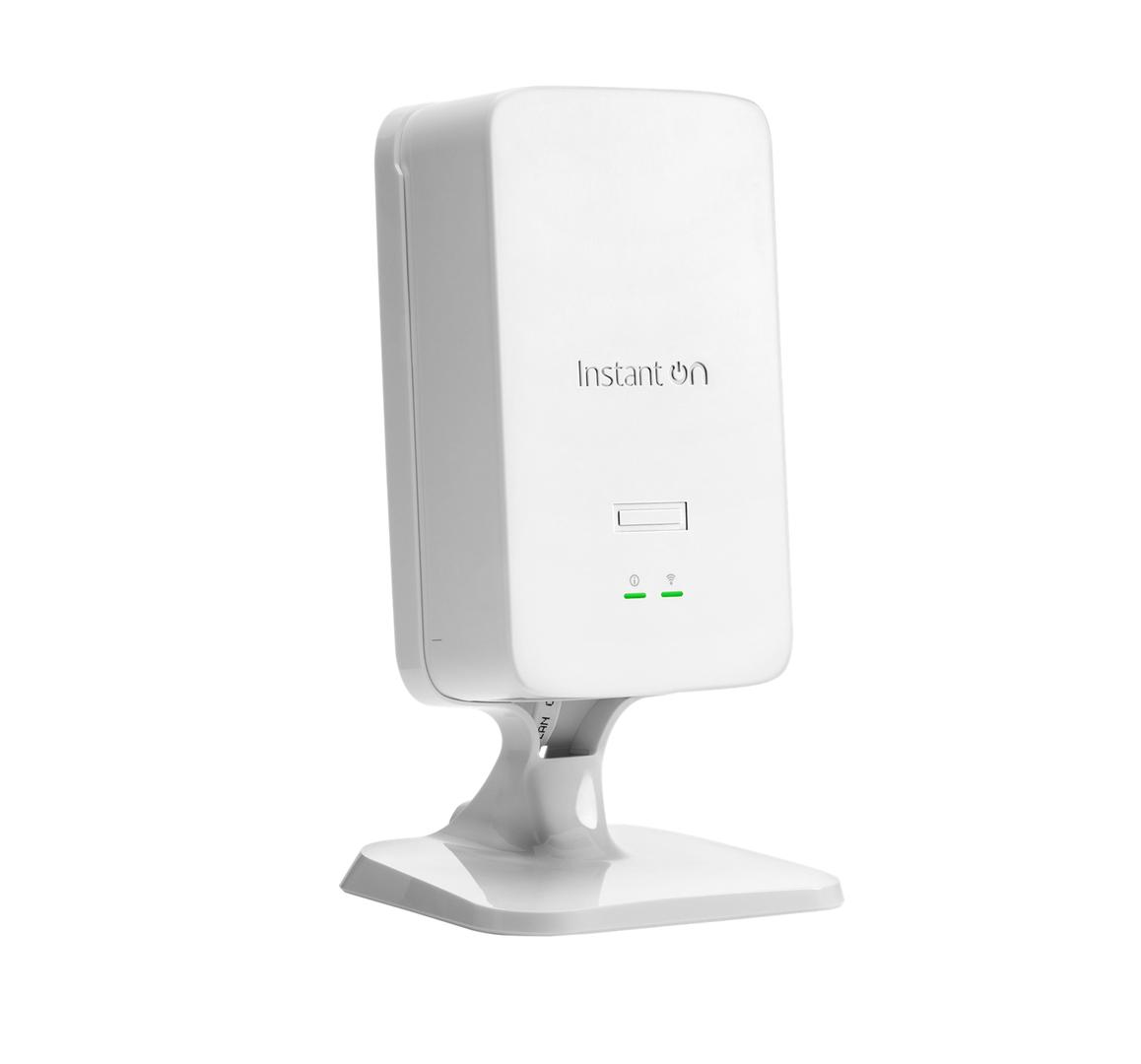

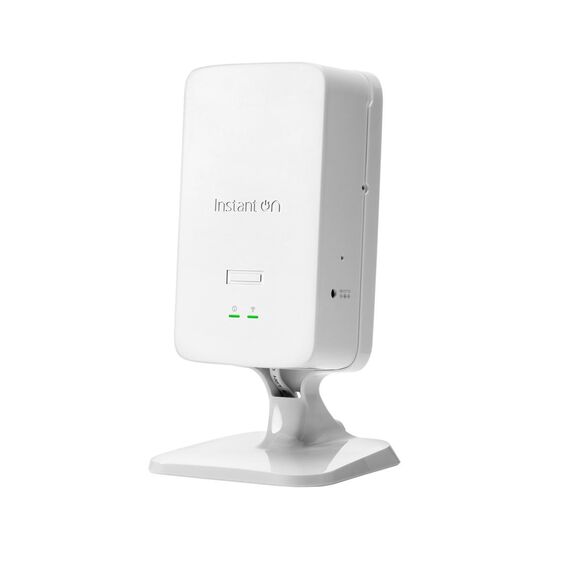

HPE Networking Instant On AP22D (EU) - Radio access point - Wi-Fi 6 - 2.4 GHz, 5 GHz - BTO desktop / wall mountable | S0J33A
Product Features
- Enhanced connectivity
With a 2.5GBase-T uplink PoE and four 1000Base-T downlink connectors, the HPE Networking Instant On AP22D (EU) ensures high-speed, reliable connections for all connected devices, making it ideal for high-density environments. - Advanced security
Featuring Opportunistic Wireless Encryption (OWE), WPA2, and WPA3, the device offers robust security protocols to protect sensitive data, ensuring a secure network environment for users. - Optimized performance
Equipped with Wi-Fi 6 technology, the AP22D (EU) delivers an aggregate wireless throughput of 1.7 Gbps, supported by features like 2x2 MIMO, MU-MIMO, and OFDMA, providing efficient, high-speed Internet access for multiple devices simultaneously. - Durable design
Designed for indoor use, the ruggedized chassis of the AP22D (EU) is built to withstand the demands of busy office environments, ensuring long-lasting performance. - Intelligent management
With features like BSS Coloring, Target Wait Time (TWT), and Advanced Cellular Coexistence (ACC), the AP22D (EU) optimizes wireless channel allocation and reduces interference, ensuring seamless connectivity for all users.
Special Fetures
- Wi-Fi 6 technology for faster, more efficient connectivity
- Supports up to 1.7 Gbps data transfer rate for high-speed Internet access
- Robust security with WPA3 and Opportunistic Wireless Encryption
- Flexible mounting options for desktop or wall, fitting various indoor environments
- 88 years MTBF for reliability and peace of mind
Product Specification
Device Type | Radio access point |
Ruggedized Design | Indoor |
Width | 8.6 cm |
Depth | 4.7 cm |
Height | 15 cm |
Weight | 360 g |
Networking | |
Form Factor | Desktop / wall mountable |
Connectivity Technology | Wireless |
Data Transfer Rate | 1.7 Gbps |
Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6) |
Spread Spectrum Method | OFDMA |
Network / Transport Protocol | PPPoE |
Frequency Band | 2.4 GHz, 5 GHz |
Performance | Maximum data rate (5 GHz): 1.2 Gbps ¦ Maximum data rate (2.4 GHz): 574 Mbps ¦ Aggregate switching capacity: 900 Mbps ¦ Aggregate wireless throughput: 1.7 Gbps |
Status Indicators | Status, wireless |
Features | Static IP mode, Trusted Platform Module (TPM), reset button, Low Density Parity Check (LDPC), Advanced Cellular Coexistence (ACC), MU-MIMO technology, 2x2 MIMO technology, security slot (Kensington security lock compatible), Target Wait Time (TWT), PoE Class 4, PoE Class 6, Transmit Beamforming, BSS Coloring |
Encryption Algorithm | WPA2, WPA3, Opportunistic Wireless Encryption (OWE) |
Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11n, IEEE 802.3at, IEEE 802.11ac, IEEE 802.3bt, IEEE 802.11ax, Wi-Fi CERTIFIED 6 |
Aerial | |
Antenna | Internal |
Antenna Qty | 2 |
Directivity | Omni-directional |
Expansion / Connectivity | |
Interfaces | 1 x 2.5GBase-T (uplink, PoE) - RJ-45 ¦ 4 x 1000Base-T (downlink) - RJ-45 |
Miscellaneous | |
Included Accessories | Desk mount kit, gang wall-box mount kit |
MTBF | 88 years |
Pricing Type | BTO |
Power | |
Power Over Ethernet (PoE) Supported | PoE |
Power Device | External power adapter |
Manufacturer Warranty | |
Service & Support | Limited warranty - 2 years ¦ Technical support - phone consulting - 90 days |
Environmental Parameters | |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 40 °C |
Features - Hewlett Packard - S0J33A
