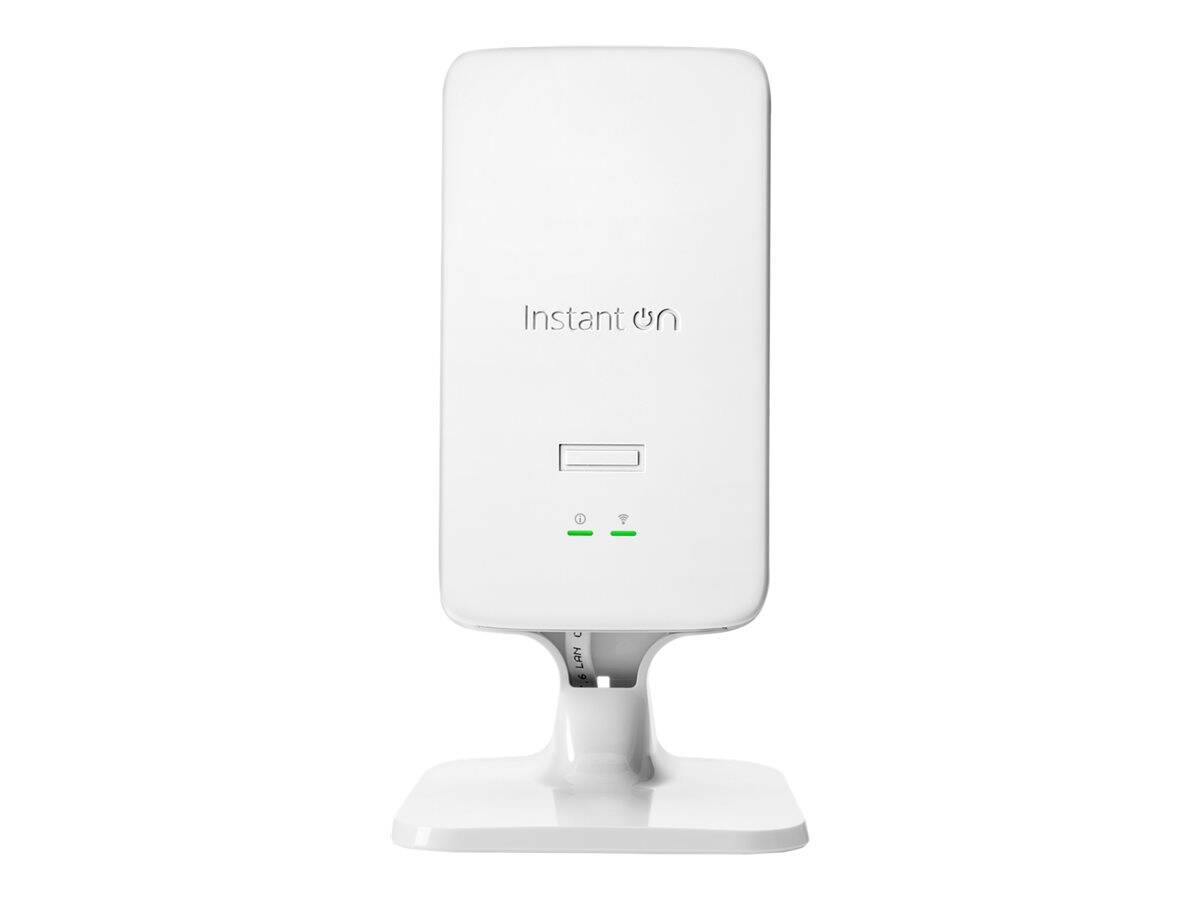

HPE Networking Instant On AP22D (RW) - Radio access point - Wi-Fi 6 - 2.4 GHz, 5 GHz - BTO desktop / wall mountable | S1U76A
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Radio access point |
| Ruggedized Design | Indoor |
| Width | 8.6 cm |
| Depth | 4.7 cm |
| Height | 15 cm |
| Weight | 360 g |
| Localisation | Rest of World |
| Networking | |
| Form Factor | Desktop / wall mountable |
| Connectivity Technology | Wireless |
| Data Transfer Rate | 1.7 Gbps |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6) |
| Spread Spectrum Method | OFDMA |
| Network / Transport Protocol | PPPoE |
| Frequency Band | 2.4 GHz, 5 GHz |
| Performance | Maximum data rate (5 GHz): 1.2 Gbps ¦ Maximum data rate (2.4 GHz): 574 Mbps ¦ Aggregate switching capacity: 900 Mbps ¦ Aggregate wireless throughput: 1.7 Gbps |
| Status Indicators | Status, wireless |
| Features | Static IP mode, Trusted Platform Module (TPM), reset button, Low Density Parity Check (LDPC), Advanced Cellular Coexistence (ACC), MU-MIMO technology, 2x2 MIMO technology, security slot (Kensington security lock compatible), Target Wait Time (TWT), PoE Class 4, PoE Class 6, Transmit Beamforming, BSS Coloring |
| Encryption Algorithm | WPA2, WPA3, Opportunistic Wireless Encryption (OWE) |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11n, IEEE 802.3at, IEEE 802.11ac, IEEE 802.3bt, IEEE 802.11ax, Wi-Fi CERTIFIED 6 |
| Aerial | |
| Antenna | Internal |
| Antenna Qty | 2 |
| Directivity | Omni-directional |
| Expansion / Connectivity | |
| Interfaces | 1 x 2.5GBase-T (uplink, PoE) - RJ-45 ¦ 4 x 1000Base-T (downlink) - RJ-45 |
| Miscellaneous | |
| Included Accessories | Desk mount kit, gang wall-box mount kit |
| MTBF | 88 years |
| Pricing Type | BTO |
| Power | |
| Power Over Ethernet (PoE) Supported | PoE |
| Power Device | External power adapter (not included) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years ¦ Technical support - phone consulting - 90 days |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
Features - Hewlett Packard - S1U76A
More Details
Product Code
CJ09274
EAN Code
0190017676296
Manufacturer
Hewlett Packard
