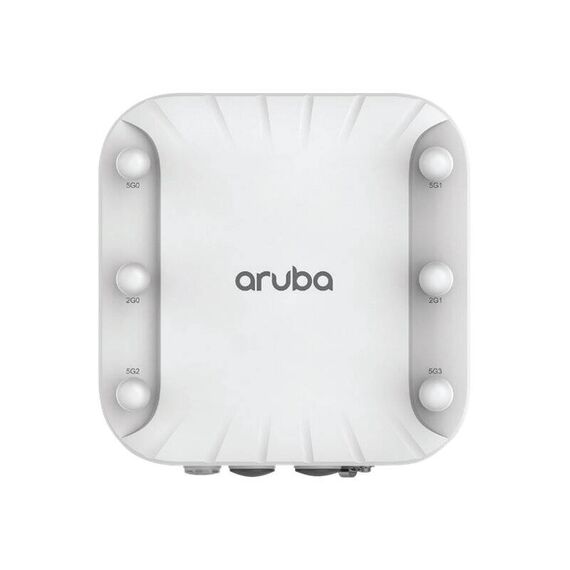

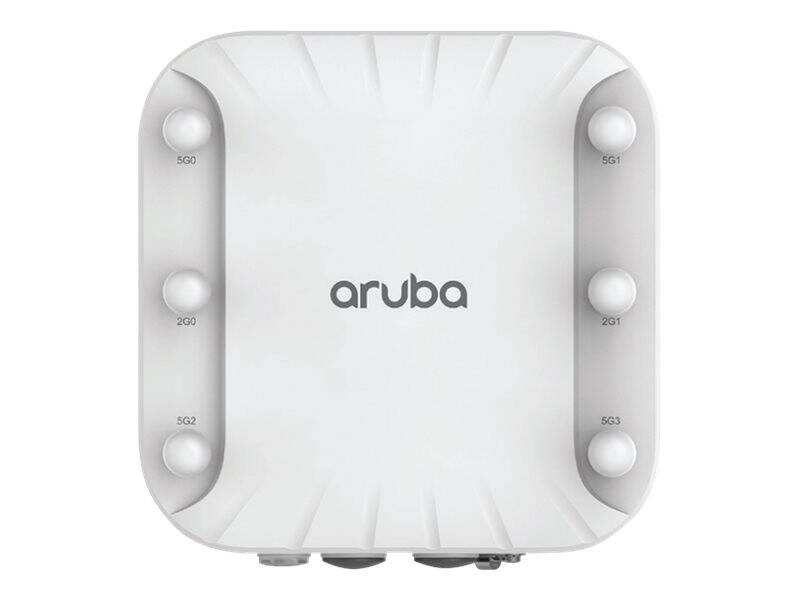

HPE Aruba AP-518 (RW) - Hardened - radio access point - ZigBee, Bluetooth, Wi-Fi 6 - 2.4 GHz, 5 GHz | R4H02A
Please sign in so that we can notify you about a reply
Product Features
- User and app firewall
The Aruba Policy Enforcement Firewall controls user and IoT access at the point of connectivity and is the underlying technology for Aruba Dynamic Segmentation. - Unsurpassed client experiences
Aruba ClientMatch, part of Aruba's AI-powered mobility solution, intelligently groups Wi-Fi 6 and MU-MIMO capable clients on the best-performing APs to optimize performance and roaming. - IoT platform capabilities
Aruba Wi-Fi 6 and Wi-Fi 5 APs include support for Zigbee, Bluetooth, and 3rd party overlays to simplify the deployment and management of IoT services.
Special Fetures
- User and app firewall
- Unsurpassed client experiences
- IoT platform capabilities
Product Specification
| Device Type | Radio access point |
| Ruggedized Design | Outdoor |
| Width | 21.1 cm |
| Depth | 21.1 cm |
| Height | 7 cm |
| Weight | 1.5 kg |
| Networking | |
| Form Factor | External |
| Connectivity Technology | Wireless |
| Data Transfer Rate | 3 Gbps |
| Line Coding Format | CCK, 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM, OFDM, 1024 QAM, OFDMA |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, ZigBee, IEEE 802.11ac Wave 2, Bluetooth 5.0, IEEE 802.11ax (Wi-Fi 6) |
| Spread Spectrum Method | OFDM, DSSS, OFDMA |
| Frequency Band | 2.4 GHz, 5 GHz |
| Performance | Maximum data rate (2.4 GHz): 575 Mbps ¦ Maximum data rate (5 GHz): 4.8 Gbps ¦ Aggregate bandwidth: 3 Gbps |
| Capacity | Wireless clients per Wi-Fi radio: 512 ¦ OFDMA units: 16 ¦ BSSIDs per radio: 16 |
| Status Indicators | System, status |
| Features | Trusted Platform Module (TPM), LACP support, Maximum Ratio Combining (MRC), Low Density Parity Check (LDPC), Transmit Beam-forming (TxBF) ready, Direct Sequence Spread Spectrum (DSSS), Cyclic Delay Diversity (CDD), Space Time Blocking Code (STBC), Advanced Cellular Coexistence (ACC), ClientMatch, cyclic shift diversity (CSD), MU-MIMO technology, packet aggregation A-MPDU, packet aggregation A-MSDU, Intelligent Power Monitoring (IPM), Dynamic Frequency Selection (DFS), High-Throughput (HT) support, 4x4 MU-MIMO technology, Orthogonal Frequency Division Multiplexing (OFDM), Very High Throughput (VHT) support, Orthogonal Frequency Division Multiple Access (OFDMA), custom deep-sleep mode, High Efficiency (HE) support, Target Wait Time (TWT) |
| Encryption Algorithm | WPA, WPA2, WPA3 |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at, IEEE 802.11ac, IEEE 802.3bz, IEEE 802.3bt, IEEE 802.11ax |
| Aerial | |
| Antenna | External |
| Antenna Qty | 6 |
| Internet of Things (IoT) | |
| Internet of Things (IoT) Compatible | Yes |
| Communications Technology | Bluetooth, Zigbee |
| Expansion / Connectivity | |
| Interfaces | 1 x HPE Smart Rate - RJ-45 ¦ 1 x 1000Base-T - RJ-45 ¦ 4 x aerial - RP-SMA ¦ 2 x aerial - RP-SMA |
| Miscellaneous | |
| Compliant Standards | CB, UL 2043, FCC, EN 60601-1-2, cTUVus, IP55, EN 60601-1-1, CE/EMC, Directive 2014/35/EU, Directive 2014/30/EU, ISED, Directive 2014/53/EU, IEC/EN/UL 60950 |
| Power | |
| Power Over Ethernet (PoE) Supported | PoE |
| Power Consumption Operational | 26.1 Watt |
| Software / System Requirements | |
| OS Required | ArubaOS, InstantOS |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Environmental Parameters | |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 55 °C |
| Humidity Range Operating | 5 - 93% (non-condensing) |
Features - Hewlett Packard - R4H02A
More Details
Product Code
2M2TWE5
EAN Code
0190017433493
Manufacturer
Hewlett Packard
