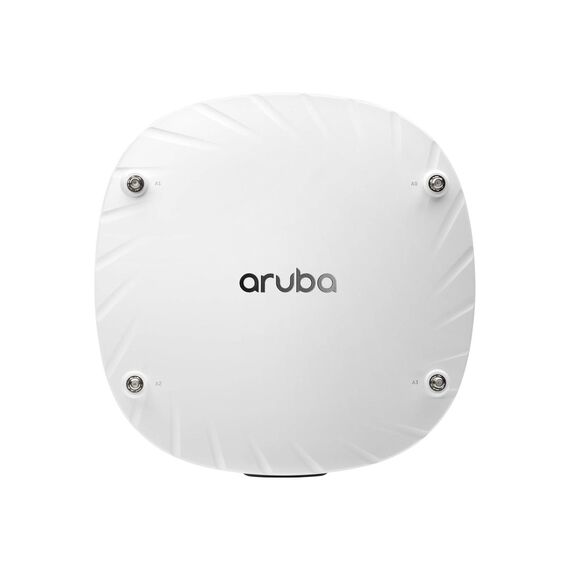

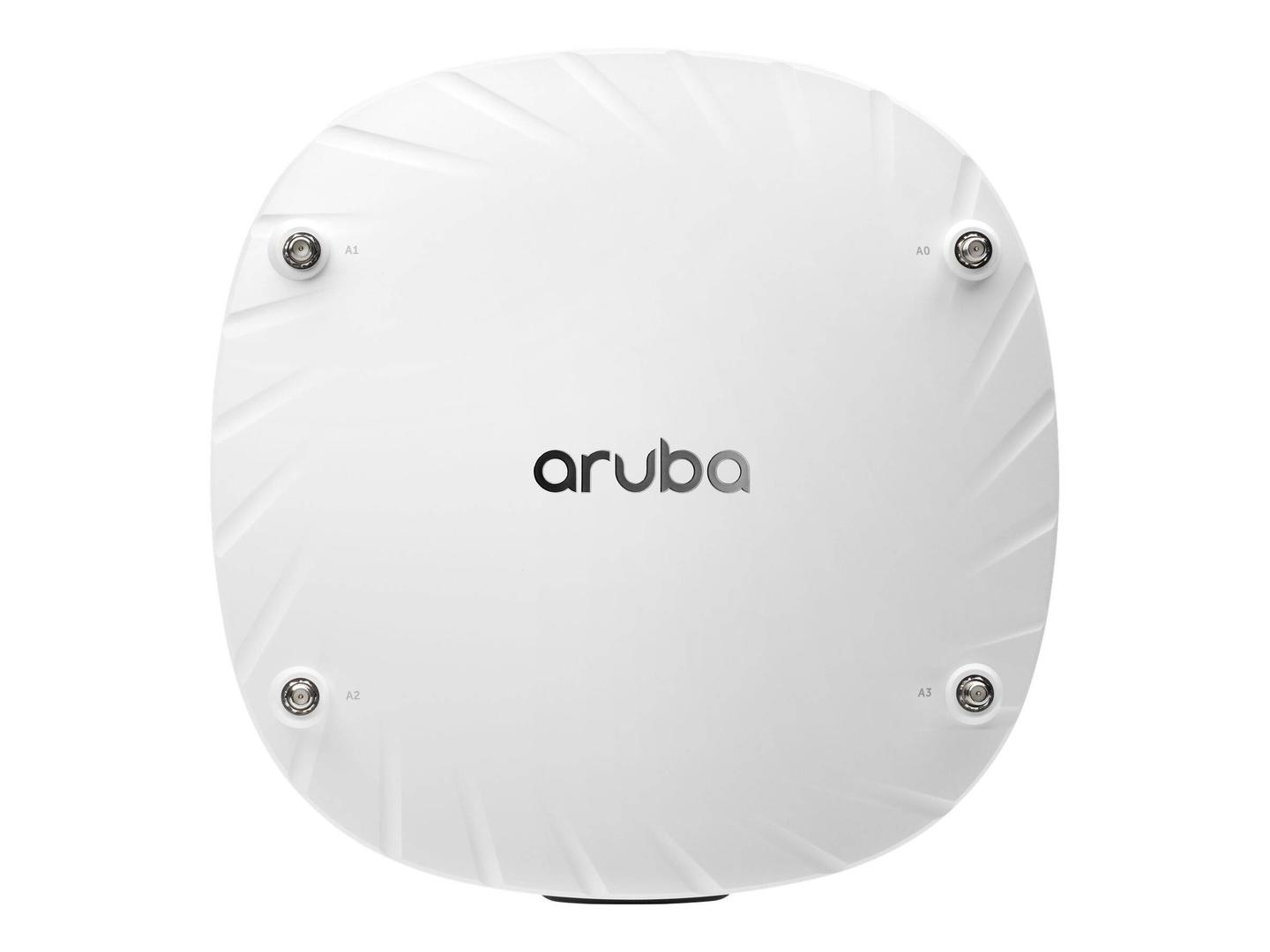

HPE Aruba AP-534 (IL) - Campus - radio access point - Bluetooth, Wi-Fi 6 - 2.4 GHz, 5 GHz | JZ329A
Please sign in so that we can notify you about a reply
Special Fetures
- AI-powered features for wireless RF and client connectivity optimization
- Supports 802.11 ax features, and up to the full 37 OFDMA Resource Units (RUs)
- Maximum data rates of 2.4Gbps in the 5GHz band and 1,150Mbps in the 2.4GHz band
- Ideal for high-density environments, such as higher educational 2, retail branches, hotels and digital workplaces
- Aruba Intelligent Power Monitoring (IPM) which allows the APs to operate if there is not enough PoE power
- Advanced security with WPA3 and Enhanced open
- Unified wired and wireless policy with Dynamic Segmentation
Product Specification
| Device Type | Radio access point |
| Ruggedized Design | Indoor |
| Width | 24 cm |
| Depth | 24 cm |
| Height | 5.7 cm |
| Weight | 1 kg |
| Networking | |
| Form Factor | External |
| Connectivity Technology | Wireless |
| Data Transfer Rate | 2.4 Gbps |
| Line Coding Format | CCK, 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM, OFDM, 1024 QAM, OFDMA |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0, IEEE 802.11ax (Wi-Fi 6) |
| Spread Spectrum Method | OFDM, DSSS, OFDMA |
| Frequency Band | 2.4 GHz, 5 GHz |
| Performance | Maximum data rate (2.4 GHz): 1150 Mbps ¦ Maximum data rate (5 GHz): 2.4 Gbps ¦ Aggregate bandwidth: 3.55 Gbps |
| Capacity | Wireless clients per Wi-Fi radio: 1024 ¦ OFDMA units: 37 ¦ BSSIDs per radio: 16 |
| Status Indicators | System, status |
| Features | Trusted Platform Module (TPM), LACP support, Adaptive Radio Management (ARM), Maximum Ratio Combining (MRC), Low Density Parity Check (LDPC), Transmit Beam-forming (TxBF) ready, Direct Sequence Spread Spectrum (DSSS), Cyclic Delay Diversity (CDD), Space Time Blocking Code (STBC), Advanced Cellular Coexistence (ACC), ClientMatch, cyclic shift diversity (CSD), AppRF technology, MU-MIMO technology, packet aggregation A-MPDU, packet aggregation A-MSDU, Air Monitor (AM), Intelligent Power Monitoring (IPM), Dynamic Frequency Selection (DFS), High-Throughput (HT) support, 4x4 MU-MIMO technology, Orthogonal Frequency Division Multiplexing (OFDM), Aruba AirMatch, spectrum analyser, Very High Throughput (VHT) support, Orthogonal Frequency Division Multiple Access (OFDMA), unified AP support, custom deep-sleep mode, High Efficiency (HE) support, Target Wait Time (TWT) |
| Encryption Algorithm | WPA, WPA2, WPA3 |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at, IEEE 802.11ac, IEEE 802.3bz, IEEE 802.3bt, IEEE 802.11ax |
| Aerial | |
| Antenna | External detachable |
| Antenna Qty | 4 |
| Internet of Things (IoT) | |
| Internet of Things (IoT) Compatible | Yes |
| Communications Technology | Bluetooth Low Energy (LE), Zigbee |
| Expansion / Connectivity | |
| Interfaces | 1 x HPE Smart Rate - RJ-45 ¦ 1 x USB 2.0 ¦ 4 x aerial - RP-SMA x 4 |
| Miscellaneous | |
| Included Accessories | Mounting brackets |
| MTBF | 57 years |
| Compliant Standards | FCC, EN 60601-1-1, CE/EMC, Directive 2014/35/EU, Directive 2014/30/EU, ISED, Directive 2014/53/EU, IEC/EN/UL 60950, EN60601-1-2 |
| Power | |
| Power Over Ethernet (PoE) Supported | PoE |
| Software / System Requirements | |
| OS Required | ArubaOS, InstantOS |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 5 - 93% (non-condensing) |
Features - Hewlett Packard - JZ329A
More Details
Product Code
CE70564
EAN Code
0190017232683
Manufacturer
Hewlett Packard
