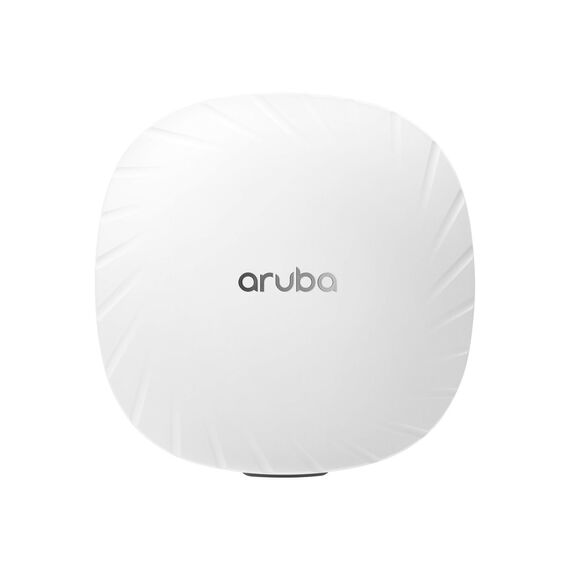

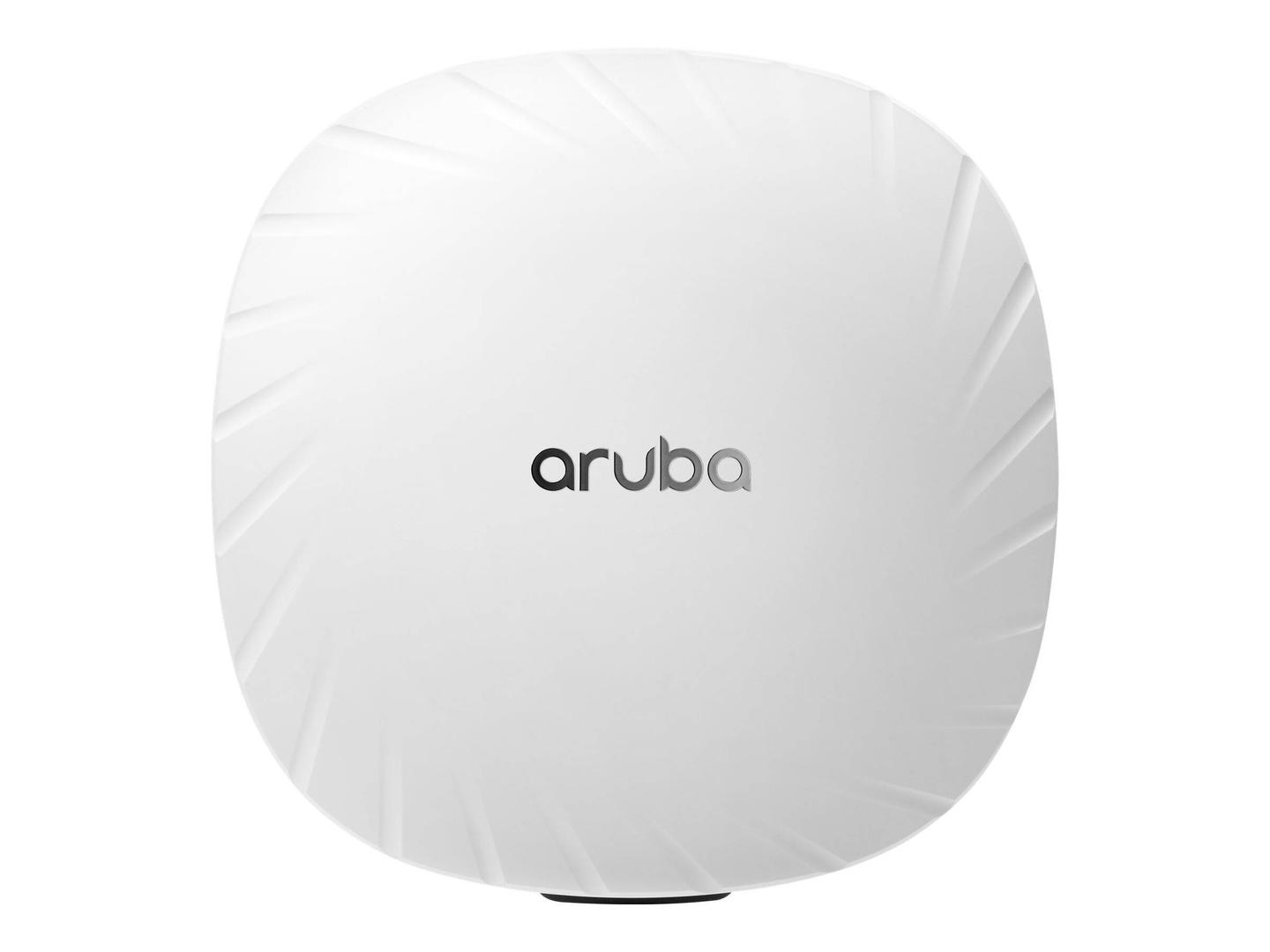

HPE Aruba AP-555 (RW) - Campus - radio access point - ZigBee, Bluetooth, Wi-Fi 6 - 2.4 GHz, 5 GHz - in-ceiling | JZ356A
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Radio access point |
| Ruggedized Design | Indoor |
| Width | 26 cm |
| Depth | 26 cm |
| Height | 5.8 cm |
| Weight | 1.57 kg |
| Networking | |
| Form Factor | In-ceiling |
| Connectivity Technology | Wireless |
| Data Transfer Rate | 4.8 Gbps |
| Line Coding Format | CCK, 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM, OFDM, 1024 QAM, OFDMA |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, ZigBee, IEEE 802.11ac, Bluetooth 5.0, IEEE 802.11ax (Wi-Fi 6) |
| Spread Spectrum Method | OFDM, DSSS |
| Frequency Band | 2.4 GHz, 5 GHz |
| Performance | Maximum data rate (2.4 GHz): 1.150 Mbps ¦ Maximum data rate (5 GHz): 4.8 Gbps ¦ Aggregate bandwidth: 5.95 Gbps |
| Capacity | Wireless clients per Wi-Fi radio: 1024 ¦ OFDMA units: 37 ¦ BSSIDs per radio: 16 |
| Status Indicators | System, status |
| Features | Trusted Platform Module (TPM), LACP support, Adaptive Radio Management (ARM), Maximum Ratio Combining (MRC), Low Density Parity Check (LDPC), Transmit Beam-forming (TxBF) ready, Direct Sequence Spread Spectrum (DSSS), Cyclic Delay Diversity (CDD), Space Time Blocking Code (STBC), Advanced Cellular Coexistence (ACC), ClientMatch, cyclic shift diversity (CSD), AppRF technology, MU-MIMO technology, packet aggregation A-MPDU, packet aggregation A-MSDU, Air Monitor (AM), Intelligent Power Monitoring (IPM), Dynamic Frequency Selection (DFS), Secure Core Technology (SCT), High-Throughput (HT) support, 4x4 MU-MIMO technology, LED off mode, Energy-Efficient Ethernet (EEE), Orthogonal Frequency Division Multiplexing (OFDM), Aruba AirMatch, spectrum analyser, 8x8 MU-MIMO technology, Very High Throughput (VHT) support, security slot (Kensington security lock compatible), Orthogonal Frequency Division Multiple Access (OFDMA), unified AP support, custom deep-sleep mode, High Efficiency (HE) support, Target Wait Time (TWT) |
| Encryption Algorithm | WPA, WPA2, WPA3 |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at, IEEE 802.11ac, IEEE 802.3bz, IEEE 802.3bt, IEEE 802.11ax |
| Aerial | |
| Antenna | Internal |
| Directivity | Omni-directional |
| Internet of Things (IoT) | |
| Internet of Things (IoT) Compatible | Yes |
| Communications Technology | Bluetooth, Zigbee |
| Expansion / Connectivity | |
| Interfaces | 1 x HPE Smart Rate - RJ-45 ¦ 1 x 5GBase-T - RJ-45 ¦ 1 x USB 2.0 - Type A ¦ 1 x console - micro-USB |
| Miscellaneous | |
| MTBF | 855000 hours |
| Compliant Standards | EN 60950, IEC 60950, UL 60950, UL 2043, FCC, EN 60601-1-2, EN 60601-1-1, EMC 2014/30/EU, LVD 2014/35/EU, ISED, RED 2014/53/EU |
| Power | |
| Power Over Ethernet (PoE) Supported | PoE |
| Power Consumption Operational | 38.2 Watt |
| Software / System Requirements | |
| OS Required | ArubaOS, InstantOS |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 32 cm |
| Shipping Depth | 30.3 cm |
| Shipping Height | 10.8 cm |
| Shipping Weight | 2.23 kg |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 5 - 93% (non-condensing) |
Features - Hewlett Packard - JZ356A
More Details
Product Code
2M2LFH5
EAN Code
0190017232959
Manufacturer
Hewlett Packard
