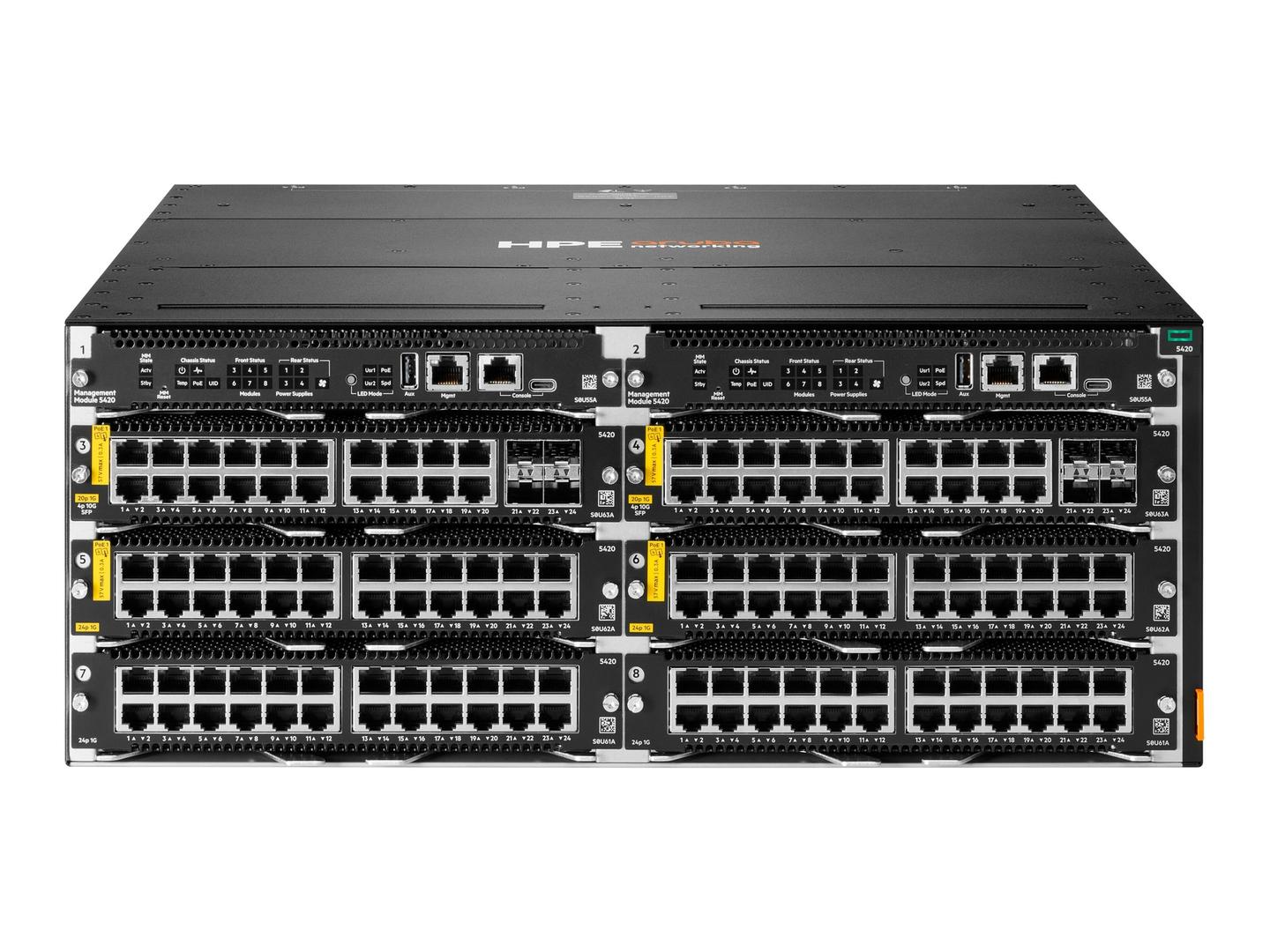

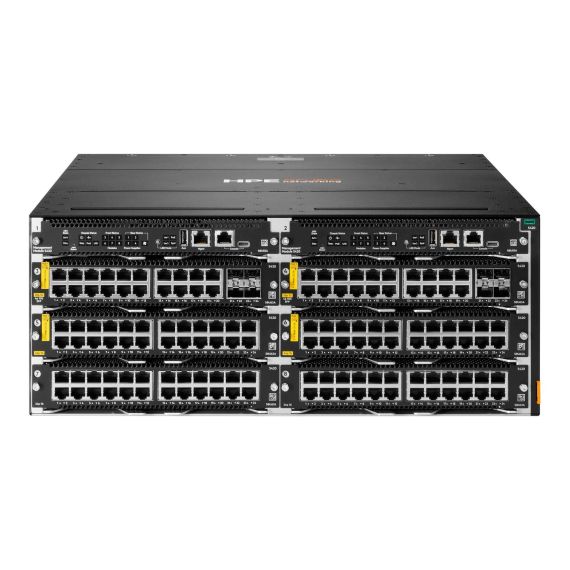

HPE Aruba Networking CX 5420 - Switch - 6-slot - L3 - Managed - front to back airflow - rack-mountable | S0U59A
S0U59A
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
- Efficient switching capacity
With a substantial switching capacity of 960 Gbps, this switch ensures seamless data transmission, essential for enterprises with heavy network traffic. - Comprehensive routing capabilities
The integrated layer 3 routing feature supports various protocols including OSPF and static IP routing, allowing for flexible network architecture tailored to specific needs. - Advanced environmental resilience
Built to withstand a variety of conditions, the device operates within a temperature range of 0°C to 45°C while maintaining reliability in humidity levels of 5 to 95% RH. - Robust security features
Incorporating Secure Shell (SSH) and RADIUS methods, the switch provides secure access control, safeguarding sensitive data from potential threats. - Scalable network support
Capable of supporting up to 8 devices, the design accommodates future expansions while ensuring effective power supply management with up to 4 internal units.
Special Fetures
- Provides a switching capacity of 960 Gbps
- Supports layer 3 routing and layer 2 switching
- Accommodates up to 8 devices with front-to-back airflow
- Features a robust security protocol including SSH and RADIUS
- Operates effectively in a wide range of temperatures and humidity
Product Specification
| Device Type | Switch - L3 - Managed |
| Enclosure Type | Front to back airflow rack-mountable 4U |
| Performance | Switching capacity: 960 Gbps <br /> Throughput: 714 Mpps |
| Capacity | IPv4 host table capacity: 25600 <br /> IPv6 host table capacity: 25600 <br /> IPv4 routes (Unicast): 16384 <br /> IPv6 routes (Unicast): 8192 <br /> IGMP groups: 2048 <br /> MLD groups: 2048 <br /> IPv4 ACL entries (ingress): 10233 <br /> IPv6 ACL entries (ingress): 2558 <br /> MAC ACL entries (ingress): 10233 <br /> IPv4 ACL entries (egress): 5113 <br /> IPv6 ACL entries (egress): 1278 <br /> MAC ACL entries (egress): 5113 |
| Jumbo Frame Support | 9198 bytes |
| Routing Protocol | IGMP, OSPF, VRRP, IGMPv3, MLDv2, ECMP, static IP routing, static IPv6 routing, RSTP, MSTP, STP |
| Remote Management Protocol | RMON, SNMP 2c, SNMP 3, TFTP, SFTP, SSH, CLI, NTP |
| Authentication Method | Secure Shell (SSH), RADIUS, TACACS+ |
| Features | QoS, Layer 2 switching, layer 3 routing, VRRP support, UDLD, LACP, ToS, EQS, REST API interface, sFlow, Rapid PVST+, MVRP, BPDU |
| Compliant Standards | IEEE 802.1s, IEEE 802.3ad (LACP), IEEE 802.1D, IEEE 802.1w, IEEE 802.1p, IEEE 802.1ab (LLDP), IEEE 802.1Q, IEEE 802.1v, IEEE 802.1ak, IEEE 802.1AX, IEEE 802.1t, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3z |
| Processor | 1 x AMD Ryzen Embedded V1500B |
| RAM | 16 GB DDR4 SDRAM |
| Flash Memory | 32 GB |
| Expansion / Connectivity | |
| Interfaces | 1 x management RJ-45 out-of-band network management |
| Installed Modules Qty (Max) | 1 (installed) / 8 (max) |
| Power | |
| Power Device | Internal power supply - hot-plug |
| Max Supported Qty | 4 |
| Power Redundancy | Optional |
| Power Redundancy Scheme | N+1 (with optional power supply), N+N (with optional power supply) |
| Voltage Required | AC 100-127/200-240 V |
| Miscellaneous | |
| Included Accessories | Fan tray, management module, 6-slot Accessory Kit, 2-post 6-slot Rack Kit, cable management kit |
| Compliant Standards | IEC 62368-1: 2014 Second Edition, IEC 62368-1:2018 Third Edition, IEC 60825-1:2014, EN 60825-1:2014 + A11:2021, Laser Class 1, EN 62368-1:2014+A11:2017 2nd Ed., EN IEC 62368-1:2020+A11:2020 Third Edition, UL 62368-1 Third Edition, CAN/CSA C22.2 No. 62368-1-19, CNS 15598-1:2020, EN 55032:2015+A11:2020 Class A, CISPR 32:2015+AMD1:2019 Class A, FCC Part 15 B Class A, VCCI, Directive 2014/35/EU, CISPR 35: 2016, EN 55035:2017+A11:2020, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11, EN IEC 61000-3-2, IEC/EN 61000-3-3 |
| Dimensions & Weight | |
| Width | 44.25 cm |
| Depth | 44.74 cm |
| Height | 17.41 cm |
| Weight | 15.73 kg |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 45 °C |
| Humidity Range Operating | 5 - 95% RH (non-condensing) |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 5 - 95% RH (non-condensing) |
