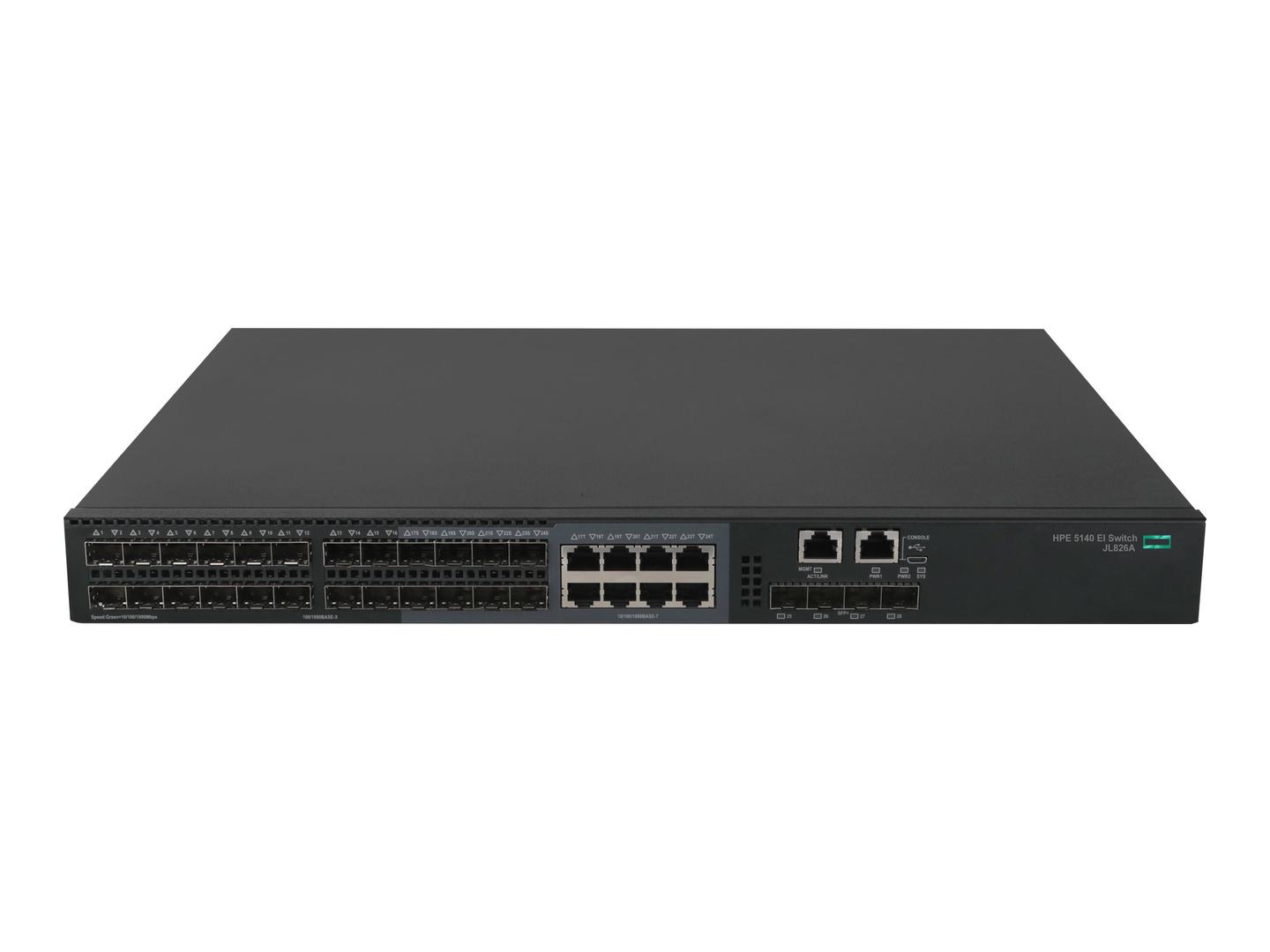

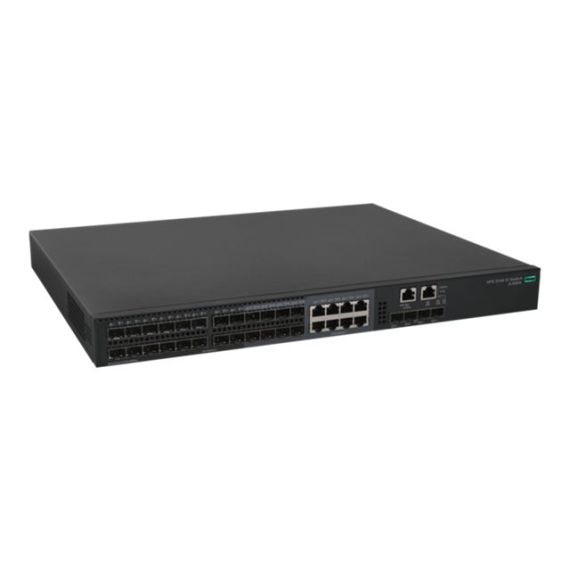

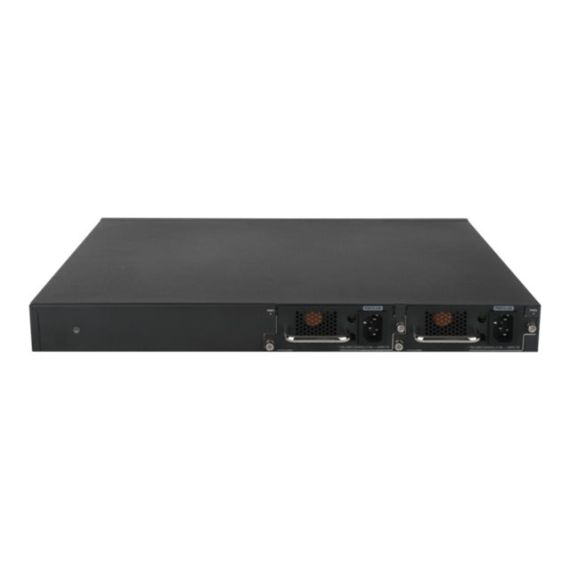

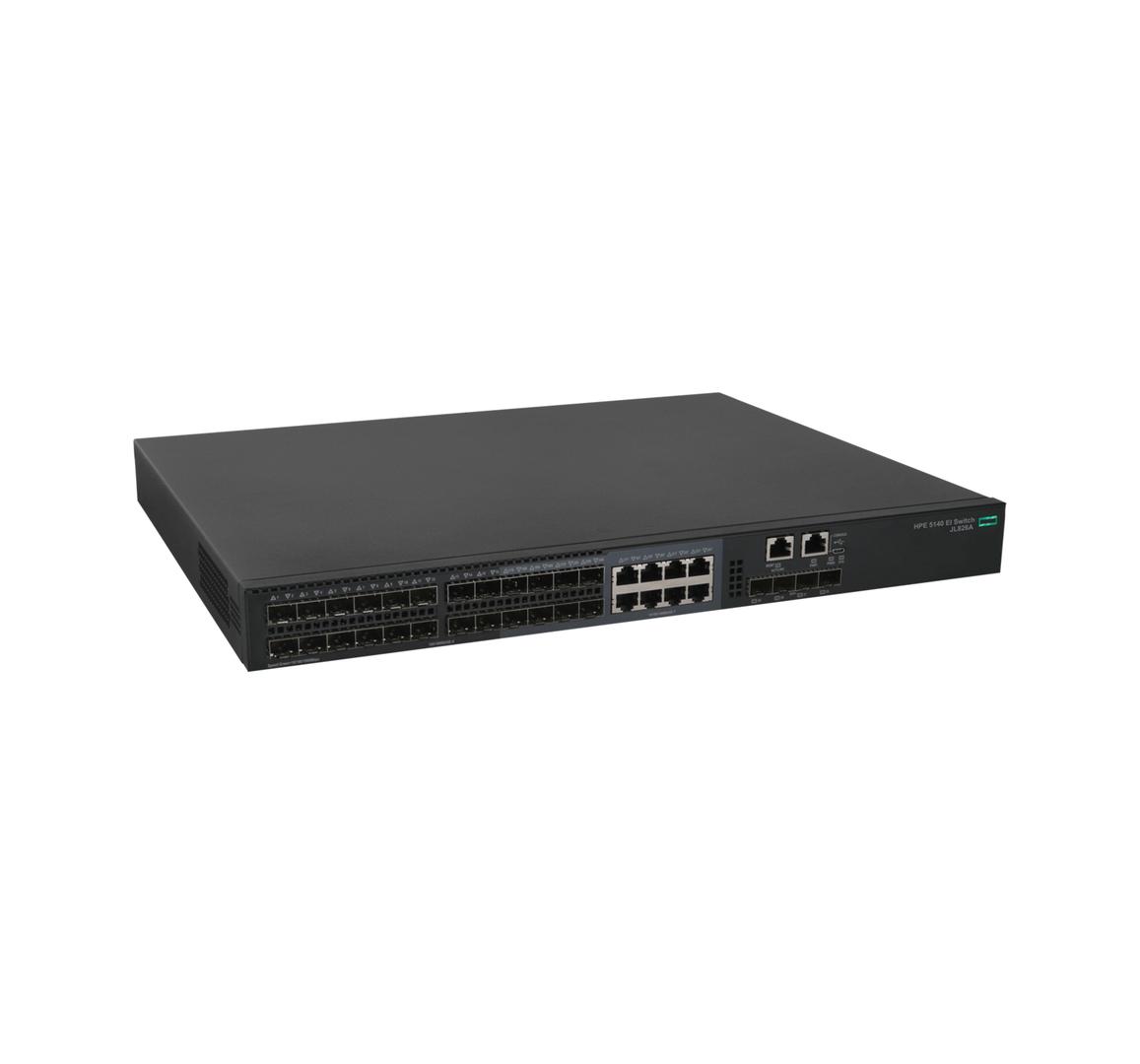

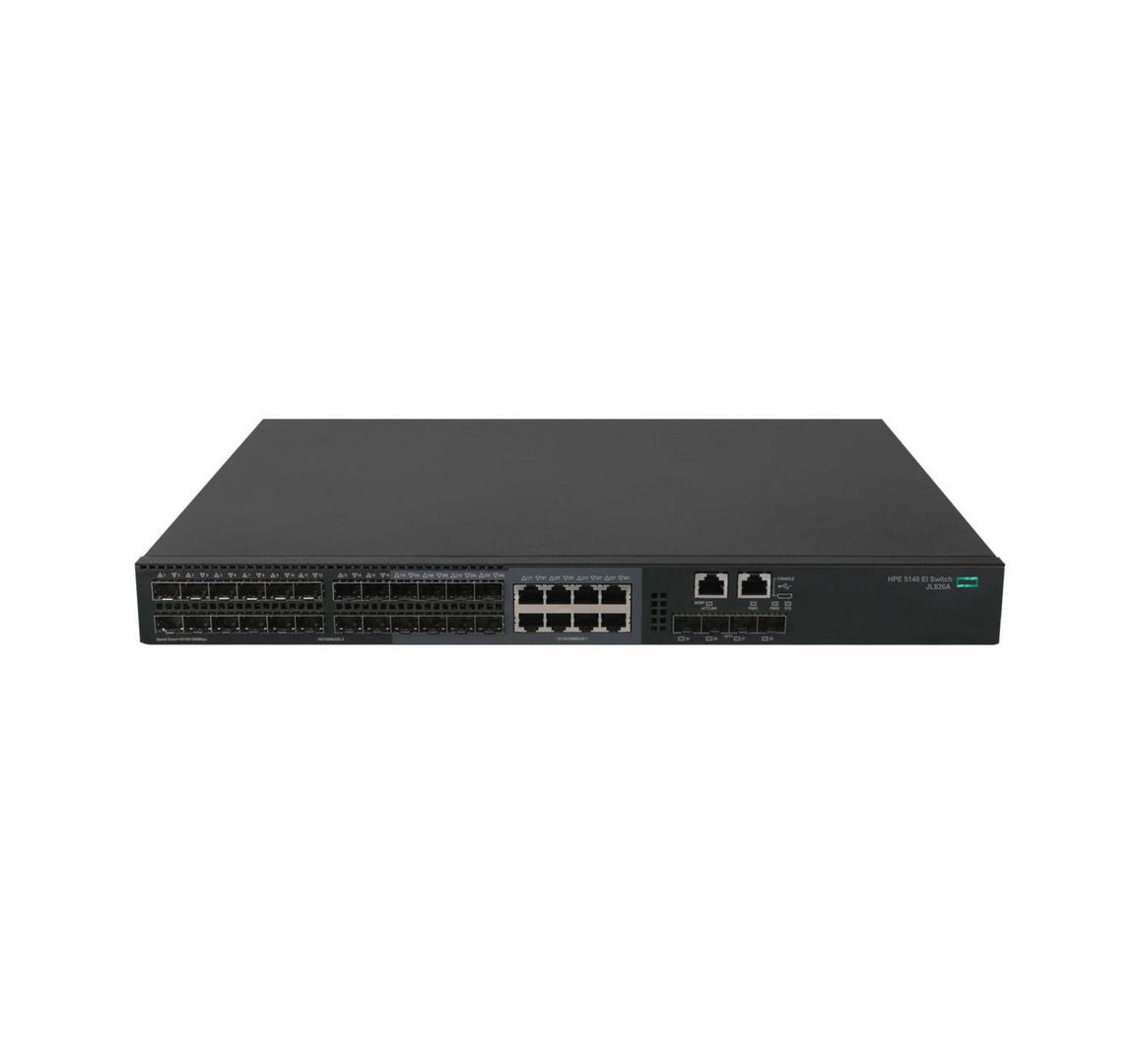

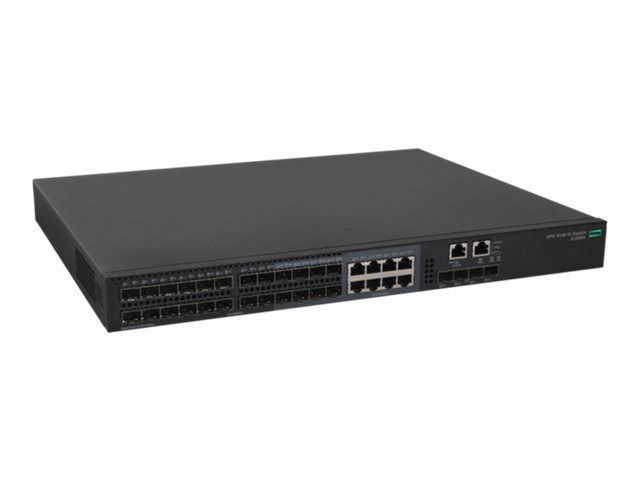

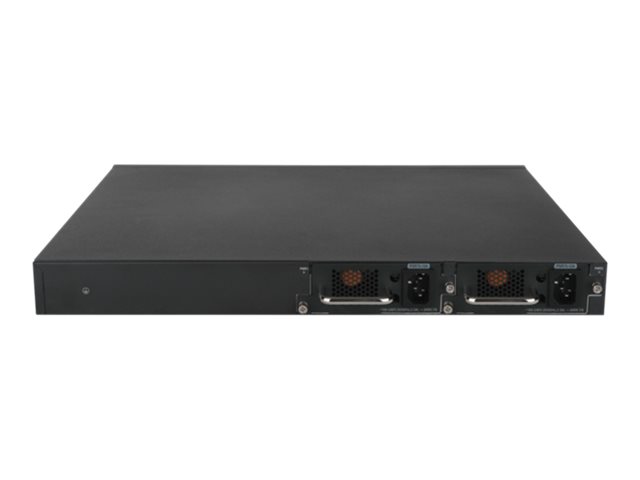

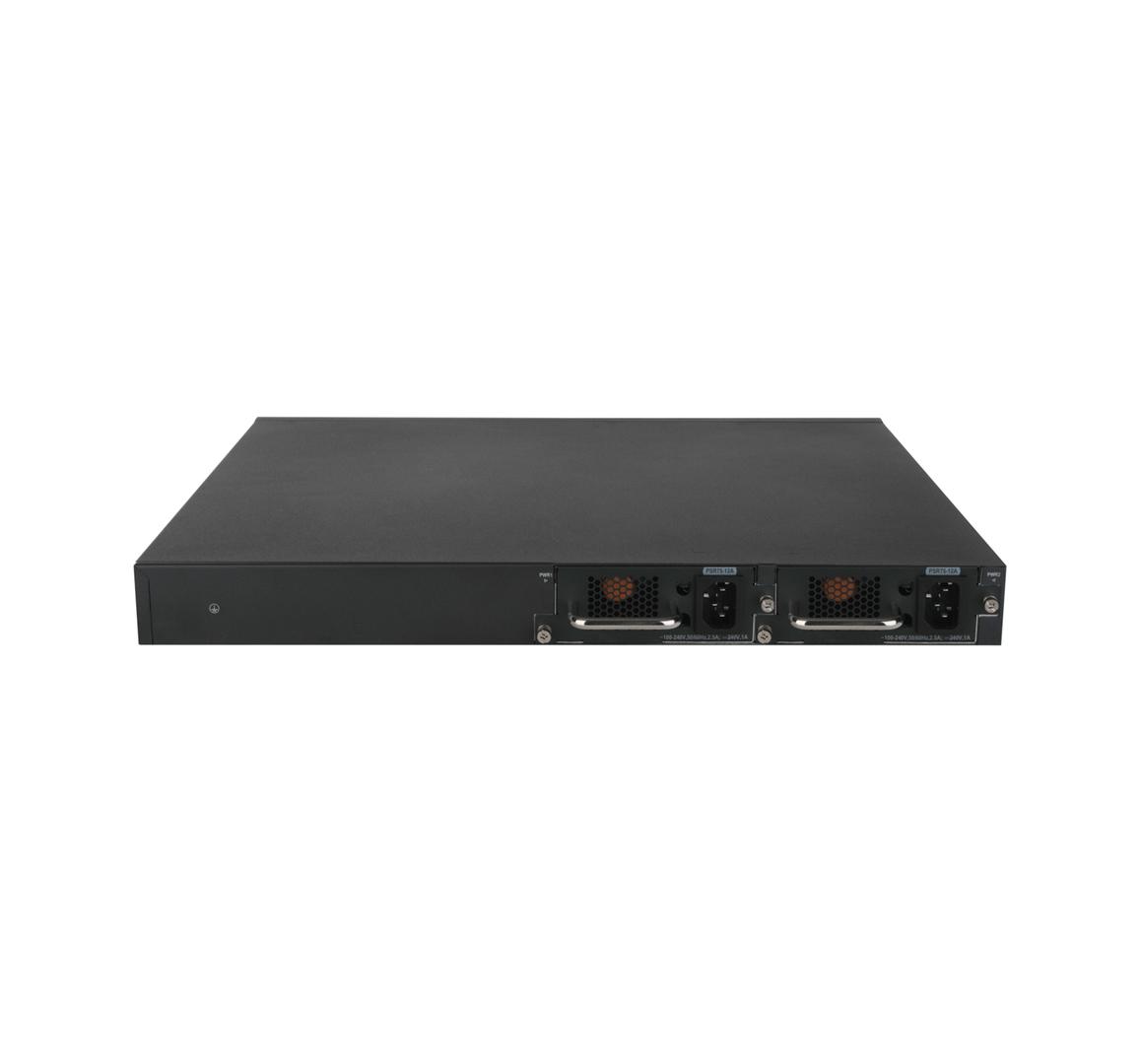

HPE FlexNetwork 5140 24G SFP w/8G Combo 4SFP+ EI / Switch / L3 / smart / 24 x Gigabit SFP + 8 x combo Gigabit Ethernet/Gigabit SFP + 4 x 10 Gigabit Ethernet / 1 Gigabit Ethernet SFP+ / rack-mountable | JL826A
HPE FlexNetwork 5140 24G SFP w/8G Combo 4SFP+ EI / Switch / L3 / smart / 24 x Gigabit SFP + 8 x combo Gigabit Ethernet/Gigabit SFP + 4 x 10 Gigabit Ethernet / 1 Gigabit Ethernet SFP+ / rack-mountable | JL826A
€7013.85 inc. VAT
JL826A
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
- Scalability and high availability
The HPE FlexNetwork 5140 EI Switch Series delivers scalability and enhances reliability of the network with HPE Intelligent Resilient Fabric (IRF) technology. IRF stacking enables virtual resilient switching fabrics, where two or more switches perform as a single L2 switch and L3 router. - Comprehensive security control
The HPE FlexNetwork 5140 EI Switch Series supports flexible authentication methods including 802.1X and MAC Authentication for greater security and policy-driven application authentication. Per-user access control lists (ACLs) provide identity-driven security and access control. - Simplified management
The HPE FlexNetwork 5140 EI Switch Series can be seamlessly managed with HPE Intelligent Management Center (IMC) to provide end-to-end network transparency with a consistent network experience through comprehensive configuration, compliance, and policy management. - Enhanced quality of service
The HPE FlexNetwork 5140 EI Switch Series supports advanced classifier-based QoS which groups traffic using multiple match criteria based on Layer 2 and 3 information, it applies QoS policies such as setting priority level and rate limit to selected traffic on a port, VLAN, or entire switch.
Special Fetures
- Gigabit Ethernet access switch with static layer 3 routing, RIP, high density 10GbE uplinks, and POE+ models for voice, video, and wireless
- Supports IRF technology that enables Plug and Play device aggregation and link aggregation across multiple devices, enhancing network redundancy and resource utilization
- Includes embedded network management capabilities with Smart Management Center (SmartMC)
- Includes energy-saving green design features such as automatic switching of idle ports to energy-saving mode and powering down unused ports
Product Specification
| Device Type | Switch - 28 ports - L3 - smart |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 24 x Gigabit SFP + 8 x combo Gigabit Ethernet/Gigabit SFP + 4 x 10 Gigabit Ethernet / 1 Gigabit Ethernet SFP+ |
| Performance | Latency (1000 Mbps): 5 µs <br /> Latency (10 Gbps): 3 µs <br /> Throughput: 96 Mpps <br /> Routing/switching capacity: 128 Gbps |
| Capacity | IPv4 routing table entries: 512 <br /> IPv6 routing table entries: 256 <br /> VLAN IDs: 4094 |
| MAC Address Table Size | 16384 entries |
| Jumbo Frame Support | 9216 bytes |
| Routing Protocol | OSPF, RIP-1, RIP-2, IGMP, OSPFv2, IGMPv3, OSPFv3, static IPv4 routing, static IPv6 routing, CIDR |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTPS, TFTP, CLI, NTP, ICMP, RADIUS |
| Encryption Algorithm | SSL |
| Authentication Method | RADIUS, TACACS+, Secure Shell v.2 (SSH2), HWTACACS |
| Features | Flow control, BOOTP support, ARP support, load balancing, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, DiffServ support, High Availability, half duplex mode, full duplex mode, sFlow, STP support, RSTP support, VRRP support, MSTP support, ACL support, QoS, CAR, DHCP server, MLD snooping, DLDP support, STP Root Guard, DHCP relay, LACP, Port Security, Energy Efficient Ethernet, dynamic ARP protection, DHCP protection, MVRP, SPQ, port isolation, GARP, OpenFlow support, IP source guard, ICMP Router Discovery Protocol (IRDP), Link Aggregation, VLAN Double Tagging (Q-in-Q), LLDP-MED, Smart Link, Guest VLAN, Ethernet OAM, proxy ARP, WRR, IRF Technology, BPDU protection, UDP support, MRP |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1ad, IEEE 802.3ah, ANSI/TIA-1057, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3az, IEEE 802.1AX, IEEE 802.1r |
| RAM | 512 MB SDRAM |
| Flash Memory | 256 MB |
| Status Indicators | Port status, system, link/activity, power 1, power 2 |
| Expansion / Connectivity | |
| Interfaces | 24 x 1000Base-X SFP <br /> 8 x 1000Base-T RJ-45 <br /> 4 x 1000Base-X/10GBase-X SFP+ <br /> 1 x console RJ-45 management <br /> 1 x micro-USB 5 pin USB header management <br /> 1 x management RJ-45 |
| Power | |
| Power Device | Internal power supply (not installed) |
| Max Supported Qty | 2 |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Miscellaneous | |
| Rack Mounting Kit | Included |
| Compliant Standards | Plug and Play, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, ICES-003 Class A, RoHS, UL 60950-1, IEC 60950-1, WEEE, EN 60825-1, FCC Part 15 B Class A, EN 60825-2, IPv6 Ready, EN 300 386, FDA 21 CFR, AS/NZS CISPR 32 Class A, YD/T993, IEC 62368-1, EN 55032, CAN/CSA-C22.2 No. 60950-1, VCCI-CISPR 32:2016 Class A, ETSI EN 300 386, EN 62368-1:2014/A11:2017, GB/T9254 |
| Dimensions & Weight | |
| Width | 44 cm |
| Depth | 36 cm |
| Height | 4.36 cm |
| Weight | 6 kg |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Environmental Parameters | |
| Min Operating Temperature | -5 °C |
| Max Operating Temperature | 45 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 5 - 95% (non-condensing) |
