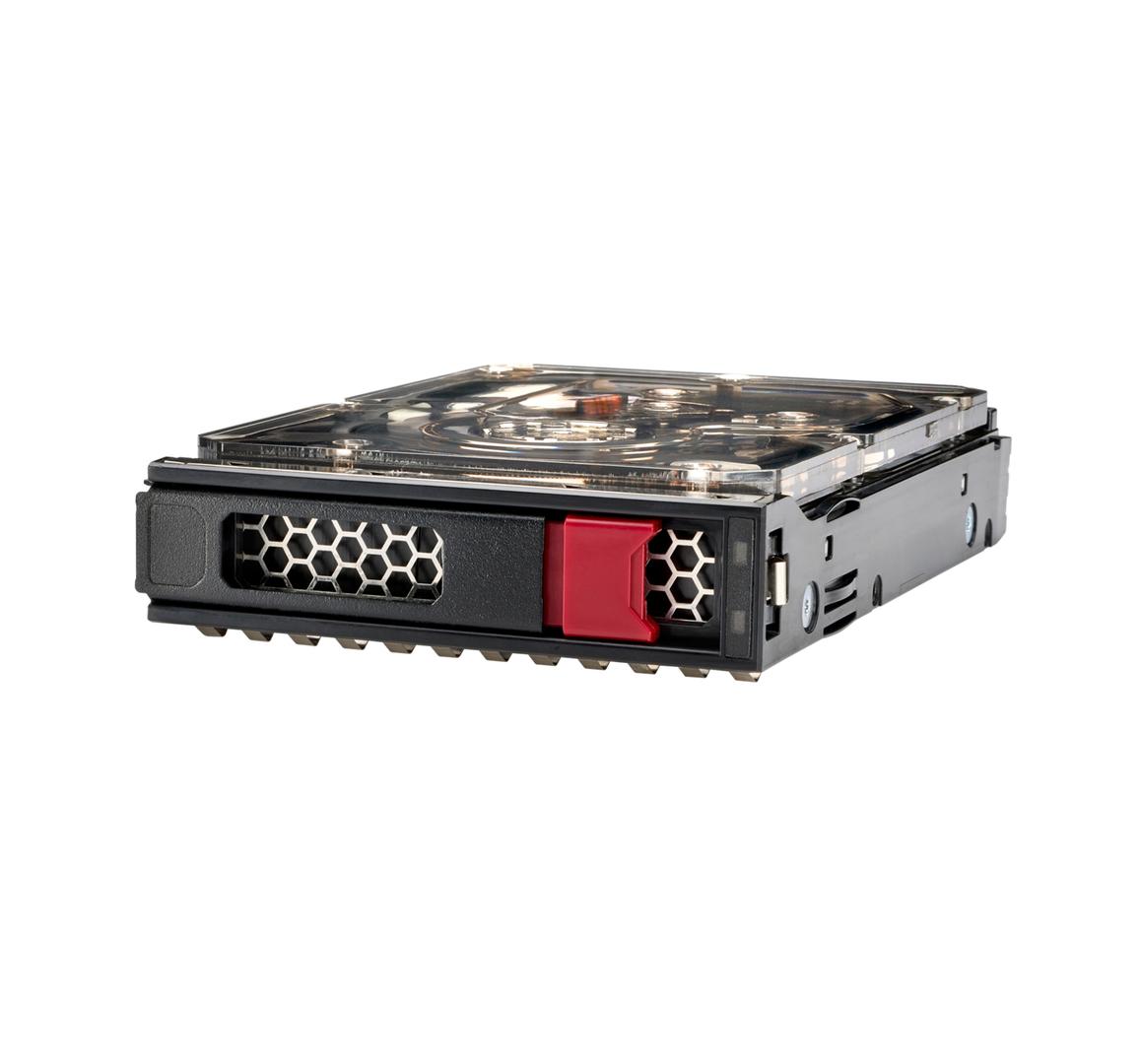

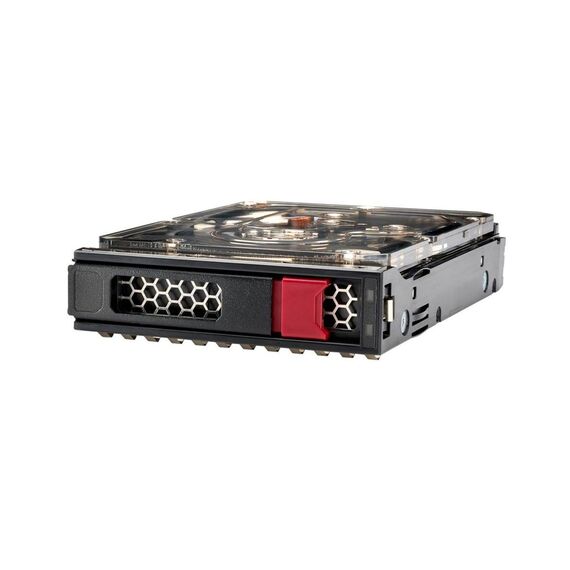

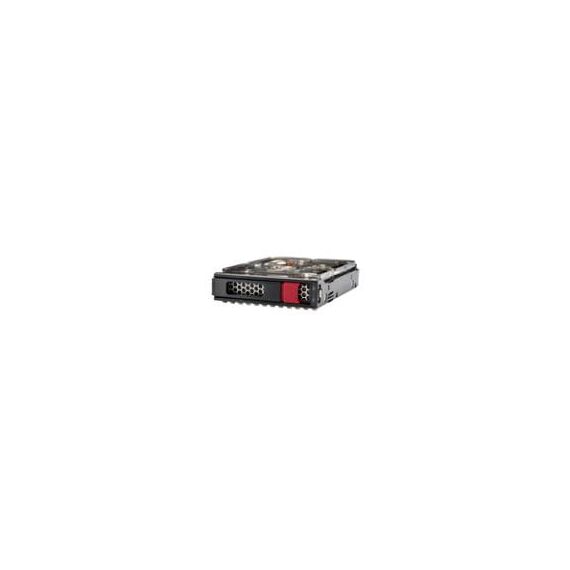

HPE Midline - Hard drive - 2 TB - hot-swap - 3.5" LFF Low Profile - SATA 6Gb/s - 7200 rpm | 861681-B21
Please sign in so that we can notify you about a reply
Product Features
- Smart carriers
HPE Hard Drives with smart carriers are designed to provide an interface to communicate critical status and management information. System status LED icons and a spinning activity ring reflecting the data-writing process notify users of the current system status. A blue LED located behind the handle can be activated remotely to guide users to a specific drive tray, while a do-not-remove icon positioned on the tray's eject button lights up to warn users when the removal of the drive would cause data loss. - Helium drives
Although hard drives are sealed, they have air inside. Air can create turbulence-induced risk vibrations which can limit the storage density of HDDs. Newer helium-filled drives virtually eliminate turbulence because helium is 1/7th as dense as air. This lower density allows the read/write mechanism to spin more easily and precisely, with less drag. Less internal turbulence means the drive platters can be closer together, allowing more platters and increasing the capacity potential in the same space. Less turbulence also means helium drives tend to use less power, and run cooler and quieter.
Special Fetures
- Smart carriers
- Helium drives
Product Specification
| Device Type | Hard drive - hot-swap |
| Capacity | 2 TB |
| Form Factor | 3.5" LFF Low Profile |
| Interface | SATA 6Gb/s |
| Performance | |
| Drive Transfer Rate | 600 MBps (external) |
| Spindle Speed | 7200 rpm |
| Expansion & Connectivity | |
| Interfaces | 1 x SATA 6 Gb/s |
| Compatible Bay | 3.5" LFF Low Profile |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Compatibility Information | |
| Designed For | HPE Apollo 4200 Gen9 (3.5"), 4200 Gen9 for Google (3.5"), 4510 Gen9 (3.5"), 4520 Gen9 (3.5"), 4530 (3.5") ¦ HPE Nimble Storage dHCI Medium Solution with HPE ProLiant DL325 Gen10 Plus (3.5") ¦ HPE ProLiant DL180 Gen10 (3.5"), DL180 Gen10 Entry (3.5"), DL180 Gen10 SMB (3.5"), DL20 Gen10 (3.5"), DL20 Gen10 Entry (3.5"), DL20 Gen10 Performance (3.5"), DL20 Gen10 solution (3.5"), DL325 Gen10 Base (3.5"), DL325 Gen10 Plus (3.5"), DL325 Gen10 Solution (3.5"), DL385 Gen10 Plus (3.5"), DL385 Gen10 Plus Entry (3.5"), ML110 Gen10 (3.5"), ML110 Gen10 Entry (3.5"), ML110 Gen10 Performance (3.5"), ML110 Gen10 Solution (3.5"), ML30 Gen10 (3.5"), ML30 Gen10 Entry (3.5"), ML30 Gen10 Performance (3.5"), ML30 Gen10 Solution (3.5"), ML350 Gen10 (3.5"), ML350 Gen10 Base (3.5"), ML350 Gen10 Entry (3.5"), ML350 Gen10 High Performance (3.5"), ML350 Gen10 Performance (3.5"), ML350 Gen10 SMB (3.5"), ML350 Gen10 Solution (3.5"), ML350 Gen10 Special Server (3.5"), ML350 Gen10 Sub-Entry (3.5") |
Features - Hewlett Packard - 861681-B21
Form Factor
- 3.5"
- Internal
Capacity
2TB
Interface
- SATA
More Details
Product Code
04:277679
EAN Code
0190017063577
Manufacturer
Hewlett Packard
