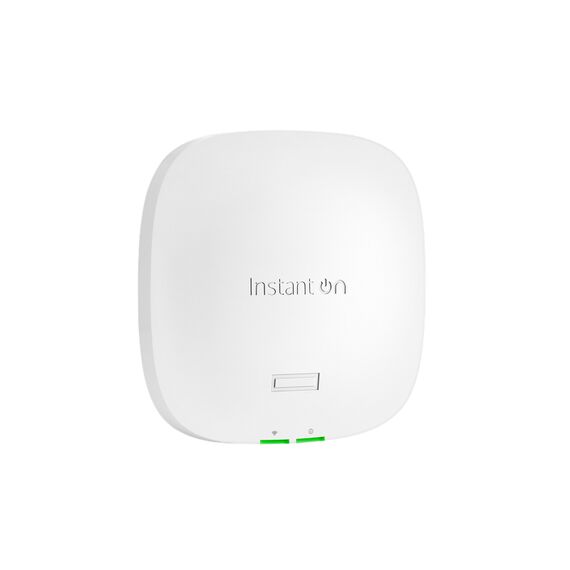

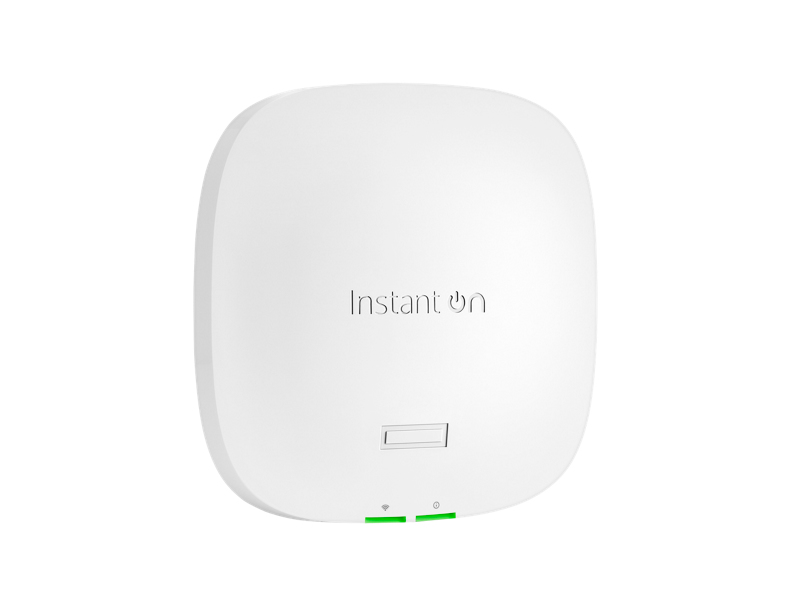

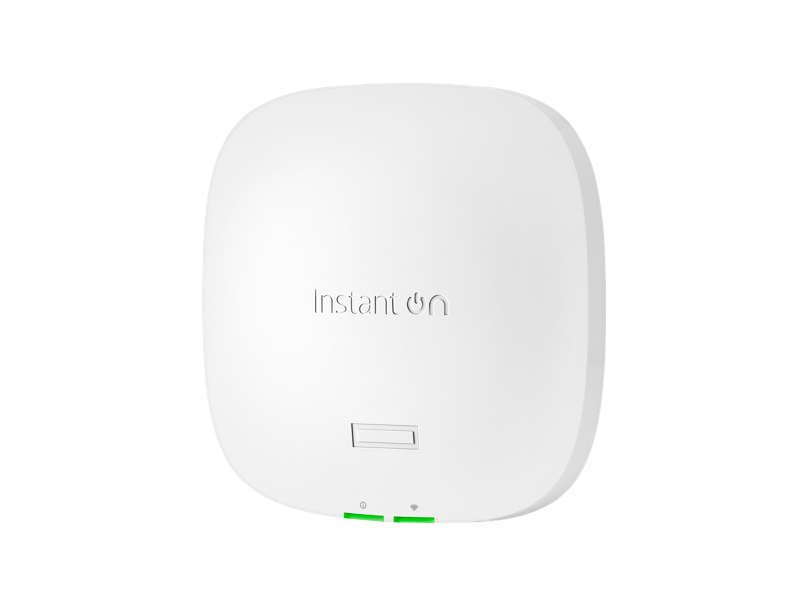

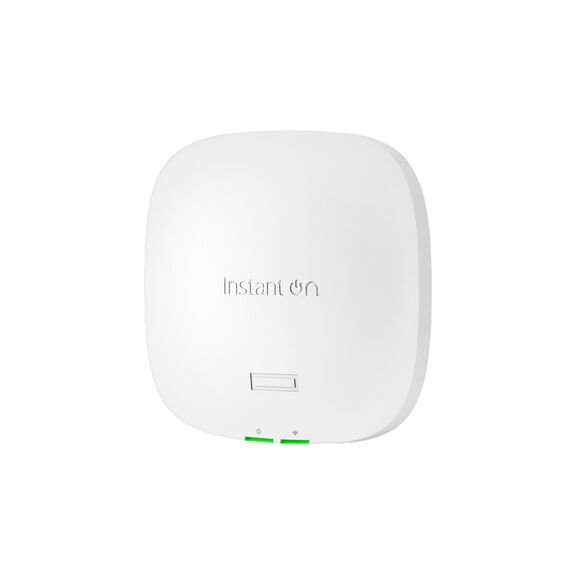

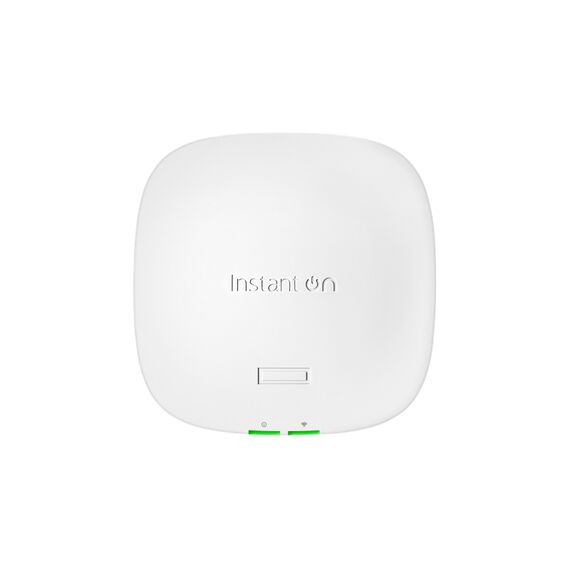

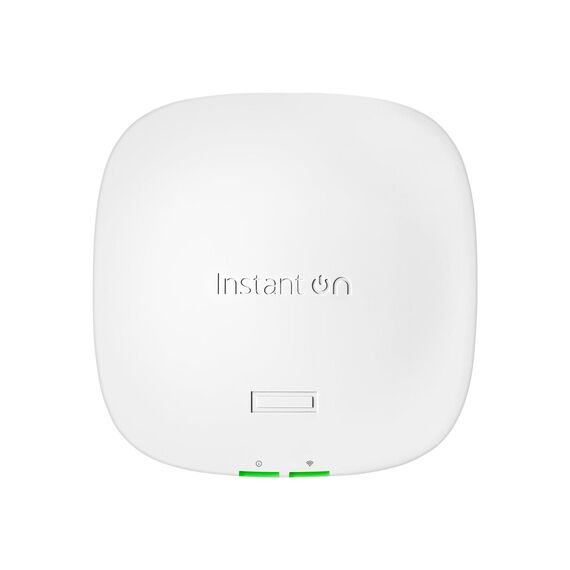

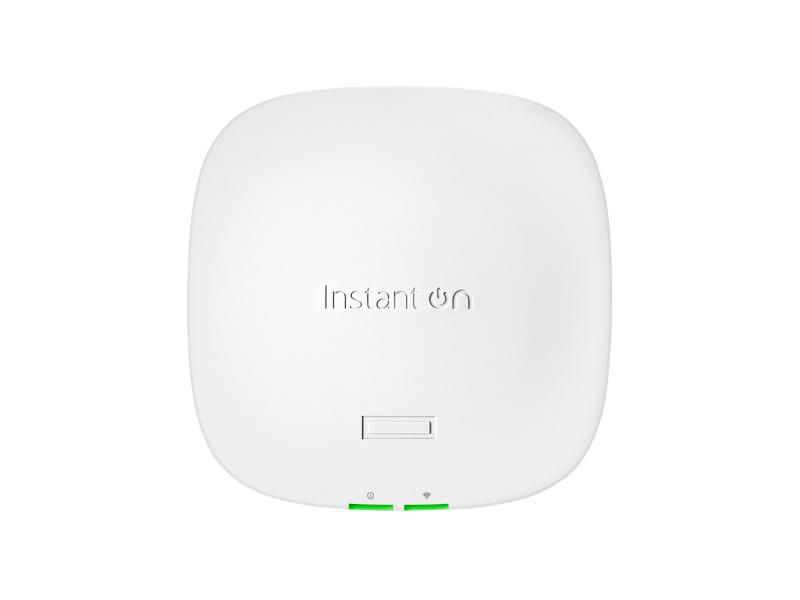

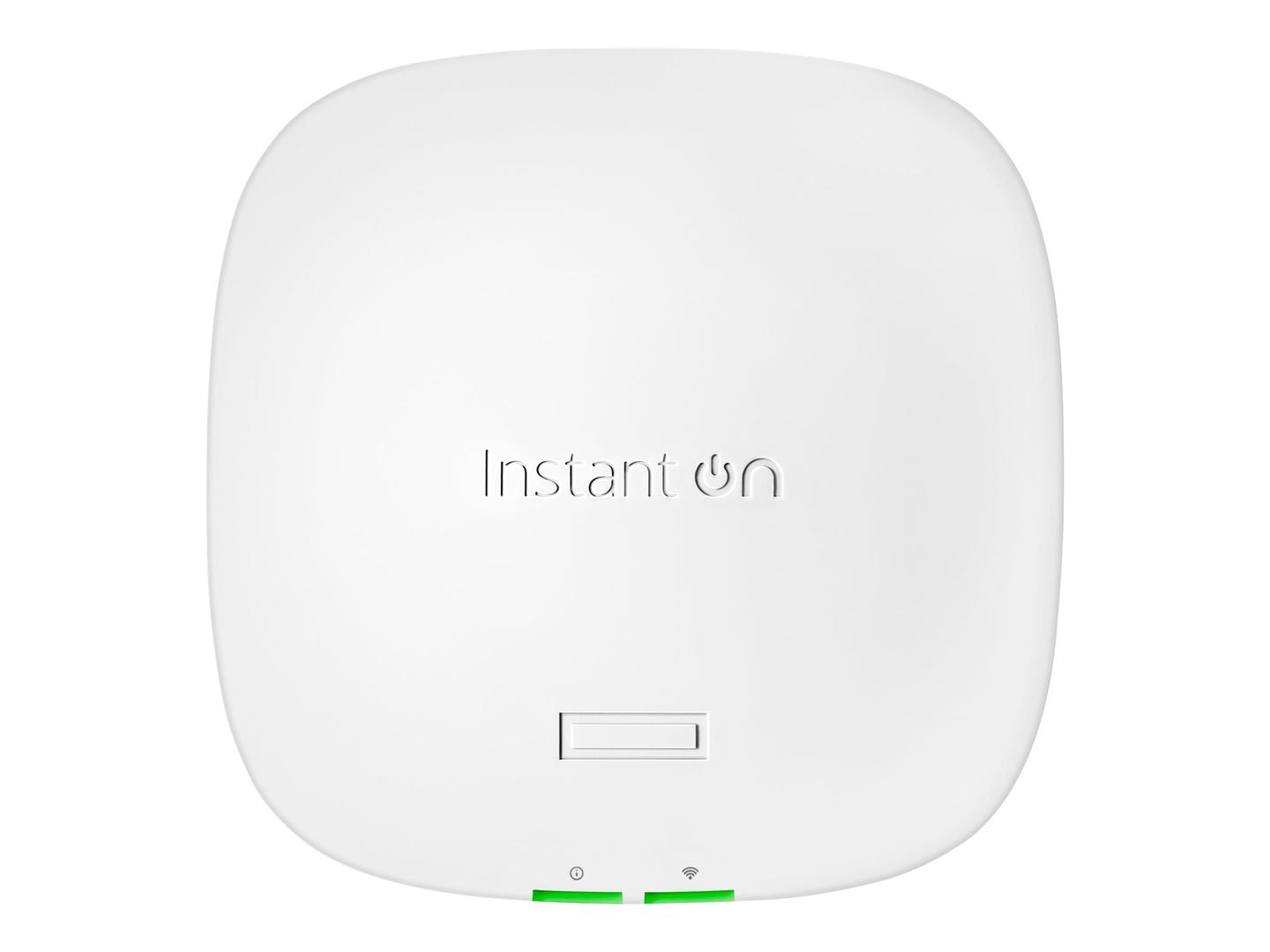

HPE Networking Instant On AP21 (EU) - Radio access point - Wi-Fi 6 - 2.4 GHz, 5 GHz - wall / ceiling mountable | S1T14A
Product Features
- Enhanced connectivity
With support for IEEE 802.11a/b/g/n/ac/ax and Wi-Fi 6, the HPE Networking Instant On AP21 (EU) ensures high-speed, reliable wireless connections across multiple bands. Its omnidirectional antennas provide extensive coverage, making it ideal for indoor environments. - Robust security
Equipped with WPA2 and WPA3 encryption algorithms, the device offers a secure networking environment. The inclusion of a Trusted Platform Module (TPM) further enhances security, safeguarding network integrity. - Efficient performance
Featuring 2x2 MIMO and MU-MIMO technology, along with advanced features like BSS Coloring and Target Wait Time (TWT), the AP21 (EU) delivers efficient, high-capacity performance. Its maximum data rate of 1.5 Gbps on the 5 GHz band supports a seamless user experience. - Power and flexibility
The device's support for PoE (Power over Ethernet) simplifies deployment by eliminating the need for a separate power supply. It's compatible with PoE Class 3 and Class 4, offering flexibility in installation locations, whether mounted on walls or ceilings.
Special Fetures
- Supports IEEE 802.11a/b/g/n/ac/ax and Wi-Fi 6 for high-speed, reliable connections
- Features WPA2 and WPA3 encryption for enhanced network security
- Includes 2x2 MIMO and MU-MIMO technology for efficient, high-capacity performance
- Offers PoE support for flexible, easy installation
- Maximum data rate of 1.5 Gbps on the 5 GHz band ensures a seamless user experience
Product Specification
Device Type | Radio access point |
Ruggedized Design | Indoor |
Width | 14.5 cm |
Depth | 14.5 cm |
Height | 5.1 cm |
Weight | 255 g |
Networking | |
Form Factor | Wall / ceiling mountable |
Connectivity Technology | Wireless |
Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6) |
Spread Spectrum Method | OFDMA |
Network / Transport Protocol | PPPoE |
Frequency Band | 2.4 GHz, 5 GHz |
Performance | Maximum data rate (5 GHz): 1.5 Gbps |
Capacity | Active users: 50 |
Status Indicators | Status, wireless |
Features | Static IP mode, Trusted Platform Module (TPM), reset button, Low Density Parity Check (LDPC), Advanced Cellular Coexistence (ACC), MU-MIMO technology, 2x2 MIMO technology, security slot (Kensington security lock compatible), Target Wait Time (TWT), PoE Class 4, Transmit Beamforming, PoE Class 3, BSS Coloring |
Encryption Algorithm | WPA2, WPA3 |
Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11n, IEEE 802.3at, IEEE 802.11ac, IEEE 802.3bt, IEEE 802.11ax, Wi-Fi CERTIFIED 6 |
Aerial | |
Antenna | Internal |
Antenna Qty | 2 |
Directivity | Omni-directional |
Expansion / Connectivity | |
Interfaces | 1 x 1000Base-T (uplink) - RJ-45 |
Miscellaneous | |
Included Accessories | Ceiling/wall mount clip |
Power | |
Power Over Ethernet (PoE) Supported | PoE |
Power Device | External power adapter |
Voltage Required | 12 V |
Power Consumption Operational | 10.9 Watt |
Power Provided | 18 Watt |
Manufacturer Warranty | |
Service & Support | Limited warranty - 2 years |
