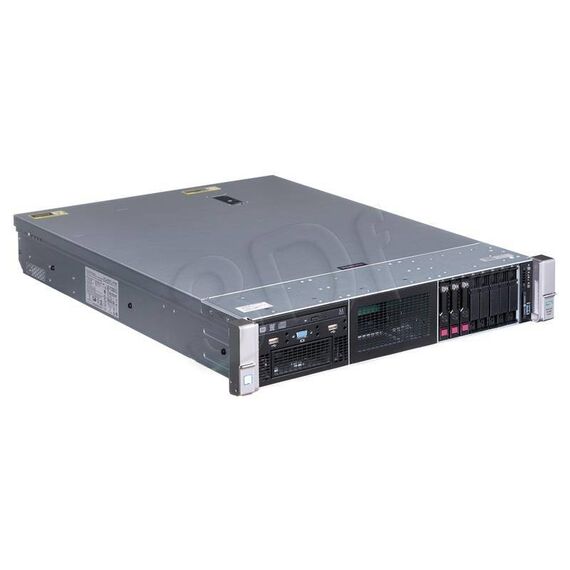

HPE ProLiant DL380 Gen9 / Server / rack-mountable / 2U / 2-way / Xeon E5-2620V4 / 2.1 GHz / RAM 16 GB / SAS / hot-swap 2.5" / HDD 3 x 300 GB / DVD-Writer / G200eH2 / GigE | 843557-425
843557-425
Product Code02:19147
ManufacturerHewlett Packard
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
HPE ProLiant DL380 Gen9 / Server / rack-mountable / 2U / 2-way / Xeon E5-2620V4 / 2.1 GHz / RAM 16 GB / SAS / hot-swap 2.5" / HDD 3 x 300 GB / DVD-Writer / G200eH2 / GigE | 843557-425
|
Description What is your server bottleneck... storage, processing, expansion? The world's best-selling server just got better. The HP ProLiant DL380 Gen9 server delivers the performance and expandability in the HP 2P rack portfolio.Reliability, serviceability and near continuous availability, making it ideal for any server environment. Deploy the data center standard. Designed to reduce costs and complexity, leveraging Intel processor with up to 70% performance gain, plus the HP DDR4 SmartMemory offering up to 14% performance increase.Additional support for 12 Gb/s SAS, 10 GbE NIC with a broad range of graphics and compute options. Manage the DL380 Gen9 server in any IT environments by automating the most essential server lifecycle management tasks: deploy, update, monitor, and maintain with ease.Run everything from the most basic to mission critical applications, and can be deployed with confidence. Special Features
Product features
|
Product Specification
| Type | Server |
| Product Form Factor | Rack-mountable - 2U |
| Embedded Security | Trusted Platform Module (TPM 1.2) Security Chip |
| Server Scalability | 2-way |
| Hot-Swap Bays Qty | 8 |
| CPU | Intel Xeon E5-2620V4 / 2.1 GHz |
| Max Turbo Speed | 3 GHz |
| Number of Cores | 8-core |
| CPU Qty | 1 |
| Max CPU Qty | 2 |
| CPU Upgradability | Upgradable |
| Processor Main Features | Hyper-Threading Technology, Intel Turbo Boost Technology 2 |
| Installed Size | L3 Cache - 20 MB |
| Cache Per Processor | 20 MB |
| Installed Size | 16 GB / 768 GB (max) |
| Technology | DDR4 SDRAM - Advanced ECC |
| Effective Memory Speed | 2133 MHz |
| Rated Memory Speed | 2400 MHz |
| Memory Specification Compliance | PC4-19200 |
| Form Factor | DIMM 288-pin |
| Features | Registered, Online Spare Memory, quad channel memory architecture, HP SmartMemory |
| Configuration Features | 1 x 16 GB |
| RAM Supported | PC4-19200 - 768 GB registered ¦ PC4-19200 - 3 TB Load-Reduced ¦ 128 GB Non-Volatile |
| Type | HDD - hot-swap |
| Capacity | 3 x 300 GB |
| Interface Type | SAS 12Gb/s |
| Spindle Speed | 10000 rpm |
| Features | Enterprise |
| Type | 1 x RAID - PCIe 3.0 x8 |
| Controller Interface Type | SATA 6Gb/s / SAS 12Gb/s |
| Storage Controller Name | Smart Array P440ar with 2GB FBWC |
| Channel Qty | 8 |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, RAID 1 ADM, RAID 10 ADM |
| Buffer Size | 2 GB |
| Type | DVD-RW - SATA |
| Monitor Type | None. |
| Graphics Processor | Matrox G200eH2 |
| Video Memory | 16 MB |
| Video Interfaces | VGA |
| Interface (Bus) Type | PCI Express x2 |
| Ethernet Ports | 4 x Gigabit Ethernet |
| Ethernet Controller | HP 331i |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Remote Management Controller | Integrated Lights-Out 4 |
| Features | Wake on LAN (WoL), PXE support |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
| Bays | 8 (total) / 5 (free) x hot-swap 2.5" SFF ¦ 1 (total) / 0 (free) x external 5.25" |
| Slots | 2 (total) / 1 (free) x CPU ¦ 24 (total) / 23 (free) x DIMM 288-pin ¦ 2 (total) / 2 (free) x PCIe 3.0 x16 - half-length, full-height (x8 mode) ¦ 1 (total) / 0 (free) x PCIe 3.0 x8 - half-length, full-height ¦ 1 (total) / 1 (free) x microSD Card (internal) |
| Interfaces | 4 x LAN (Gigabit Ethernet) - RJ-45 ¦ 1 x HP iLO - RJ-45 ¦ 2 x VGA (1 front, 1 rear) ¦ 5 x USB 3.0 (1 front, 2 rear, 2 internal) ¦ 2 x USB 2.0 (2 in front) |
| Included Accessories | Cable management arm, HP Easy Install Rail kit |
| Compliant Standards | ACPI 2.0b, FCC Class A certified, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, FCC CFR47 Part 15, IEC 60950-1, EN 60950-1, WEEE, GB 9254, CNS 13438 |
| Manufacturer Selling Program | HP Golden Offer |
| Device Type | Power supply - hot-plug |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1+1 (with optional power supply) |
| Installed Qty | 1 |
| Max Supported Qty | 2 |
| Nominal Voltage | AC 120/230 V |
| Power Provided | 500 Watt |
| 80 PLUS Certification | 80 PLUS Platinum |
| Efficiency | 94% |
| OS Certified | SuSE Linux Enterprise Server, Microsoft Windows Server, Red Hat Enterprise Linux, Oracle Solaris, Citrix XenServer, Canonical Ubuntu |
| Service & Support | Limited warranty - parts and labour - 3 years - on-site |
| Width | 44.55 cm |
| Depth | 67.94 cm |
| Height | 8.73 cm |
| Weight | 14.759 kg |
| Min Operating Temperature | 10 °C |
| Max Operating Temperature | 35 °C |
| Humidity Range Operating | 8 - 90% (non-condensing) |
