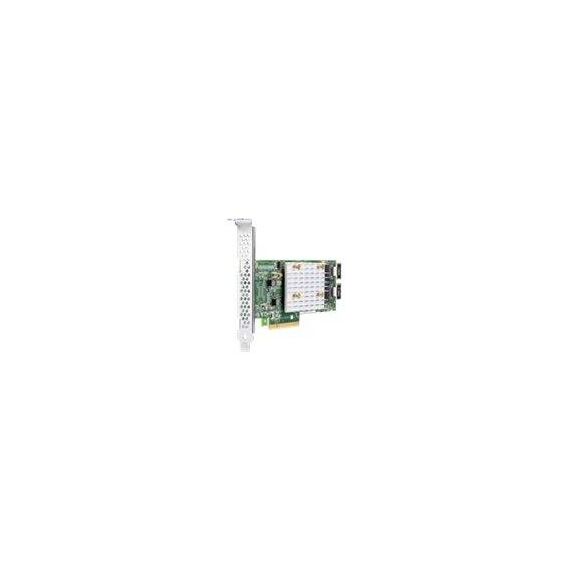

HPE Smart Array E208i-p SR Gen10 / Storage controller (RAID) / 8 Channel / SATA 6Gb/s / SAS 12Gb/s / 12 Gbit/s / RAID 0, 1, 5, 10 / PCIe 3.0 x8 / for Apollo 4200 Gen10; ProLiant DL360 Gen10 | 804394-B21
Please sign in so that we can notify you about a reply
Special Features
- Storage interface(SAS/SATA)
- PCI Express 3.0 x8 link
- RAID 0, 1, 5, 10
- Mixed Mode(RAID logic drives and HBA physical drives simultaneously)
- Legacy and UEFI boot operation
- UEFI System Utilities(storage configuration)
- Up to 238 physical drives
- Up to 64 logical drives
- HPE Smart Array SR Secure Encryption(optional license)
- HPE SSD Smart Path
- Rapid Parity Initialization(RPI)
- Rapid rebuild
- Drive Sanitize
- Performance Optimization-Degraded Reads and Read Coalescing
- Power efficiency
- Seamless upgrades from HPE Smart Array Software RAID
- Seamless upgrades to HPE Smart Array P-class Controllers
Product Specification
| Device Type | Storage controller (RAID) - plug-in card |
| Host Bus | PCIe 3.0 x8 |
| Storage Controller | Storage Controller |
| Interface | SATA 6Gb/s / SAS 12Gb/s |
| Data Transfer Rate | 12 Gbit/s |
| Supported Devices | Hard drive, disk array (RAID) |
| Channel Qty | 8 |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 10 |
| Maximum LUNs | 64 |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 2 x SATA 6Gb/s / SAS 12Gb/s (internal) |
| Software / System Requirements | Software / System Requirements |
| OS Required | Microsoft Windows Server, Red Hat Enterprise Linux, CentOS, Oracle Solaris, Citrix XenServer, Oracle Linux, ClearOS, VMware vSphere (ESXi), Microsoft Windows Hyper-V Server |
| Compatibility Information | Compatibility Information |
| Designed For | HPE Apollo 4200 Gen10, 4200 Gen10 336TB Archive Node with 25Gb NIC for Qumulo, 4200 Gen10 384TB 25Gb Capacity Server for Cohesity DataPlatform, 4200 Gen10 384TB Capacity Server for Cohesity DataPlatform, 4200 Gen10 for HPE Ezmeral Container Platform, 4510 Gen10 ¦ HPE Nimble Storage dHCI Large Solution with HPE ProLiant DL380 Gen10, Medium Solution with HPE ProLiant DL360 Gen10, Small Solution with HPE ProLiant DL360 Gen10 ¦ HPE ProLiant DL160 Gen10, DL160 Gen10 Base, DL160 Gen10 Entry, DL160 Gen10 SMB, DL180 Gen10 Entry, DL325 Gen10 Base, DL325 Gen10 Solution, DL360 Gen10 All Flash Server for Weka, DL360 Gen10 Compute Server for Cohesity DataPlatform, DL360 Gen10 Entry, DL360 Gen10 Low, DL360 Gen10 Network Choice, DL360 Gen10 Performance for Cohesity DataPlatform, DL360 Gen10 SMB, DL360 Gen10 SMB Network Choice, DL360 Gen10 Solution, DL380 Gen10 48TB Server for Cohesity DataPlatform, DL380 Gen10 96TB Server for Cohesity DataPlatform, DL380 Gen10 All Flash Server for Datera, DL380 Gen10 Entry, DL380 Gen10 Entry SMB, DL380 Gen10 for Cohesity DataPlatform, DL380 Gen10 for SAP HANA Compute Block, DL380 Gen10 High Performance, DL380 Gen10 Hybrid Server for Datera, DL380 Gen10 Network Choice, DL380 Gen10 Network Choice for CTERA, DL380 Gen10 NVMe All Flash Server for Datera, DL380 Gen10 Performance, DL380 Gen10 Server for CTERA, DL380 Gen10 SMB, DL380 Gen10 SMB Networking Choice, DL380 Gen10 Solution, DL388 Gen10 Network Choice, DL560 Gen10 Base, DL560 Gen10 for SAP HANA Compute Block, DL560 Gen10 Performance, MicroServer Gen10 Plus Entry, MicroServer Gen10 Plus Performance, MicroServer Gen10 Plus SMB, MicroServer Gen10 Solution, XL170r Gen10, XL170r Gen10 24TB Server for Cohesity DataPlatform, XL170r Gen10 36TB Add-on Server for Cohesity DataPlatform, XL170r Gen10 Server for BlueData EPIC, XL190r Gen10, XL190r Gen10 for HPE Ezmeral Container Platform, XL225n Gen10 Plus 1U Node, XL230k Gen10 Compute Tray, XL645d Gen10 Plus |
Features - Hewlett Packard - 804394-B21
More Details
Product Code
04:244755
EAN Code
4514953854307
Manufacturer
Hewlett Packard
