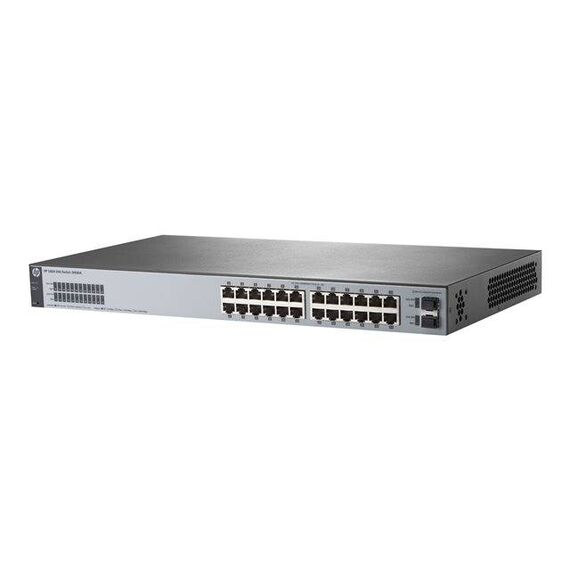

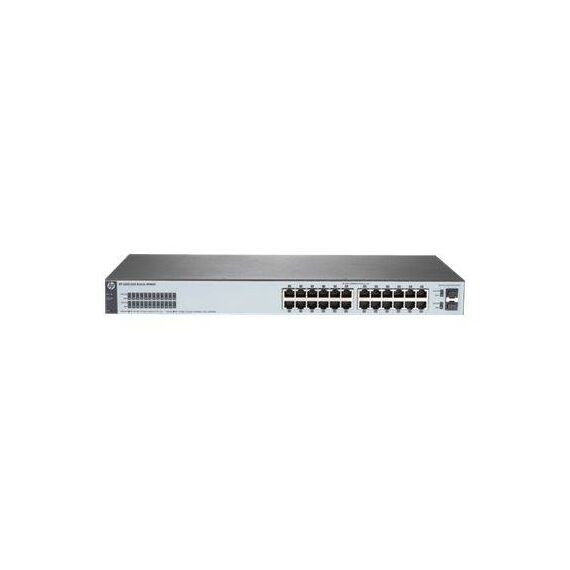

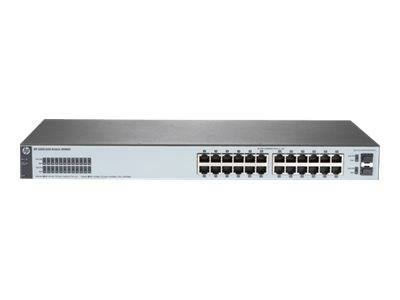

HPE 1820-24G / Switch / Managed / 24 x 10/100/1000 + 2 x Fast Ethernet/Gigabit SFP / desktop, rack-mountable | J9980A
|
Description The HP 1820 Switch Series offers more choice and flexibility for smaller organizations that require ease of use and lower TCO, while delivering better network performance with an enhanced user experience. HP 1820 Switch Series devices are smart-managed, fixed-configuration Gigabit Ethernet Layer 2 switches with basic features in an easy-to-administer solution. The series includes 8-, 24- and 48-port non-PoE and PoE+ Gigabit Ethernet models. Specific models include SFP ports for fiber connectivity. Some models are fanless, making them ideal for office deployments. |
Product Specification
| Device Type | Switch - 24 ports - Managed |
| Enclosure Type | Desktop, rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 24 x 10/100/1000 + 2 x Fast Ethernet/Gigabit SFP |
| Performance | Throughput (64-byte packet size): up to 38.6 Mpps ¦ Switching capacity: 52 Gbps |
| MAC Address Table Size | 8000 entries |
| Jumbo Frame Support | 9220 bytes |
| Remote Management Protocol | SNMP 1, SNMP 2c, HTTPS |
| Encryption Algorithm | SSL |
| Features | Flow control, full duplex capability, Layer 2 switching, DHCP support, BOOTP support, VLAN support, auto-uplink (auto MDI/MDI-X), DoS attack prevention, port mirroring, SNTP support, Quality of Service (QoS), Jumbo Frames support, LLDP support |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1ab (LLDP) |
| Processor | 1 x ARM Cortex-A9: 400 MHz |
| RAM | 128 MB SDRAM |
| Flash Memory | 16 MB |
| Interfaces | 24 x 1000Base-T - RJ-45 ¦ 2 x - SFP |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Rack Mounting Kit | Included |
| MTBF | 80 years |
| Compliant Standards | FCC Class A certified, CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN55022, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, EN55024, UL 60950-1, IEC 60950-1, EN 60950-1, EN 60825, CAN/CSA C22.2 No. 60950-1, VCCI Class A |
| Width | 44.25 cm |
| Depth | 24.61 cm |
| Height | 4.39 cm |
| Weight | 2.72 kg |
| Service & Support | Limited warranty - advance parts replacement - lifetime - response time: next business day |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 15 - 95% (non-condensing) |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 15 - 95% (non-condensing) |
Features - Hewlett Packard - J9980A
More Details
Product Code
03:518361
EAN Code
0888182298978
Manufacturer
Hewlett Packard
