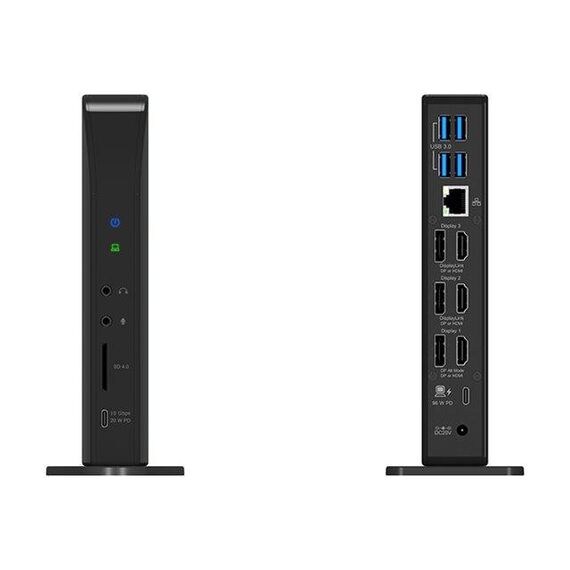

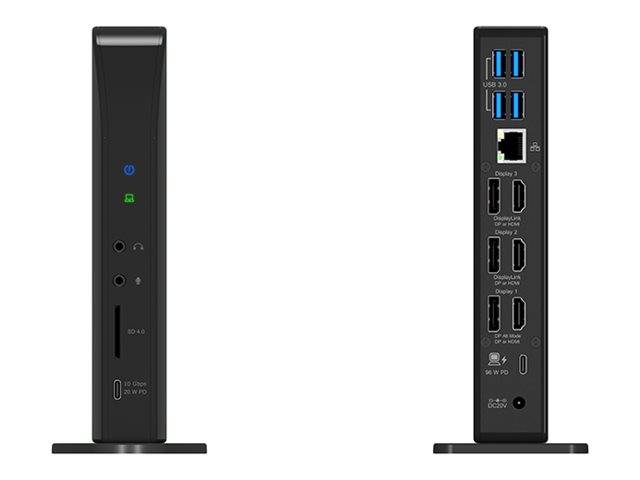

ICY BOX / Docking station / USB-C 3.2 Gen 2 / Thunderbolt 3 / Thunderbolt 4 / 3 x HDMI, 3 x DP / 1GbE / 135 Watt | IB-DK2256AC
Product Features
- Charge your notebook with Power Delivery 3.0
While you're working for hours or are absorbed in a video call, you don't have to worry about your notebook's charging status. Up to 96 watts are provided alongside via the IB-DK2256AC's USB Type-C host interface for continuous performance. Power supply unit is included in the scope of delivery. - Extroverted - recognizes device and OS
The IB-DK2256AC's DisplayLink graphics technology works across platforms and ports, making it the solution for connecting multiple displays and enjoying many docking features on virtually any host computer. Benefit from wired connectivity, ultra-low latency and high interactivity. - Data transfer at a high level
Whether you transfer data at 5 Gbit/s via the USB Type-A ports or charge your mobile phone on the side via the Type-C Fast Charging port, this dock delights with high performance. The SD 4.0 card reader alone loads files, films and pictures in seconds and guarantees fast streaming. With the additional Gigabit LAN port, nothing stands in the way of your connectivity and productivity.
Special Features
- Type-C and Type-A host
- Multiple display
- 5x USB interface
- Up to 10 Gbit/s
- Headphone/microphone
- LAN port
Product Specification
Product Type | Docking station |
Width | 7.2 cm |
Depth | 13.5 cm |
Height | 20.2 cm |
Weight | 620 g |
Enclosure Colour | Black |
Video | Video |
Max Resolution Details | 3840 x 2160 - 60 Hz (Triple Display) ¦ 5120 x 2880 - 60 Hz (DisplayPort only) |
Networking | Networking |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
Expansion / Connectivity | Expansion / Connectivity |
Expansion Slots | 1 (total) / 1 (free) x SD Memory Card |
Interfaces | 4 x USB 3.2 Gen 1 - 9 pin USB Type A ¦ 1 x USB-C 3.2 Gen 2 - 24 pin USB-C ¦ 3 x audio / video - HDMI - 19 pin HDMI Type A ¦ 1 x network - 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 3 x display / video - DisplayPort - 20 pin DisplayPort ¦ 1 x headphones - mini-phone 3.5 mm ¦ 1 x microphone - mini-phone 3.5 mm |
Miscellaneous | Miscellaneous |
Cables Included | 1 x USB-C to USB-C / USB-A cable - external |
Features | UASP transfer protocol, DisplayPort Alt Mode, 96W power delivery, passive cooling, High Bit Rate 3 (HBR3), ABS housing, power LED status |
Compliant Standards | DisplayPort 1.2, DisplayPort 1.4, USB Power Delivery 3.0, DisplayLink certified |
Power | Power |
Power Device | Power adapter |
Voltage Required | AC 100-240 V (50/60 Hz) |
Power Provided | 135 Watt |
System Requirements | System Requirements |
OS Required | Apple MacOS, Microsoft Windows, Ubuntu, Google Chrome OS |
Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
Shipping Width | 9.5 cm |
Shipping Depth | 16 cm |
Shipping Height | 29 cm |
Shipping Weight | 1.53 kg |
