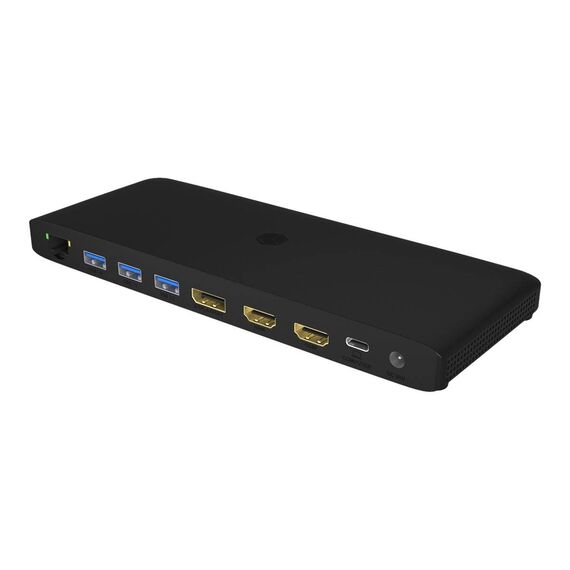

ICY BOX IB-DK2416-C / Docking station / USB-C 3.2 Gen 2 / Thunderbolt 3 / Thunderbolt 4 / 2 x HDMI, DP / 1GbE / 100 Watt / Europe | IB-DK2416-C
Product Features
- Mixed cards
The SD and microSD 3.0 card readers support memory cards such as SD, SDHC, SDXC, microSD and MMC in multi-LUN mode. Simply insert the card into the appropriate slot and swiftly transfer information from the camera or smartphone to the computer or display it on the screen. - Cool head
Efficient cooling concept thanks to convection: the bottom and sides of the enclosure have dust protected ventilation grilles through which the heat generated by operation is dissipated. At the same time, cooler air flows in from below, which cools the interior by passing over the built-in circuit board and additional heat sinks. - Portable design
Chic design to show off or smartly stored? Both is possible. The DockingStation comes with a VESA mount that allows it to be neatly attached to the back of a monitor. This saves space on the desk and creates a tidy working environment. Easy accessibility is always a given.
Special Features
- Productivity - can be increased by connecting multiple screens, this way, several browser windows can be displayed at the same time beyond your notebook screen
- Mirror and expand - your notebook display to one, two or three monitors via two HDMI ports and DisplayPort (up to 3x 4K@30 Hz or 3x 2K@60 Hz)
- 65 watts Power Delivery - charges your host computer via a USB-C interface
- Ethernet up to 1000 Mbit/s - wired network connections are faster and more reliable than any WLAN, with this DockingStation you can use the full performance via the integrated Gigabit Ethernet port
- Up to 5 Gbit/s - on four super speed ports, extend the usability of your notebook and also use mouse, keyboard, controller, printer, external GPU and more
Product Specification
Product Type | Docking station |
Width | 8.8 cm |
Depth | 20.8 cm |
Height | 1.9 cm |
Weight | 310 g |
Enclosure Colour | Black |
Localisation | Europe |
Video | Video |
Max Resolution Details | 3840 x 2160 - 60 Hz (Dual Display) ¦ 3840 x 2160 - 30 Hz (Triple Display) |
Networking | Networking |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
Expansion / Connectivity | Expansion / Connectivity |
Expansion Slots | 1 (total) / 1 (free) x SD Memory Card ¦ 1 (total) / 1 (free) x microSD |
Interfaces | 4 x USB 3.2 Gen 1 - 9 pin USB Type A ¦ 1 x USB-C with Power Delivery (65 W) - 24 pin USB-C ¦ 2 x audio / video - HDMI - 19 pin HDMI Type A ¦ 1 x display / video - DisplayPort - 20 pin DisplayPort ¦ 1 x network - 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 1 x audio - headphones/microphone - 3.5mm audio jack |
Miscellaneous | Miscellaneous |
Cables Included | 1 x USB-C cable - external - 1 m |
Features | LED indicator, DisplayPort Alt Mode, 65W power delivery, plastic housing, passive cooling, Display Stream Compression (DSC) |
Compliant Standards | DisplayPort 1.4, USB Power Delivery 3.0 |
Power | Power |
Power Device | Power adapter |
Voltage Required | AC 100-240 V (50/60 Hz) |
Power Provided | 100 Watt |
System Requirements | System Requirements |
OS Required | Apple MacOS, Microsoft Windows, Google Chrome OS |
Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
Shipping Width | 14 cm |
Shipping Depth | 26.9 cm |
Shipping Height | 9.5 cm |
Shipping Weight | 1.58 kg |
