ICY Dock ToughArmor MB606SPO-B - Storage drive cage - 2.5" - black | MB606SPO-B

Product Features

• Maximize space-efficiency

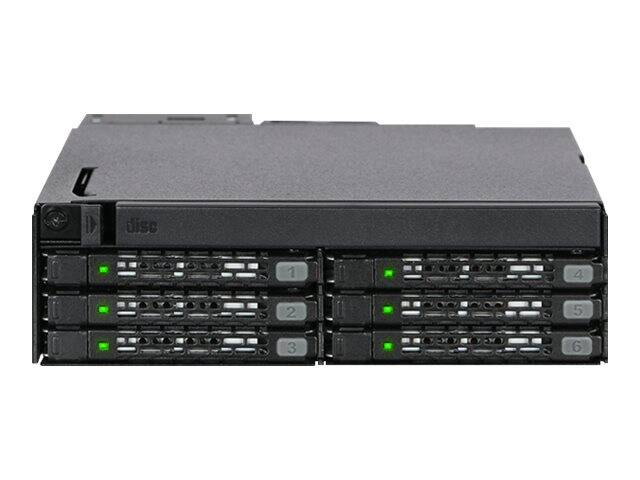

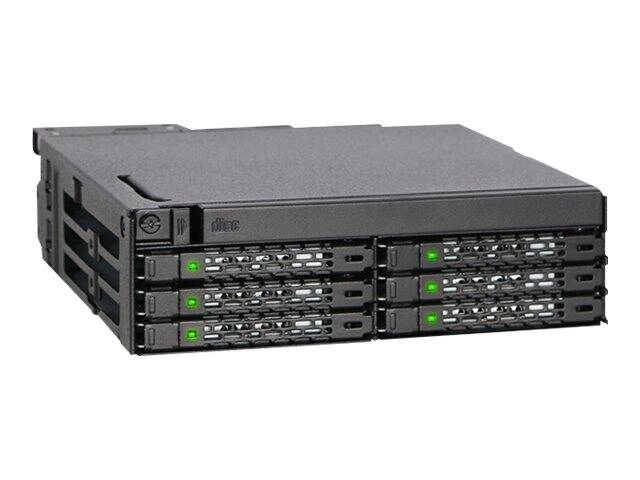

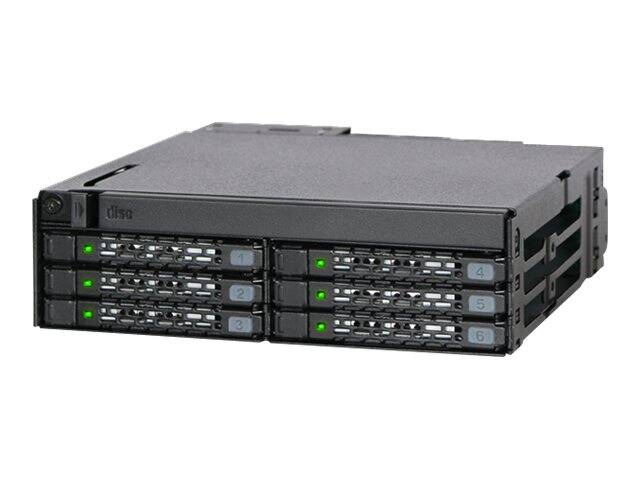

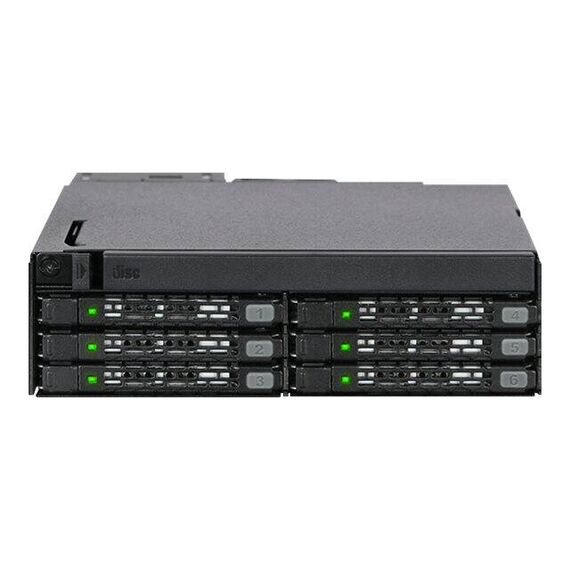

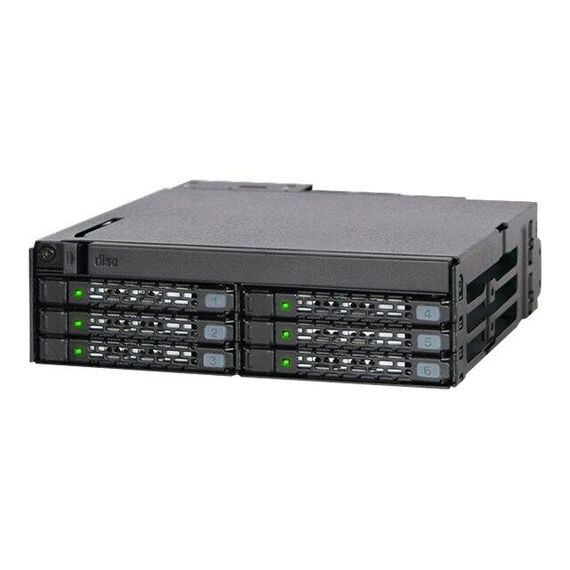

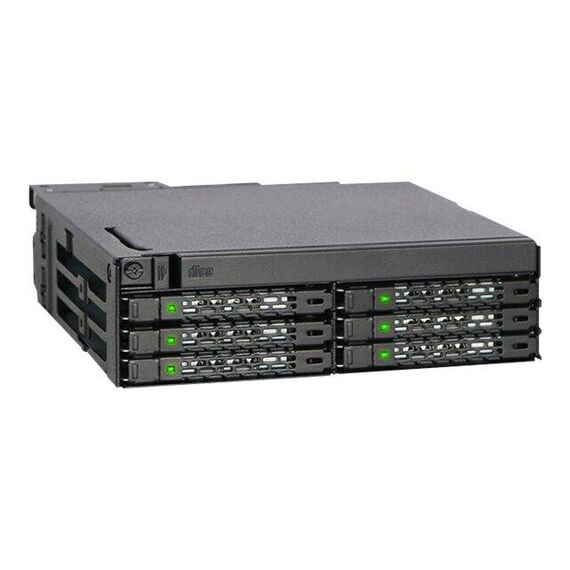

  The high-density design of ToughArmor MB606SPO-B packs six 5mm-7mm 2.5" SSD/HDD hot-swap bays and one Ultra-Slim CD/DVD/Blu-ray ROM optical disk drive into a single 5.25" drive bay, perfect for space-sensitive applications such as powerhouse PC, portable military workstation, and rackmount industrial PC. MB606SPO-B's newly designed optical drive bracket features an adaptable design to support Ultra-Slim 9.5mm CD/DVD/Blu-Ray ROM optical disk drive reader. MB606SPO-B's tray is designed to support HDDs and SSDs up to 7mm in height, making them compatible with SAS drives as well as SATA drives. SAS drives are used in enterprise applications such as long-term archival for their long lifespan and higher reliability.
• Built tough
  ICY DOCK's ToughArmor uses a ruggedized full-metal construction throughout the enclosure and trays, and this trend continues with the MB606SPO-B. ToughArmor is specifically designed for industrial applications operating in strenuous conditions, such as in military and medical applications, avionics systems, factory and warehouse machinery, and any application requiring a flammability rating.
• Packed with features
  To prevent the build-up of dust, which over time can clog internal connectors and inhibit airflow, the included dust cover protects the enclosure when an optical drive is not in use. When you're ready to install an CD/DVD/Blu-ray optical disk drive, the dust cover is easily removed without tools or screws. Individual LED lights for each bay give you drive status updates at a glance, letting you know when your drives are powered on or in use. A user-controllable 40mm cooling fan works with the ample ventilation holes in the tray and chassis to remove as much heat as possible and keep drives running at optimal temperatures. The fan can be set to high for intense mechanical HDD applications, low for use with cooler SSDs, and can be shut off completely to be cooled by the computers built-in cooling system. Support for SATA data and power cables with locking latch designs, so you'll never have to worry about cables accidently disconnecting while in use. Once these cables are connected, they'll stay locked into place until manually removed, providing a reliable power and data connection.

Special Fetures

• Rugged heavy-duty steel construction designed for industrial and commercial applications such as military and medical, servers, data centers, workstations, and portable computer systems
• Perfect for applications that must meet a flammability requirement
• Fits 6x SSDs or HDDs between 5mm and 7mm in height
• Supports SATA III and SAS single-channel
• Supports Ultra-Slim (9.5mm) Optical Disk Drive (ODD Drive)

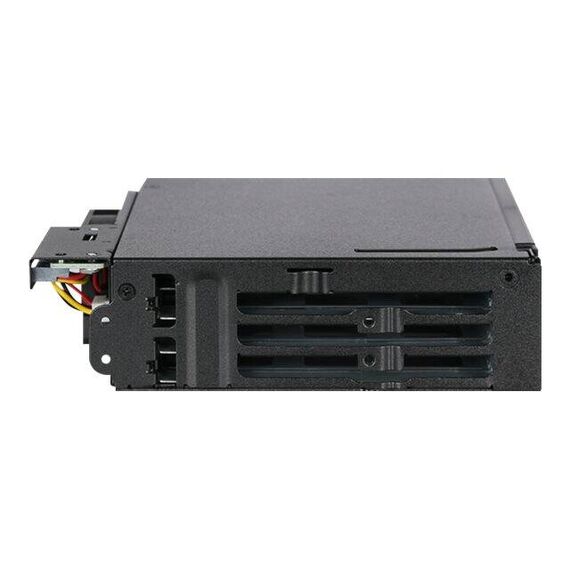

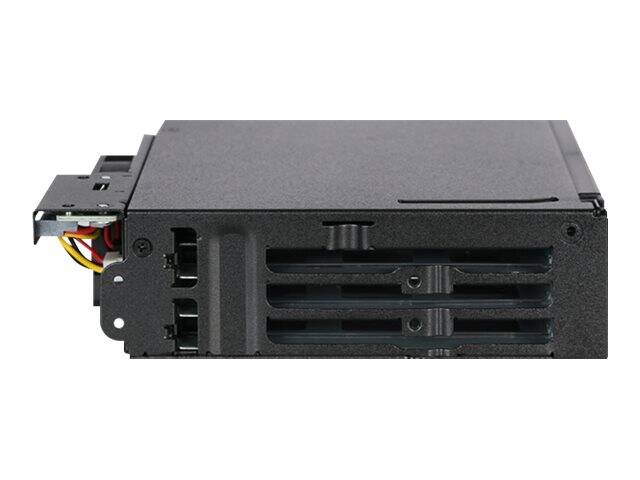

• Spring-loaded ODD bracket for fast installation and removal

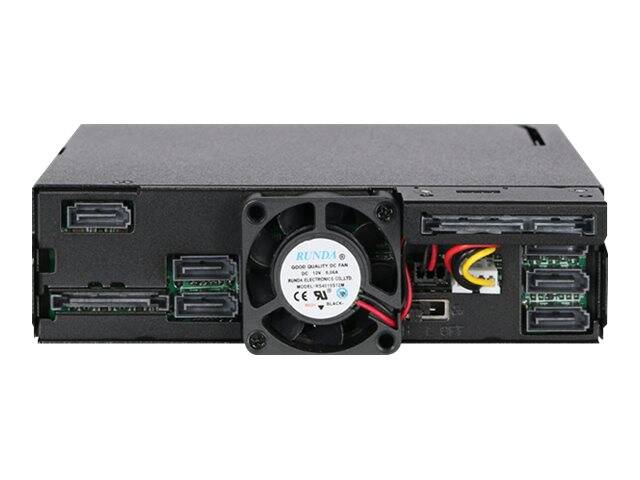

• Dual SATA power connectors separate ODD from HDD/SSD power for stable power delivery

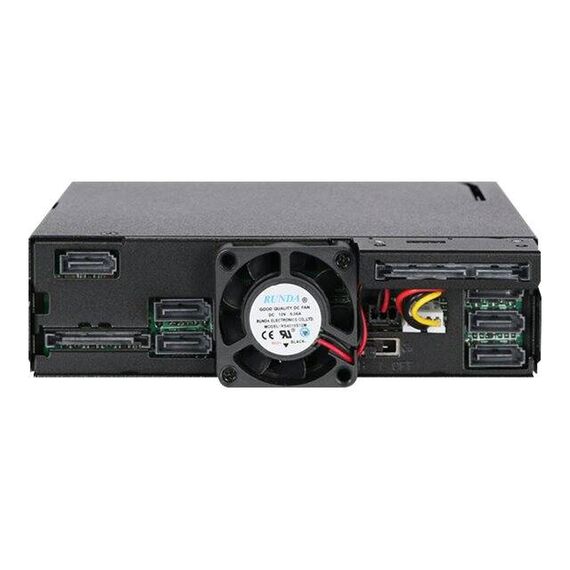

• 40mm cooling fan with high/low/off setting maintains drive temperatures
• Ventilation holes located on the trays and throughout the chassis for excellent passive cooling
• Active Power Technology (APT) - individual LED and cooling fan only powers up if there is a drive installed in the bay
• Individual drive status LED for each bay
• Anti-Vibration Technology (AVT) reduces vibration from mechanical hard drives

Product Specification
