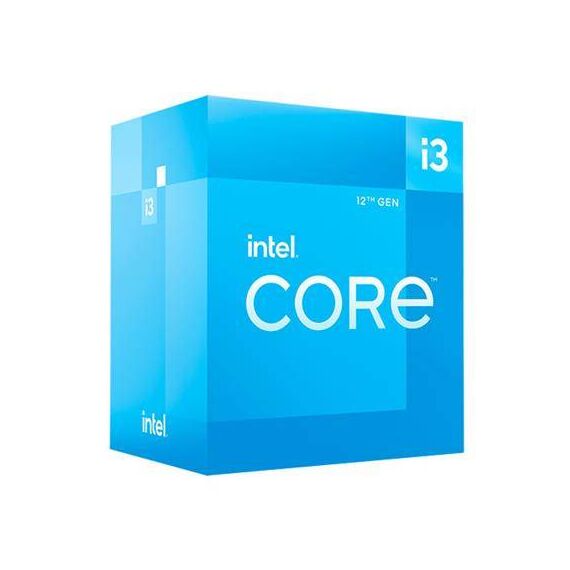

Intel Core i3 12100 / 3.3 GHz / 4 cores / 8 threads / 12 MB cache / Box | BX8071512100

Intel Core i3 12100 3.3 GHz 4 cores 8 BX8071512100

Description
Features

Intel Core i3 12100 / 3.3 GHz / 4 cores / 8 threads / 12 MB cache / Box | BX8071512100

Product Specification

Product Type	Processor
Type / Form Factor	Intel Core i3 12100 (12th Gen)
Number of Cores	Quad-Core
Number of Threads	8 threads
Cache	12 MB
Cache Memory Details	L3 - Smart Cache - 12 MB ¦ L2 - 5 MB
Processor Qty	1
Clock Speed	3.3 GHz
Max Turbo Speed	4.3 GHz
Manufacturing Process	10 nm
Thermal Design Power	89 W
Thermal Specification	100 °C
PCI Express Revision	4.0/5.0
PCI Express Configurations	1x16+4, 2x8+4
PCI Express Lanes Qty	20
Architecture Features	Enhanced SpeedStep technology, Hyper-Threading Technology, Execute Disable Bit capability, Intel Virtualization Technology, Intel 64 Technology, streaming SIMD extensions 4.1, streaming SIMD extensions 4.2, Intel Turbo Boost Technology 2.0, Intel AES New Instructions (AES-NI), Thermal Monitoring Technologies, Intel Virtualization Technology for Directed I/O (VT-d), Idle States, Intel VT-x with Extended Page Tables (EPT), Intel Secure Key, Intel Advanced Vector Extensions 2 (AVX2.0), Intel OS Guard, Intel Speed Shift Technology, Intel Optane Memory Supported, Mode-based Execute Control (MBE), Intel Volume Management Device (VMD), Intel Boot Guard, Intel Deep Learning Boost (DL Boost), Intel Control-Flow Enforcement Technology, Intel Gaussian and Neural Accelerator 3.0, Instruction Set 64-bit
Type	Intel UHD Graphics 730
Base Frequency	300 MHz
Max Dynamic Frequency	1.4 GHz
Max Supported Resolution	5120x3200@120Hz (eDP), 7680x4320@60Hz (DP), 4096x2160@60Hz (HDMI)
Features	Intel Clear Video HD Technology, Intel Quick Sync Video, Quad Display Capable
Package Type	Intel Boxed
Service & Support	Limited warranty - 3 years
