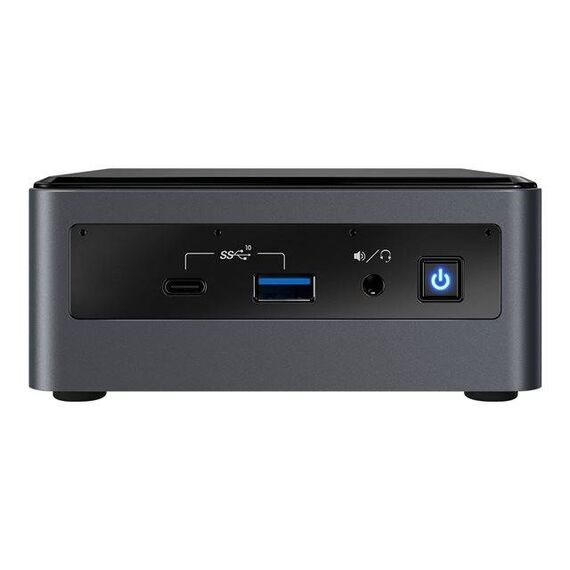

Intel NUC Kit 10 Performance NUC10i7FNHN Barebone / mini PC / Core i7 10710U / 1.1 GHz / RAM 0 GB / UHD Graphics / GigE / WLAN: Bluetooth 5.0, 802.11a/b/g/n/ac/ax | BXNUC10I7FNHN
BXNUC10I7FNHN
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Intel Next Unit of Computing Kit 10 Performance / NUC10i7FNHN / Barebone / mini PC / 1 x Core i7 10710U / 1.1 GHz / RAM 0 GB / UHD Graphics / GigE / WLAN: Bluetooth 5.0, 802.11a/b/g/n/ac/ax | BXNUC10I7FNHN
Product Specification
| Type | PC barebone |
| Product Form Factor | Mini PC |
| Sensors | Infrared (IR) sensor |
| CPU | Intel Core i7 (10th Gen) 10710U |
| Clock Speed | 1.1 GHz |
| Max Turbo Speed | 4.7 GHz |
| Number of Cores | 6-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| CPU Upgradability | Not upgradable |
| Processor Main Features | Hyper-Threading Technology, Intel Virtualization Technology, Intel Trusted Execution Technology, Intel AES New Instructions |
| Installed Size | L3 Cache - 12 MB |
| Cache Per Processor | 12 MB |
| Installed Size | 0 GB / 64 GB (max) |
| Technology | DDR4 SDRAM |
| Form Factor | SO-DIMM 260-pin |
| Slots | 2 (Total) / 2 (empty) |
| Features | Dual channel memory architecture |
| Type | No HDD |
| Type | SATA |
| Controller Interface Type | SATA 6Gb/s / PCIe 3.0 x4 (NVMe) |
| RAID Level | RAID 0, RAID 1 |
| Type | No optical drive |
| Type | Card reader |
| Supported Flash Memory Cards | SDXC UHS-II Memory Card |
| Monitor Type | None. |
| Graphics Processor | Intel UHD Graphics |
| Video Interfaces | HDMI, USB-C |
| Max Monitors Supported | 3 |
| Sound Output Mode | 7.1 channel surround |
| Compliant Standards | High Definition Audio |
| Ethernet Controller | Intel I219-V |
| Wireless LAN Supported | Yes |
| Wireless NIC | Intel Wireless-AX MAC |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0, IEEE 802.11ax (Wi-Fi 6) |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0, IEEE 802.11ax, Wi-Fi CERTIFIED 6 |
| Bays | 1 (total) / 1 (free) x internal 2.5" |
| Slots | 1 (total) / 1 (free) x M.2 Card - 2242/2280 (Key M) |
| Interfaces | 3 x USB 3.1 Gen 2 - Type A (1 front, 2 rear) ¦ 2 x Thunderbolt 3/USB-C 3.1 Gen 2 - Type C (1 front, 1 rear) (one of them is fast-charging) ¦ 1 x HDMI ¦ 1 x LAN (Gigabit Ethernet) - RJ-45 |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington security slot |
| Compliant Standards | CISPR 24, ICES-003, EN55024, FCC Part 15 B, FCC Part 15 C, AS/NZS 4268, FCC Part 15 E, BSMI CNS 13438, REACH, EN 62311, EN 300.440, China RoHS, EN 300 328, EN 301 489-1, CISPR32/EN55032, KN32, KN35, AS/NZS 2772.2, EN 301 893, IEC/EN/UL 60950-1, EN 301 489-3, EU RoHS, IEC/EN/UL 62368-1, EN 301 489-17, ARPANSA, Taiwan BSMI RoHS, AS/NZS CISPR 32, VCCI 32 |
| Device Type | Power adapter |
| Voltage Required | DC 19 V |
| Power Provided | 120 Watt |
| Service & Support | Limited warranty - 3 years |
| Width | 11.7 cm |
| Depth | 11.2 cm |
| Height | 5.1 cm |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 35 °C |
Features - Intel - BXNUC10I7FNHN
More Details
Product Code
07:123388
EAN Code
5032037220903
Manufacturer
Intel
