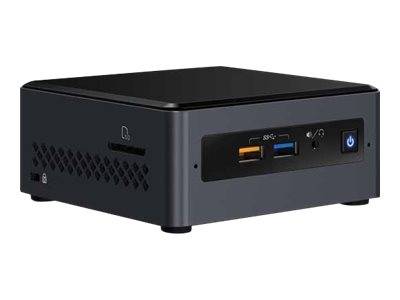

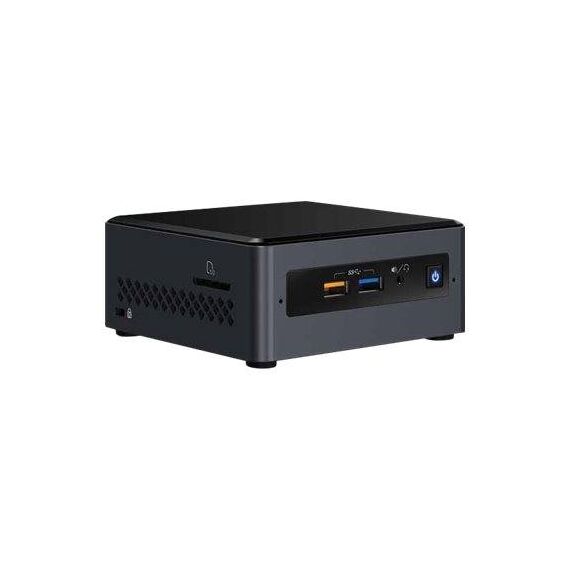

Intel Next Unit of Computing Kit NUC7CJYHN / Barebone / mini PC / 1 x Celeron J4005 / 2 GHz / RAM 0 GB / UHD Graphics 600 / GigE / WLAN: 802.11a/b/g/n/ac, Bluetooth 5.0 | BOXNUC7CJYHN2
BOXNUC7CJYHN2
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
- Pint-sized power
The Intel NUC is a mini PC with the power of a desktop, packing features for entertainment, gaming, and productivity in a 4 x 4 form factor. - Energy optimized, media savvy
With Intel NUC, you get an immersive media experience and responsive interaction while consuming a small amount of power relative to a full-sized PC. - Flexibility for future growth
Due to its portable size and ease of installation, the Intel NUC makes it easy to add devices and scale up rapidly based on changing productivity needs.
Special Features
- Pint-sized power
- Energy optimized, media savvy
- Flexibility for future growth
Product Specification
| Type | PC barebone |
| Product Form Factor | Mini PC |
| Localisation | Region: Europe |
| Processor / Chipset | Processor / Chipset |
| CPU | Intel Celeron J4005 |
| Clock Speed | 2 GHz |
| Max Turbo Speed | 2.7 GHz |
| Number of Cores | Dual-Core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| CPU Upgradability | Not upgradable |
| Processor Main Features | Intel Virtualization Technology, Intel AES New Instructions, Intel Platform Trust Technology (PTT) |
| Cache Memory | Cache Memory |
| Installed Size | 4 MB |
| Cache Per Processor | 4 MB |
| RAM | RAM |
| Installed Size | 0 GB / 8 GB (max) |
| Technology | DDR4 SDRAM |
| Form Factor | SO-DIMM 260-pin |
| Slots | 2 (Total) / 2 (empty) |
| Features | Dual channel memory architecture |
| Hard Drive | Hard Drive |
| Type | No HDD |
| Storage Controller | Storage Controller |
| Type | SATA |
| Controller Interface Type | SATA 6Gb/s |
| Optical Storage | Optical Storage |
| Type | No optical drive |
| Card Reader | Card Reader |
| Type | Card reader |
| Supported Flash Memory Cards | SDXC UHS-I Memory Card |
| Monitor | Monitor |
| Monitor Type | None. |
| Graphics Controller | Graphics Controller |
| Graphics Processor | Intel UHD Graphics 600 |
| Video Interfaces | HDMI |
| Max Monitors Supported | 2 |
| Audio Output | Audio Output |
| Sound Output Mode | 7.1 channel surround |
| Compliant Standards | High Definition Audio |
| Networking | Networking |
| Wireless LAN Supported | Yes |
| Wireless NIC | Intel Dual Band Wireless-AC 9462 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0 |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0 |
| Expansion / Connectivity | Expansion / Connectivity |
| Bays | 1 (total) / 1 (free) x internal 2.5" |
| Interfaces | 4 x USB 3.0 - Type A (2 front, 2 rear) (one of them is fast-charging) ¦ 2 x USB 2.0 (2 internal) ¦ 2 x HDMI ¦ 1 x LAN (Gigabit Ethernet) - RJ-45 |
| Miscellaneous | Miscellaneous |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington security slot |
| Compliant Standards | EN55024, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, AS/NZS 4268, WEEE, FCC CFR47 Part 15 C, FCC CFR47 Part 15 B, VCCI V-2, VCCI V-4, Directive 2012/19/EU, Directive 2011/65/EU, KN24, AS/NZS 2772.2, FCC CFR47 Part 15 E, CAN/CSA-C22.2 No. 60950-1, ICES-005, ETSI EN 500 528, ETSI EN 501 489-1, ETSI EN 501 489-17, ETSI EN 501 895, EN 62511, VCCI V-5, CNS 15458, CISPR 52, EN 55052, KN 52 |
| Power | Power |
| Device Type | Power adapter |
| Power Provided | 65 Watt |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 3 years |
| Dimensions & Weight | Dimensions & Weight |
| Width | 11.5 cm |
| Depth | 11.1 cm |
| Height | 5.1 cm |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
Features - Intel - BOXNUC7CJYHN2
CPU Type
- Intel Celeron
More Details
Product Code
07:121452
EAN Code
5032037220729
Manufacturer
Intel
