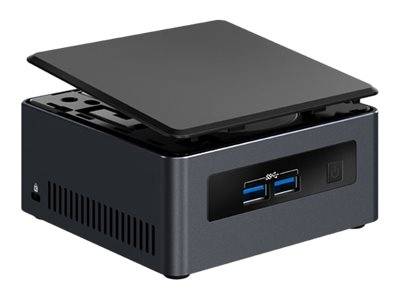

Intel NUC Kit NUC7i7DNHE / Barebone / mini PC / Core i7 8650U / 1.9 GHz / UHD Graphics 620 / GigE / WLAN, Bluetooth 4.2 / vPro | BLKNUC7I7DNH2E
BLKNUC7I7DNH2E
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Intel NUC Kit NUC7i7DNHE / Barebone / mini PC / Core i7 8650U / 1.9 GHz / UHD Graphics 620 / GigE / WLAN, Bluetooth 4.2 / vPro | BLKNUC7I7DNH2E
|
Description No more compromising between performance, profile, and value. The NUC is a tiny computing device with the power of advanced processor. Its lower power consumption enables innovative system designs and energy-efficient applications in places like digital signage, home entertainment, and portable uses. Intel Next Unit of Computing Kit NUC7i7DNHE / Barebone / mini PC / Core i7 8650U / vPro | BLKNUC7I7DNH2ESpecial Features
Product features
|
Product Specification
| Platform Technology | Intel vPro Technology |
| Type | PC barebone |
| Product Form Factor | Mini PC |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| CPU | Intel Core i7 (8th Gen) 8650U / 1.9 GHz |
| Max Turbo Speed | 4.2 GHz |
| Number of Cores | Quad-Core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| CPU Upgradability | Not upgradable |
| Processor Main Features | Intel Virtualization Technology, Intel Trusted Execution Technology, Intel AES New Instructions |
| Installed Size | L3 Cache - 8 MB |
| Cache Per Processor | 8 MB |
| Installed Size | 0 MB / 32 GB (max) |
| Technology | DDR4 SDRAM |
| Form Factor | SO-DIMM 260-pin |
| Slots | 2 (Total) / 2 (empty) |
| Features | Dual channel memory architecture |
| Type | No HDD |
| Type | 2 x SATA |
| Controller Interface Type | SATA 6Gb/s |
| Type | No optical drive |
| Monitor Type | None. |
| Graphics Processor | Intel UHD Graphics 620 |
| Video Interfaces | HDMI, DisplayPort |
| Sound Output Mode | 7.1 channel surround |
| Compliant Standards | High Definition Audio |
| Ethernet Controller | Intel I219-LM |
| Wireless LAN Supported | Yes |
| Wireless NIC | Intel Dual Band Wireless-AC 8265 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 4.2 |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 4.2 |
| Bays | 1 (total) / 1 (free) x internal 2.5" |
| Slots | 1 M.2 Card - 2230 (Key E) ¦ 1 M.2 Card - 2280 (Key M) |

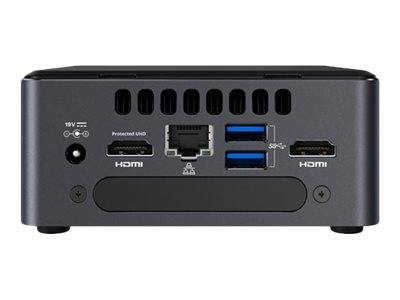

| Interfaces | 4 x USB 3.0 (2 front, 2 rear) ¦ 2 x HDMI ¦ 1 x LAN (Gigabit Ethernet) - RJ-45 ¦ 1 x LAN (Gigabit Ethernet) - RJ-45 ¦ 2 x SATA-600 ¦ 1 x DisplayPort |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington security slot |
| Compliant Standards | CISPR 24, EN55022, ICES-003, EN55024, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, FCC CFR47 Part 15 B, Directive 2004/108/EC, Directive 2006/95/EC, KN24, CNS 13438, KN35, EN 62368-1, CISPR 32, EN 55032, CSA 60950-1 |
| Device Type | Power adapter |
| Power Provided | 65 Watt |
| Service & Support | Limited warranty - 3 years |
Features - Intel - BLKNUC7I7DNH2E
More Details
Product Code
1358932
EAN Code
5032037121927
Manufacturer
Intel
