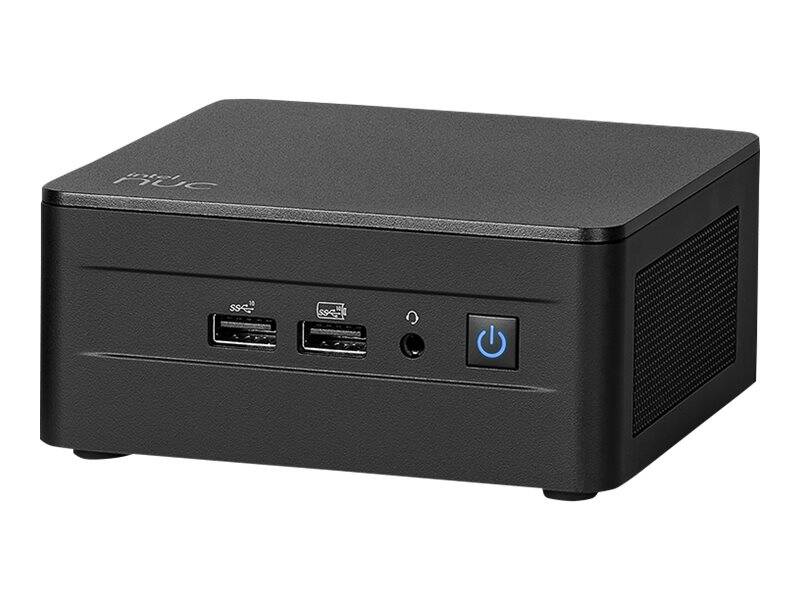

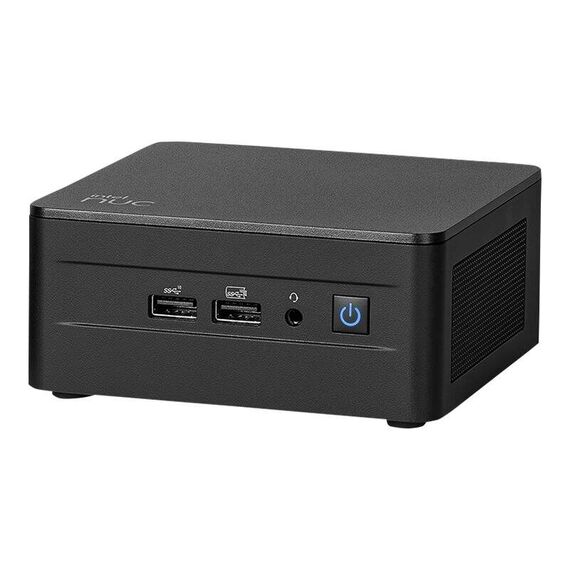

Intel Next Unit of Computing 13 Pro Kit / NUC13ANHi5 / Barebone / tall chassis / 1 x Core i5 1340P / RAM 0 GB / Intel Iris Xe Graphics / Gigabit Ethernet, 2.5 Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.3 WLAN: / 802.11a/b/g | 90AB3ANH-MR6100
90AB3ANH-MR6100
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Specification
| Type | PC barebone |
| Product Form Factor | Tall chassis |
| Sensors | Temperature sensor, voltage sensor |
| Processor / Chipset | Processor / Chipset |
| CPU | Intel Core i5 (13th Gen) 1340P |
| Max Turbo Speed | 4.6 GHz (P-core) / 3.4 GHz (E-core) |
| Number of Cores | 12-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Processor Main Features | Intel Virtualization Technology, Intel Smart Cache, Intel AES New Instructions, Intel Virtualization Technology for Directed I/O, Intel Platform Trust Technology (PTT) |
| Cache Memory | Cache Memory |
| Installed Size | 12 MB |
| Cache Per Processor | 12 MB |
| RAM | RAM |
| Installed Size | 0 GB / 64 GB (max) |
| Technology | DDR4 SDRAM |
| Rated Memory Speed | 3200 MHz |
| Form Factor | SO-DIMM 260-pin |
| Slots | 2 (Total) / 2 (empty) |
| Features | Dual channel memory architecture |
| Hard Drive | Hard Drive |
| Type | No HDD |
| Storage Controller | Storage Controller |
| Type | SATA/NVMe |
| Controller Interface Type | SATA 6Gb/s / PCIe 4.0 x4 (NVMe) |
| Optical Storage | Optical Storage |
| Type | No optical drive |
| Monitor | Monitor |
| Monitor Type | None. |
| Graphics Controller | Graphics Controller |
| Interface Type | Thunderbolt 4 / HDMI |
| Graphics Processor | Intel Iris Xe Graphics 80EU |
| Video Interfaces | HDMI, USB-C |
| Max Monitors Supported | 4 |
| Audio Output | Audio Output |
| Sound Output Mode | 7.1 channel surround |
| Compliant Standards | High Definition Audio |
| Networking | Networking |
| Ethernet Controller | Intel I226-V |
| Wireless LAN Supported | Yes |
| Wireless NIC | Intel Wi-Fi 6E AX 211 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 2.5 Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.3 |
| Expansion / Connectivity | Expansion / Connectivity |
| Bays | 1 (total) / 1 (free) x internal 2.5" |
| Slots | 1 (total) / 1 (free) x M.2 Card - 2280 (Key M) ¦ 1 (total) / 1 (free) x M.2 Card - 2242 (Key B) ¦ 1 (total) / 0 (free) x M.2 Card - 2230 (Key E) |
| Interfaces | 2 x Thunderbolt 4/USB4/DisplayPort - Type C (2 rear) ¦ 3 x USB 3.2 Gen 2 - Type A (2 front, 1 rear) ¦ 1 x USB 2.0 - Type A (1 rear) ¦ 2 x USB 2.0 - header (2 internal) ¦ 2 x HDMI ¦ 1 x LAN (2.5Gigabit Ethernet) - RJ-45 ¦ 1 x headphones/microphone - stereo mini-jack |
| Miscellaneous | Miscellaneous |
| Included Accessories | VESA Adapter |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington security slot |
| Compliant Standards | ICES-003, EN55024, FCC Part 15 B, FCC Part 15 C, IEC 60950-1, EN 60950-1, AS/NZS 4268, FCC Part 15 E, BSMI CNS 13438, CISPR, REACH, E-Standby, ERP, CEL, EN 62311, EN 300.440, China RoHS, EN 300 328, GEMS, EN 301 489-1, KN32, KN35, EN 62368-1, IEC 62368-1, AS/NZS 2772.2, EN 301 893, EN 55032, EN 301 489-3, EU RoHS, UL 62368-1, EN 301 489-17, ARPANSA, Taiwan BSMI RoHS, AS/NZS CISPR 32, VCCI 32 |
| Power | Power |
| Device Type | Power adapter |
| Power Provided | 120 Watt |
| Operating System / Software | Operating System / Software |
| Software | Intel Management Engine Firmware 16.1 |
| Sustainability Information | Sustainability Information |
| ENERGY STAR Certified | Yes |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 3 years |
| Dimensions & Weight | Dimensions & Weight |
| Width | 11.7 cm |
| Depth | 11.2 cm |
| Height | 5.4 cm |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
Features - Asus - 90AB3ANH-MR6100
CPU Type
- Intel Core i5
More Details
Product Code
07:464241
EAN Code
5032037267885
Manufacturer
Asus
