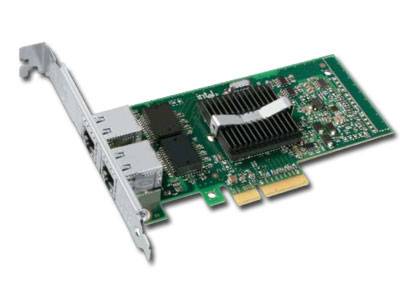

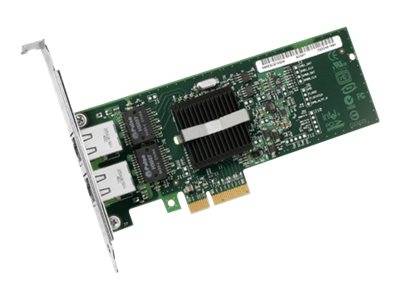

Intel PRO/1000 PT Dual Port Server Adapter / Network adapter / PCIe x4 / Gigabit Ethernet x 2 | EXPI9402PTBLK
|
Description Conserve valuable PCI Express (PCIe) server slots while adding multi-port Gigabit Ethernet capability with the Intel PRO/1000 PT Dual Port Server Adapter. The dedicated input/output (I/O) bandwidth of PCIe ensures priority performance on each port - without bus sharing - for Gigabit Ethernet connectivity in Category-5 networks. Additionally, the Intel PRO/1000 PT Dual Port Server Adapter is designed to provide high performance in multi-processor systems by efficiently balancing network loads across multiple Central Processing Units (CPUs) when used with Receive-Side Scaling from Microsoft or Scalable I/O on Linux. |
Product Specification
| Device Type | Network adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | PCI Express x4 |
| PCI Specification Revision | PCIe 1.0a |
| Ports | Gigabit Ethernet x 2 |
| Connectivity Technology | Wired |
| Cabling Type | Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, GigE |
| Data Transfer Rate | 1 Gbps |
| Remote Management Protocol | SNMP, DMI 2.0 |
| Status Indicators | Port transmission speed, link OK |
| Features | Full duplex capability, ACPI support, auto-negotiation, wake on LAN (WOL), Intel I/O Acceleration Technology (I/OAT) |
| Compliant Standards | IEEE 802.3u, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), WfM 2.0 |
| Processor | 82571GB - Intel |
| Interfaces | 2 x 1000Base-T - RJ-45 |
| Compatible Slots | 1 x PCI Express x4 |
| Compatible with Windows 7 | "Compatible with Windows 7" software and devices carry Microsoft's assurance that these products have passed tests for compatibility and reliability with 32-bit and 64-bit Windows 7. |
| Compliant Standards | FCC Class B certified, UL, VCCI, C-Tick, BSMI, MIC, RoHS |
| Package Type | Bulk |
| Software Included | Intel PROSet |
| OS Required | SCO OpenServer 5, Microsoft Windows 2000, Novell NetWare 5.x, SunSoft Solaris x86 8, Novell NetWare 6.x, Caldera OpenUnix 8, Linux 2.4 or later, Microsoft Windows Server 2003 Enterprise Edition, Microsoft Windows Server 2003 Datacenter Edition, FreeBSD 4.x |
| Width | 2.2 cm |
| Depth | 12.9 cm |
| Height | 12 cm |
| Service & Support | Limited warranty - lifetime |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 55 °C |
Features - Intel - EXPI9402PTBLK
More Details
Product Code
04:114230
EAN Code
675900670624
Manufacturer
Intel
