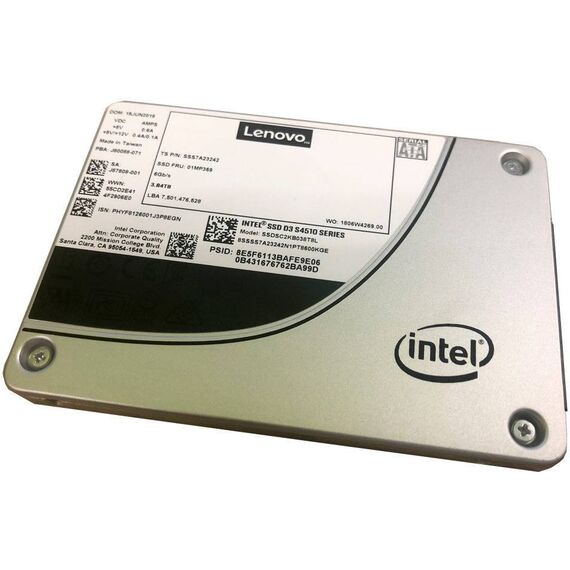

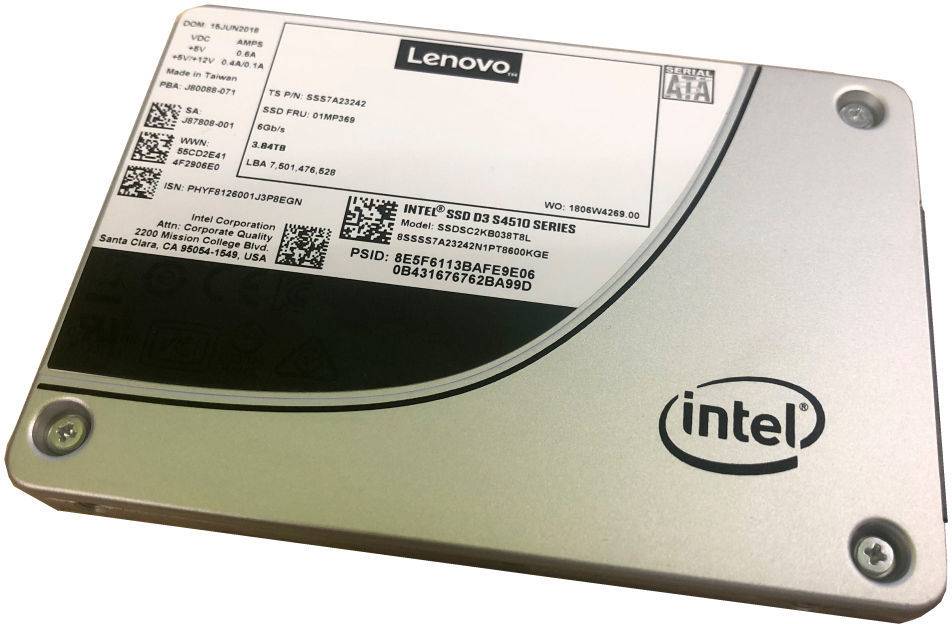

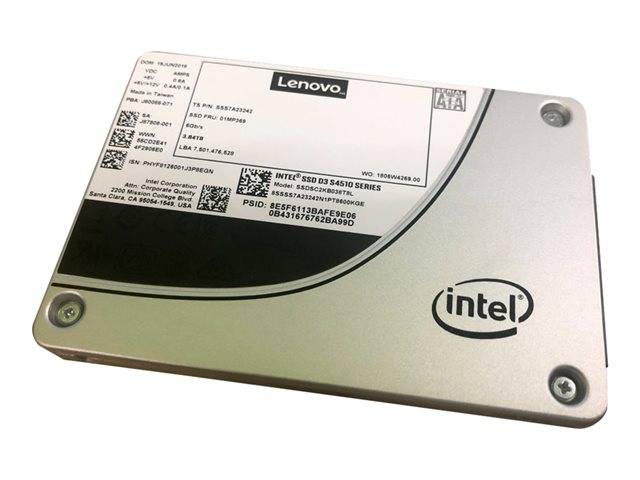

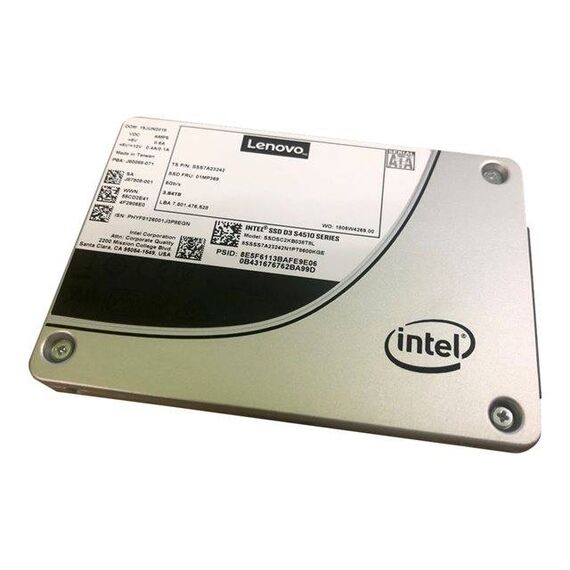

Intel S4510 Entry / Solid state drive / encrypted / 480 GB / hot-swap / 2.5" / SATA 6Gb/s / 256-bit AES / for ThinkSystem SD530 / SN850 / SR250 / SR530 / SR550 / SR570 / SR590 / SR850 / SR860 / SR950 / ST250 | 4XB7A10248
4XB7A10248
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Intel S4510 Entry / Solid state drive / encrypted / 480 GB / hot-swap / 2.5" / SATA 6Gb/s / 256-bit AES / for ThinkSystem SD530 / SN850 / SR250 / SR530 / SR550 / SR570 / SR590 / SR850 / SR860 / SR950 / ST250 | 4XB7A10248
Description
The Intel S4510 Entry SATA solid-state drives (SSDs) for Lenovo servers use Intel 64-layer 3D NAND TLC Flash Memory technology with a 6 Gbps SATA interface to provide an affordable solution with industry leading performance. Compared with the Intel S4500 series, these drives offer improved performance and significantly improved endurance. The S4510 SSDs are optimized for read-intensive applications such as boot, web servers, lower data rate operational databases and analytics.
Intel S4510 Entry / Solid state drive | 4XB7A10248
Special Features
- Cost-effective Intel 3D NAND TLC Flash Memory
- SATA TLC solid-state drive with high read performance and consistently low latencies to fulfill client needs in the enterprise space
- High reliability and enhanced ruggedness
- Energy savings, with typical write power consumption as low as 2.4 W per drive
- Absence of moving parts to reduce potential failure points in the server
- S.M.A.R.T. support
- Advanced Encrypting Standard (AES) 256-bit encryption
- Full end-to-end data path protection
- Thermal throttling to extend the life of the drive
- Enhanced power loss data protection
Product Specification
| Device Type | Solid state drive - hot-swap |
| Capacity | 480 GB |
| Hardware Encryption | Yes |
| Encryption Algorithm | 256-bit AES |
| NAND Flash Memory Type | 3D triple-level cell (TLC) |
| Form Factor | 2.5" |
| Interface | SATA 6Gb/s |
| Features | Enhanced Power Loss Data Protection, Thermal throttling, End-to-end data path protection, End-to-end data protection, 3D NAND Technology, Standard Endurance Technology (SET), S.M.A.R.T. |
| Weight | 63 g |
| Drive Writes Per Day (DWPD) | 1.4 |
| SSD Endurance | 1.2 PB |
| Drive Transfer Rate | 600 MBps (external) |
| Internal Data Rate | 560 MBps (read) / 510 MBps (write) |
| 4KB Random Read | 90000 IOPS |
| 4KB Random Write | 19000 IOPS |
| Average Latency | 36 µs |
| MTBF | 2,000,000 hours |
| Non-Recoverable Errors | 1 per 10^17 |
| Interfaces | 1 x SATA 6 Gb/s |
| Compatible Bay | 2.5" |
| Power Consumption | 2.9 Watt (typical) |
| Included Accessories | Hot-plug tray |
| Compliant Standards | BSMI CNS 13438, EN 60950-1 Second Edition, RoHS 2011/65/EU, LVD 2006/95/EC, EN55022:2006, WEEE 2002/96/EC, EN55024:1998, CAN/CSA-CEI/IEC CISPR 22:02, FCC CFR47 Part 15 B Class B, AS/NZS 3584, UL/CSA60950-1 (2nd Edition), KCC Article 11.1 |
| Shipping Width | 17.4 cm |
| Shipping Depth | 13.3 cm |
| Shipping Height | 6.3 cm |
| Shipping Weight | 434 g |
| Service & Support | Limited warranty - replacement - 1 year |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 70 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Shock Tolerance (operating) | 1000 g @ 0.5 ms |
| Vibration Tolerance (operating) | 2.17 g @ 5-700 Hz |
| Vibration Tolerance (non-operating) | 3.13 g @ 5-800 Hz |
| Designed For | Lenovo ThinkSystem SD530 (2.5") ¦ Lenovo ThinkSystem SN550 (2.5") ¦ Lenovo ThinkSystem SN850 (2.5") ¦ Lenovo ThinkSystem SR250 (2.5") ¦ Lenovo ThinkSystem SR530 (2.5") ¦ Lenovo ThinkSystem SR550 (2.5") ¦ Lenovo ThinkSystem SR570 (2.5") ¦ Lenovo ThinkSystem SR590 (2.5") ¦ Lenovo ThinkSystem SR630 (2.5") ¦ Lenovo ThinkSystem SR650 (2.5") ¦ Lenovo ThinkSystem SR850 (2.5") ¦ Lenovo ThinkSystem SR860 (2.5") ¦ Lenovo ThinkSystem SR950 (2.5") ¦ Lenovo ThinkSystem ST250 (2.5") ¦ Lenovo ThinkSystem ST550 (2.5") |
Features - Lenovo - 4XB7A10248
More Details
Product Code
S60C9F7
EAN Code
0889488475223
Manufacturer
Lenovo
