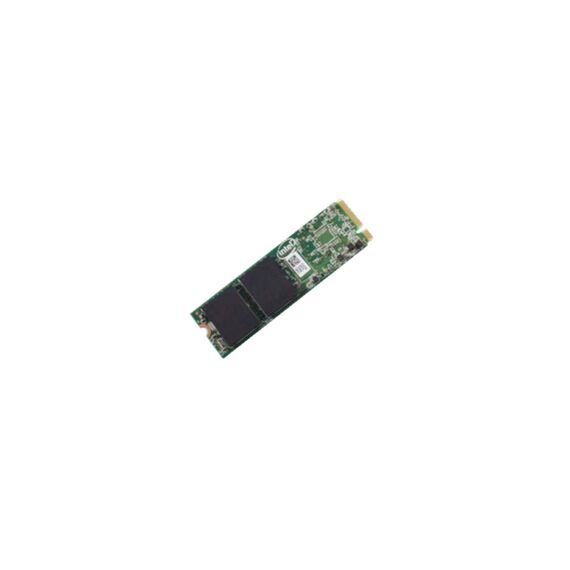

Intel Solid-State Drive 530 Series / Solid state drive / 240 GB / internal / M.2 2280 / SATA 6Gb/s | SSDSCKHW240A401
Intel Solid-State Drive 530 Series / Solid state drive / 240 GB / internal / M.2 2280 / SATA 6Gb/s | SSDSCKHW240A401
Description With Intel SSD 530 series, your computer will blaze through the most demanding consumer client applications and will easily handle your multi-tasking needs. With no moving parts, the Intel SSD 530 series reduces your risk of data loss caused by shock or vibration during operation. The Intel SSD 530 series is specially targeted toward consumer Ultrabooks and notebooks, All-in-One (AIO) desktops, next unit of computing (NUC), and embedded designs. In addition to the strong performance gains, Intel SSD 530 series introduces low power modes with cell phone-like standby battery life. Special Features
Product features
|
Product Specification
Device Type | Solid state drive - internal |
Capacity | 240 GB |
NAND Flash Memory Type | 20nm multi-level cell (MLC) |
Form Factor | M.2 2280 |
Interface | SATA 6Gb/s |
Features | Native Command Queuing (NCQ), End-to-end data protection (ANSI), Intel Rapid Storage Technology , S.M.A.R.T., 256-bit AES |
Width | 22 mm |
Depth | 80 mm |
Height | 3.58 mm |
Weight | 10 g |
Drive Transfer Rate | 600 MBps (external) |
Internal Data Rate | 540 MBps (read) / 490 MBps (write) |
4KB Random Read | 41000 IOPS |
4KB Random Write | 80000 IOPS |
MTBF | 1,200,000 hours |
Non-Recoverable Errors | 1 per 10^16 |
Interfaces | 1 x SATA 6 Gb/s - M.2 Card |
Power Consumption | 140 mW ( active ) ¦ 55 mW ( idle ) |
Compatible with Windows 7 | "Compatible with Windows 7" software and devices carry Microsoft's assurance that these products have passed tests for compatibility and reliability with 32-bit and 64-bit Windows 7. |
Compliant Standards | UL, VCCI, C-Tick, BSMI, EN55022, ICES-003, EN55024, CISPR 22, FCC Part 15 B, RoHS, UL 60950-1 Second Edition, KCC, EN 60950-1 Second Edition |
Package Type | OEM |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 70 °C |
Humidity Range Operating | 5 - 95% |
Shock Tolerance | 1000 g @ 0.5ms (operating) / 1000 g @ 0.5ms (non-operating) |
Vibration Tolerance | 2.17 g @ 5-700 Hz (operating) / 3.13 g @ 5-800 Hz (non-operating) |
Features - Intel - SSDSCKHW240A401
- 2.5"
- Internal
- M.2
